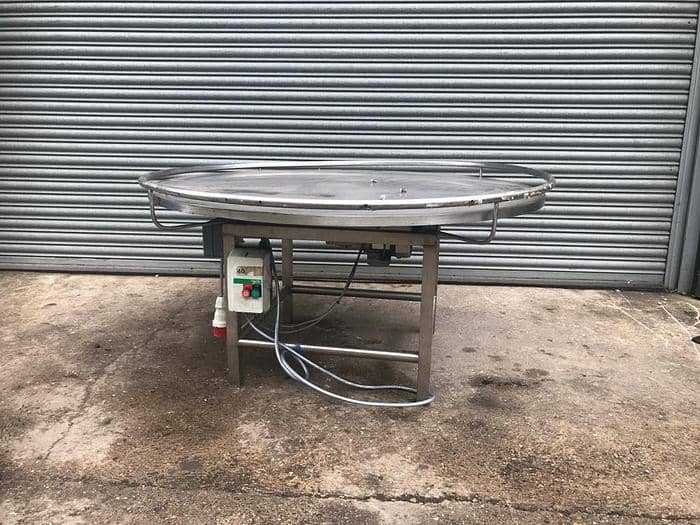

/images/stories/virtuemart/product/DG00083.jpg - Rotary tables

Applications & Use Cases

• Used to change the direction of pallet or container travel within a conveyor system.
• Integrated into automated material handling lines for reorienting goods.
• Commonly found in logistics, warehousing, and distribution centres for sorting and routing.
• Utilised in manufacturing and assembly lines to present products from different angles.
• Facilitates efficient flow management and space optimisation in industrial environments.

Typical Specifications

Typical capacity

Typically handles pallet weights up to 1500 kg, though specific units vary.

Power supply

Commonly requires a 400V, 3-phase, 50Hz electrical supply for industrial operation.

Footprint

Footprint commonly aligns with standard pallet dimensions, typically 1000mm x 1200mm or 1200mm x 1200mm.

Rotation angle

Units commonly offer 90° or 180° rotation, with some capable of continuous or custom angles.

Rotation speed

Rotation speeds typically range from 2 to 5 RPM, depending on the application and load.

Conveyor type

Can be fitted with roller or chain conveyor sections, depending on the pallet base and load requirements.

Control system

Typically integrates with existing conveyor control systems, often PLC-controlled for automated operation.

Construction material

Frame construction is commonly mild steel, powder-coated or painted for durability in industrial settings.

Frequently Asked Questions

• What is a rotary table used for in an industrial setting?

  A rotary table, or turntable, is primarily used in conveyor systems to change the direction of material flow, typically for pallets or large containers. It allows for efficient reorientation of items without manual intervention, optimising space and process flow.

• What types of conveyors can be integrated with a rotary table?

• What power requirements do these units typically have?

• Can a rotary table be integrated into an existing conveyor line?

• What maintenance is typically required for a rotary table?

• What factors should be considered when choosing a used rotary table?
