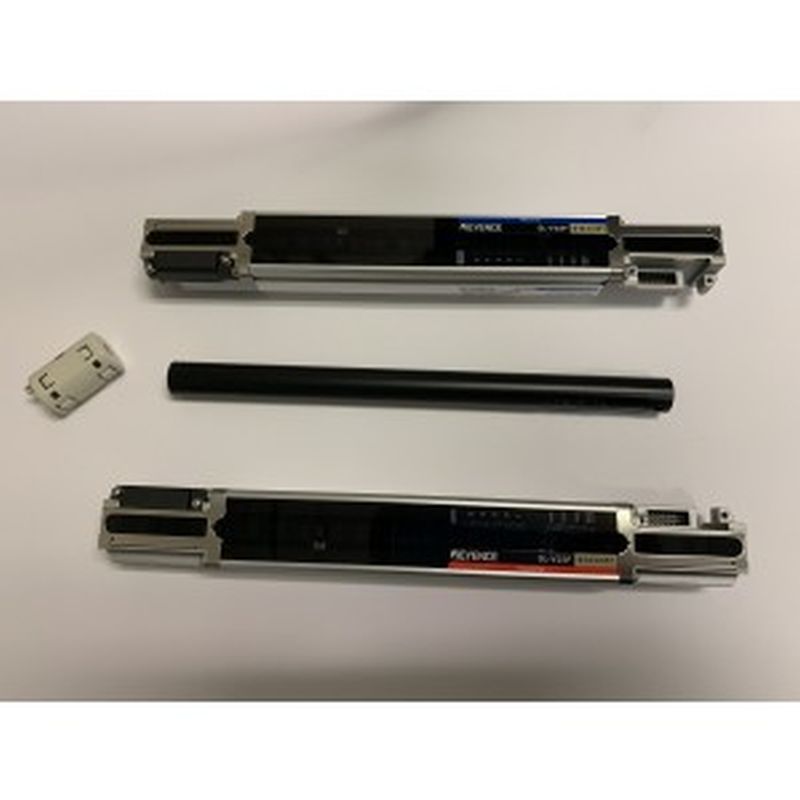

Safety Light Curtain
Copied to clipboard!
Price: Contact seller for price
The LC-10 Light Curtain is a standard feature, making your system safer. Light Safety Curtain LC-10 Light curtain acts as a safety device to reverse the pressure seal bar and stop the operation of the bagger when objects are detected in the sensing area. Includes light screen controller, mounting brackets, interface cables, safety relay, program enabled in PLC. Optional trailing edge signal available to automatically cycle bagger when object or hand leaves light curtain field for 'hands-off' packaging. This option increases production up to 40% versus footswitch or dual palm button operations.
Galway, Ireland5,966 km away
Model Number
LC-10
Stock Number
DG00008
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Used to safeguard operators on packaging lines, particularly with sealing machines, form-fill-seal equipment, and bagging systems.
- Commonly integrated into automated assembly lines where human interaction with moving parts carries a risk.
- Applied in material handling systems, such as palletisers and conveyors, to prevent access to hazardous zones.
- Utilised in robotic work cells to create a protective barrier around the robot's operational envelope.
- Found in various industrial machinery requiring point-of-operation safeguarding, like presses or cutting equipment.
Typical Specifications
- Sensing range
- Typically between 0.1m and 15m, depending on the model and application.
- Resolution (object detection capability)
- Commonly 14mm or 30mm for finger or hand protection, respectively.
- Protective field height
- Typically ranges from 300mm to 2000mm, selected based on the safeguarded area.
- Response time
- For this class of equipment, typically less than 20ms to ensure rapid machine shutdown.
- Safety integrity level (SIL) / Performance level (PL)
- Commonly rated up to SIL 3 or PL e, indicating high reliability for safety functions.
- Power supply
- Typically 24V DC, supplied by the machine's control system or a dedicated power unit.
- Output type
- Units of this type commonly feature OSSD (Output Signal Switching Device) outputs for direct connection to a safety relay or PLC.
Frequently Asked Questions
- A safety light curtain creates an invisible protective field using an array of infrared light beams. If an object or person breaks any of these beams, the curtain sends a stop signal to the machine, preventing hazardous operation.
