What type of bins can this tipper accommodate?

This type of tipper is generally designed for standard Eurobins or specific bulk bins, often with custom cradles available to suit various container sizes. Buyers should confirm bin compatibility with the seller.

Is this unit suitable for outdoor use?

While constructed from stainless steel and featuring an IP65 control panel, continuous outdoor exposure may require additional weatherproofing or a protective shelter. It is primarily designed for indoor food processing environments.

What maintenance is typically required for a bin tipper?

Routine maintenance usually involves checking chain tension, lubricating moving parts, inspecting electrical connections, and verifying safety interlocks. Regular cleaning is essential for hygiene in food processing.

Can the discharge height be adjusted?

This specific unit is designed for a fixed 1200mm discharge height. Some bin tipper models offer adjustable discharge heights, but this would need to be confirmed with the seller for this particular unit.

What are the typical installation requirements?

Installation typically requires a level, reinforced concrete floor for bolting down the unit, access to a suitable electrical supply, and sufficient clear space around the tipper for safe operation and maintenance, adhering to PUWER regulations.

Available

Verified seller

Salad Bin Tipper

Name: Salad Bin Tipper
SKU: BTM/250/1200/B/G
Availability: InStock

Price: Contact seller for price

BTM/250/1200/B/G Single Pillar Salad Bin Tipper

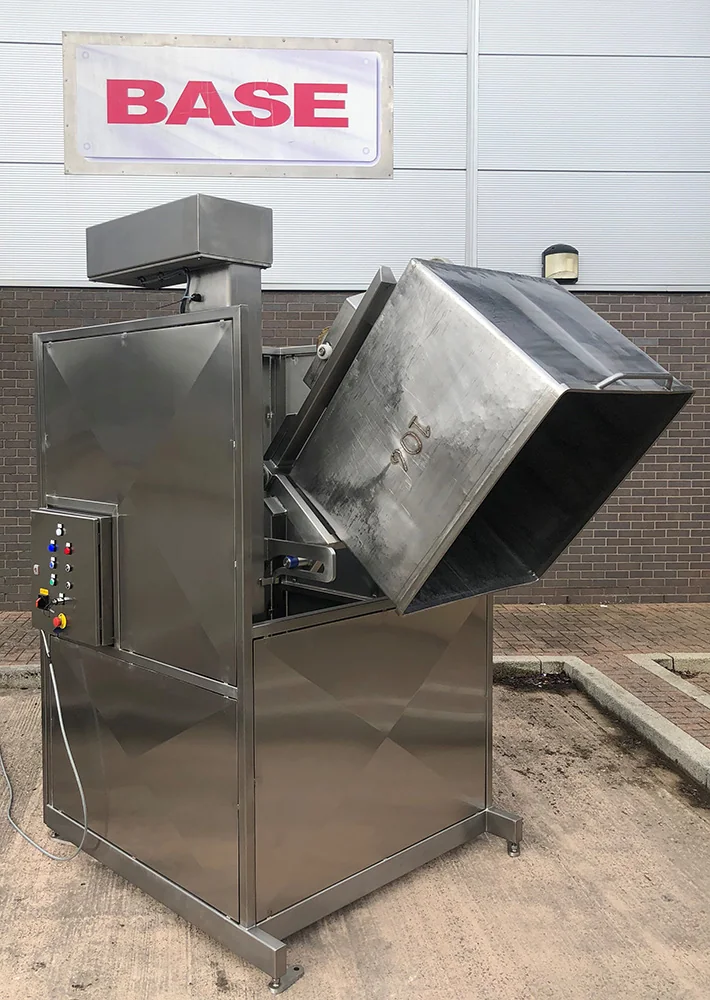

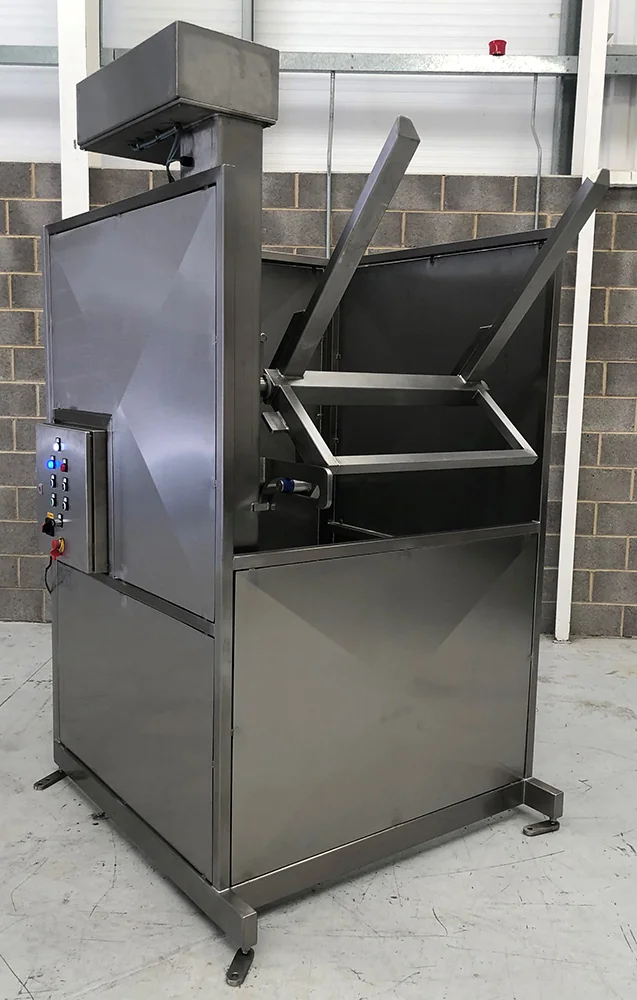

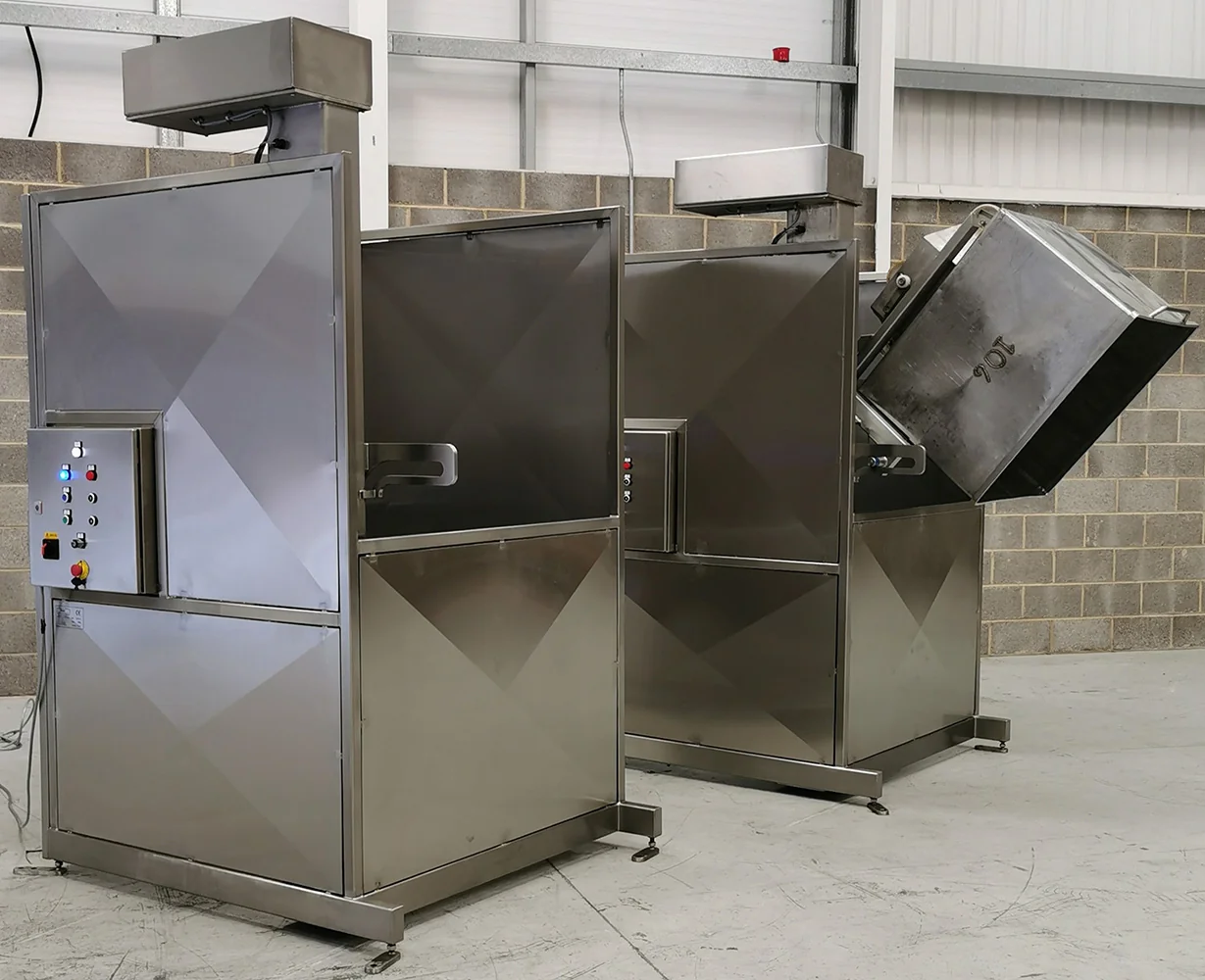

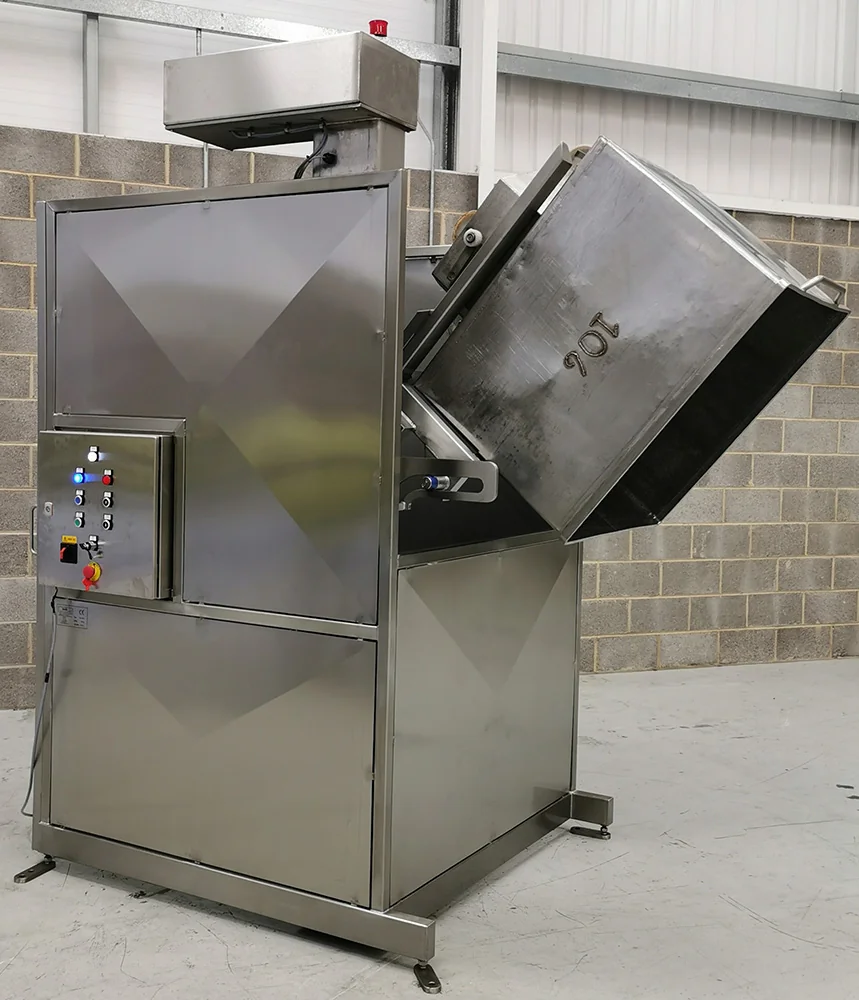

This Single Pillar Salad Bin Tipper is designed to lift and tip at a discharge height of 1200mm. The Salad Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

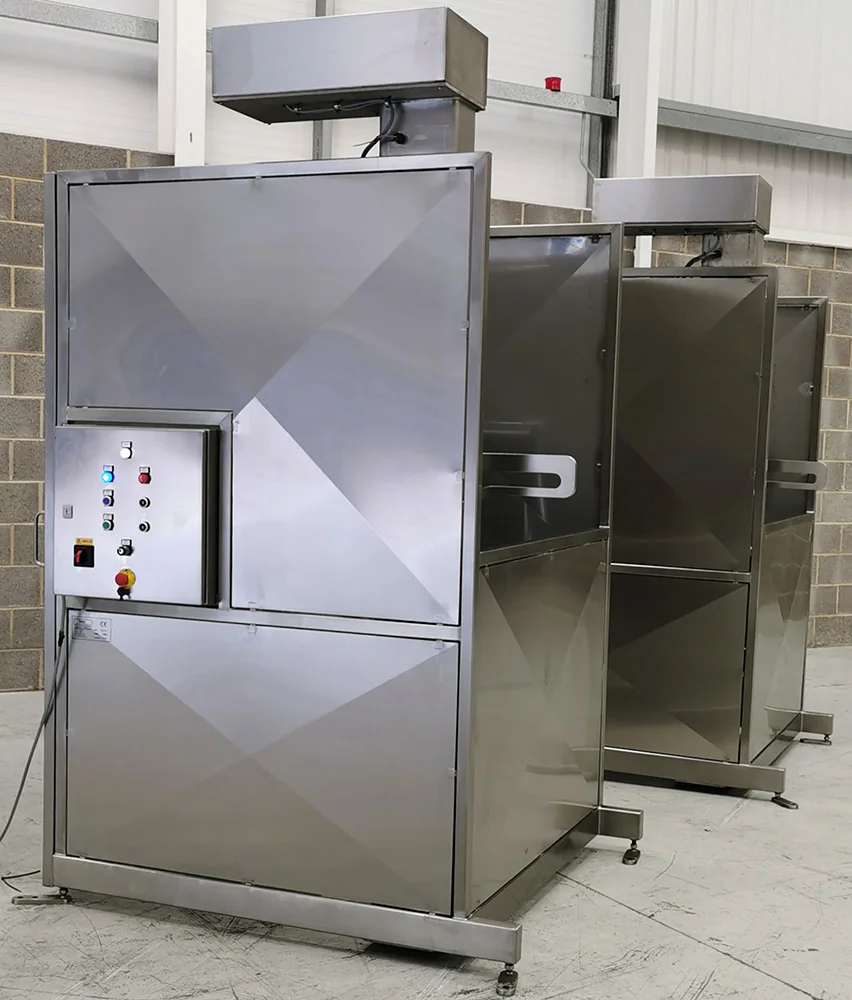

This Salad Bin Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard was constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. It encloses the Salad Bin Tipper to a height of 2200mm on two sides, 1000mm at the tipping side with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Salad Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Salad Bin Tipper Electrical Control

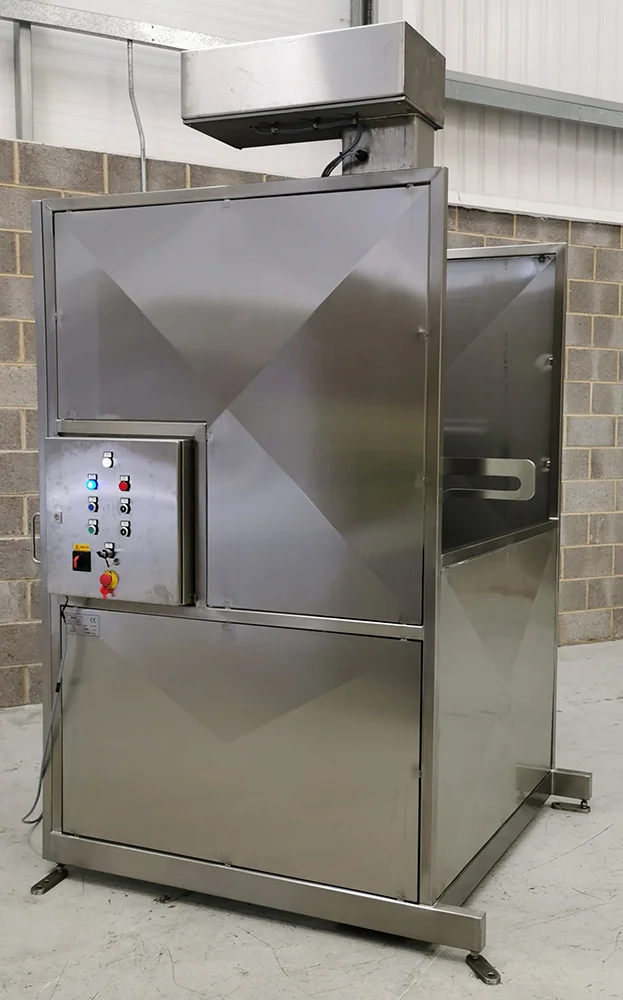

This Salad Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Salad Bin Tipper operation is on a hold to run basis so that holding the ‘Up’ push button will raise the lift to the full tip position. Once the product has been discharged, holding the ‘Down’ push button will return the Salad Bin Tipper to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Salad Bin Tipper

Model No.

BTM/250/1200/B/G

Capacity

250 Kgs

Tipping Height

1200mm

Tipping Angle

135 Degrees

Overall Height

2555mm

Machine Handing

Right Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

Stainless Steel Salad Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/250/1200/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring leafy greens and other delicate produce from bulk bins into processing lines.
Loading ingredients into mixers, washers, or other food preparation machinery.
Elevating product for packaging or further sorting operations.
Handling waste or by-products in a controlled and ergonomic manner.
Integrating into automated food processing lines for continuous material flow.

Typical Specifications

Typical lift capacity: Units of this type commonly handle bins weighing up to 250 kg, though specific models vary.
Discharge height: This unit is specified for a 1200mm discharge height; other models typically range from 1000mm to 2500mm.
Construction material: Manufactured from Grade 304 stainless steel, which is standard for food-grade equipment.
Power supply: Typically requires a 3-phase electrical supply, commonly 400V, 50Hz, with a motor gearbox drive.
Safety features: Includes safety guarding to BS EN 14120:2015, with electrically and mechanically interlocked doors, a common safety standard for machinery in the UK.
Mounting: Designed for floor bolting, providing stability during operation.
Control panel rating: Fitted with an IP65 rated stainless steel control panel, suitable for washdown environments.

Frequently Asked Questions

This type of tipper is generally designed for standard Eurobins or specific bulk bins, often with custom cradles available to suit various container sizes. Buyers should confirm bin compatibility with the seller.
