What are the primary benefits of a screw lift over other lifting mechanisms?

Screw lifts offer precise, controlled vertical movement, often with a smaller footprint and lower maintenance compared to hydraulic or chain-based systems. They are well-suited for applications requiring gentle handling and accurate positioning.

Is this type of equipment suitable for washdown environments?

Yes, units constructed from stainless steel with IP-rated electrical components and enclosed mechanisms, like this one, are specifically designed for hygiene and can withstand regular washdown in food processing environments.

What maintenance is typically required for a screw lift?

Routine maintenance usually involves checking the ball screw and bearings for wear, lubricating moving parts, and inspecting electrical connections. The enclosed design of components like the ball screw in this unit can reduce exposure to contaminants.

Can a screw lift be integrated into an automated production line?

Many screw lifts are designed with control panel features, such as 'Call to Run' signals, allowing for seamless integration with existing PLCs or automated control systems for hands-free operation.

What safety considerations are important for screw lifts?

Key safety features include 'hold to run' controls, emergency stop buttons, and load arrestor mechanisms to prevent drops. Compliance with PUWER regulations, as mentioned for this unit, is also crucial for safe operation in the UK.

Available

Verified seller

Screw Lift

Name: Screw Lift
SKU: BTM/150/2250/M
Availability: InStock

Price: Contact seller for price

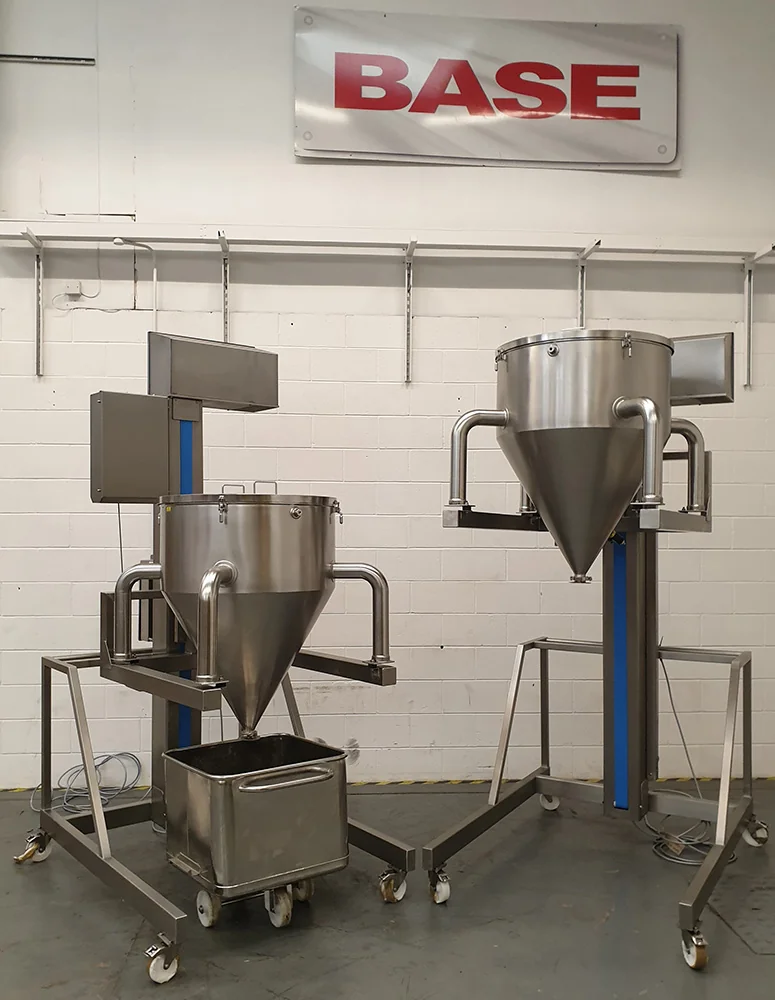

BTM/150/2250/M Single Pillar Screw Lift

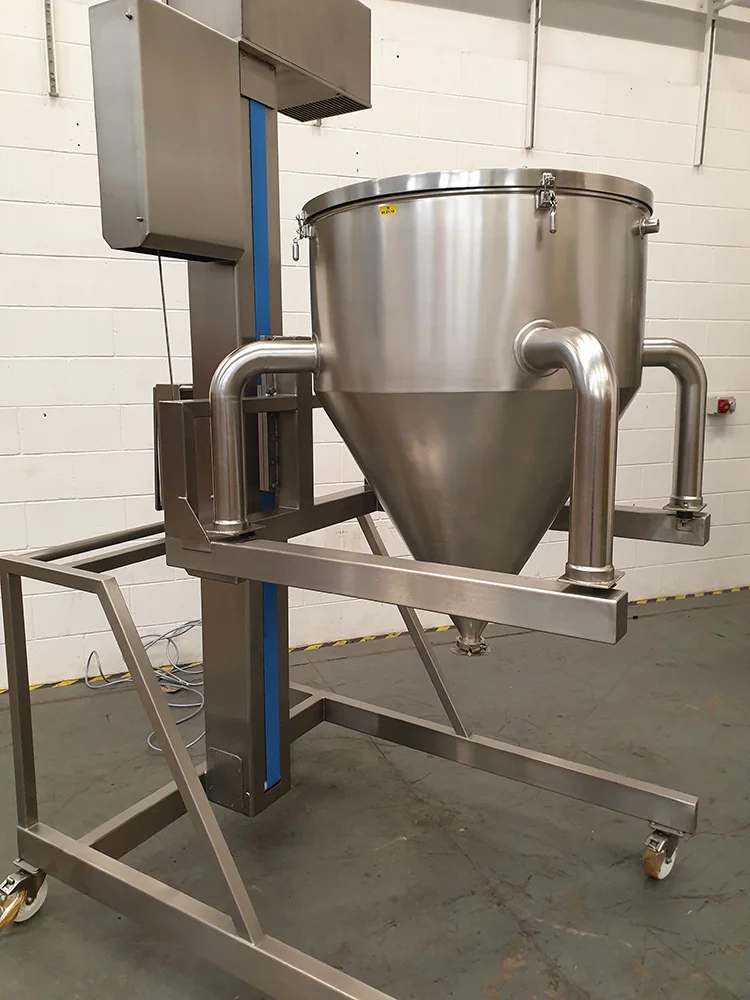

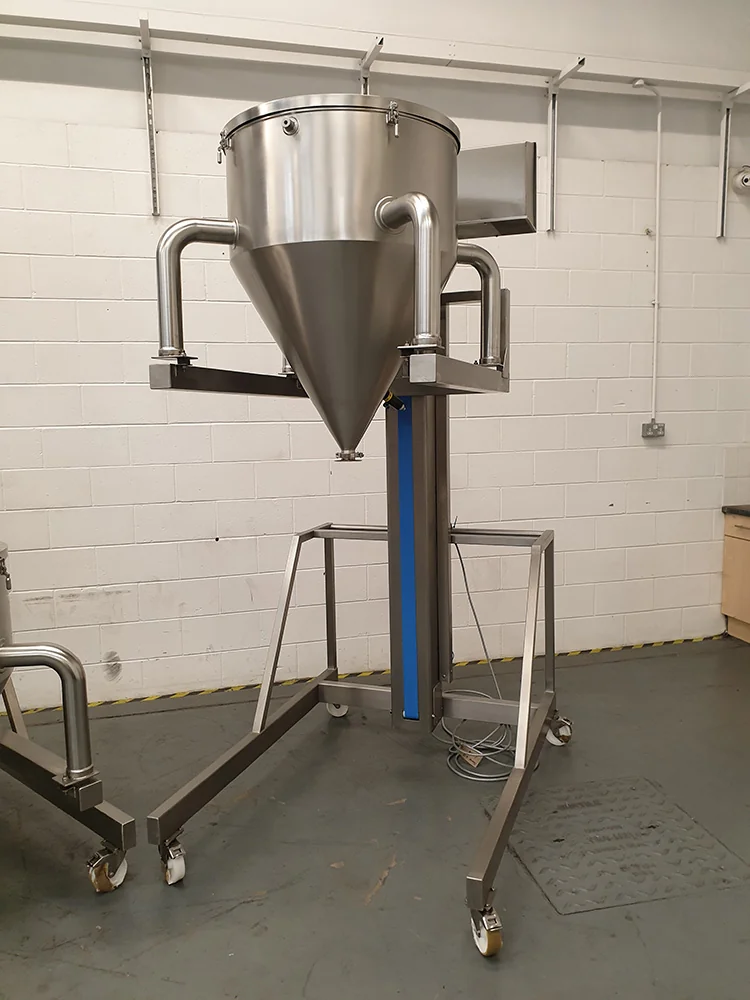

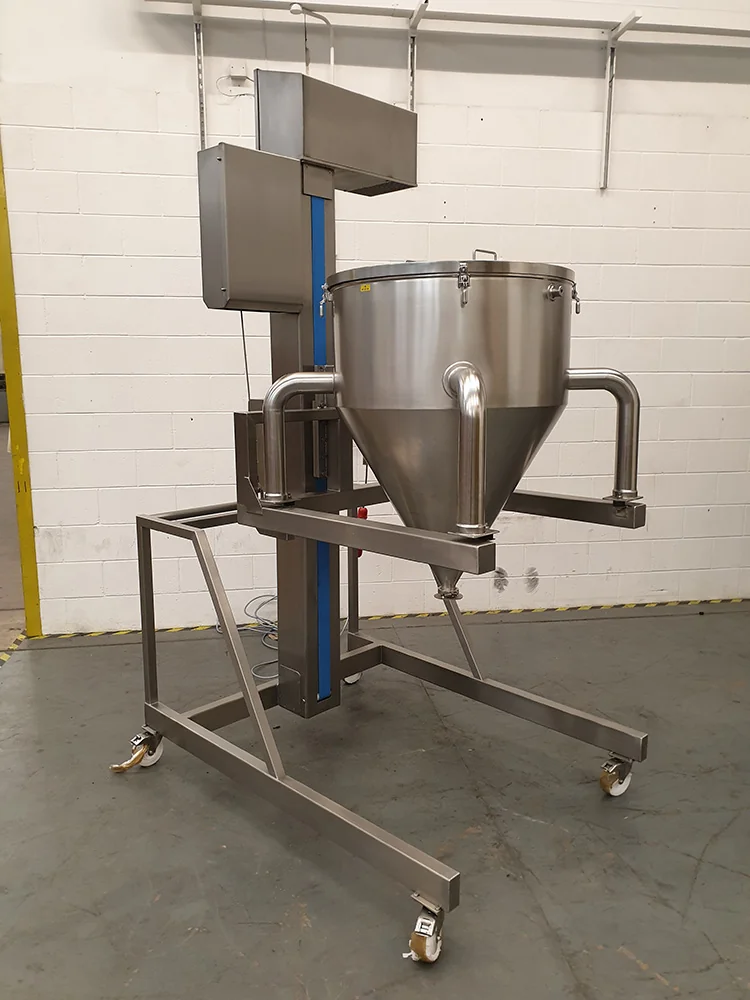

This Screw Lift is designed to lift vertically a Dinex Drum from a low level loading position to a height of 2250mm. The Screw Lift was manufactured from Grade 304 stainless steel and is a welded construction throughout. The lifting is achieved by a ball screw driven by a motor gearbox mounted at the top of the main column. The Armoloy coated ball screw and other column internals were covered from sight by a PU belt to aid cleaning. The Screw Lift was a mobile version to allow access within the process room for cleaning. The Screw Lift also incorporated a load arrestor mechanism, which prevents the load from falling to the floor in the event of a ball screw failure. The Load arrestor was mild steel, but encased in a stainless steel housing.

Screw Lift Electrical Control

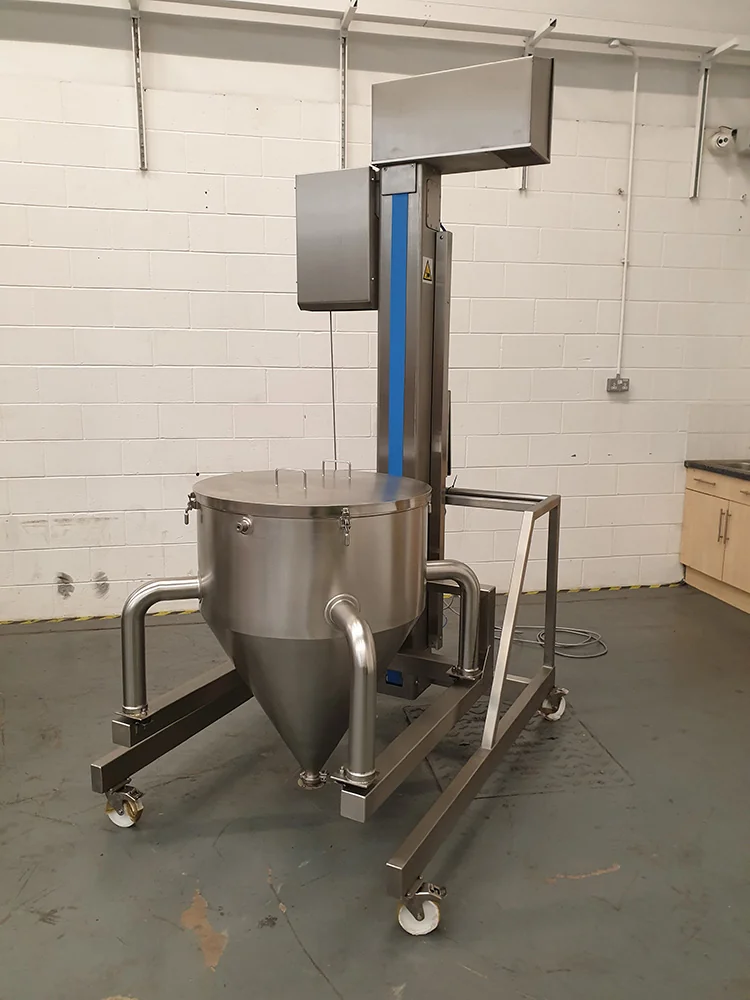

This Screw Lift is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Screw Lift has ‘hold to run’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Screw Lift to operate. As soon as the button is released, the Screw Lift will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Screw Lift

Model No.

BTM/150/2250/M

Capacity

150 Kgs

Lift Height

2250mm

Tipping Angle

Vertical Lift Only

Overall Height

2780mm

Machine Handing

Column At Rear With Control Panel

Maximum Headroom

3000mm

Container Description

Dinex Vessel

Base Arrangement

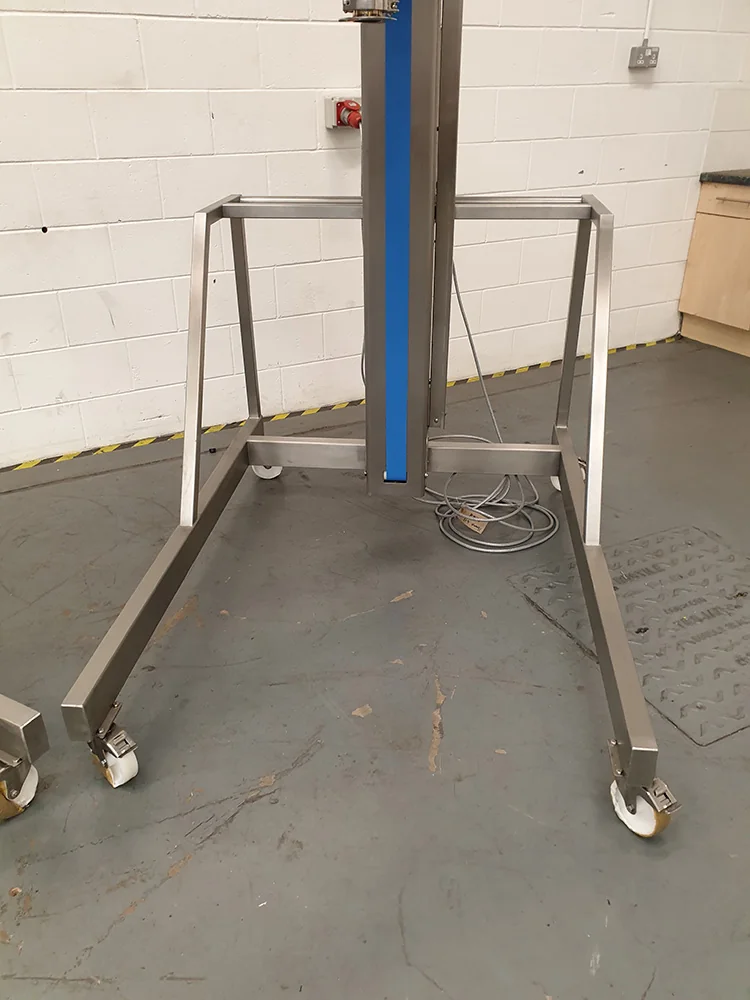

Mobile On 4 x Swivel/Brake Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW OS4 - COATING IP65

Output R.P.M

28 R.P.M.

Ratio

50:1

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/150/2250/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Elevating ingredients or finished products to processing lines or packaging machinery.
Transferring bulk materials from floor level to hoppers or mixers.
Loading and unloading drums or containers in a controlled manner.
Integrating into automated production lines for vertical material flow.
Handling sensitive food products where gentle lifting is required.

Typical Specifications

Typical lift height: Units of this type commonly offer lift heights ranging from 1.5m to over 3m, with this specific unit designed for 2250mm.
Typical load capacity: For this class of equipment, load capacities typically range from 100kg to 500kg, depending on design and motorisation.
Power supply: Commonly 3-phase industrial power (e.g., 400V, 50Hz in the UK) for motor operation, with control circuits often 24V DC.
Construction material: Typically manufactured from Grade 304 or 316 stainless steel for food contact and hygiene, as seen in this unit.
Footprint: Single pillar designs offer a relatively compact footprint, suitable for integration into existing lines or mobile use.
Control type: Often features 'hold to run' controls for safety, with options for integration into wider control systems.
Safety features: Units commonly include load arrestor mechanisms or similar safeguards to prevent uncontrolled descent.
Mobility: Many screw lifts are designed as mobile units with castors for flexible placement and ease of cleaning.
