What is the typical footprint of a CO2 incubator?

The footprint for this class of incubator can vary, but commonly ranges from 600mm to 800mm in width and depth, with a height of 800mm to 1000mm. Buyers should consult the seller for exact dimensions of this specific unit.

How important is CO2 recovery speed?

Fast CO2 recovery is crucial for maintaining stable pH levels in cell culture media, especially after door openings. Units with IR sensors typically offer swift recovery, minimising stress on sensitive cultures.

What maintenance is typically required for a CO2 incubator?

Routine maintenance commonly includes cleaning the interior chamber, checking and refilling the water pan for humidity, and periodically replacing air filters if fitted. Some units also feature high-temperature sterilisation cycles.

Can this type of incubator be used for anaerobic cultures?

CO2 incubators are designed for aerobic or microaerophilic cultures requiring CO2 enrichment. For strictly anaerobic conditions, a dedicated anaerobic workstation or chamber would typically be required.

What are the benefits of a stainless steel interior?

Stainless steel interiors offer excellent durability, corrosion resistance, and are easy to clean and decontaminate. This helps maintain a sterile environment crucial for cell and tissue culture applications.

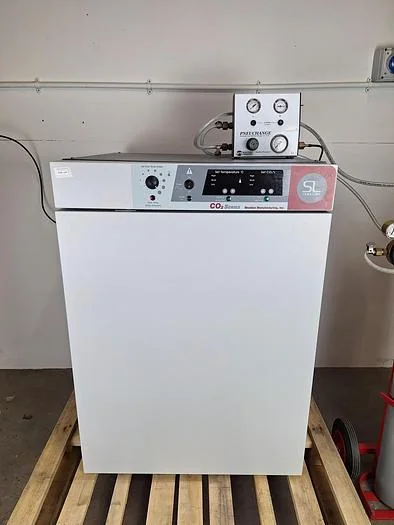

Used SC05A-2 CO2 Series CO2 Incubator - Temperature Controllers & Thermostats, photo 1

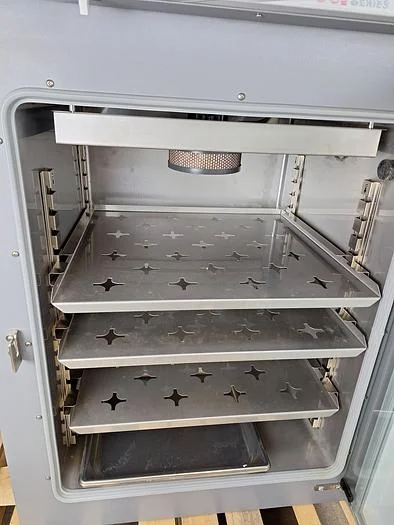

Used SC05A-2 CO2 Series CO2 Incubator - Temperature Controllers & Thermostats, photo 2

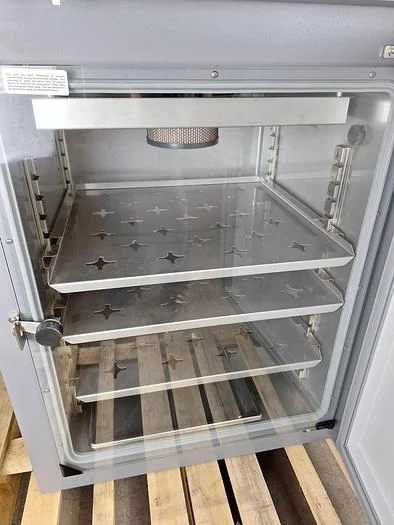

Used SC05A-2 CO2 Series CO2 Incubator - Temperature Controllers & Thermostats, photo 3

Used SC05A-2 CO2 Series CO2 Incubator - Temperature Controllers & Thermostats, photo 4

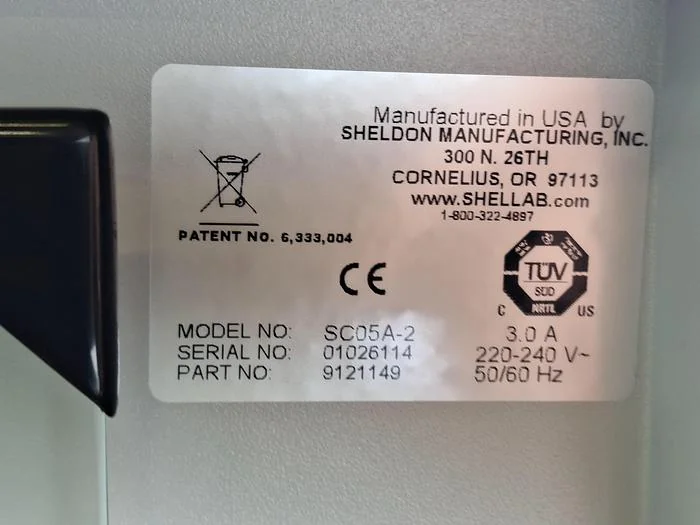

Used SC05A-2 CO2 Series CO2 Incubator - Temperature Controllers & Thermostats, photo 5

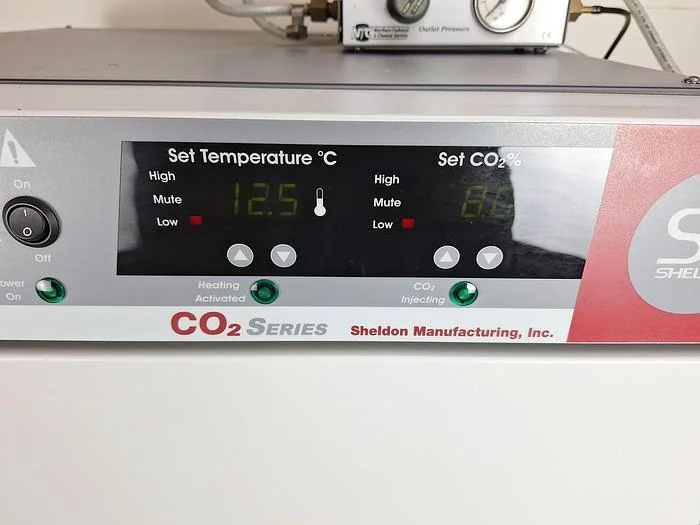

Used SC05A-2 CO2 Series CO2 Incubator - Temperature Controllers & Thermostats, photo 6

Used SC05A-2 CO2 Series CO2 Incubator - Temperature Controllers & Thermostats

used Equipment

Available

Verified seller

Shel Lab - SC05A-2 CO2 Series CO2 Incubator

Name: SC05A-2 CO2 Series CO2 Incubator
Brand: Shel Lab
SKU: 413054
Price: 500 GBP
Availability: InStock

Price: £ 500

This listing is for a Shell Lab SC05A-2 CO2 Series CO2 Incubator.

The unit is in full working condition and is ready for immediate release.

The Shell Lab SC05A-2 CO2 Incubator is expertly designed to meet the stringent requirements for sensitive tissue and cell culture applications. Here’s a concise look at its key features and specifications:

Key Features:

Fast CO2 Recovery: The infrared (IR) CO2 sensor swiftly restores CO2 levels after door openings, essential for maintaining pH stability in cell cultures.

Exceptional Temperature Uniformity: With a unique air jacket design, it delivers outstanding temperature uniformity of ±0.25°C at 37°C, crucial for consistent incubation conditions.

Humidity Control: Maintains humidity levels through evaporation, allowing for up to 95% relative humidity—perfect for sensitive cultures that require a moist environment.

Advanced Contamination Control:

Patented Copper-Caged HEPA Filter: Enhances air quality by trapping contaminants while utilizing copper's antimicrobial properties.

Heated Door: Reduces potential condensation on the inner glass, maintaining temperature integrity.

Heated Copper CO2 Inlet: Prevents moisture from entering the chamber, further safeguarding culture conditions.

Durable & Easy to Clean: The stainless steel interior ensures longevity and simplifies maintenance, while the autoclavable shelving provides additional sanitation options.

Data Logging Capabilities: Enables tracking of environmental conditions for compliance and research documentation.

Technical Specifications:

Model: SCO5A

Part ID: SCO5A

Exterior Dimensions: 27.5" W × 28.5" D × 37.8" H (699 mm × 724 mm × 960 mm)

Interior Dimensions: 20.5" W × 19.8" D × 21.5" H (521 mm × 503 mm × 546 mm)

Volume: 5.0 . (142 L)

Shelf Dimensions: 19.1" W × 17.8" D (485 mm × 251 mm)

Unit Weight: 200 lbs (91 kg)

Interior Metal: 300 Series Stainless Steel

Exterior Metal: Painted Cold Roll Steel

Operating Temperature Range: Ambient +5°C to 60°C

Temperature Uniformity (Midrange): ±0.25 °C

Temperature Stability (Midrange): ±0.1 °C

Controller Type: Digital

Display Resolution: 0.1 °C

Power Requirements: 110-120 VAC, 50/60 Hz, 6.0 Amps

Safety Certifications: UL 61010-1, EN 61010-1, CSA 61010-1, CE

Cambridgeshire, United Kingdom

5,791 km away

Model Number

SC05A-2 CO2 Series

Stock Number

413054

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Cell and tissue culture requiring precise environmental control.
Microbiological studies and bacterial growth.
In-vitro fertilisation (IVF) and embryology.
Pharmaceutical research and drug discovery.
Biotechnology processes and genetic engineering.

Typical Specifications

Typical capacity: For this class of equipment, internal volumes commonly range from 50 to 200 litres.
Temperature range: Typically ambient +5°C to 50°C, with precise control at 37°C.
CO2 range: Commonly 0-20%, with an infrared (IR) sensor for accurate monitoring and rapid recovery.
Humidity: Units of this type typically maintain up to 95% relative humidity via water pan evaporation.
Interior material: Stainless steel is standard for durability and ease of cleaning.
Power supply: Typically single-phase 230V, 50Hz, suitable for standard UK laboratory outlets.
Contamination control: Often includes HEPA filtration, heated doors, and sterilisation cycles.

Frequently Asked Questions

The footprint for this class of incubator can vary, but commonly ranges from 600mm to 800mm in width and depth, with a height of 800mm to 1000mm. Buyers should consult the seller for exact dimensions of this specific unit.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
