Siat Spa - Siat Pallet Wrapper

Applications & Use Cases

• Securing goods on pallets for transport and storage in warehouses.
• Wrapping food products on pallets to protect against dust and moisture.
• Stabilising mixed loads on pallets to prevent shifting during transit.
• Preparing pallets for dispatch in logistics and distribution centres.

Typical Specifications

Typical capacity

Typically handles up to 20-30 pallets per hour, depending on wrap cycles and operator efficiency.

Power supply

Commonly requires a single-phase 230V, 50Hz electrical supply for this class of equipment.

Maximum pallet dimensions

Units of this type typically accommodate Euro pallets (1200x800mm) and standard UK pallets (1200x1000mm) up to a height of approximately 2000-2200mm.

Film type

Designed for use with standard stretch film, typically 23-30 micron thickness.

Footprint

A typical footprint for a semi-automatic pallet wrapper, including ramp, is approximately 2.5m x 3m.

Control system

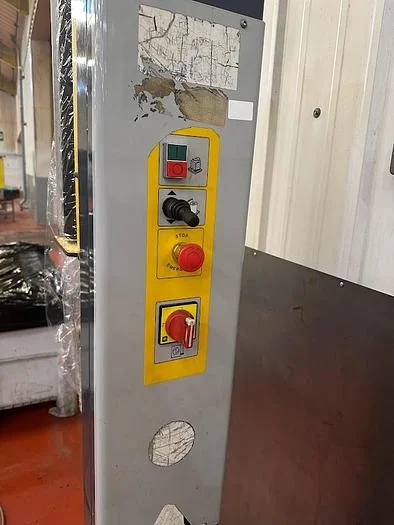

Often features a basic PLC or push-button controls for adjustable wrap cycles and film tension.

Frequently Asked Questions

• What is the benefit of a pallet ramp?

  A pallet ramp allows for easier loading and unloading of pallets using a hand pallet truck or forklift, eliminating the need for a pit or separate loading mechanism.

• Is this unit suitable for outdoor use?

• What kind of maintenance does a used pallet wrapper typically require?

• Can this machine handle different pallet sizes?

• What safety features are commonly found on these machines?
