What is the primary function of a TOC analyser?

A TOC analyser measures the total organic carbon content in water samples, indicating the level of organic contamination. This is crucial for water quality control in various industries.

How does membrane conductometric detection work?

This method oxidises organic compounds to CO₂, which then dissolves in a pure water stream. The resulting change in conductivity, measured by a sensitive sensor, correlates to the TOC concentration.

Is this unit suitable for pharmaceutical applications?

Units of this model are typically designed to meet regulatory requirements for pharmaceutical water analysis, including PW/WFI and cleaning validation, supporting major pharmacopoeias.

What kind of maintenance is typically required?

This class of equipment is known for low preventive maintenance requirements, with stable calibration often lasting up to 12 months, reducing operational downtime.

Can this analyser measure conductivity as well?

Some configurations or optional enhancements for this type of analyser can include Stage 1 conductivity measurement, providing additional water quality data.

used Equipment

Available

Verified seller

Sievers - M9 TOC Analyser + Autosampler

Name: M9 TOC Analyser + Autosampler
Brand: Sievers
SKU: 54210.SR4C
Price: 13750 GBP
Availability: InStock

Price: £ 13,750

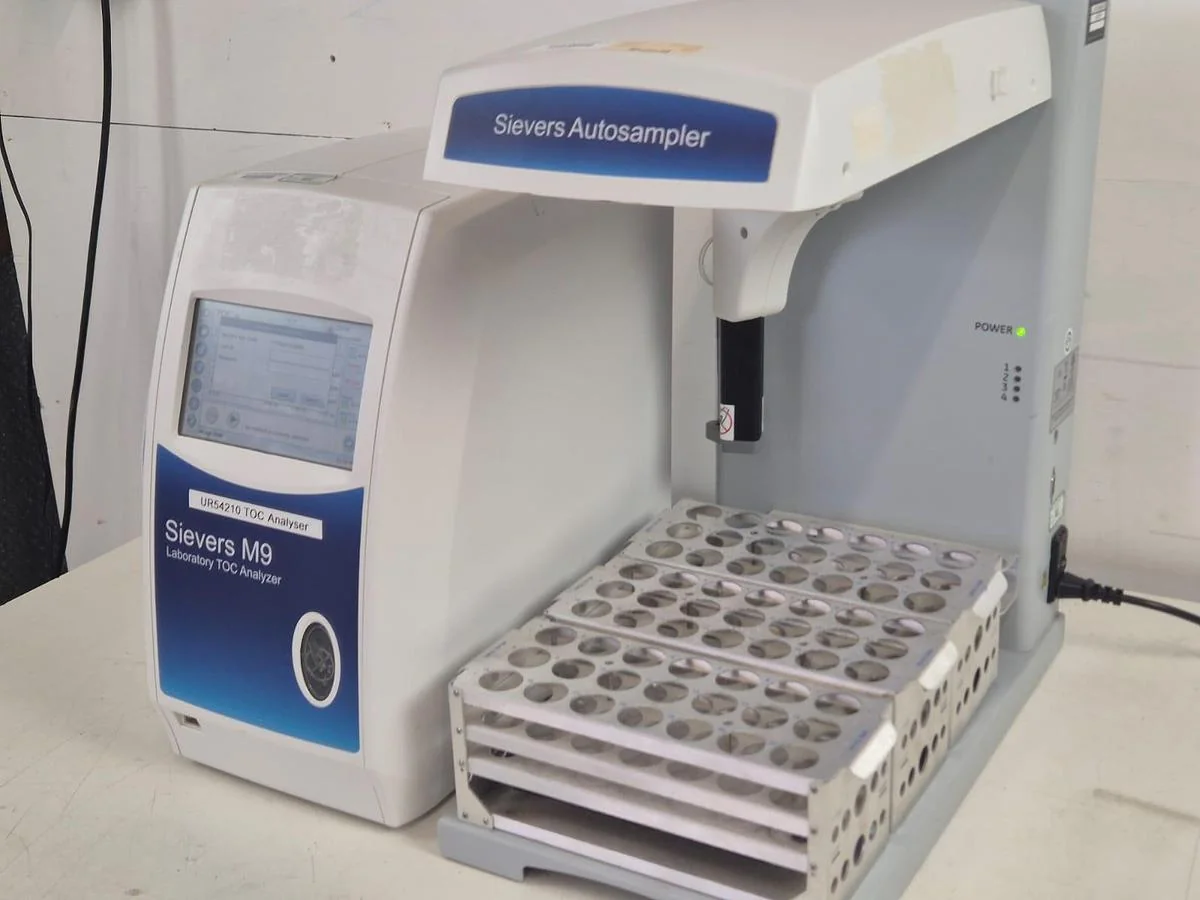

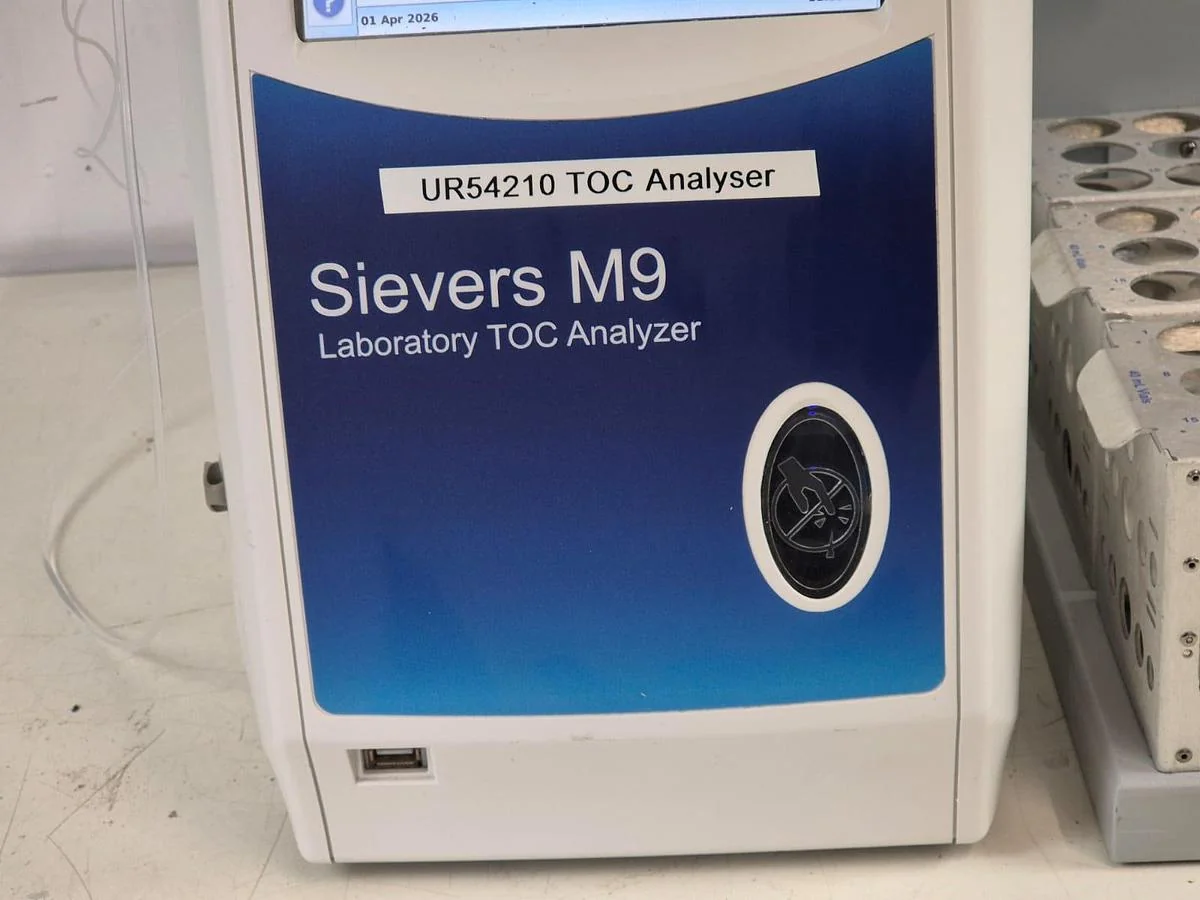

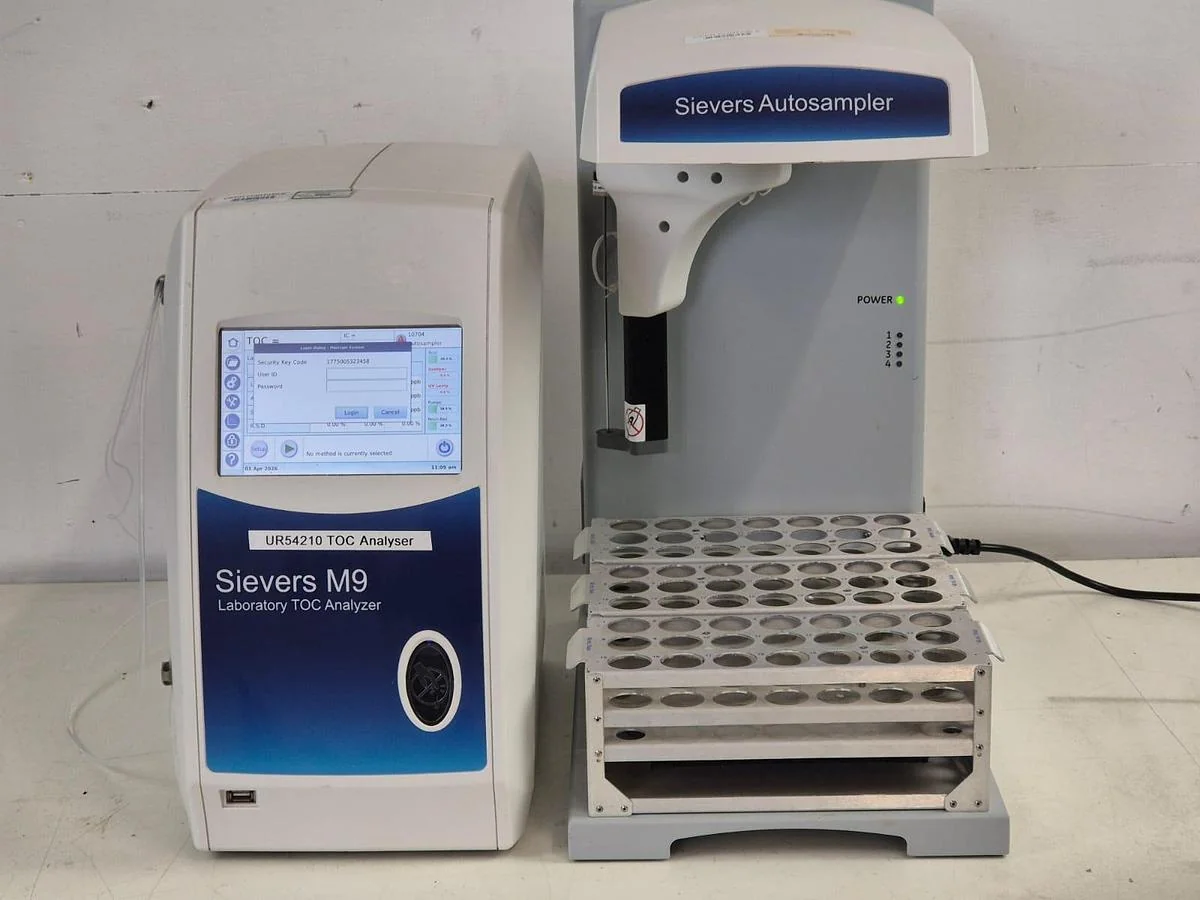

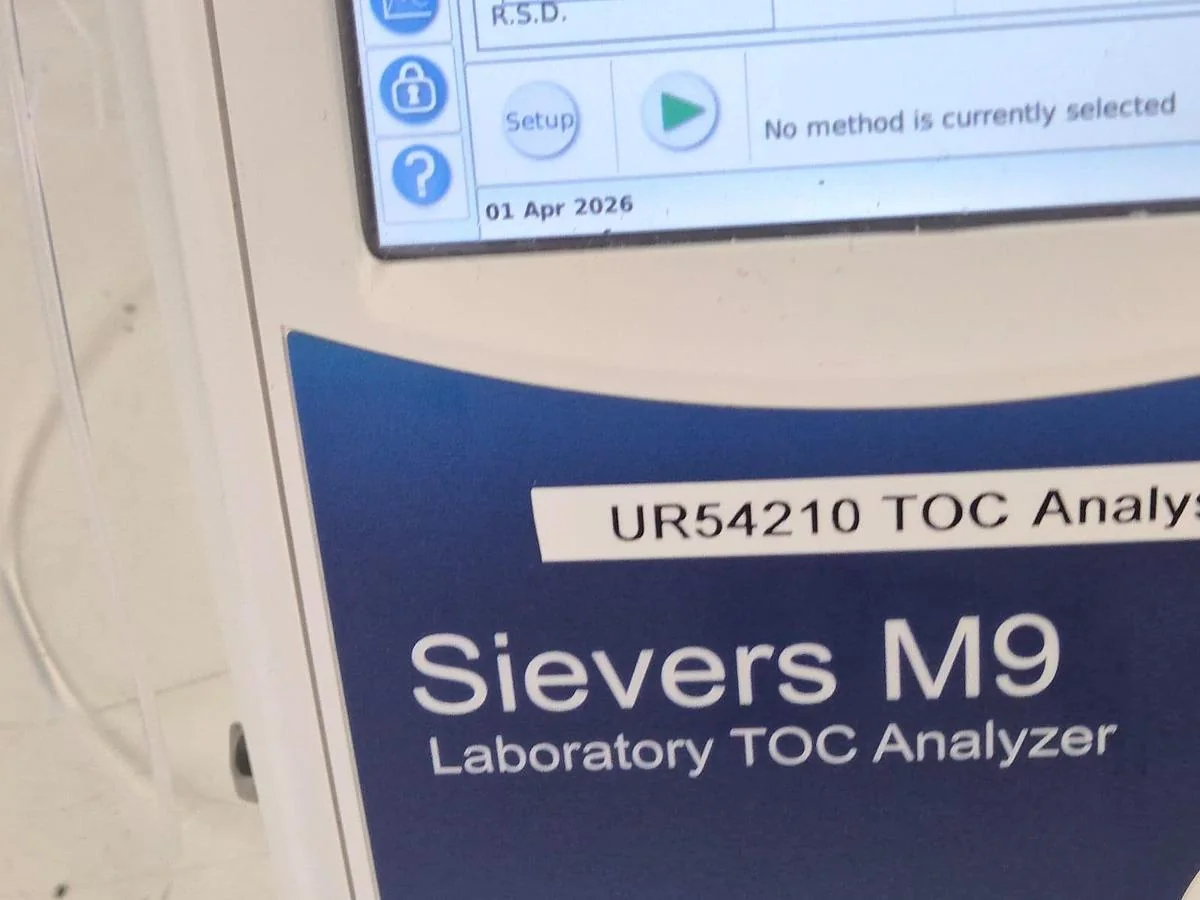

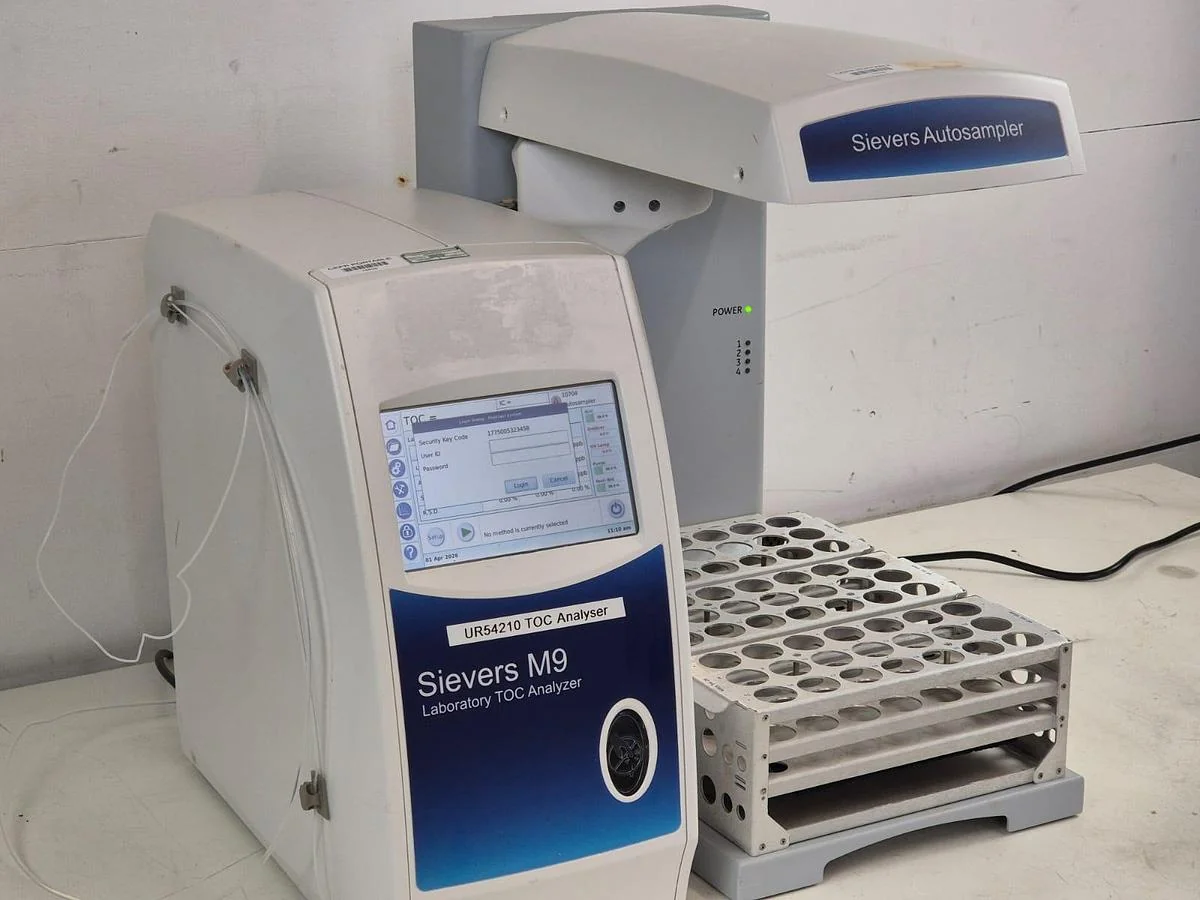

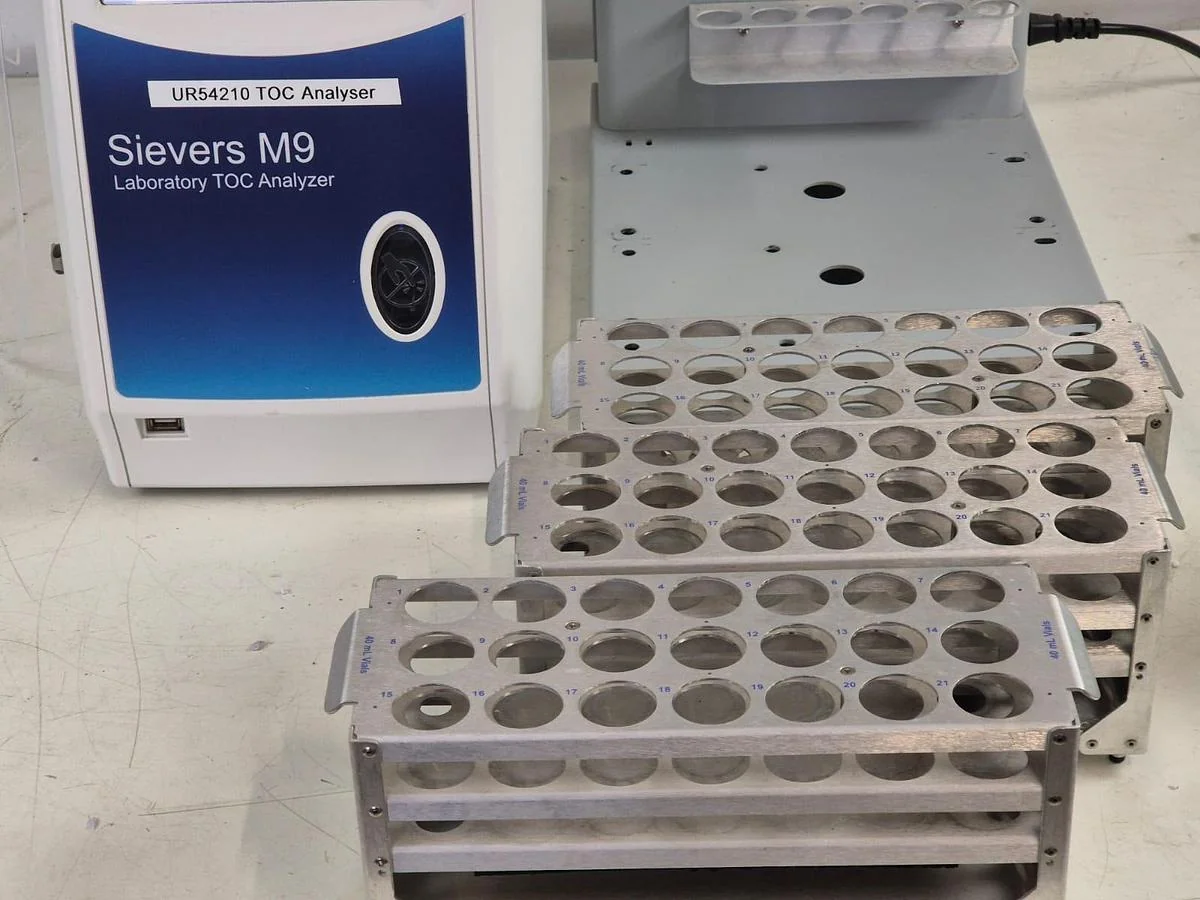

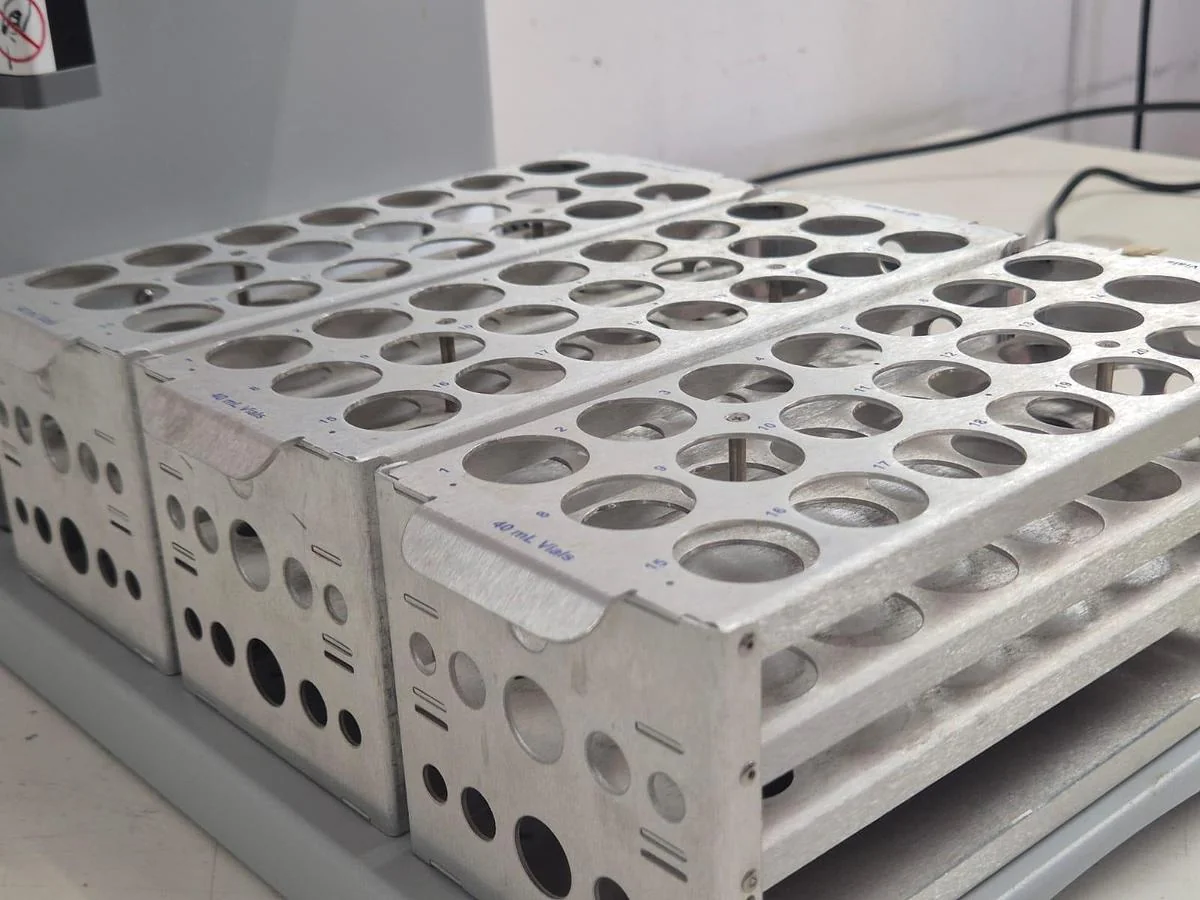

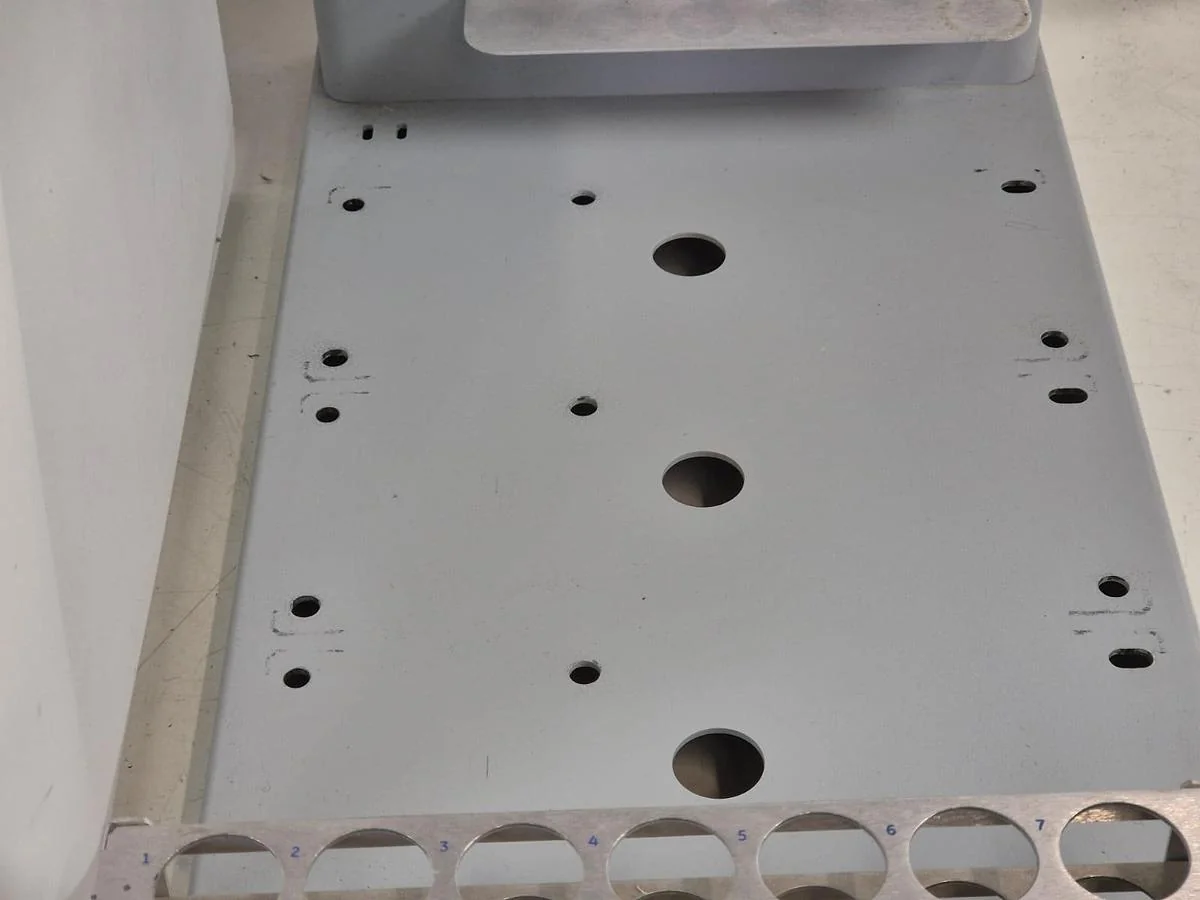

This listing is for the Sievers M9 TOC Analyser + Sievers Autosampler

The unit is in full working condition and is ready for immediate use

The Sievers M9 is a versatile Total Organic Carbon (TOC) analyzer designed for monitoring water quality across various applications—from ultrapure water systems to process and environmental streams. Offered in laboratory, portable, and online configurations, it excels in accuracy, efficiency, and automation.

Key Features:

Ultra‑wide detection range: From as low as 0.03 ppb to as high as 50 ppm (0.03 ppb–50 ppm)

Scribd

Fast analysis: Standard TOC results in about 2 minutes, with an optional Turbo mode enabling results every 4 seconds

Membrane Conductometric Detection: Relies on UV/persulfate oxidation to convert organics to CO₂, measured with a sensitive membrane-based conductometric sensor—a method known for stability and precision

Low upkeep: Minimal preventive maintenance required; calibration remains stable for up to 12 months

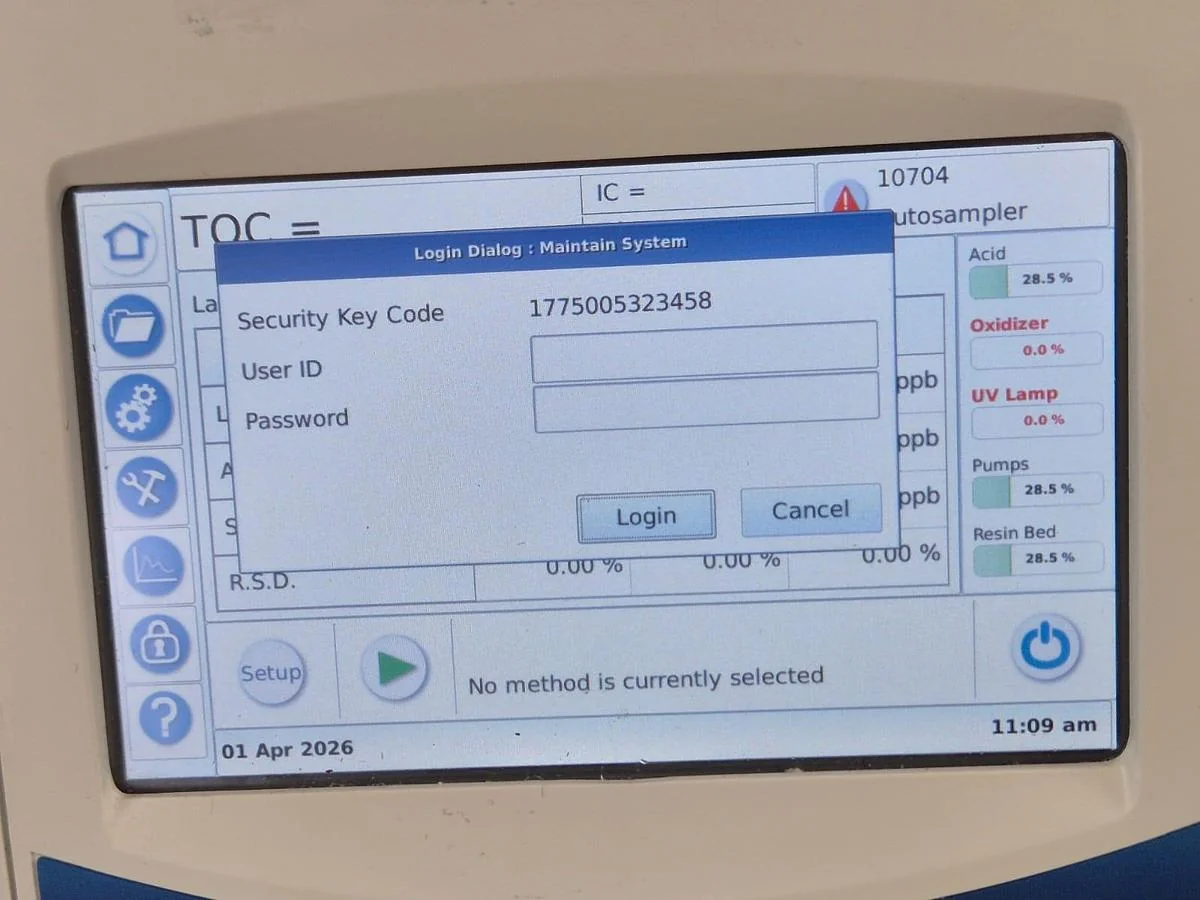

Ease of use: Large touch-screen LCD, streamlined protocols, built-in error troubleshooting, intuitive database and data export capabilities

Regulatory compliant: Supports major pharmacopeias (USP, EP, JP16, CP, IP) and designed for applications in pharmaceutical water (PW/WFI), cleaning validation, microelectronics, power, and more

Versatile sample types: Accepts grab samples, sipper systems, or continuous online sampling (On‑Line model)

Optional Enhancements:

Stage 1 Conductivity Measurement: Can measure conductivity alongside TOC from the same vial—time-saving and efficient

Inorganic Carbon Remover (ICR): Improves accuracy for samples with high inorganic carbon content

DataPro2 Software: Enables advanced sampling protocols, integration of up to four analyzers, automated calibration/validation workflows, and compliance features like DataGuard for 21 CFR

Online (On‑Line) capabilities: Provides continuous monitoring via USB, Ethernet, 4–20 mA outputs, and Modbus TCP/IP; robust IP‑45 rated enclosure for challenging

Cambridgeshire, United Kingdom

5,791 km away

Model Number

Stock Number

54210.SR4C

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Monitoring ultrapure water systems in pharmaceutical and microelectronics industries.
Assessing water quality in process and environmental streams.
Validating cleaning processes in manufacturing environments.
Analysing water for injection (WFI) and purified water (PW) in regulated settings.

Typical Specifications

Detection Range: Typically ultra-wide, from sub-ppb levels (e.g., 0.03 ppb) up to 50 ppm for this class of equipment.
Analysis Time: Standard TOC results commonly achieved in approximately 2 minutes, with faster modes available.
Detection Method: Relies on UV/persulphate oxidation with membrane conductometric detection, known for stability.
Calibration Stability: Calibration is typically stable for extended periods, often up to 12 months.
Sample Types: Commonly accepts grab samples, sipper systems, or continuous online sampling.
Regulatory Compliance: Units of this type are often designed to support major pharmacopoeias (e.g., USP, EP, JP).

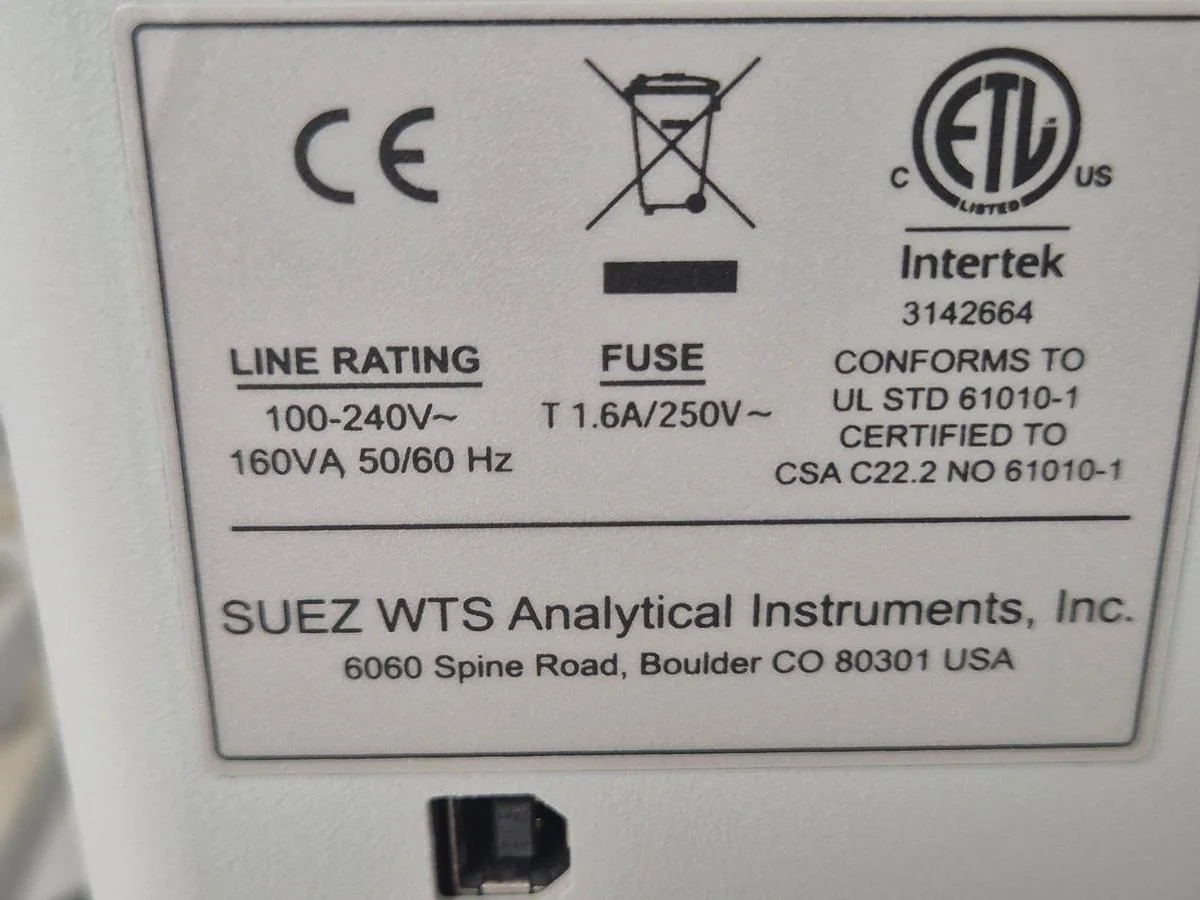

Power Supply: Typically operates on standard laboratory power, e.g., 100-240 VAC, 50/60 Hz.
