Single Column Screw Lift
Copied to clipboard!
Price: Contact seller for price

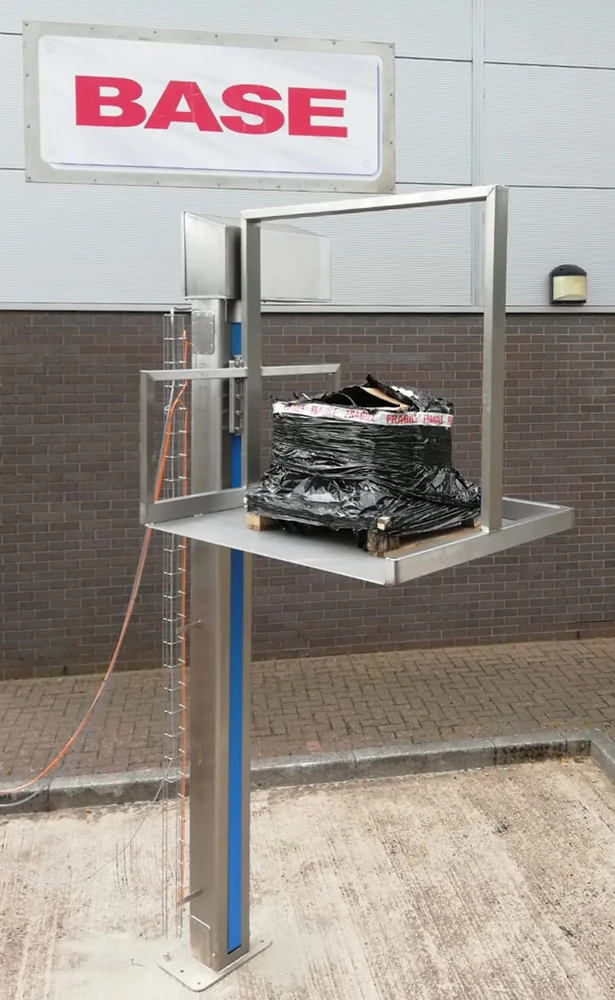

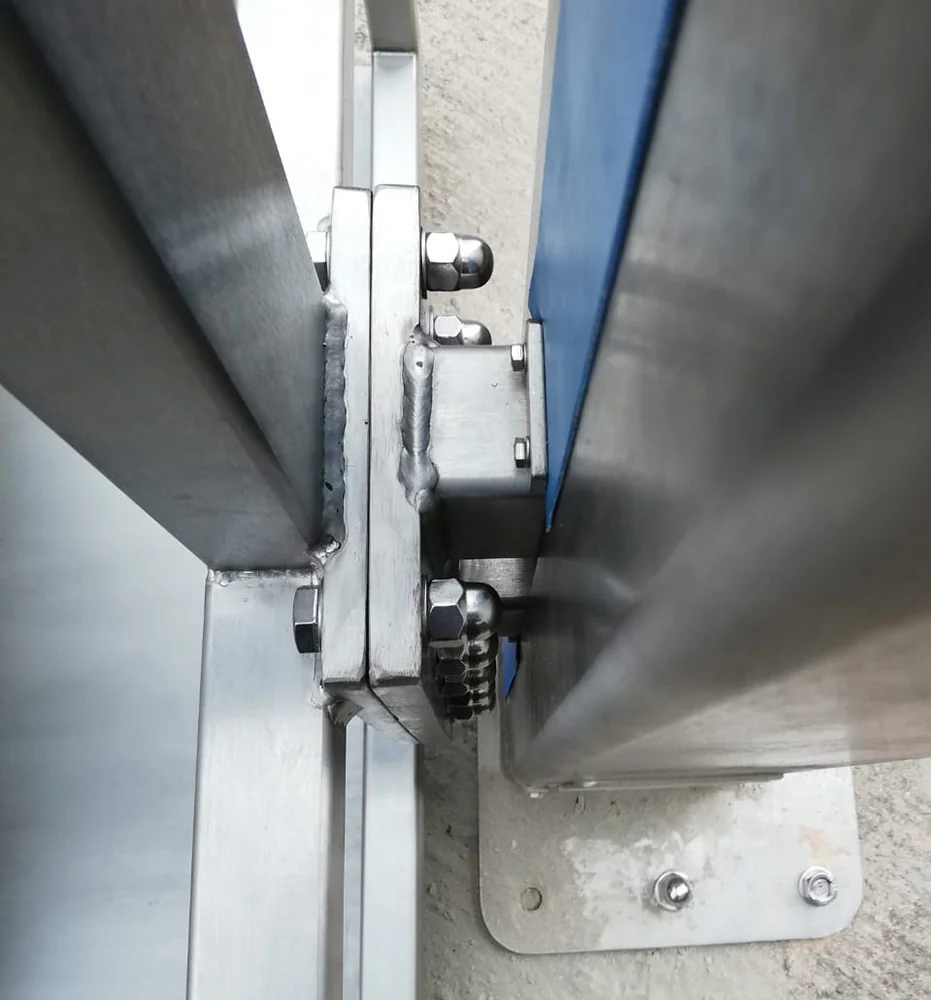

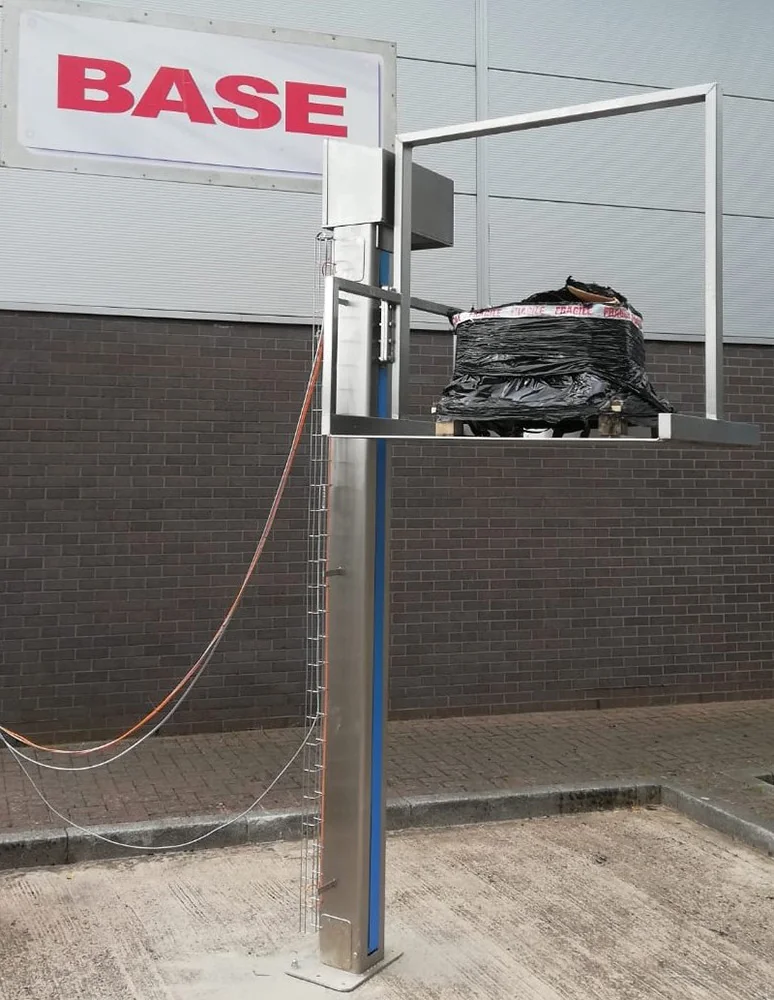

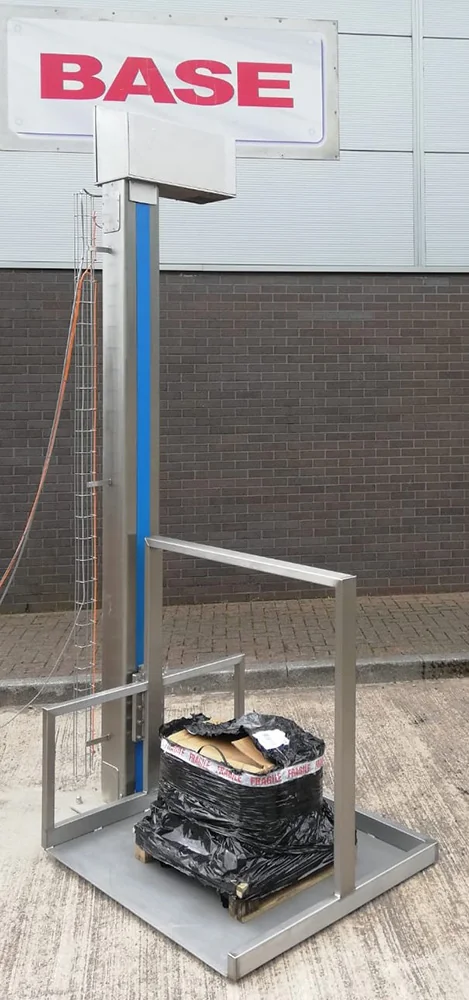

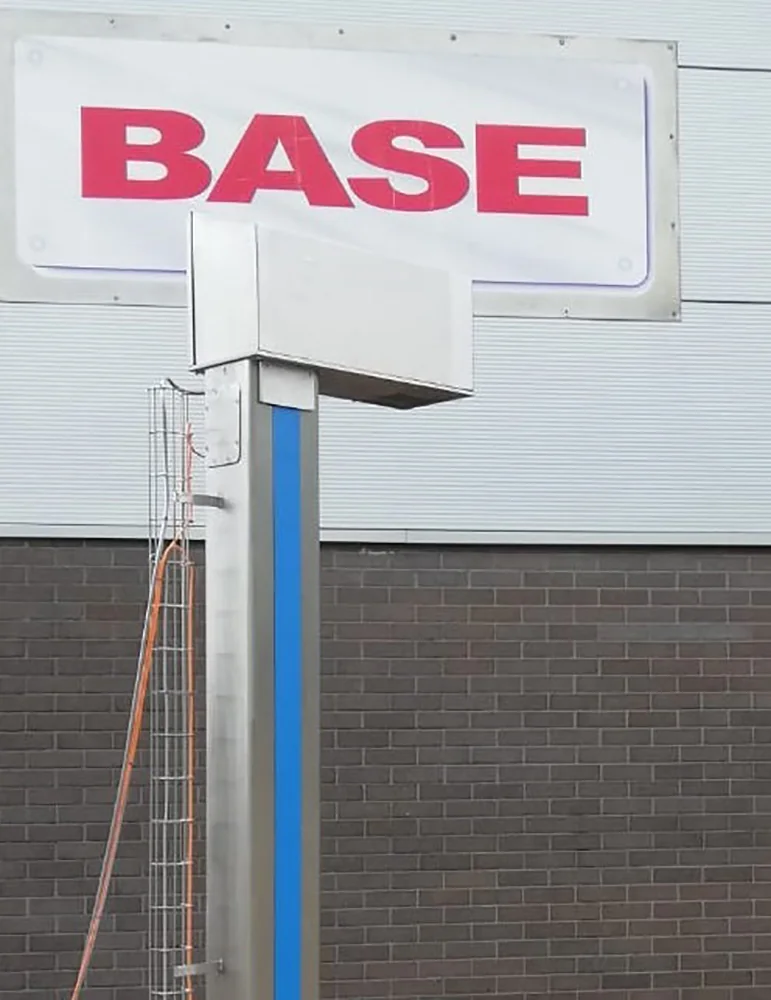

PLM/125/2080/B Single Column Screw LiftThis Single Column Screw Lift has a 1200 x 1050mm platform to allow an 1100 x 1000mm Pallet to be loaded onto it at the ground floor before being lifted to a height of 2080mm. The Single Column Screw Lift is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by the rotation of a ball screw driven by a motor gearbox mounted at the top of the main column. The Single Column Screw Lift is fitted with a safety nut which will engage in the extremely unlikely event of the drive nut failing. Single Column Screw Lift Electrical ControlThis Single Column Screw Lift is supplied with an IP65 Control Panel which was mounted remotely at the upper level at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Control Panel was fitted with a 4 Meter flexible armoured power supply cable which was connected to a suitable isolator. The unguarded Single Column Screw Lift operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Single Column Screw Lift to operate. The ‘Up’ control pushbutton was mounted on the main control panel at the upper level and there was a separate push button station with the ‘Down’ control at the lower level. As soon as a push button is released, the Single Column Screw Lift stopped. The control panel has the facility for a ‘Call to Run’ signal to be connected if required. |
Blaenau Gwent County Borough, United Kingdom5,762 km away
Description
Single Column Screw Lift
Model No.
PLM/125/2080/B
Capacity
125 Kgs
Tipping Height
2080mm
Tipping Angle
130 Degrees
Overall Height
3331mm
Platform Size
1200 x 1050mm
Machine Handing
Left Hand
Maximum Headroom
3400mm
Container Description
1100 x 1000mm Pallet
Base Arrangement
Base Frame Bolted To The Floor
Control Circuit
24Vac
Electrical Rating
IP65

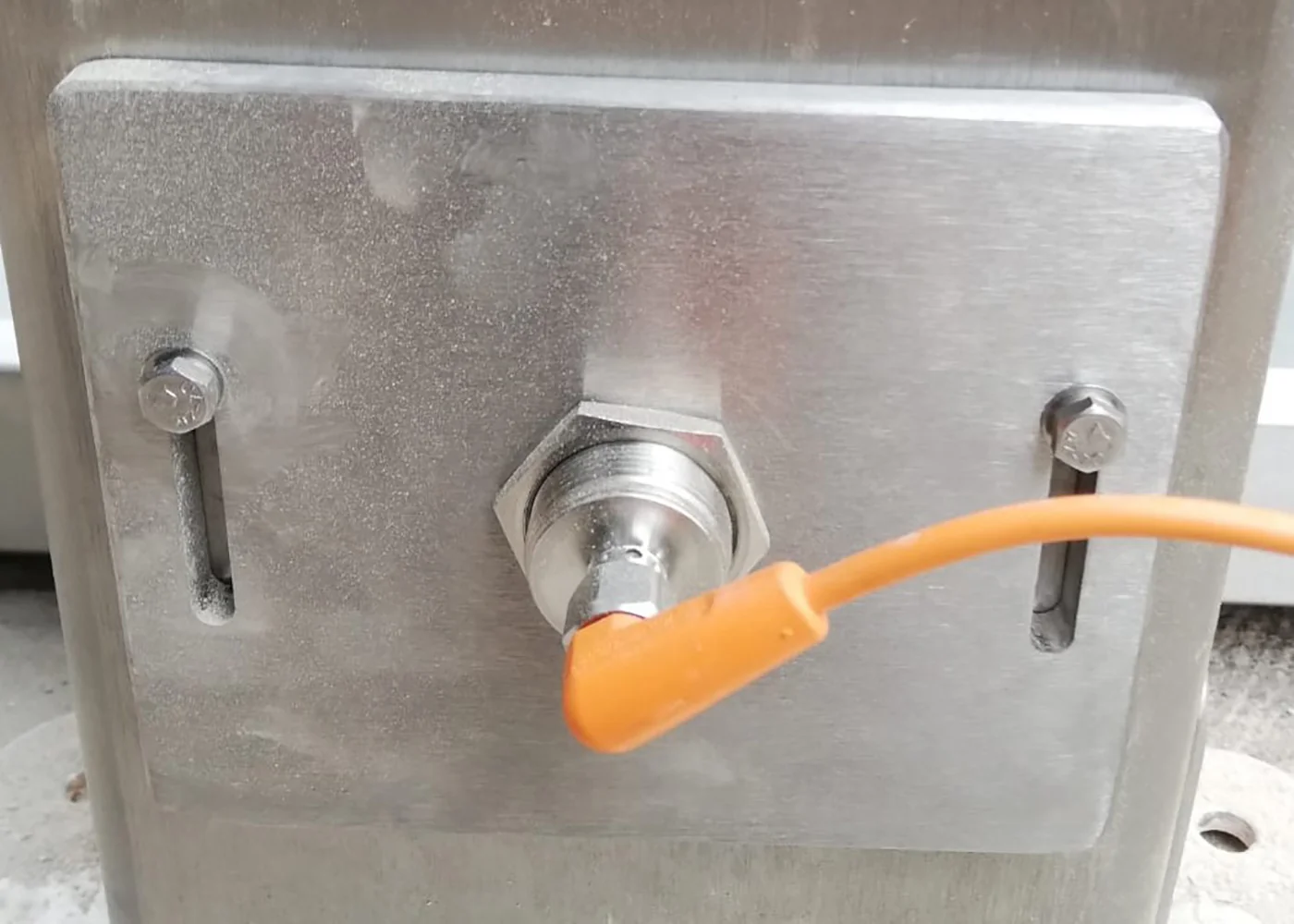

Limit Switches
Telemecanique
Gearbox Detail
SEW Eurodrive
Lift Ball Screw
32mm Diameter x 10mm Pitch
Lift Speed
4.0 Meters/Minute
Stock Number
PLM/125/2080/B
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Elevating bulk ingredients or finished products between different levels in a food processing line.
- Loading raw materials into hoppers, mixers, or other processing machinery.
- Transferring packaged goods to elevated conveyors or packing stations.
- Lifting waste bins or other containers for emptying into larger receptacles.
- Integrating into automated systems for vertical material flow in production.
Typical Specifications
- Typical lift height
- Units of this type commonly offer lift heights up to 3000mm, with this specific unit offering 2080mm.
- Platform dimensions
- For this class of equipment, platforms typically accommodate standard pallet sizes; this unit features a 1200 x 1050mm platform.
- Construction material
- Food-grade equipment like this is typically constructed from Grade 304 stainless steel for hygiene and durability.
- Lifting mechanism
- Screw lift mechanisms, driven by a motor gearbox, are commonly used for controlled and precise vertical movement.
- Power supply
- Industrial equipment of this nature typically requires a three-phase electrical supply, commonly 400V, 50Hz.
- Control system
- Units often feature IP65-rated control panels for protection against dust and water ingress, with 'hold to run' operation for safety.
- Safety features
- Common safety features include a safety nut system and remote control panels for operator protection, adhering to PUWER regulations.
- Installation
- Equipment of this design is typically designed for floor bolting to ensure stability during operation.
Frequently Asked Questions
- Screw lifts typically offer precise positioning, controlled speed, and high stability, making them suitable for applications requiring accurate vertical movement of loads. They also tend to have lower maintenance requirements compared to hydraulic systems.
