Single Pillar Hoist

BTM/300/3800/B/G Single Pillar Hoist

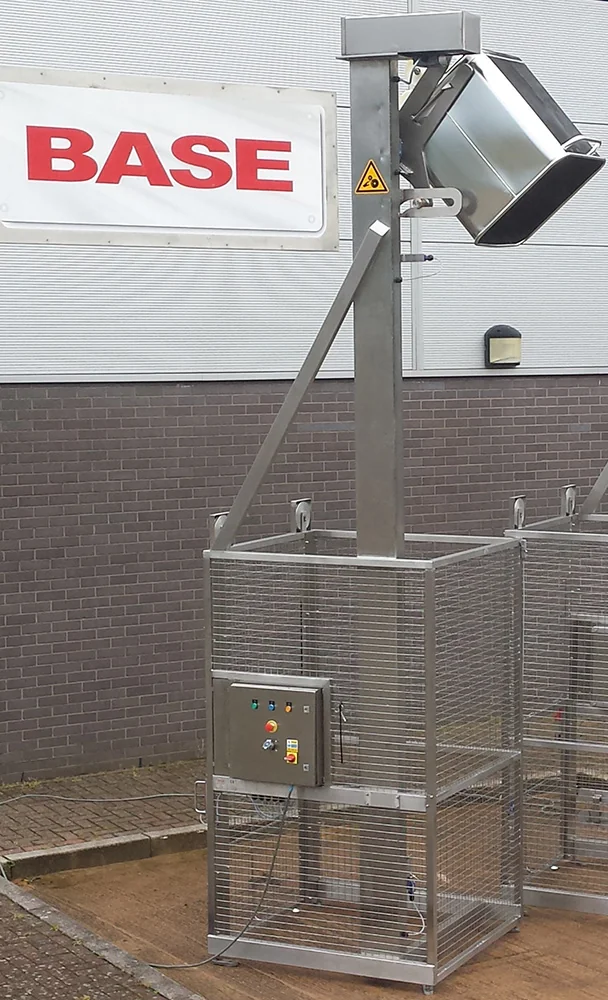

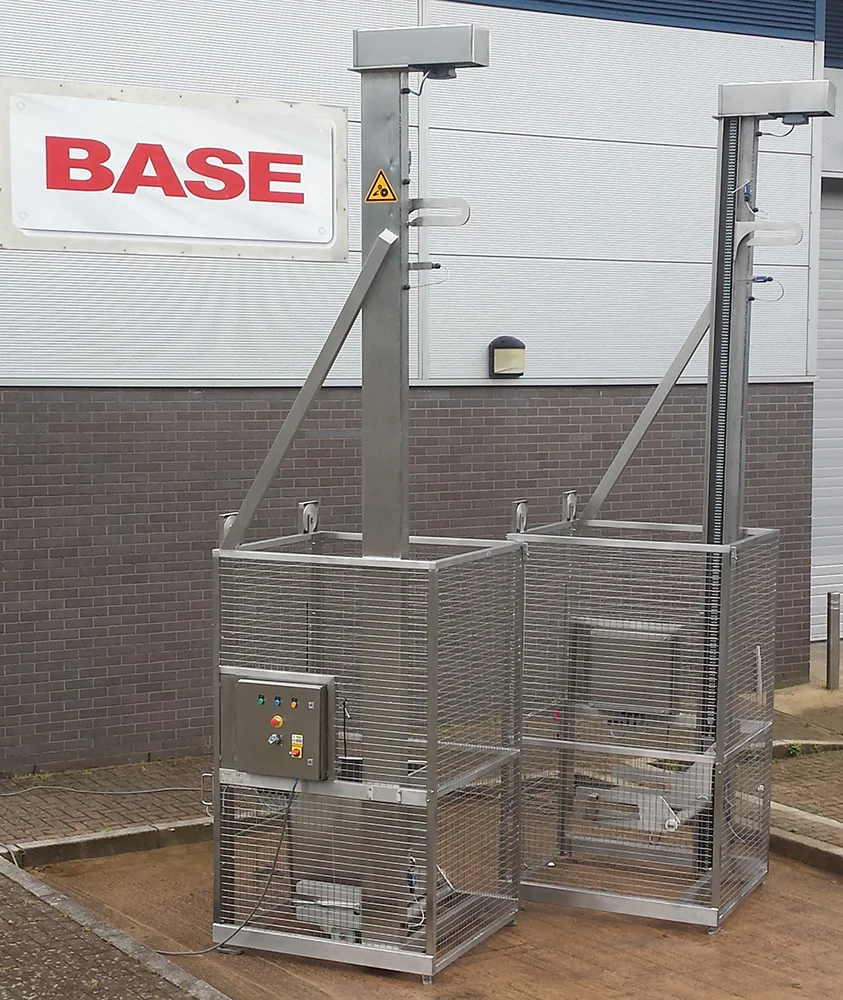

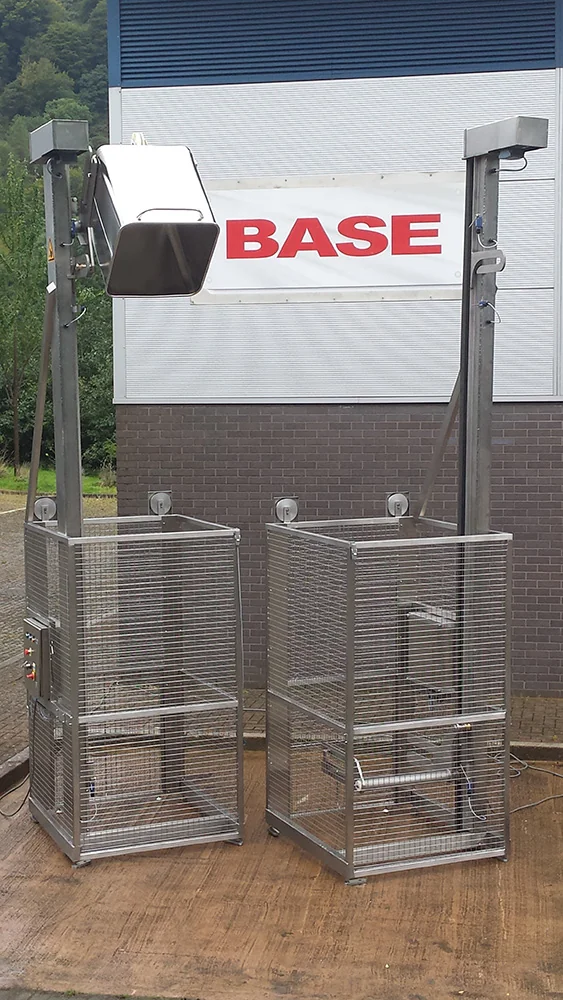

This 300 Litre Single Pillar Hoist is designed to lift and tip at a discharge height of 3800mm. The Single Pillar Hoist is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Duplex chain driven by a motor gearbox mounted at the top of the main column. The Single Pillar Hoist will be fitted with a safety guard so that the operator can load a bin, close the guard gate and send the bin to the full up position automatically, tip and return to full down.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

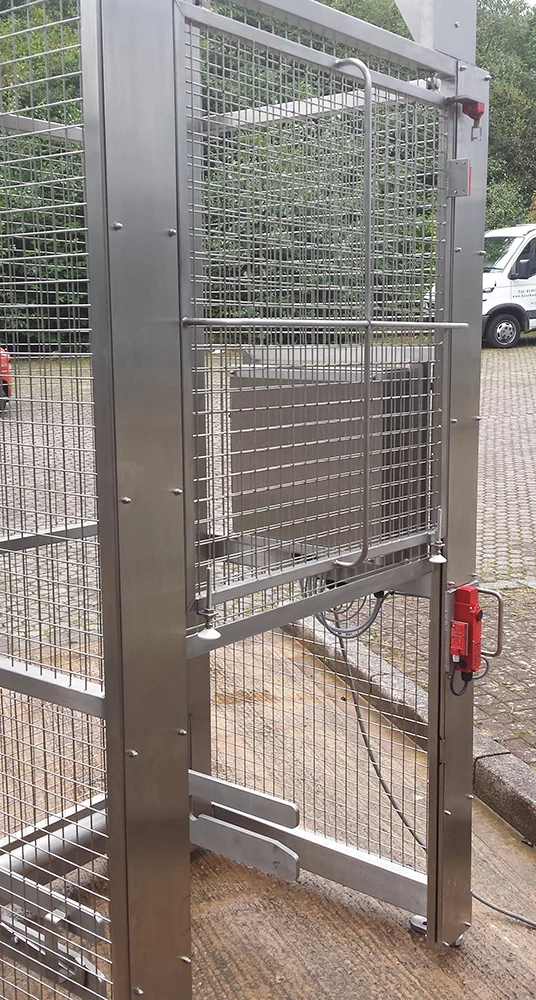

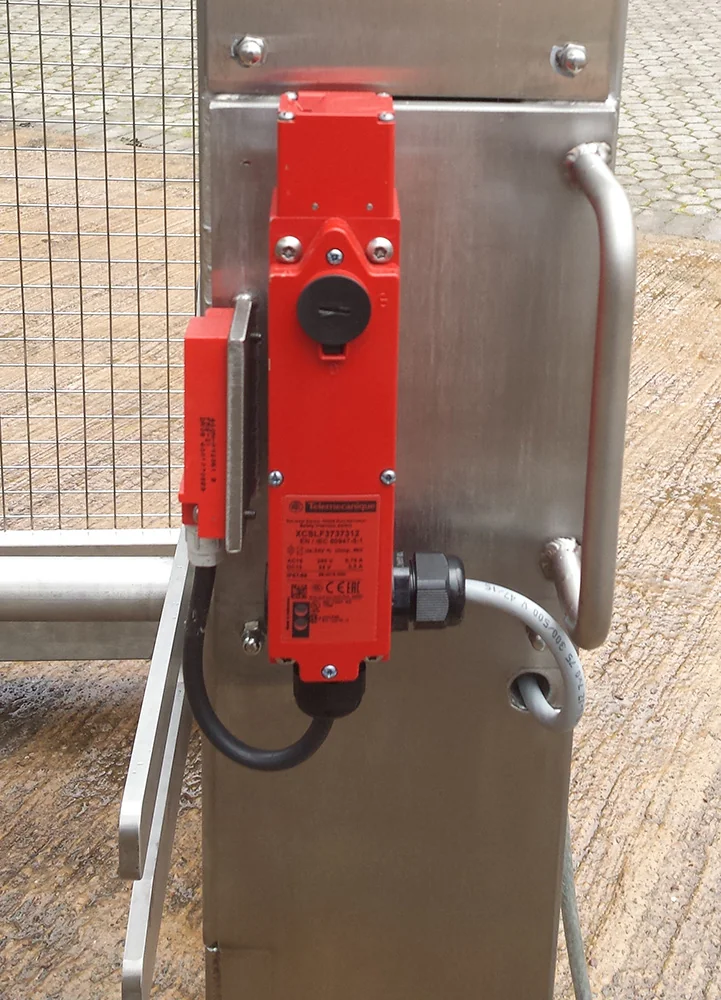

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture stainless steel weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. It encloses the Single Pillar Hoist to a height of 2200mm on three sides, with a pair of hinged guard doors on the fourth side. The guard doors are electrically and mechanically interlocked preventing the single pillar hoist from operating when a door is open. Additionally, the guard doors can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Single Pillar Hoist Electrical Control

This Single Pillar Hoist is fitted with an IP65 Stainless Steel Control Panel which is mounted on the safety guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Single Pillar Hoist operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Single Pillar Hoist to the full down position. The control panel has the facility for a ‘call to run’ signal to be connected if required.
