Single Pillar Lifter

BTM/350/2635/B/G Single Pillar Lifter

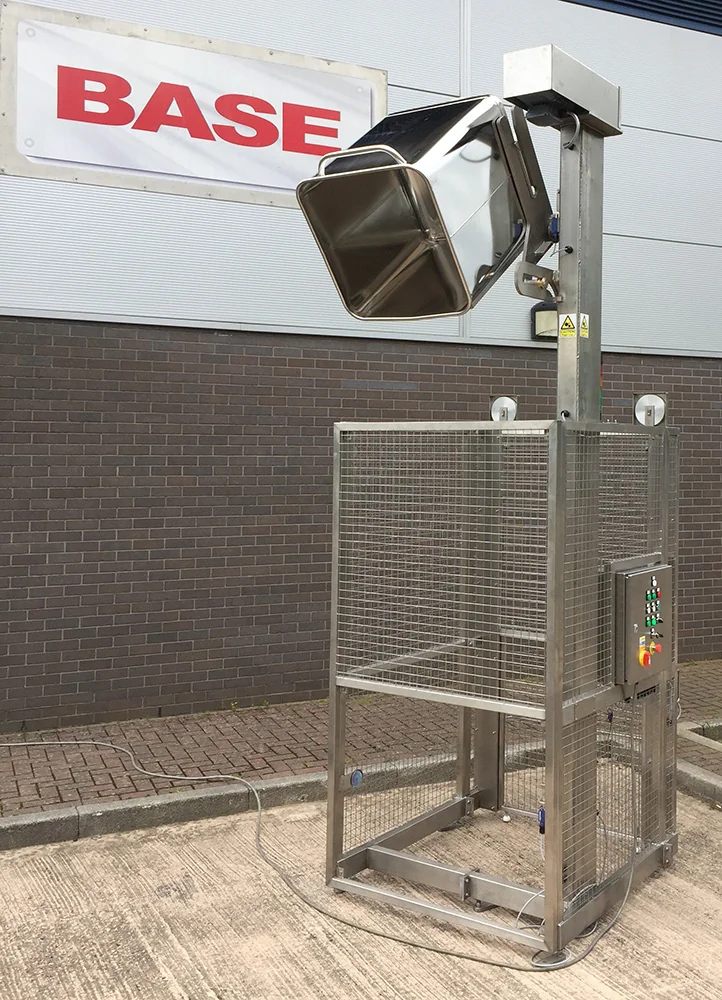

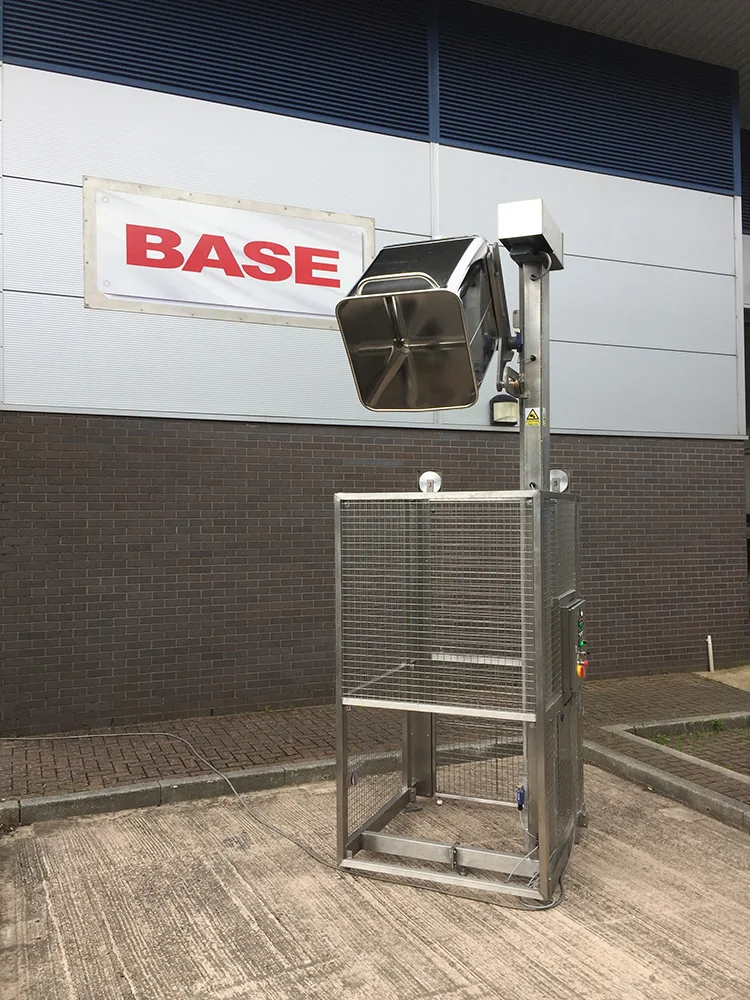

This Single Pillar Lifter is designed to lift and tip A 300 Litre Tote Bin at a discharge height of approximately 2635mm. The Single Pillar Lifter is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Single Pillar Lifter is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

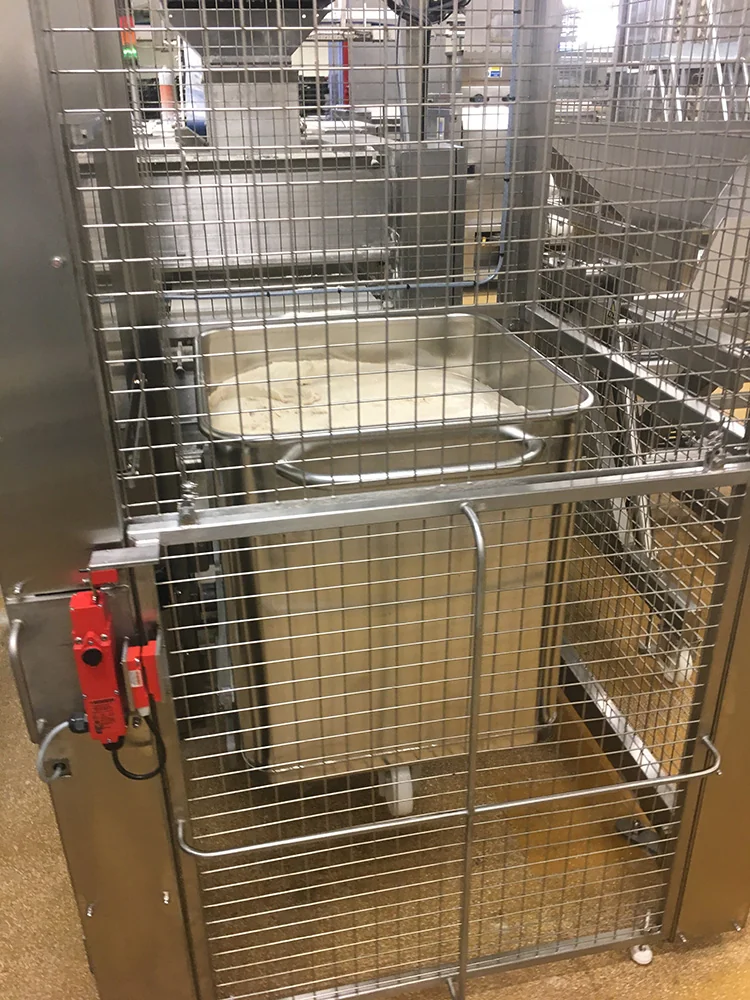

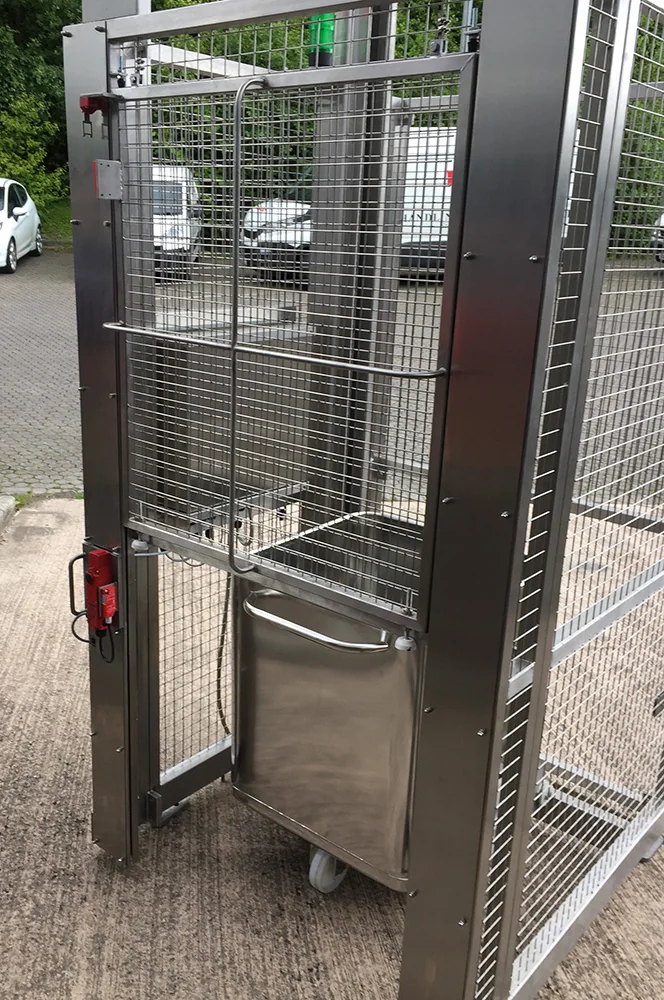

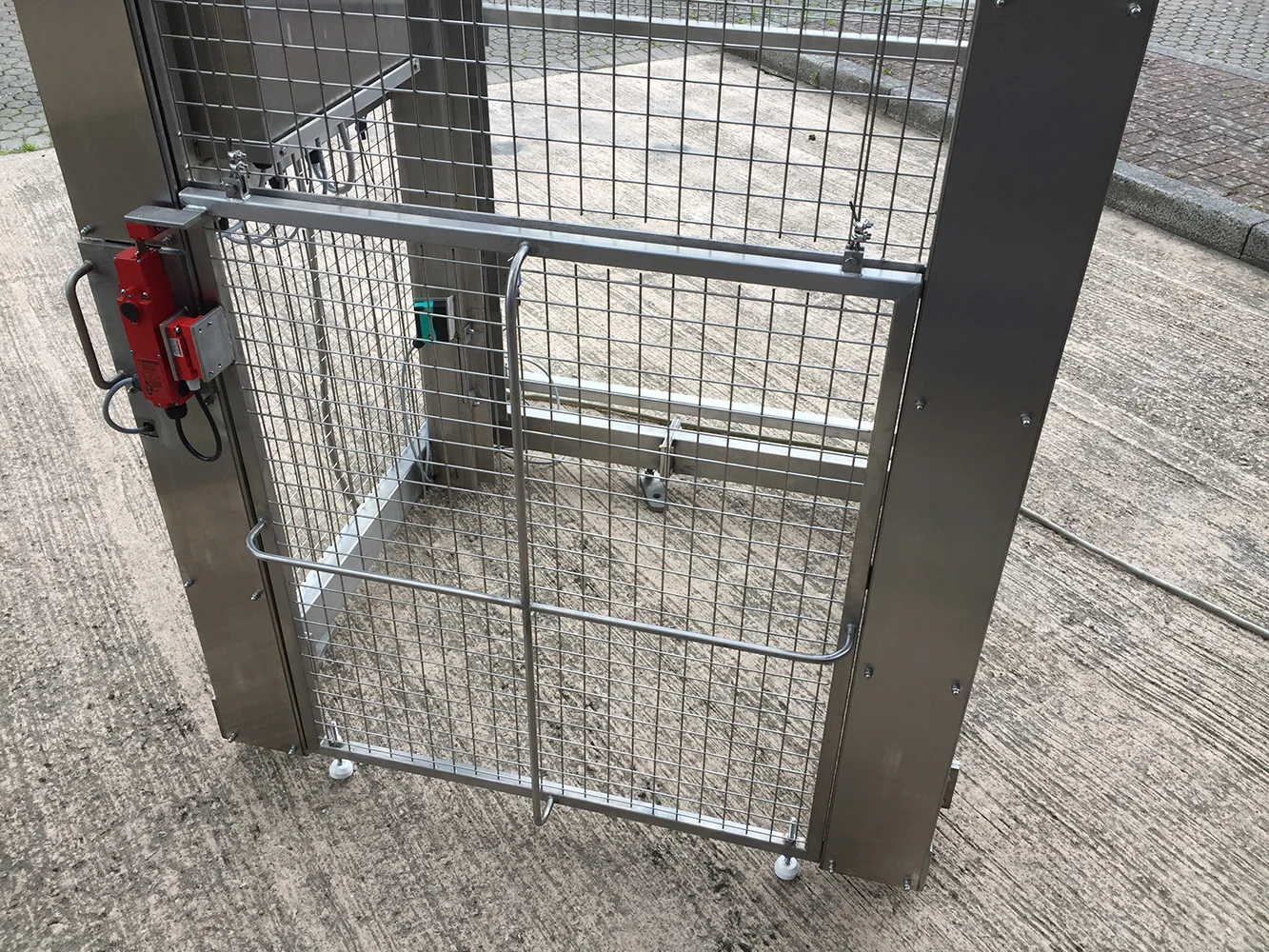

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture stainless steel weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. It encloses the Single Pillar Lifter to a height of 2200mm on three sides, with a hinged bi-fold guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Single Pillar Lifter from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Single Pillar Lifter Electrical Control

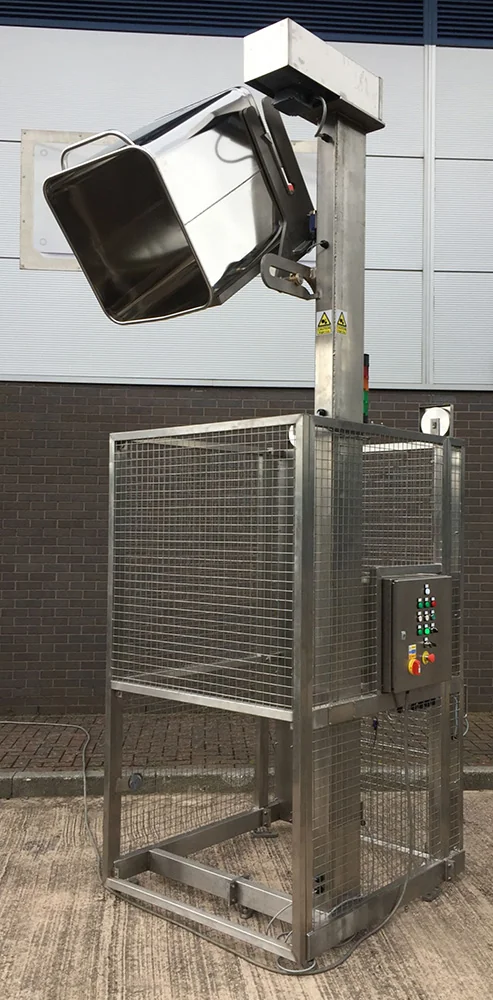

This Single Pillar Lifter is fitted with an IP65 Stainless Steel Control Panel which is mounted on the safety guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Single Pillar Lifter operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. The lift will pause at ‘Full Tip’ for a timed period which is Engineer adjustable. Once the product has been discharged the lift carriage will return to the full down position.
