What power supply is typically required for a single pillar tipper?

Most industrial single pillar tippers operate on a 3-phase electrical supply, commonly 400V, 50Hz in the UK. Buyers should confirm exact voltage and current requirements with the seller.

Are these units suitable for outdoor use?

While constructed from stainless steel, the electrical components and general design are typically for indoor, controlled environments. Specific IP ratings and weatherproofing would need to be confirmed for outdoor applications.

What maintenance is generally involved with a single pillar tipper?

Routine maintenance typically includes lubrication of moving parts, inspection of chains and sprockets, checking electrical connections, and ensuring safety features are operational. Regular cleaning is also essential in food processing environments.

Can the discharge height be adjusted?

While this unit specifies a fixed discharge height, some models may offer limited on-site adjustment via limit switches. Significant changes to discharge height would typically require structural modification or a different model.

What safety considerations should be made for an unguarded tipper?

For unguarded units, a robust risk assessment is critical. This includes clear demarcation of the operating area, operator training, and strict adherence to 'hold to run' controls and emergency stop procedures to comply with PUWER.

Available

Verified seller

Single Pillar Tipper

Name: Single Pillar Tipper
SKU: BTM/300/1800/B
Availability: InStock

Price: Contact seller for price

BTM/300/1800/B Single Pillar Tipper

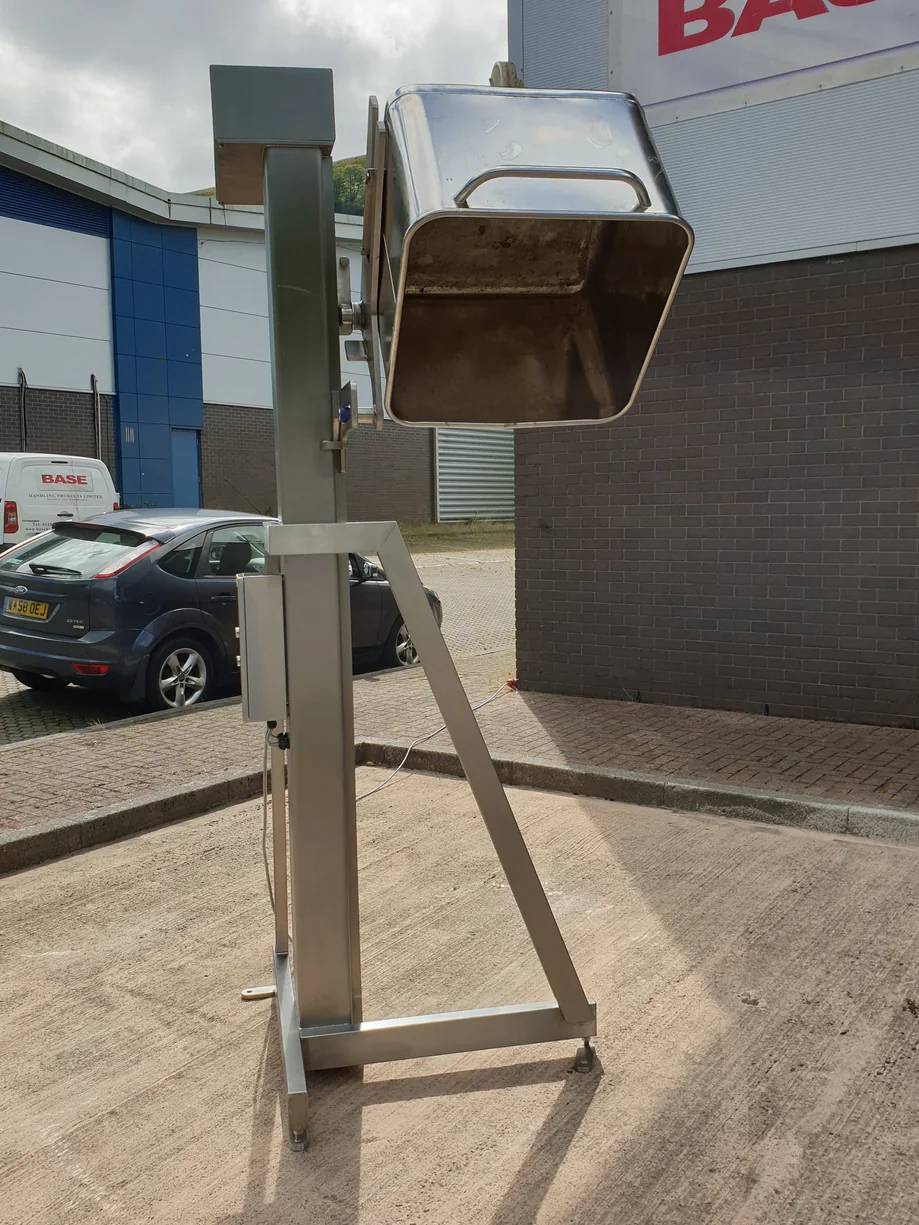

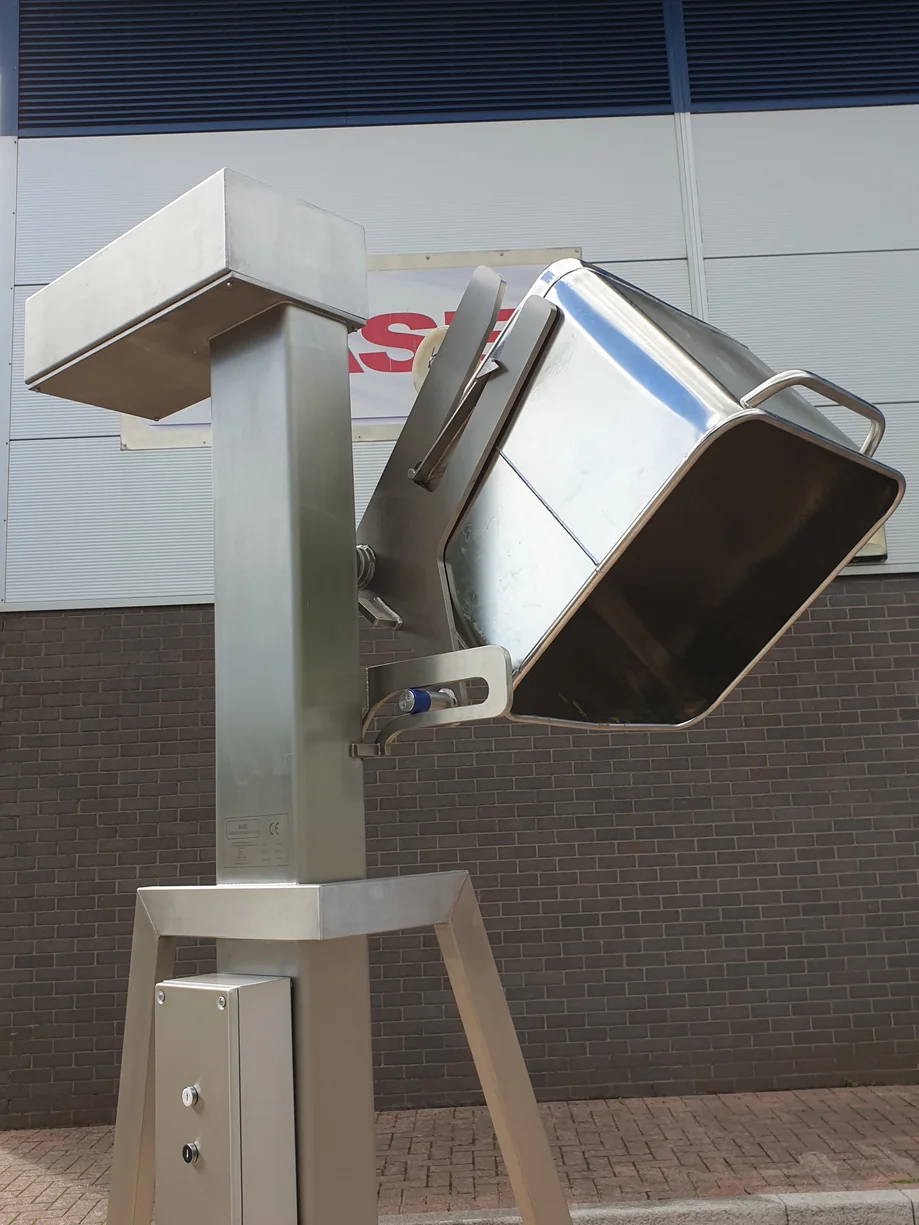

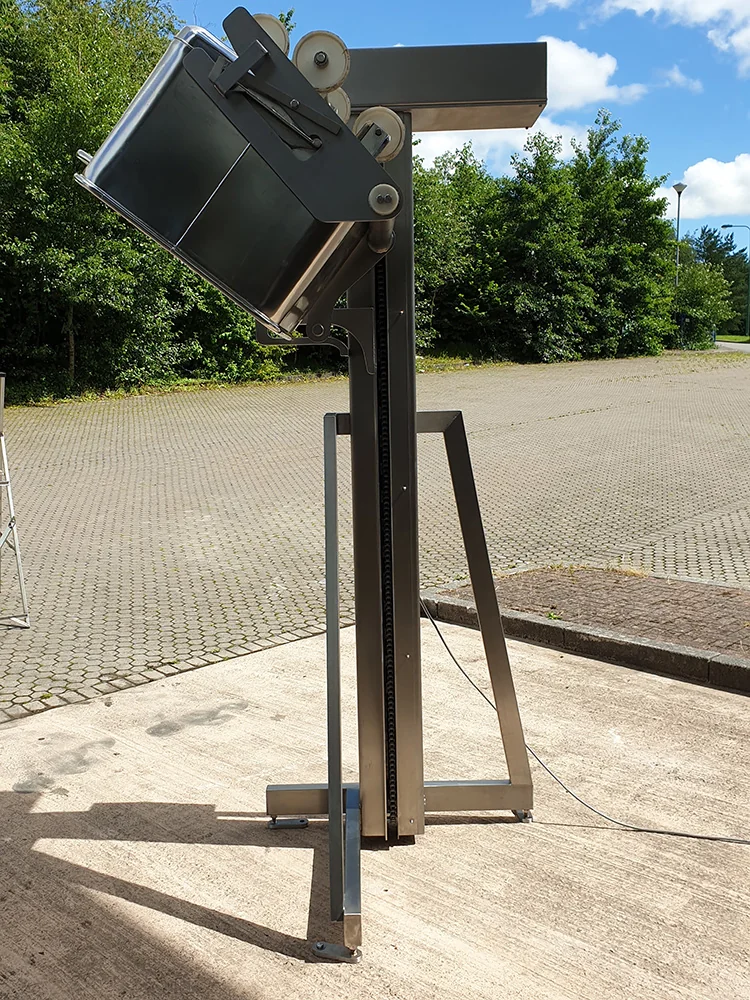

This Single Pillar Tipper 200 Litre tote bin tipper is designed to lift and tip at a discharge height of 1800mm. The Single Pillar Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Single Pillar Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Single Pillar Tipper Electrical Control

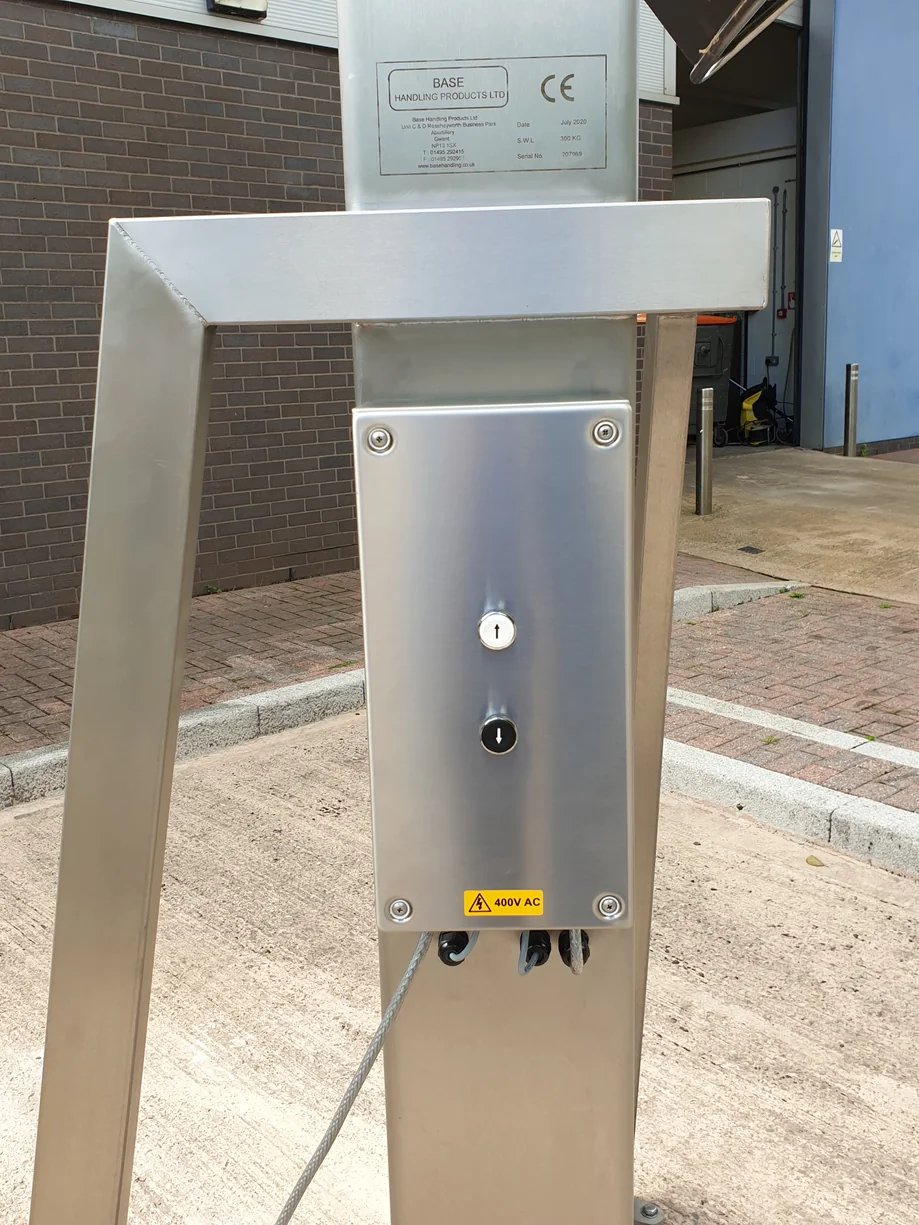

This Single Pillar Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Single Pillar Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Single Pillar Tipper to operate. As soon as either button is released, the Single Pillar Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar 200 Litre Tipper

Model No.

BTM/300/1800/B

Safe Working Load

300 Kgs

Tipping Height

1800mm

Tipping Angle

135 Degrees

Overall Height

2735mm

Machine Handing

Right Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

200 Litre Tote Bin

Base Arrangement

Base Frame Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/1800/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from tote bins into mixers or hoppers in bakeries.
Loading raw materials into processing lines in meat or poultry plants.
Discharging bulk ingredients into filling machines in confectionery production.
Elevating and tipping waste products into skips or compactors in food manufacturing.
Feeding vegetables or fruits into washing or cutting equipment.

Typical Specifications

Typical capacity: Designed for 200-litre tote bins, commonly found in food processing.
Discharge height: This unit specifies 1800mm; other units in this class typically range from 1200mm to 3000mm.
Construction material: Grade 304 stainless steel is standard for food contact and hygiene requirements.
Mounting: Units of this type are typically floor-mounted and require bolting for stability.
Lifting mechanism: Chain-driven systems with a motor gearbox are common for reliability and controlled movement.
Electrical control: IP65 rated stainless steel control panels are typical for washdown environments, adhering to PUWER regulations.
Safety features: Automatic safety latches for chain failure are a key safety feature on modern units.
Operation: 'Hold to run' controls are standard for operator safety, preventing unattended operation.

Frequently Asked Questions

Most industrial single pillar tippers operate on a 3-phase electrical supply, commonly 400V, 50Hz in the UK. Buyers should confirm exact voltage and current requirements with the seller.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
