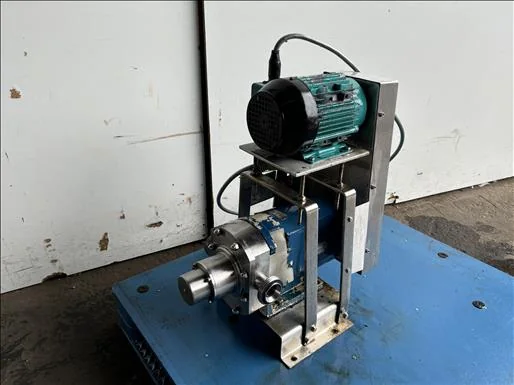

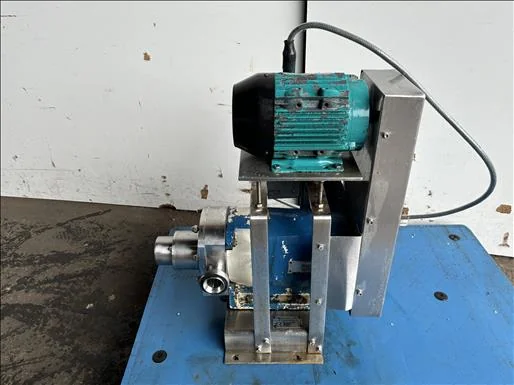

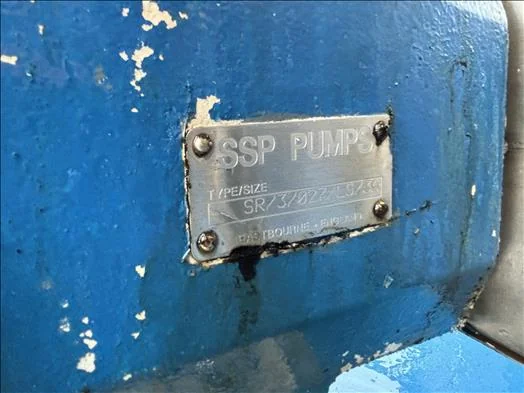

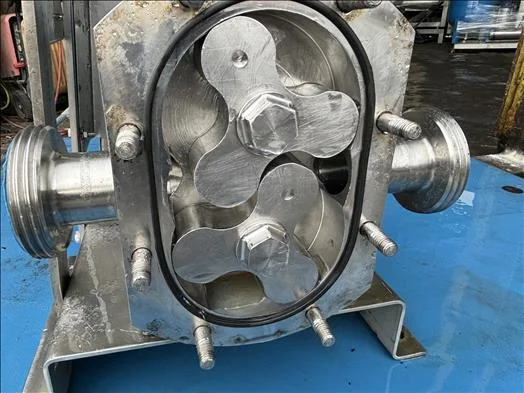

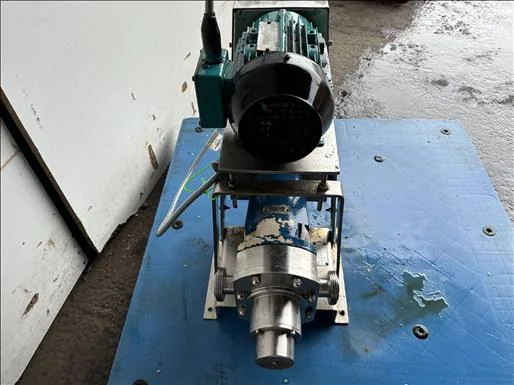

SSP SR-3-027-LS3A Lobe Pump

Applications & Use Cases

• Transferring viscous food products such as sauces, jams, and doughs.
• Handling delicate food items like fruit pieces or yoghurts without damage.
• Circulating brines, marinades, and other processing liquids.
• Dosing ingredients in batching and mixing operations.
• Unloading tankers or filling containers with food-grade liquids.

Typical Specifications

Pump Type

Positive Displacement Lobe Pump

Typical Flow Rate

For this class of SSP SR series pump, flow rates commonly range from 5 to 50 cubic metres per hour, depending on lobe configuration and motor speed.

Pressure Capability

Units of this type typically operate at discharge pressures up to 10-15 bar.

Motor Power

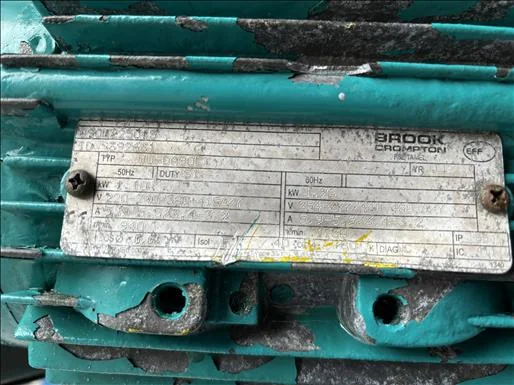

This unit features a 1.1 kW motor; other units in this series commonly have motors ranging from 0.75 kW to 7.5 kW.

Inlet/Outlet Connections

The listing states 450mm inlet and outlet pipes, which is unusually large and may be a typo for DN40 or similar; buyers should confirm exact connection sizes with the seller. Common connections for this pump series include RJT, DIN, or Tri-Clamp.

Materials of Construction

SSP SR series pumps are typically constructed from 316L stainless steel for wetted parts, suitable for food contact applications.

Seal Type

Commonly fitted with single or double mechanical seals, or O-ring seals, depending on the application and product.

Footprint

A pump of this model with a 1.1kW motor typically has a compact footprint, often less than 800mm (L) x 400mm (W) x 500mm (H).

Frequently Asked Questions

• What kind of products is an SSP SR-3-027-LS3A Lobe Pump best suited for?

  This pump is well-suited for handling a wide range of viscous, shear-sensitive, or particulate-laden food products due to its gentle pumping action and hygienic design.

• What maintenance is typically required for a lobe pump?

• Is this pump suitable for CIP (Clean-In-Place) systems?

• What does 'LS3A' in the model number signify?

• Can this pump handle abrasive products?
