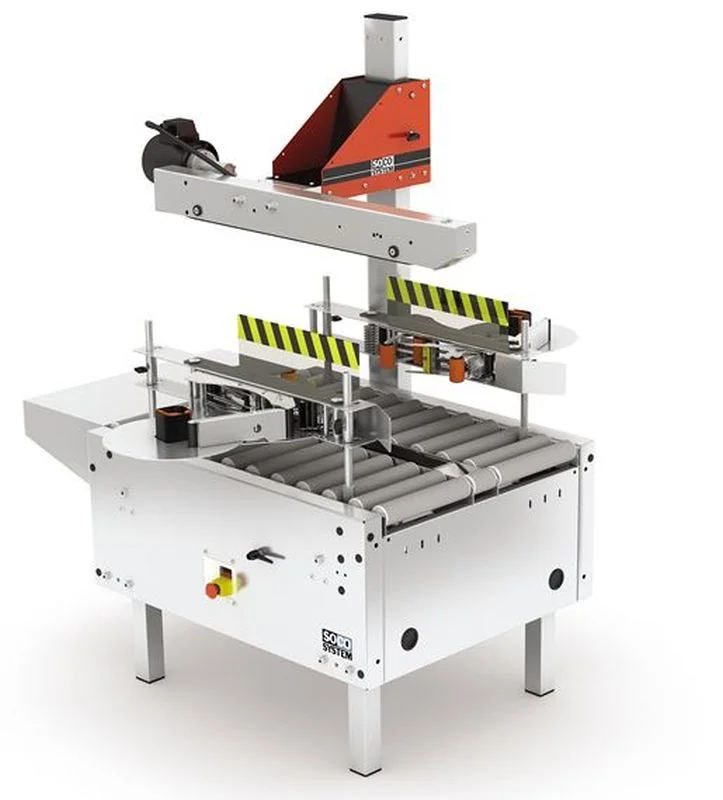

ST10

Specifications ST- ST-10 Maxi 7-5-7 Case dimensions* Max. (LxWxH) mm Infinite x 530 x 200** Infinite x 740 x 200** Min. (LxWxH) mm 140 x 125 x 50** 140 x 200 x 50** Tape overlap 70 mm Standard Standard 50 mm Option Option Tape width 38 - 50 mm Standard Standard 50 - 75 mm Option Option Working height max./min. mm Option Option mm Option Option mm Standard Standard mm Option Option mm Option Option Weight kg 165 170 Capacity* Max. 30/ min. Electric specifications 3 x 230/400 V, 50-60 Hz, or 3 x 415/460 V, 50-60 Hz. Connected load 0.3 kW. Other specifications available upon request. Tape diameter Max. 385 mm. Standard Standard Option Optional * Depending on the construction and quality of the case. ** H indicates the lowest and highest placings of the tape measured from the base of the case to the centre of the tape. Subject to alteration.
