What types of bins can this tipper accommodate?

Bin tippers are typically designed for standard Eurobins (200L or 300L) or custom bins, provided they fit the tipping cradle. Buyers should confirm compatibility with their specific bin dimensions.

Is guarding required for this equipment?

The listing states this unit is unguarded. Under PUWER regulations, appropriate guarding or safety measures must be implemented by the user to prevent access to moving parts during operation.

How is the unit installed?

This unit is designed for floor bolting to ensure stability during operation. Professional installation is recommended to ensure correct alignment and safety.

What maintenance is typically required?

Regular maintenance for bin tippers includes inspection of the lifting chain, motor gearbox, limit switches, and electrical connections. Lubrication of moving parts and general cleaning are also essential.

Can the discharge height be adjusted?

While the listing specifies 1800mm, the upper and lower limit switches are typically adjustable by trained personnel for fine-tuning on site. Significant height changes may require mechanical modification.

Stainless Steel Bin Tipper - Lifting & Tipping, photo 1

Stainless Steel Bin Tipper - Lifting & Tipping, photo 2

Stainless Steel Bin Tipper - Lifting & Tipping, photo 3

Stainless Steel Bin Tipper - Lifting & Tipping, photo 4

Stainless Steel Bin Tipper - Lifting & Tipping, photo 5

Stainless Steel Bin Tipper - Lifting & Tipping, photo 6

Stainless Steel Bin Tipper - Lifting & Tipping

Available

Verified seller

Stainless Steel Bin Tipper

Name: Stainless Steel Bin Tipper
SKU: BTM/200/1800/B
Availability: InStock

Price: Contact seller for price

BTM/200/1800/B Single Pillar Stainless Steel Bin Tipper

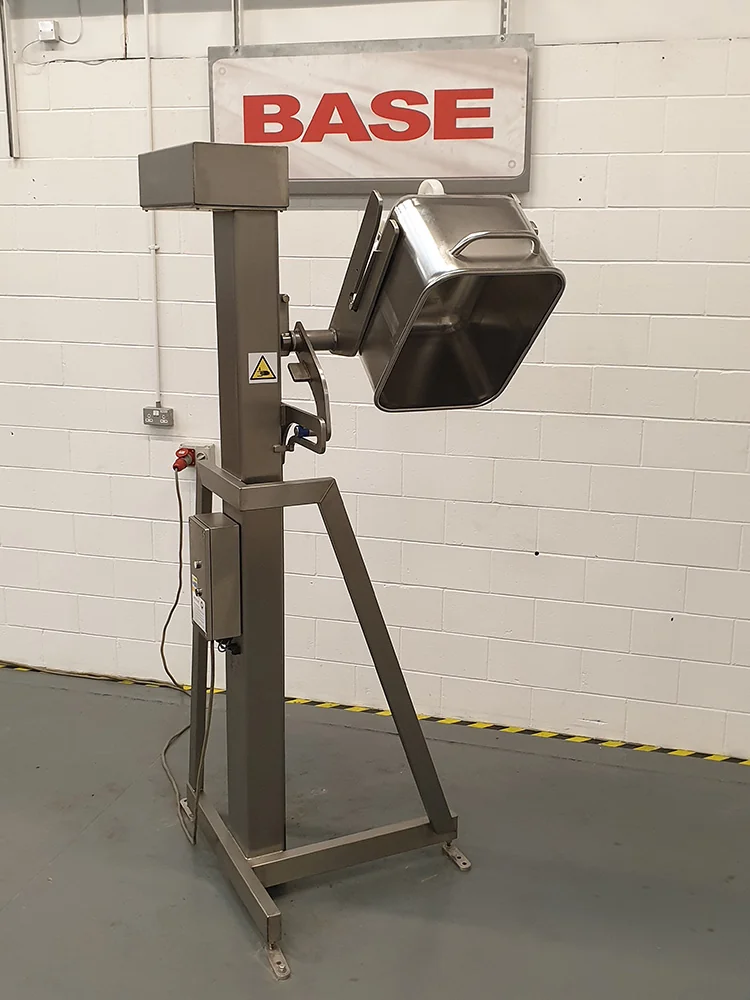

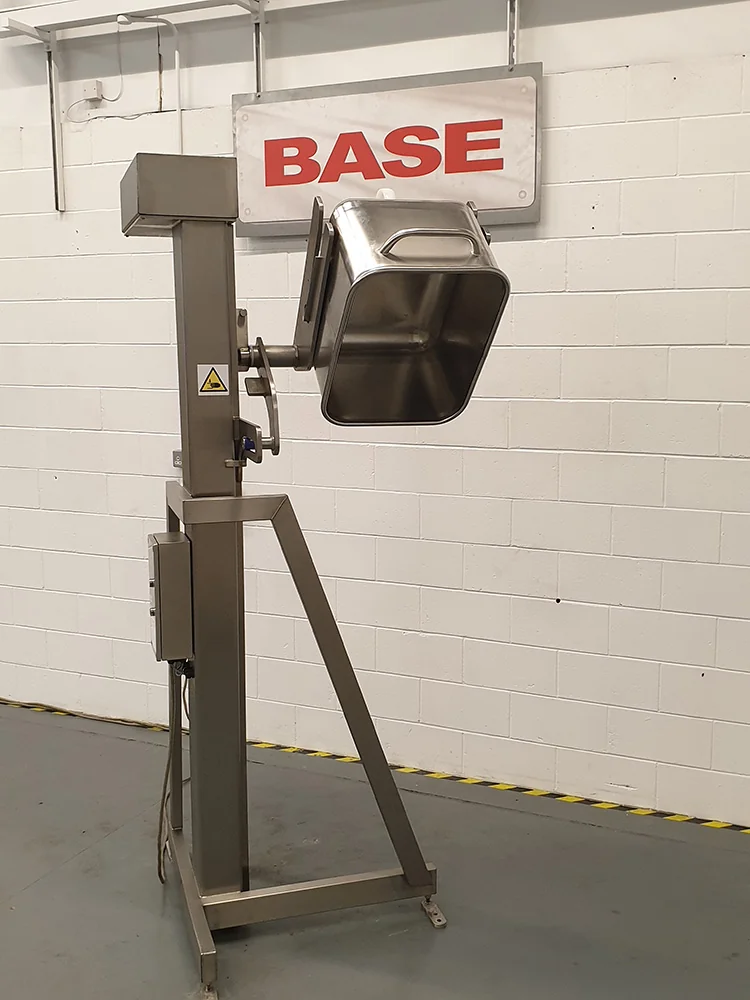

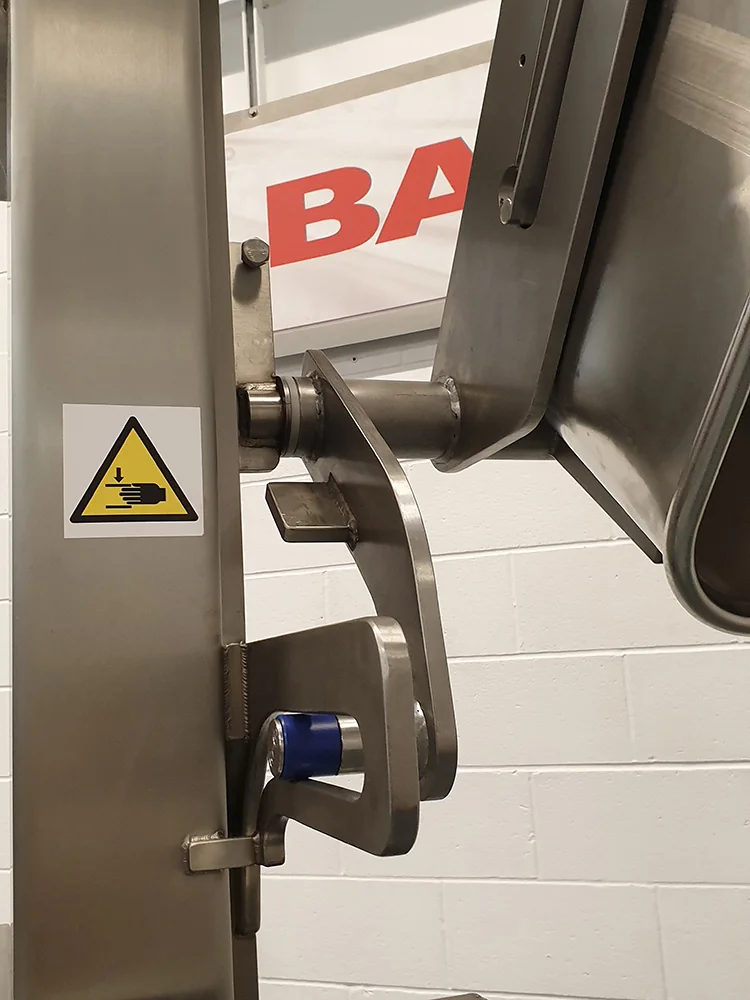

This Stainless Steel Bin Tipper is designed to lift and tip at a discharge height of 1800mm. The Stainless Steel Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Stainless Steel Bin Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Stainless Steel Bin Tipper Electrical Control

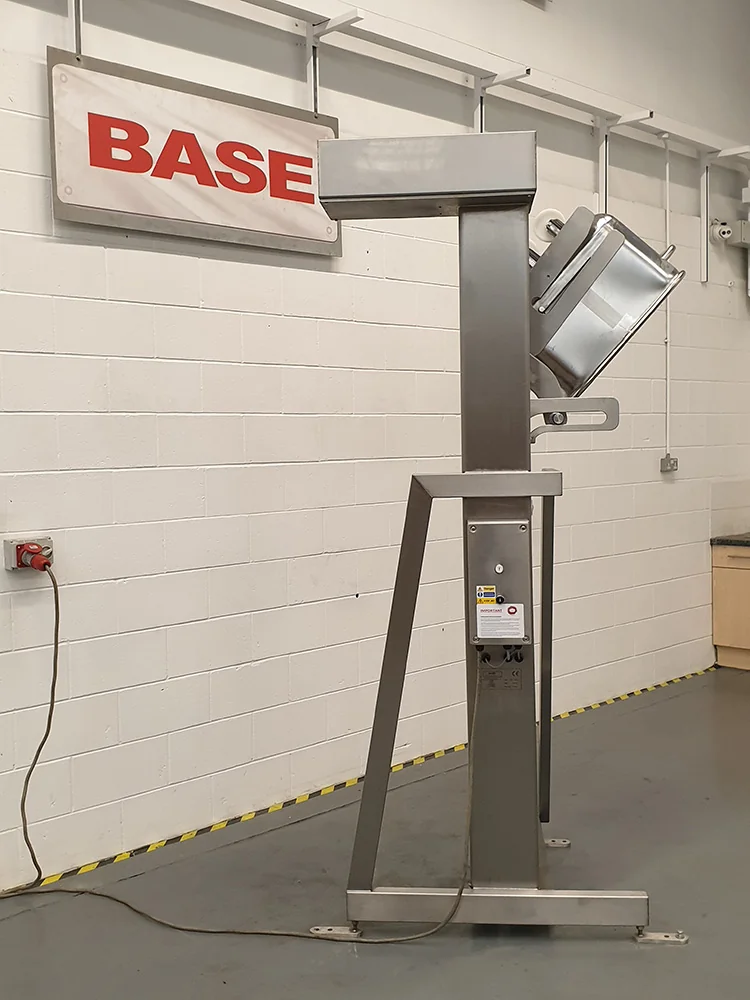

This Stainless Steel Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Stainless Steel Bin Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Stainless Steel Bin Tipper to operate. As soon as either button is released, the Stainless Steel Bin Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Stainless Steel Bin Tipper

Model No.

BTM/200/1800/B

Safe Working Load

200 Kgs

Tipping Height

1800mm

Tipping Angle

135 Degrees

Overall Height

2635mm

Machine Handing

Right Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

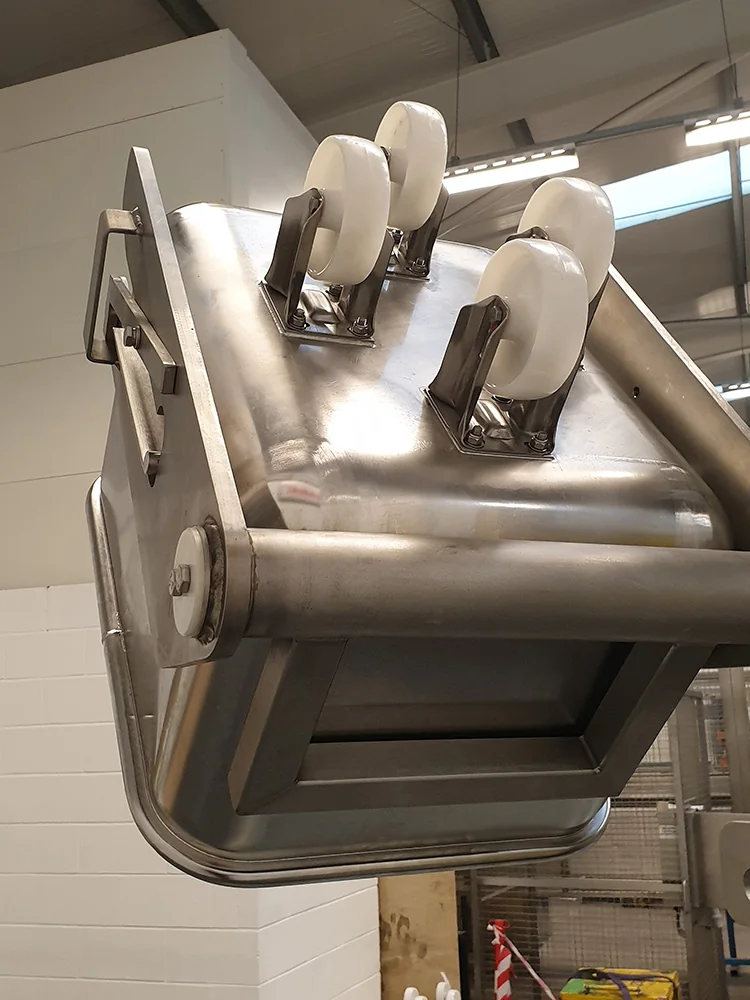

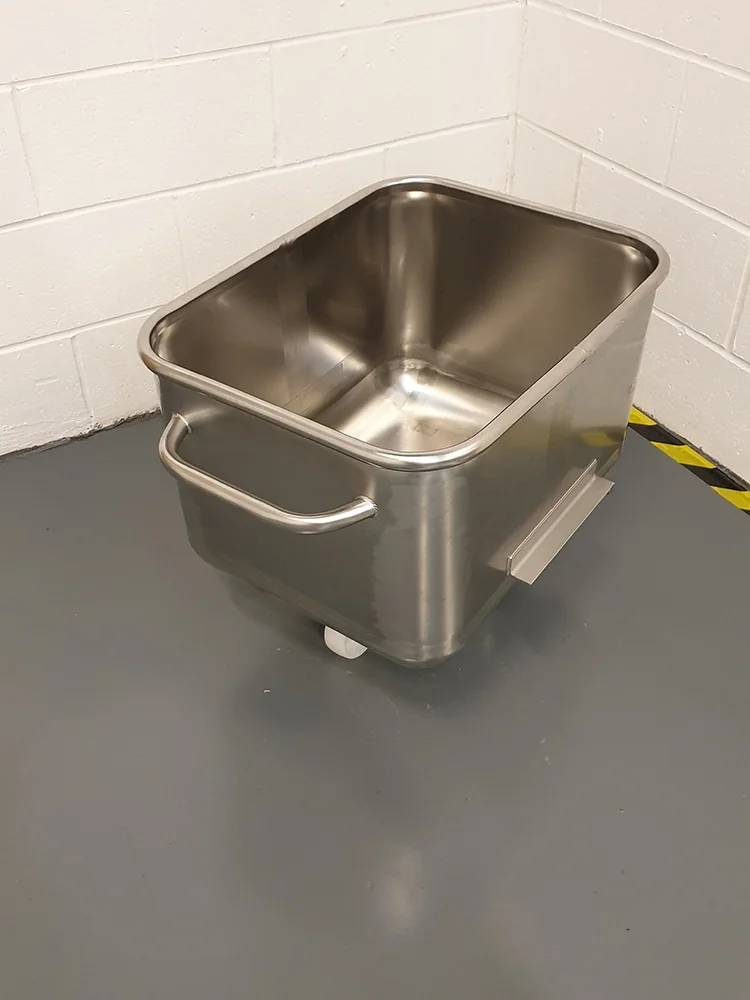

Stainless Steel Bespoke Mobile Drum

Base Arrangement

Base Frame Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/200/1800/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from bins into mixers or other processing machinery.
Loading raw materials into hoppers for further processing.
Discharging finished products from storage bins onto conveyor systems.
Handling waste products or by-products for disposal or recycling.
Elevating bulk ingredients for ergonomic feeding of manual operations.

Typical Specifications

Typical bin capacity: Units of this class commonly handle bins ranging from 200 kg to 1000 kg.
Discharge height: This unit is specified for 1800mm; other models typically offer discharge heights from 1200mm to 3000mm.
Construction material: This unit is 304-grade stainless steel; 316-grade is also commonly available for enhanced corrosion resistance.
Power supply: Typically 400V, 3-phase, 50Hz, with control circuits often at 24V DC.
Footprint: For a single pillar unit, the footprint is relatively compact, typically requiring a floor area of 1.5m x 1.5m, plus operational clearance.
Safety features: Units commonly include safety latches, 'hold to run' controls, and upper/lower limit switches.
Control panel rating: IP65 rated control panels are standard for washdown environments in food processing.

Frequently Asked Questions

Bin tippers are typically designed for standard Eurobins (200L or 300L) or custom bins, provided they fit the tipping cradle. Buyers should confirm compatibility with their specific bin dimensions.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
