What types of materials can this screw lift handle?

This type of screw lift is typically designed for handling free-flowing dry materials such as powders, granules, and small solid components. Viscous or sticky materials may require specific configurations.

Is this unit suitable for washdown environments?

Given its stainless steel construction and IP65-rated control panel, units of this design are generally suitable for washdown environments, common in food and pharmaceutical sectors.

How is the lifting mechanism operated?

The lifting mechanism is typically driven by an electric motor and gearbox, utilising a ball screw for smooth and controlled vertical movement. Operation is usually via a local control panel.

Can the lift height be adjusted?

Yes, units of this type commonly feature adjustable upper and lower limit switches, allowing trained personnel to set the precise lifting and lowering positions as required by the application.

What safety features are typically included?

Common safety features include upper and lower limit switches to prevent over-travel, emergency stop buttons, and often mechanical or electrical interlocks to ensure safe operation.

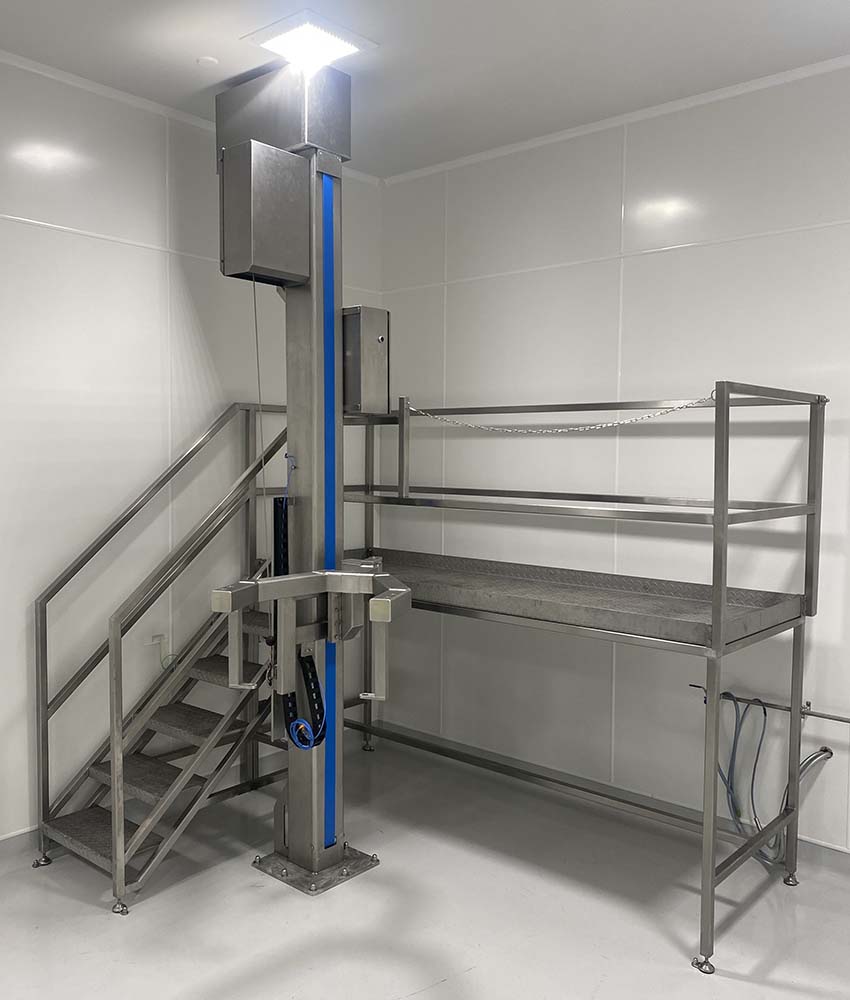

Stainless Steel Screw Lift - Lifting & Tipping, photo 1

Stainless Steel Screw Lift - Lifting & Tipping, photo 2

Stainless Steel Screw Lift - Lifting & Tipping, photo 3

Stainless Steel Screw Lift - Lifting & Tipping, photo 4

Stainless Steel Screw Lift - Lifting & Tipping, photo 5

Stainless Steel Screw Lift - Lifting & Tipping, photo 6

Stainless Steel Screw Lift - Lifting & Tipping

Available

Verified seller

Base Handling Ltd - Stainless Steel Screw Lift

Name: Stainless Steel Screw Lift
Brand: Base Handling Ltd
SKU: HSS/250/626-2292/B
Availability: InStock

Price: Contact seller for price

HHS/250/626-2292/B Stainless Steel Screw Lift.

This Stainless Steel Screw Lift was designed to lift a stainless steel receiver hopper to a height of 2292mm from the floor and had a Safe Working Load of 250 Kgs.

Once at this height, it can be rotated manually to the rear to allow an Intermediate Bulk Container to be loaded into position on a Floor Mounted Scale.

After the IBC is loaded, the Receiver Hopper is rotated manually by the operator to align directly above the IBC for the filling activity to take place.

When an IBC is not in position, the Receiver Hopper can be lowered to the full down position which will be 626mm off the floor.

At this full down position, the hopper can be manually rotated forwards towards the operator for further maintenance or hygiene access.

The Stainless Steel Screw Lift was constructed from Grade 304 stainless steel and was designed be bolted to the floor with an additional brace to the access platform.

The lifting is accomplished via a machined ball screw and lifting nut mounted within the lift column driven by a motor gearbox.

Stainless Steel Screw Lift Electrical Control.

This Stainless Steel Screw Lift is fitted with an IP65 Stainless Steel Control Panel which is mounted at a suitable position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The Stainless Steel Screw Lift has dual pushbutton control complete with simultaneous relays and works on a ‘hold to run’ basis.

The ‘Up’ or ‘Down’ pushbuttons must be held for the Stainless Steel Screw Lift to operate and as soon as a button is released, the Stainless Steel Screw Lift will stop.

There is also an additional proximity switch used to detect the top of the Matcon IBC when the lift is lowered.

When the proximity switch detects the top of the Matcon IBC, the Stainless Steel Screw Lift will stop and can only be raised from that position.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Stainless Steel Screw Lift

Model No.

HHS/250/626-2292/B

Capacity

250 Kgs

Overall Height

3744mm

Machine Handing

Left Hand

Maximum Headroom

3800mm

Container Description

Vacuum Receiver Hopper

Base Arrangement

Base Plate Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Dual Proximity Sensors

Motor Detail

1.1kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Lift Speed

4.0 Meters/Minute

Lift & Safety Nut

32mm x 20mm Pitch

Receiver Hopper Lowered

626mm

Receiver Hopper Raised

2292mm

Ball Screw

32mm Diameter x 10mm Pitch

Stock Number

HSS/250/626-2292/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Used for elevating bulk materials or ingredients to processing lines or packaging equipment.
Suitable for transferring powders, granules, or small components between different stages of a production process.
Commonly employed in food processing for loading mixers, hoppers, or other machinery.
Applicable in pharmaceutical and chemical industries for controlled material transfer.
Utilised in scenarios requiring precise height adjustment and controlled discharge of materials.

Typical lifting capacity: Units of this class commonly handle loads ranging from 100 kg to 500 kg, with some specialised units exceeding this.
Maximum lift height: For this type of equipment, maximum lift heights typically range from 1.5 metres to over 3 metres.
Construction material: Units designed for food and pharmaceutical applications are typically constructed from Grade 304 or 316 stainless steel.
Power supply: Commonly requires a 3-phase electrical supply, typically 400V, 50Hz, with varying amperage depending on motor size.
Control system: Often features an IP-rated control panel with push-button operation and safety interlocks, compliant with PUWER.
Footprint: The base footprint is typically compact, designed for integration into existing production lines, requiring floor mounting.
Maintenance access: Designed with features for easy access to components for cleaning and routine maintenance, particularly in hygienic environments.

This type of screw lift is typically designed for handling free-flowing dry materials such as powders, granules, and small solid components. Viscous or sticky materials may require specific configurations.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
