Static Box Tipper

Name: Static Box Tipper
SKU: BTM/100/1500/B
Availability: InStock

Price: Contact seller for price

BTM/100/1500/B Single Pillar Static Box Tipper

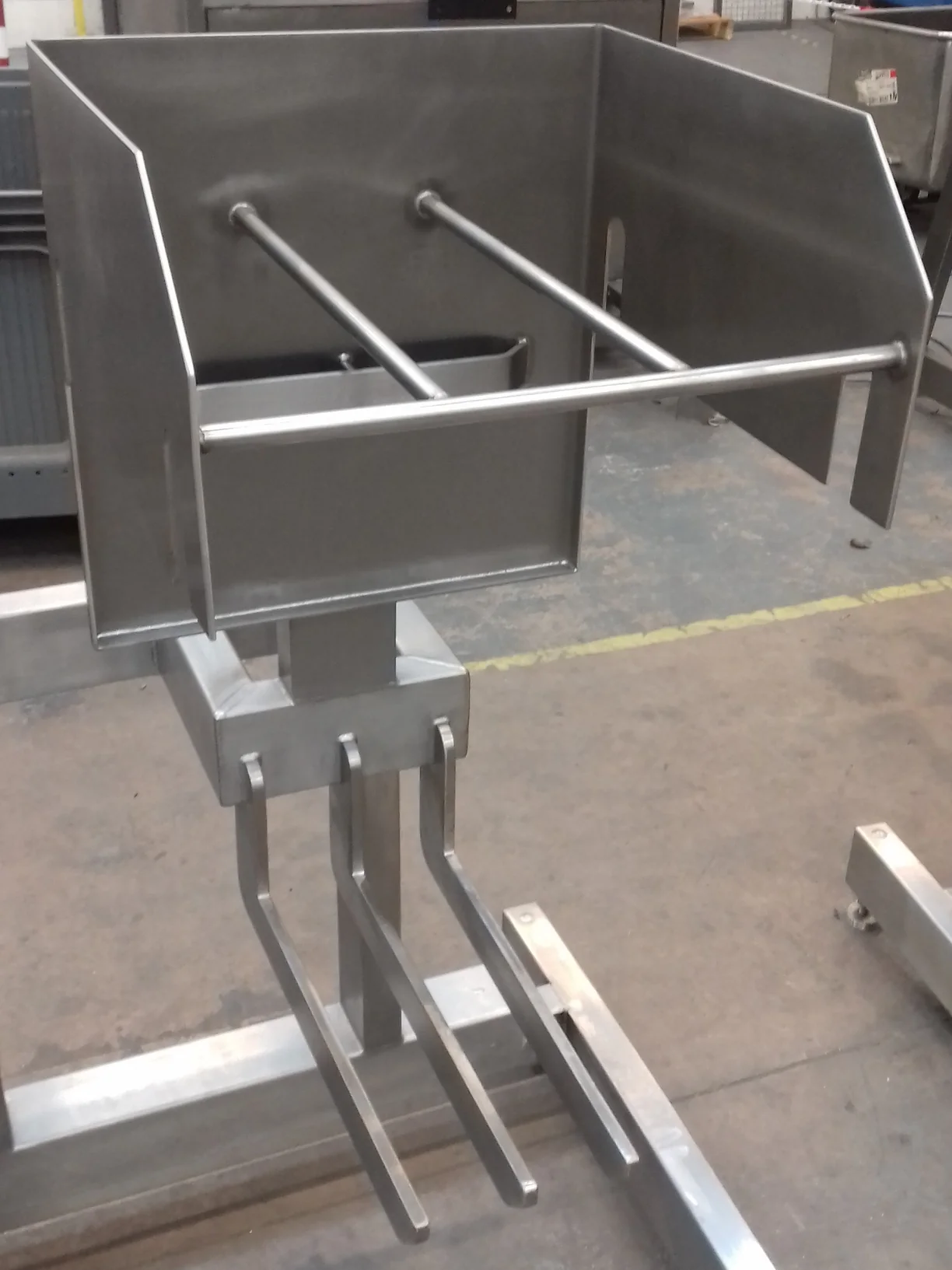

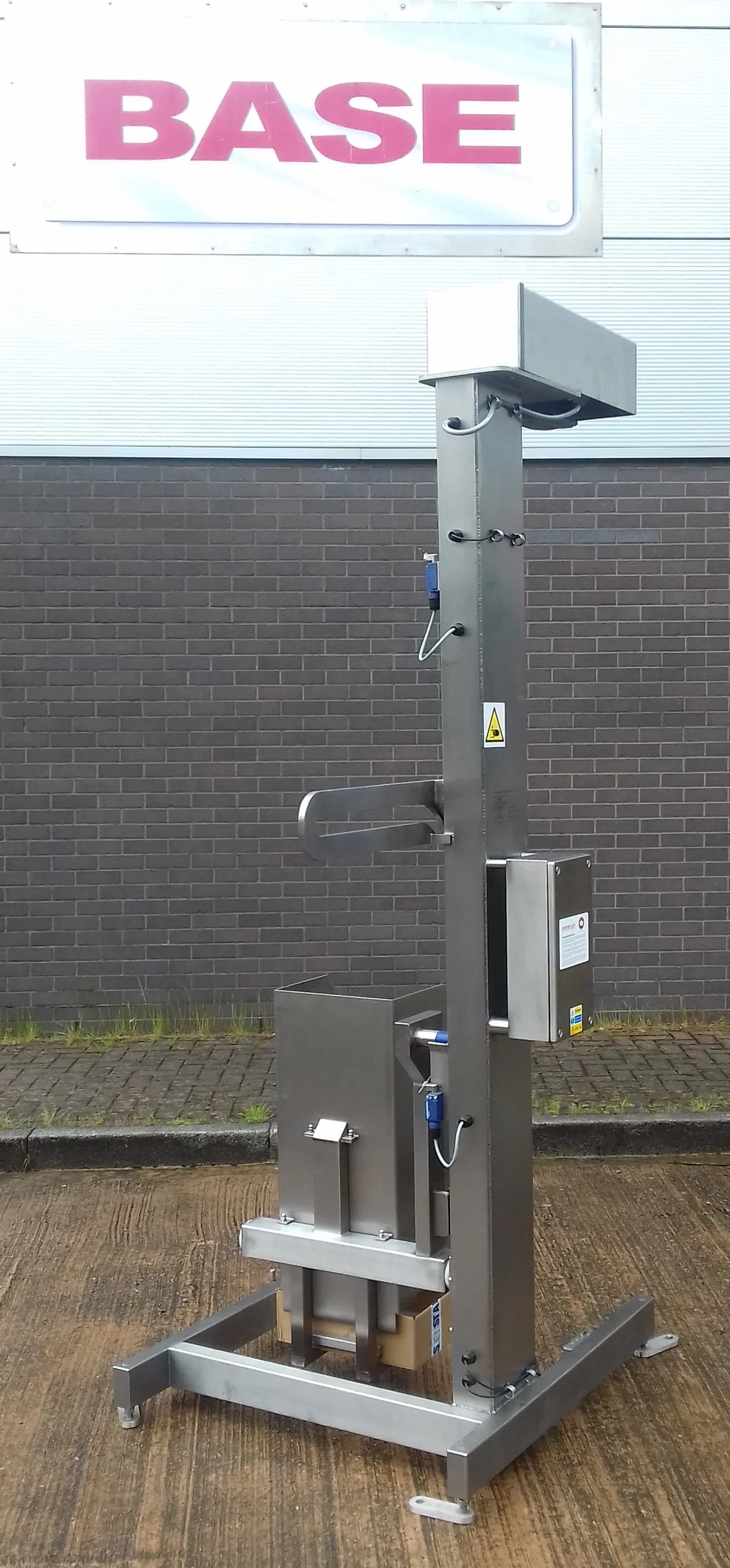

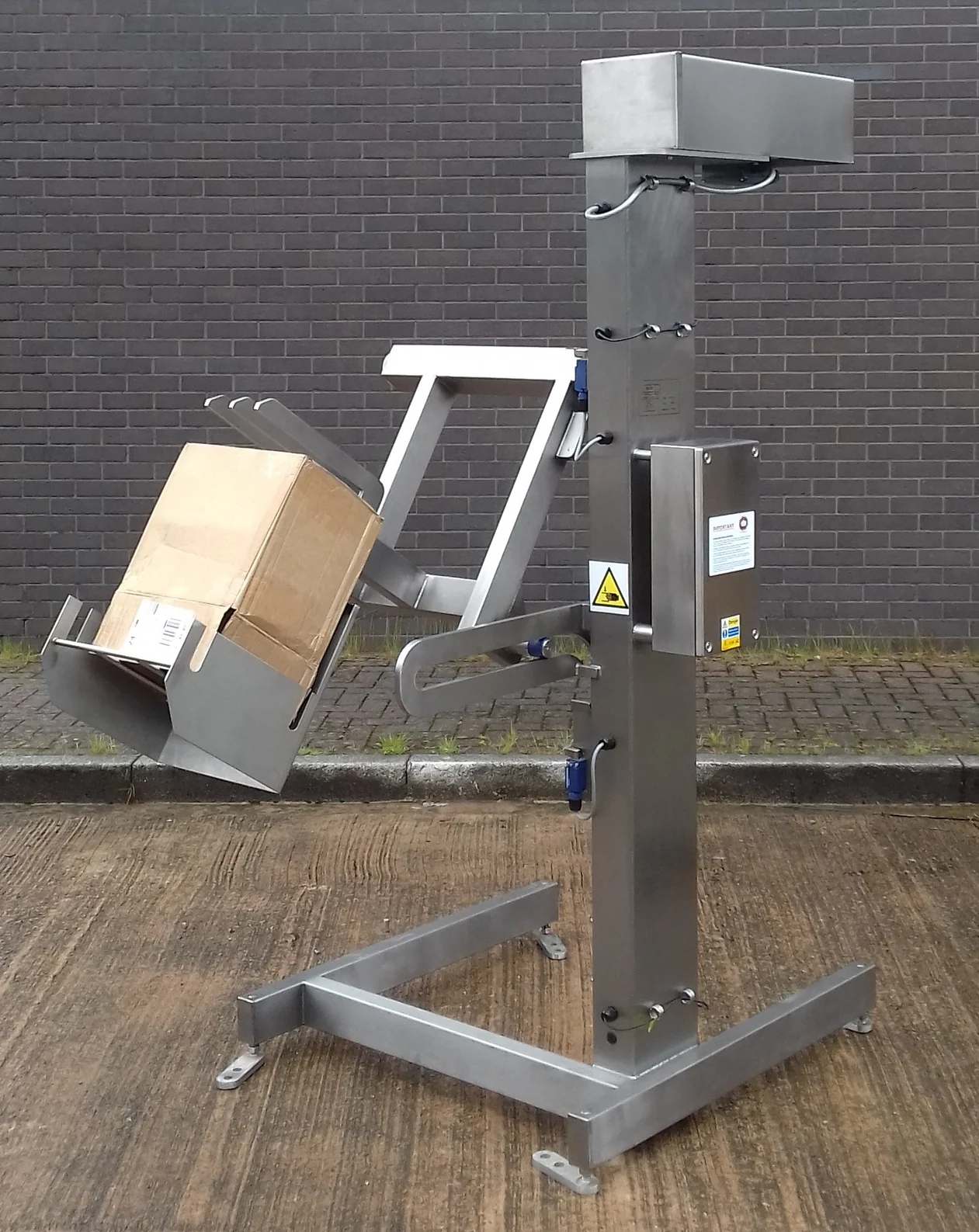

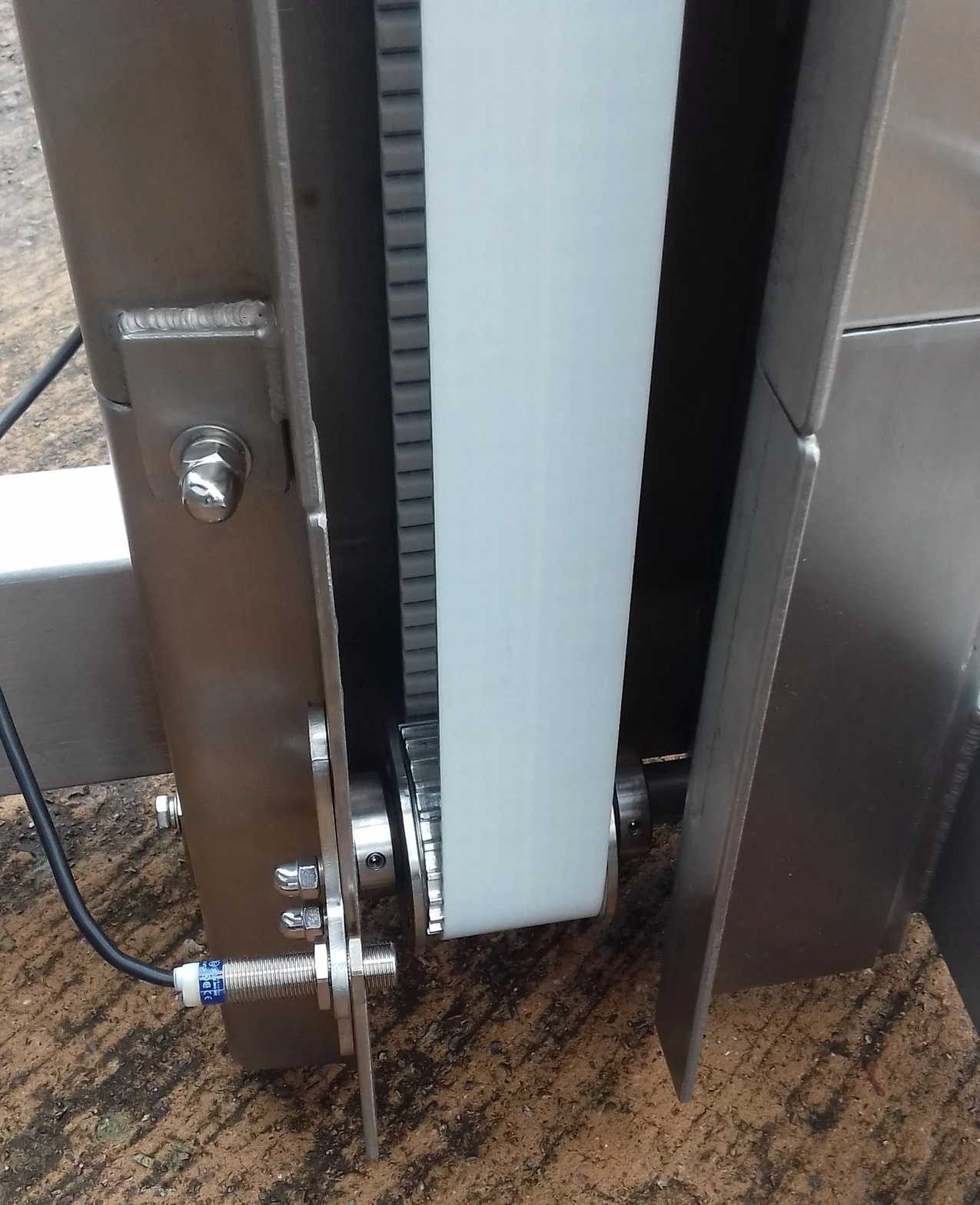

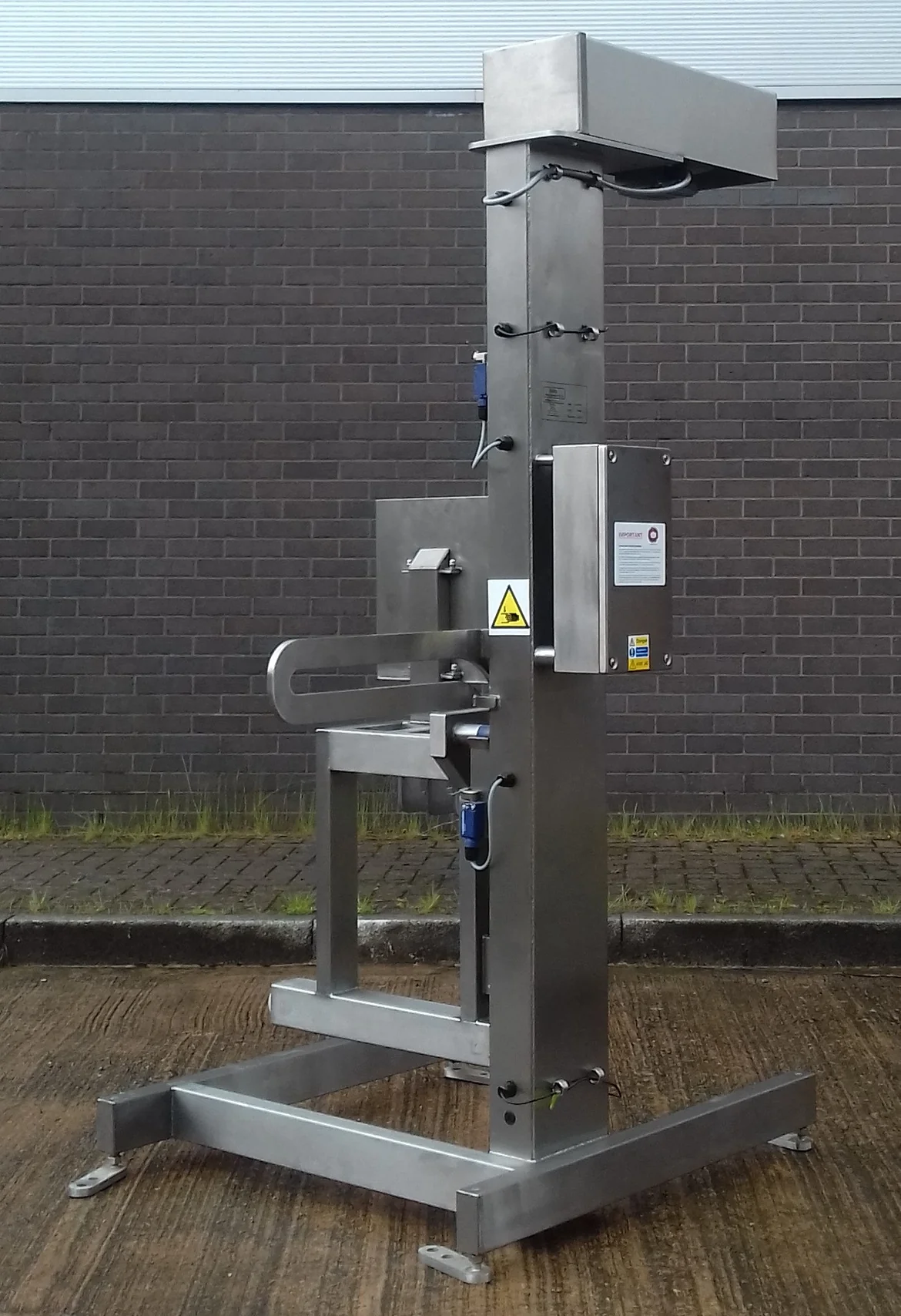

This Static Box Tipper was designed to lift and tip a Plastic Tote at a discharge height of 1500mm into an infeed hopper. The Static Box Tipper is constructed from Grade 304 stainless steel, is fully TIG welded throughout and is designed to be bolted to the floor. The lifting is achieved by a toothed timing belt driven by a motor gearbox mounted at the top of the main column. The Tote was loaded by an operator and there was a sensor to detect that it is loaded correctly. The whole tipper was enclosed with a safety guard and appropriate interlocks by others.

Static Box Tipper Electrical Control

The Static Box Tipper was supplied with all components wired down to a stainless steel terminal box to be incorporated into the Master Control System.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Static Box Tipper

Model No.

BTM/100/1500/B

Capacity

100 Kgs

Tipping Height

1500mm

Tipping Angle

150 Degrees

Overall Height

2652mm

Machine Handing

Left Hand

Maximum Headroom

3000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

Plastic Tote

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

End of Travel Limits

Proxy Sensors Telemech XS612B x 2

Over Travel Switches

Telemecanique Adjustable Rod x 2

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Tension Belt

50mm Toothed Timing Belt

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/100/1500/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring bulk ingredients from containers into processing lines.
Loading raw materials into mixers, grinders, or hoppers.
Elevating product for packaging or further processing stages.
Discharging waste or by-products into collection bins.
Moving ingredients in bakeries, meat processing, and fruit/vegetable lines.

Typical Specifications

Typical capacity: Units of this class commonly handle loads from 100 kg to 500 kg, depending on design and stability.
Power supply: Typically requires a 3-phase electrical supply, commonly 400V, 50Hz, with appropriate motor protection.
Discharge height: For this unit, the specified discharge height is 1500mm, which is common for feeding standard hoppers or conveyors.
Construction material: Constructed from Grade 304 stainless steel, suitable for food contact and washdown environments.
Loading method: Units of this type are typically loaded manually by an operator, with sensor detection for correct container placement.
Footprint: A single pillar design suggests a relatively compact footprint, though exact dimensions vary by model and load capacity.
Safety features: Commonly includes provisions for safety guarding and interlocks, essential for operator protection.
Drive mechanism: Lifting is typically achieved via a motor gearbox driving a timing belt or chain system.
