Stillage Tipper

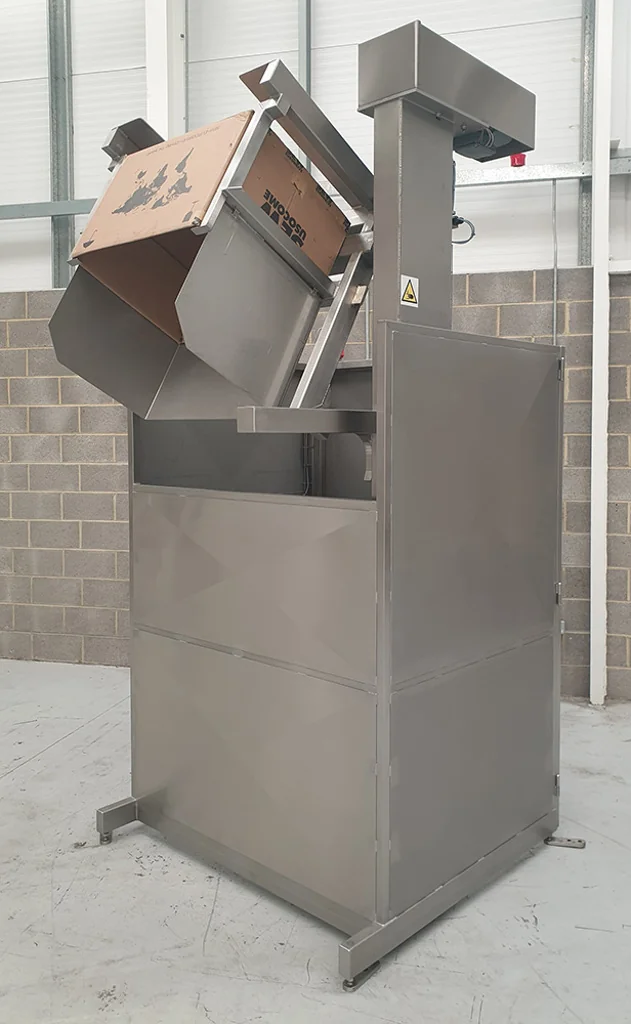

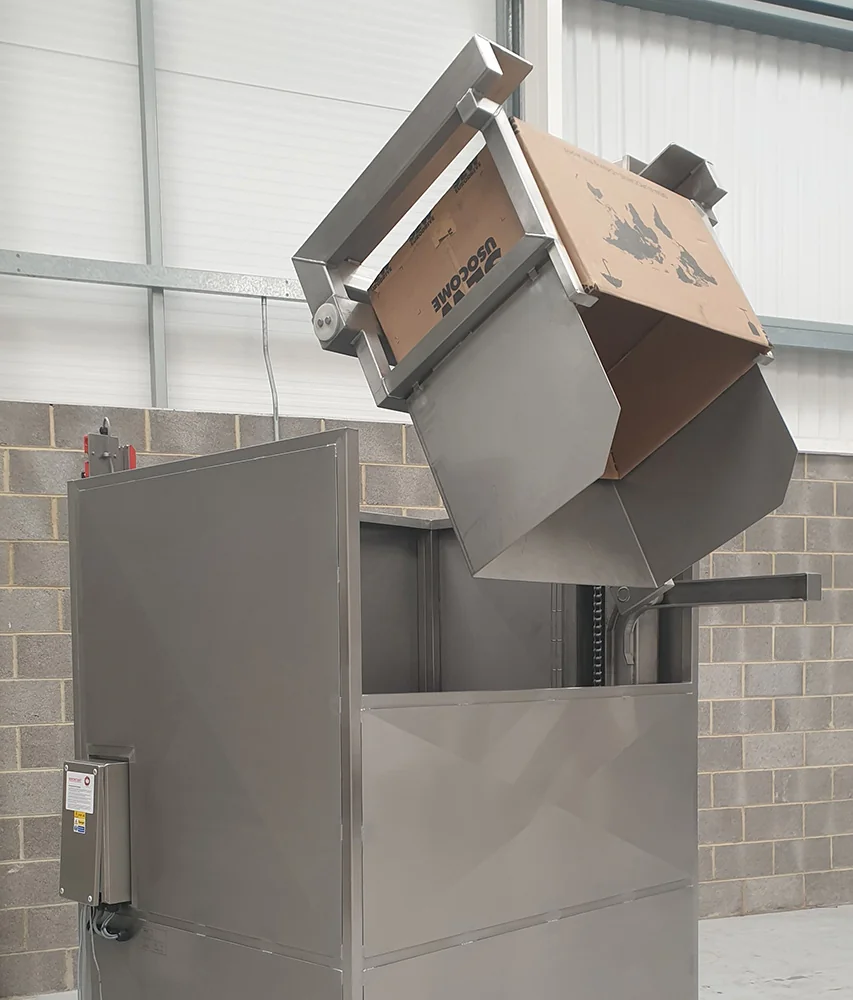

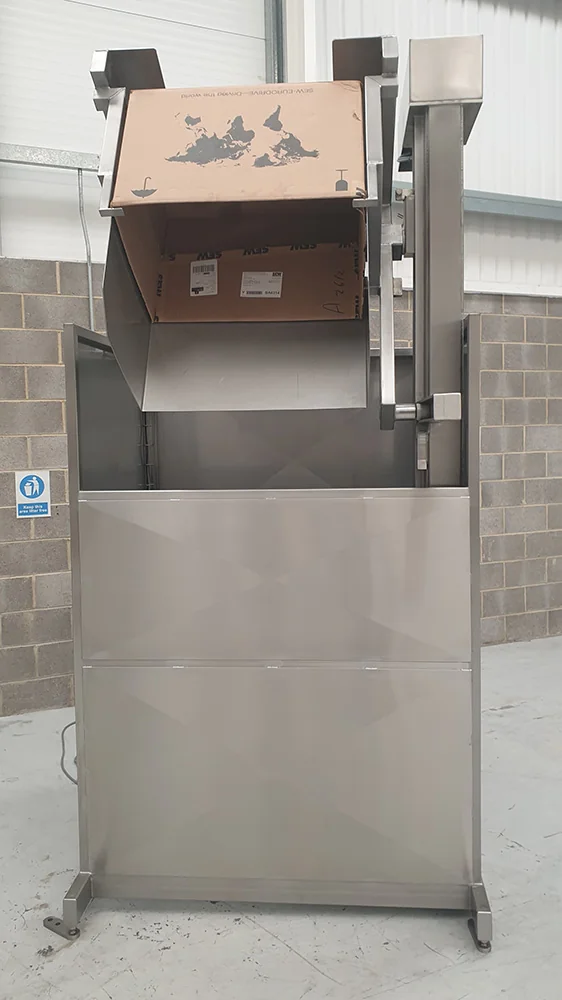

BTM/400/1850/B/G Single Pillar Stillage Tipper

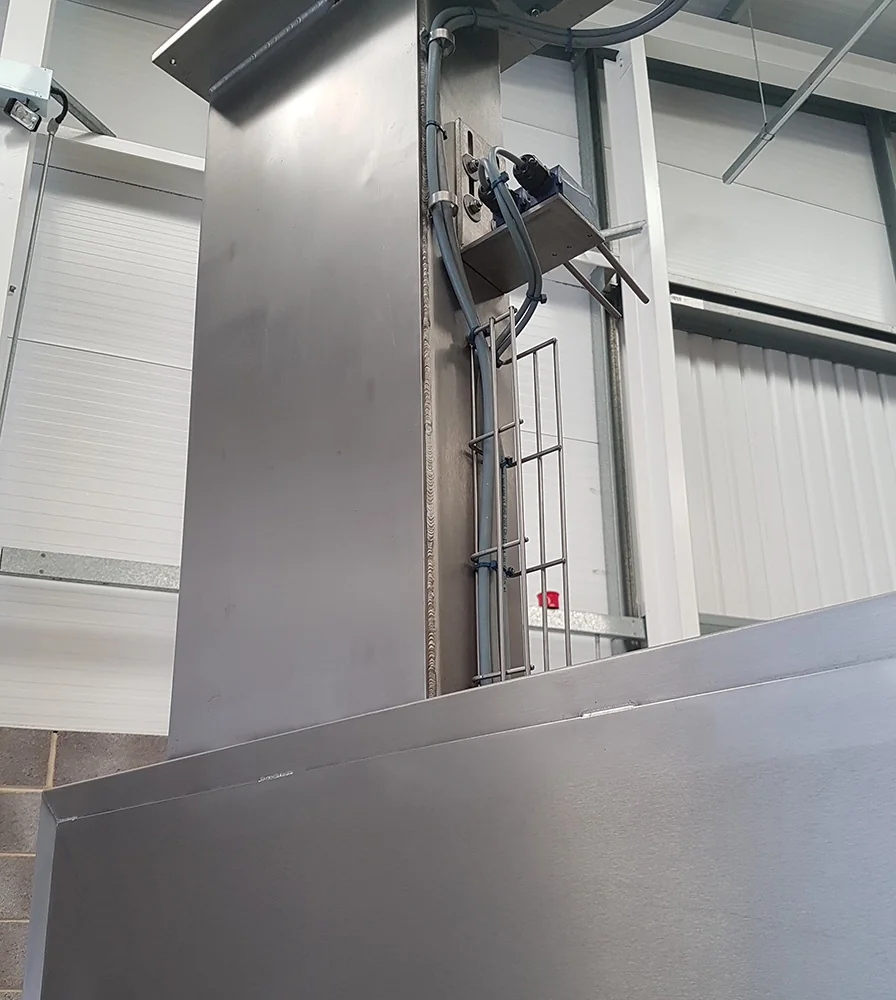

This Single Pillar Stillage Tipper is designed to lift and tip at a discharge height of 1850mm. The Stillage Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Duplex chain driven by a motor gearbox mounted at the top of the main column. The parts in the Stillage were discharged into a hopper mounted above a feeder conveyor.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

This Single Pillar Stillage Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. It encloses the Stillage Tipper Tipper to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked

United Kingdom

Blaenau Gwent County Borough, United Kingdom

Distance: 5,762 km away

Description

Single Pillar Stillage Tipper

Model No.

BTM/400/1850/B/G

Capacity

400 Kgs

Tipping Height

1850mm

Tipping Angle

150 Degrees

Overall Height

3195mm

Machine Handing

Left Hand

Maximum Headroom

To Be Confirmed

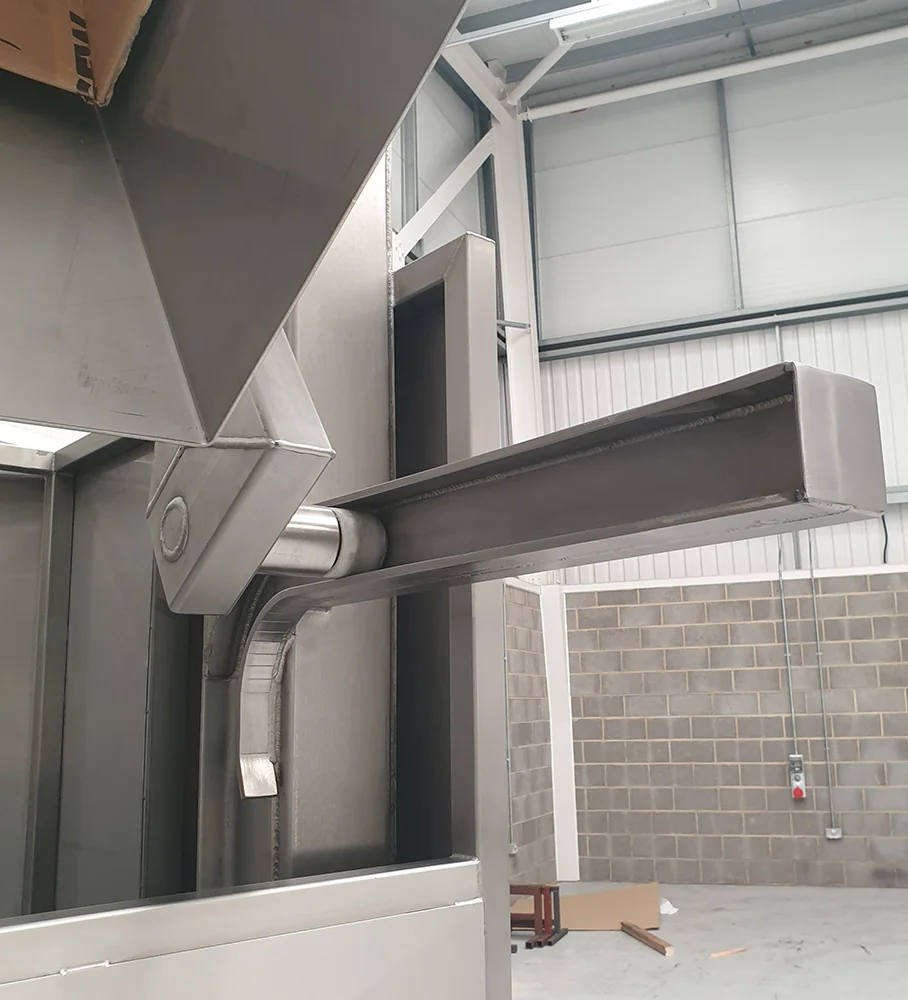

Tipping Chute

Yes, Fitted To Lift Carriage

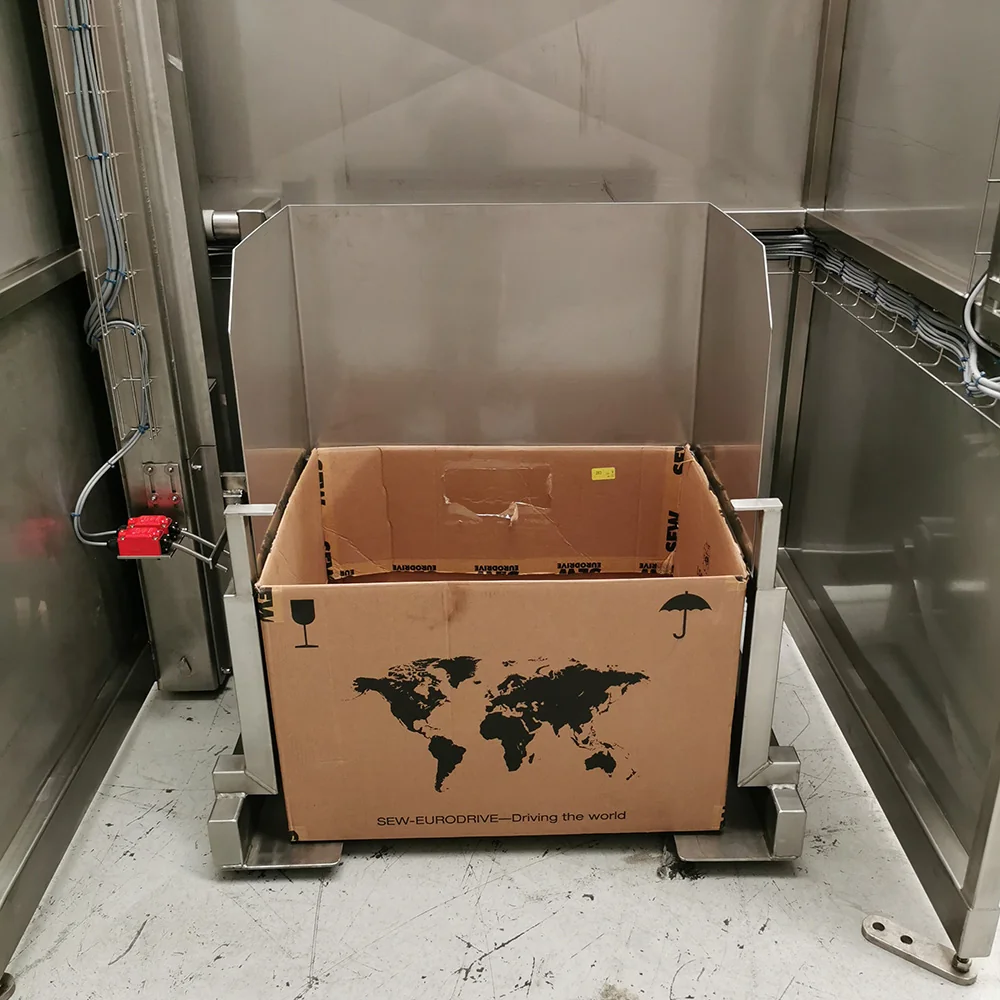

Container Description

Stillage 770mm L x 580mm W x 600mm H

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

1.1kW, 415V, 3 PHASE, 60 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Duplex

Tensile Strength

6000 Kgs

Lift Speed

6.4 Meters/Minute
