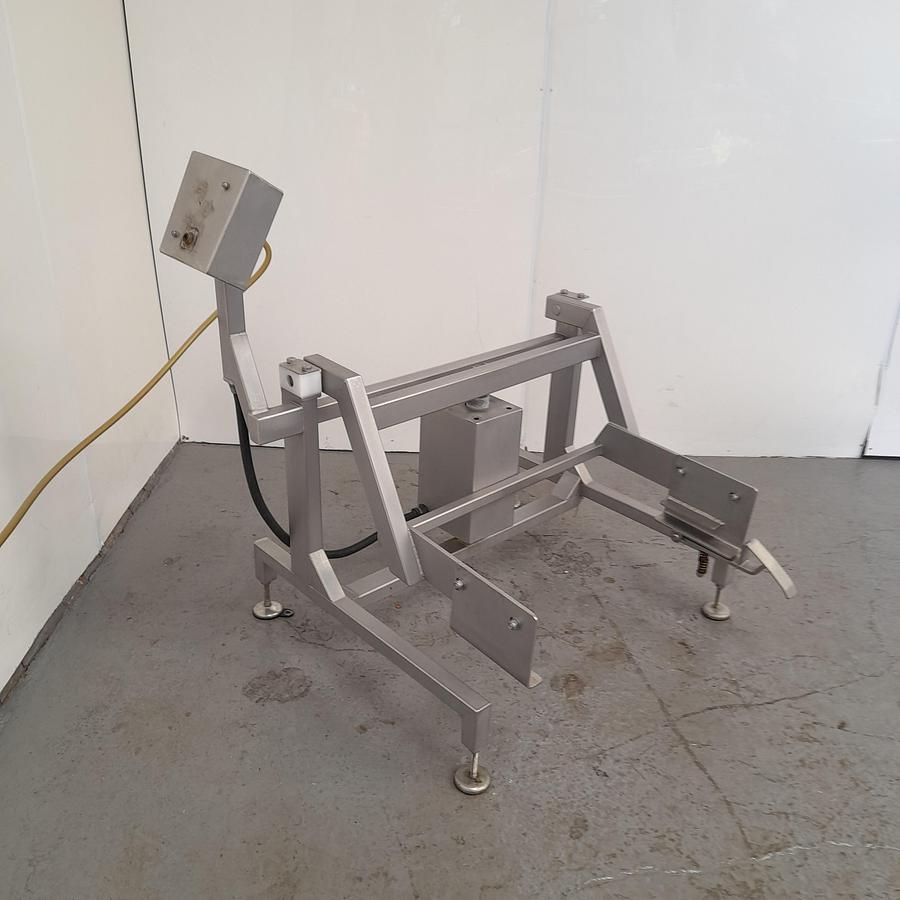

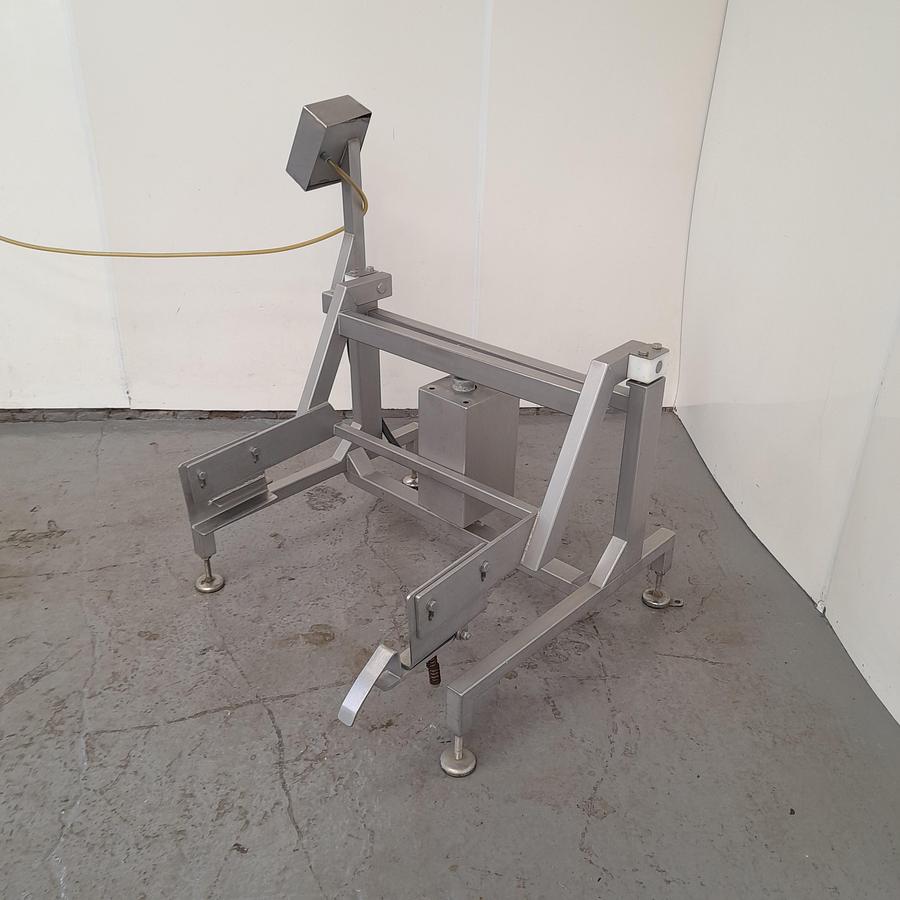

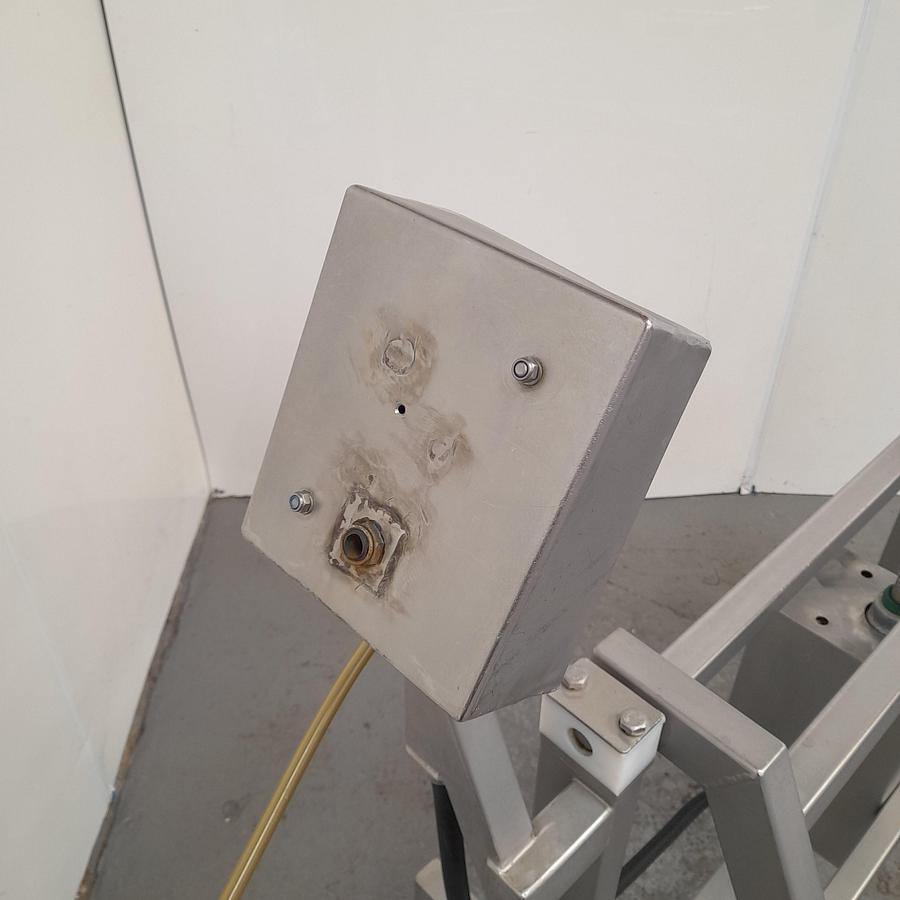

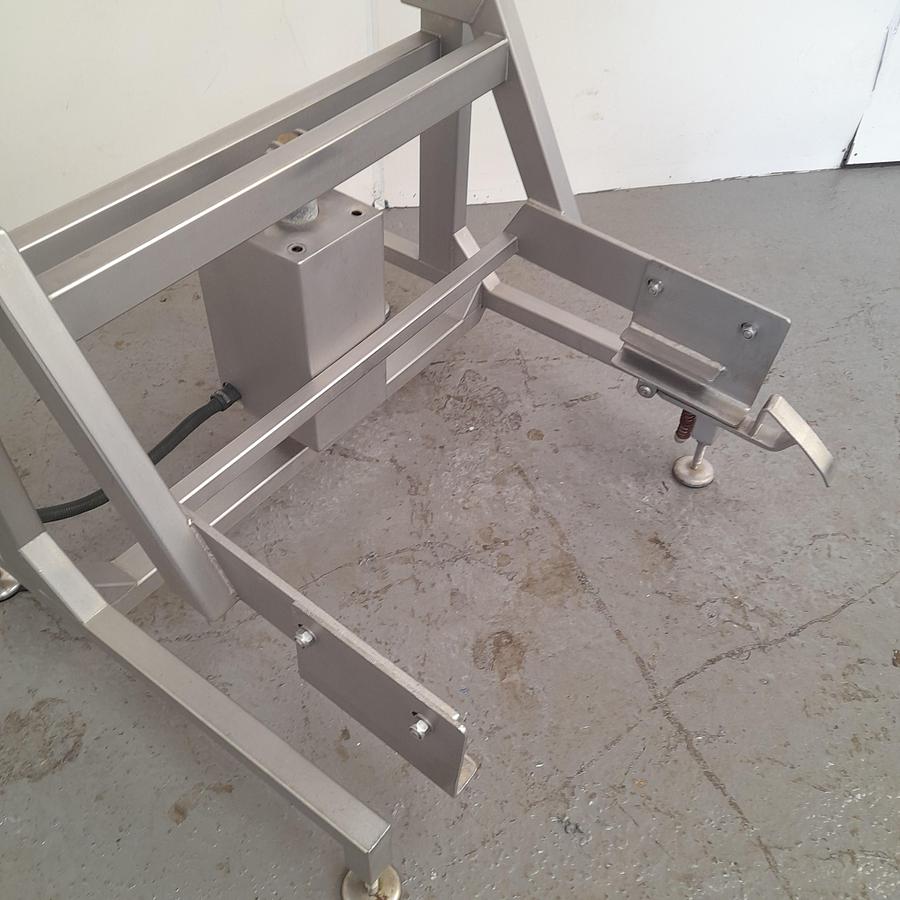

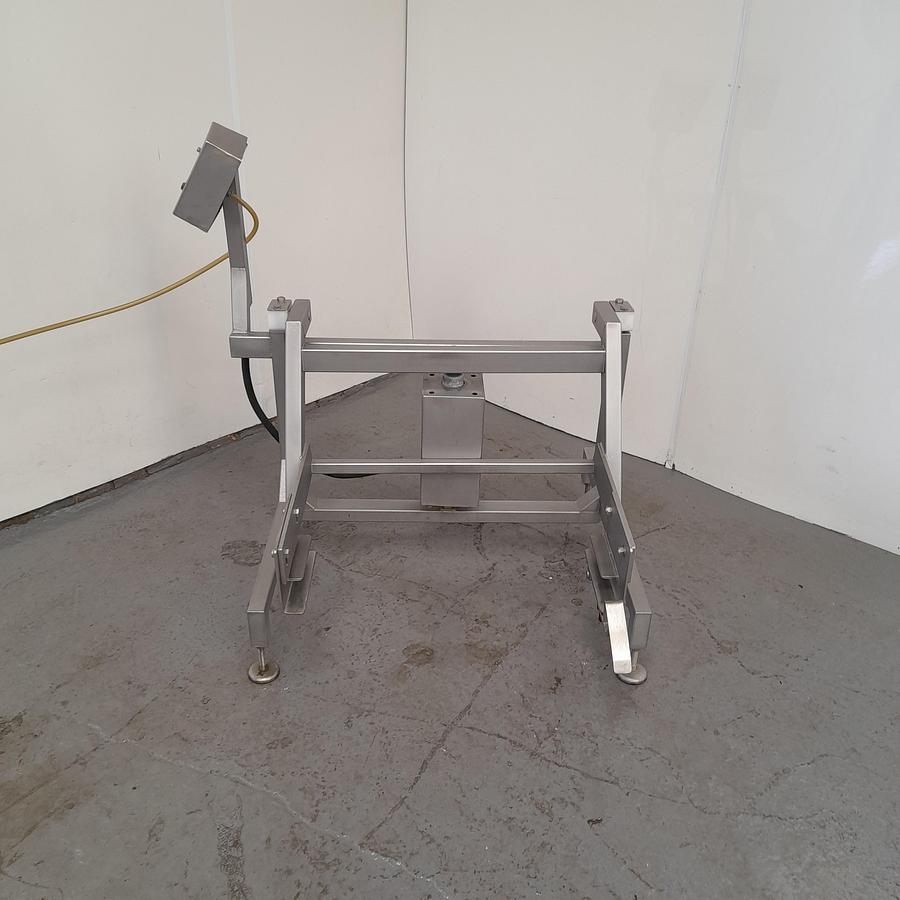

Syspal - Syspal Tote Bin Tipper

Applications & Use Cases

• Transferring ingredients from tote bins into mixers or other processing machinery in food production.
• Emptying bulk materials from standard tote bins into hoppers or conveyors in pharmaceutical manufacturing.
• Discharging components or waste from tote bins into subsequent stages or skips in general industrial settings.
• Loading raw materials from bins into packaging lines or storage systems.

Typical Specifications

Typical capacity

Units of this type are commonly designed for standard 200L or 300L tote bins, with a typical lifting capacity of 200-500 kg.

Power supply

Most industrial tote bin tippers operate on a 3-phase electrical supply, typically 400V, 50Hz.

Tipping height

The discharge height commonly ranges from 1,500mm to 3,000mm, depending on the receiving equipment.

Construction material

For food and pharmaceutical applications, units are typically constructed from 304 or 316 grade stainless steel.

Footprint

The typical footprint for a static unit handling 200L bins is approximately 1,500mm (L) x 1,200mm (W), excluding safety guarding.

Tipping angle

These machines typically achieve a tipping angle of 120-135 degrees to ensure complete discharge of materials.

Frequently Asked Questions

• What safety features should I look for on a used tote bin tipper?

  Buyers should look for safety guarding, interlocked gates, emergency stop buttons, and robust hydraulic or pneumatic systems to prevent accidental operation or material spillage. A risk assessment should always be conducted.

• Can this tipper handle different sizes of tote bins?

• What maintenance is typically required for a tote bin tipper?

• Is this type of equipment suitable for outdoor use?

• What are the common methods of operation for these machines?
