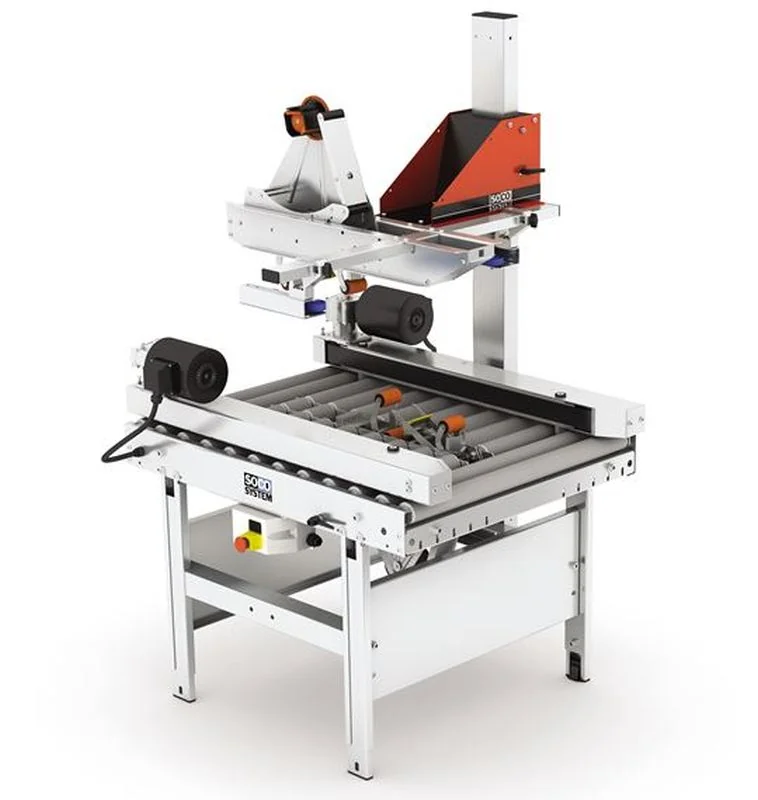

T100

Specifications T-100 Mini 3-5-9 T- Case dimensions* Max. (LxWxH) mm Infinite x 350 x 505 Infinite x 520 x 505 Min. (LxWxH) mm 160 x 105 x 110 160 x 90 x 90/130** Tape overlap 70 mm Option Option 50 mm Standard Standard Tape width 25 - 30 mm Option Option 38 - 50 mm Standard Standard Side drives Height 50 mm Standard Standard Working height max./min. mm Standard Standard mm Option Option Weight kg 140 150 Capacity* Max. 30/ min. Electric specifications 3 x 230/400 V, 50-60 Hz. or 3 x 415/460 V, 50-60 Hz. Connected load 0.3 kW. Other specifications available upon request. Tape diameter T-100 Mini: max. 360 mm. T-100: max. 370 mm. Standard Standard Option Optional * Depending on the construction and quality of the case. ** Without or with side pressure rollers. All measurements are in mm. Subject to alteration.
