What type of tape does this machine use?

This category of machine typically uses standard adhesive tape, commonly between 25mm and 30mm in width, with a maximum tape roll diameter of around 360mm.

Is this machine suitable for all case sizes?

While designed for a range of case sizes, very tall cases with a small footprint or extremely small cases may require testing to ensure optimal sealing performance. Buyers should provide their specific case dimensions to the seller.

What maintenance is typically required for a sealing machine?

Routine maintenance commonly includes cleaning tape heads, checking and replacing worn drive belts, and lubricating moving parts. Regular checks of electrical connections are also advisable.

Can this machine be integrated into an existing production line?

Yes, sealing machines of this type are often designed for easy integration into automated or semi-automated packing lines, particularly due to their adjustable working height and standard electrical requirements.

What is the typical lead time for spare parts?

Lead times for spare parts can vary by manufacturer and specific component. It is advisable to discuss the availability and lead times for common wear parts directly with the seller or manufacturer.

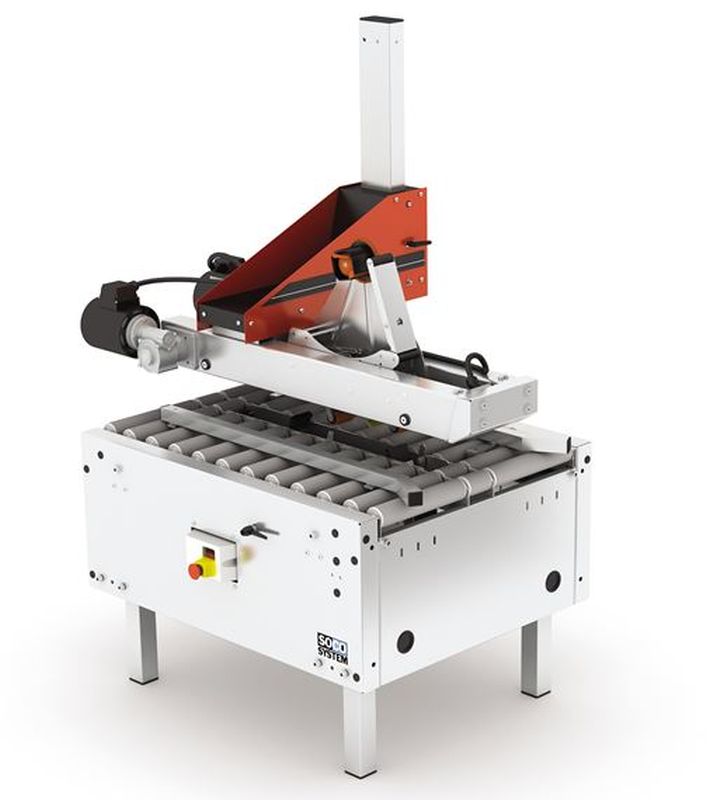

Used T100 Mini Mini - Sealing Machines, photo 1

Used T100 Mini Mini - Sealing Machines, photo 2

Used T100 Mini Mini - Sealing Machines, photo 3

used Equipment

Available

Verified seller

PA - T100 Mini Mini

Name: T100 Mini Mini
Brand: PA
SKU: t100-mini-mini-717edecd
Availability: InStock

Price: Contact seller for price

Specifications T-100 Mini Mini 3-5-9 Case dimensions* Max. (LxWxH) mm Infinite x 350 x 500 Min. (LxWxH) mm 60 x 60 x 100 Tape overlap 50 mm Standard Tape width 25 - 30 mm Standard Side drives Height 50 mm Standard Working height max./min. 995 - 650 mm Standard Weight kg 120 Capacity* Max. 30/min. Electric specifications 3 x 230/400 V, 50-60 Hz, or 3 x 415/460 V, 50-60 Hz. Connected load 0.3 kW. Other specifications available upon request. Tape diameter Max. 360 mm. Standard Standard Option Optional NB! Tall cases with a small footprint will be subject to test. Also smaller cases can be sealed, again subject to test. * Depending on the quality, construction and size of the box. All Measurements are in mm. Right to alter specifications reserved

Galway, Ireland

5,948 km away

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Sealing cardboard boxes in packing lines.
Automating end-of-line packaging processes.
Securing goods for transit in manufacturing.
Use in e-commerce fulfilment centres for parcel preparation.

Typical throughput: Units of this class commonly achieve up to 30 cases per minute, depending on case size and line integration.
Case dimensions (L x W x H): Typically handles cases with a minimum length of 60mm, minimum width of 60mm, and minimum height of 100mm. Maximum dimensions for this class can be infinite length, up to 350mm width, and up to 500mm height. Buyers should confirm exact capabilities for this unit.
Tape width: Commonly uses standard tape widths between 25mm and 30mm.
Working height: Adjustable working heights are typical, often ranging from 650mm to 995mm for ergonomic integration into packing lines.
Power supply: Units of this type commonly require a 3-phase supply, such as 3 x 230/400 V or 3 x 415/460 V, 50-60 Hz, with a connected load typically around 0.3 kW.
Footprint: Mini sealing machines are designed for compact spaces, with a typical weight of around 120 kg, indicating a relatively small footprint for this class of equipment.

This category of machine typically uses standard adhesive tape, commonly between 25mm and 30mm in width, with a maximum tape roll diameter of around 360mm.

Used sealing machines are generally valued for their durability and long operational life. Buyers typically prioritize machines with clear maintenance histories and minimal wear on sealing components. Key considerations include film compatibility, seal quality consistency, and ease of adjustment. Reputable models tend to retain functionality well across multiple applications. Industry sentiment suggests these machines offer strong value when sourced from reliable vendors, though operators should verify calibration settings and test seal integrity before full production use.

General overview for this equipment type

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
