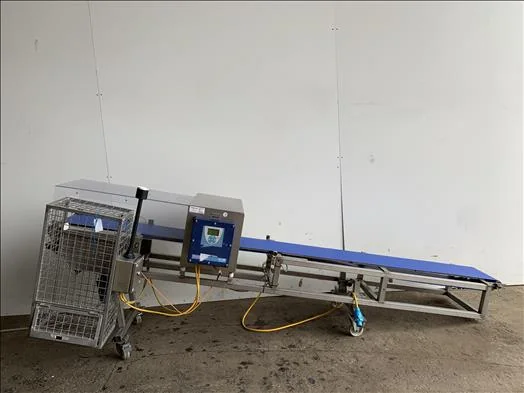

Thermo Scientific Apex 500 Metal Detector

Applications & Use Cases

• Detecting ferrous, non-ferrous, and stainless steel contaminants in packaged food products.
• Ensuring product safety and compliance with food industry standards prior to dispatch.
• Used in production lines for confectionery, baked goods, ready meals, and fresh produce.
• Protecting downstream processing equipment from potential damage caused by metal foreign bodies.

Typical Specifications

Detection sensitivity

Typically high, capable of detecting very small metal contaminants for this class of equipment.

Aperture size

For this unit, the aperture is 450mm wide x 160mm high, suitable for a range of product sizes.

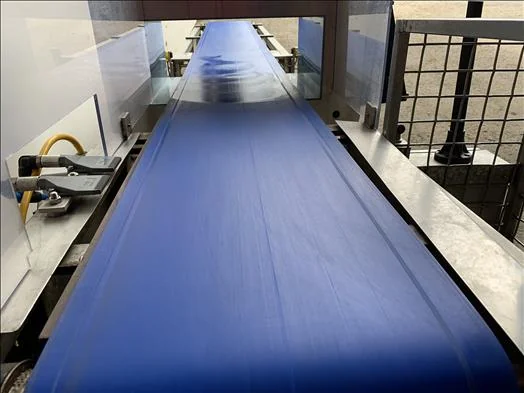

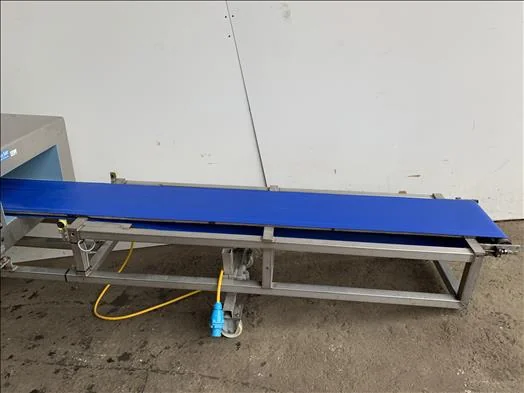

Conveyor belt dimensions

This unit features a belt of 3300mm length x 320mm width, accommodating various product lengths and widths.

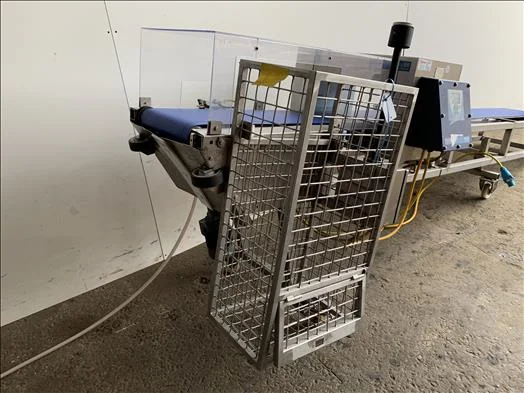

Reject mechanism

Commonly a pneumatic blow reject system, as described, for efficient removal of contaminated products.

Frame material

Typically stainless steel, as specified, for hygiene and durability in food processing environments.

Operating height

Adjustable, with this unit elevating from 300mm to 950mm, offering flexibility for integration into existing lines.

Power supply

Commonly 3-phase, as indicated for this unit, suitable for industrial operations.

Throughput

Varies significantly based on product size and line speed, but units of this type are designed for continuous operation.

Frequently Asked Questions

• What types of metal can this detector identify?

  Thermo Scientific Apex 500 units are typically designed to detect ferrous, non-ferrous, and stainless steel contaminants.

• Is this unit suitable for wet or washdown environments?

• Can the reject mechanism be adjusted?

• What kind of maintenance does a metal detector typically require?

• How is the sensitivity set for different products?

• What are the typical safety features?
