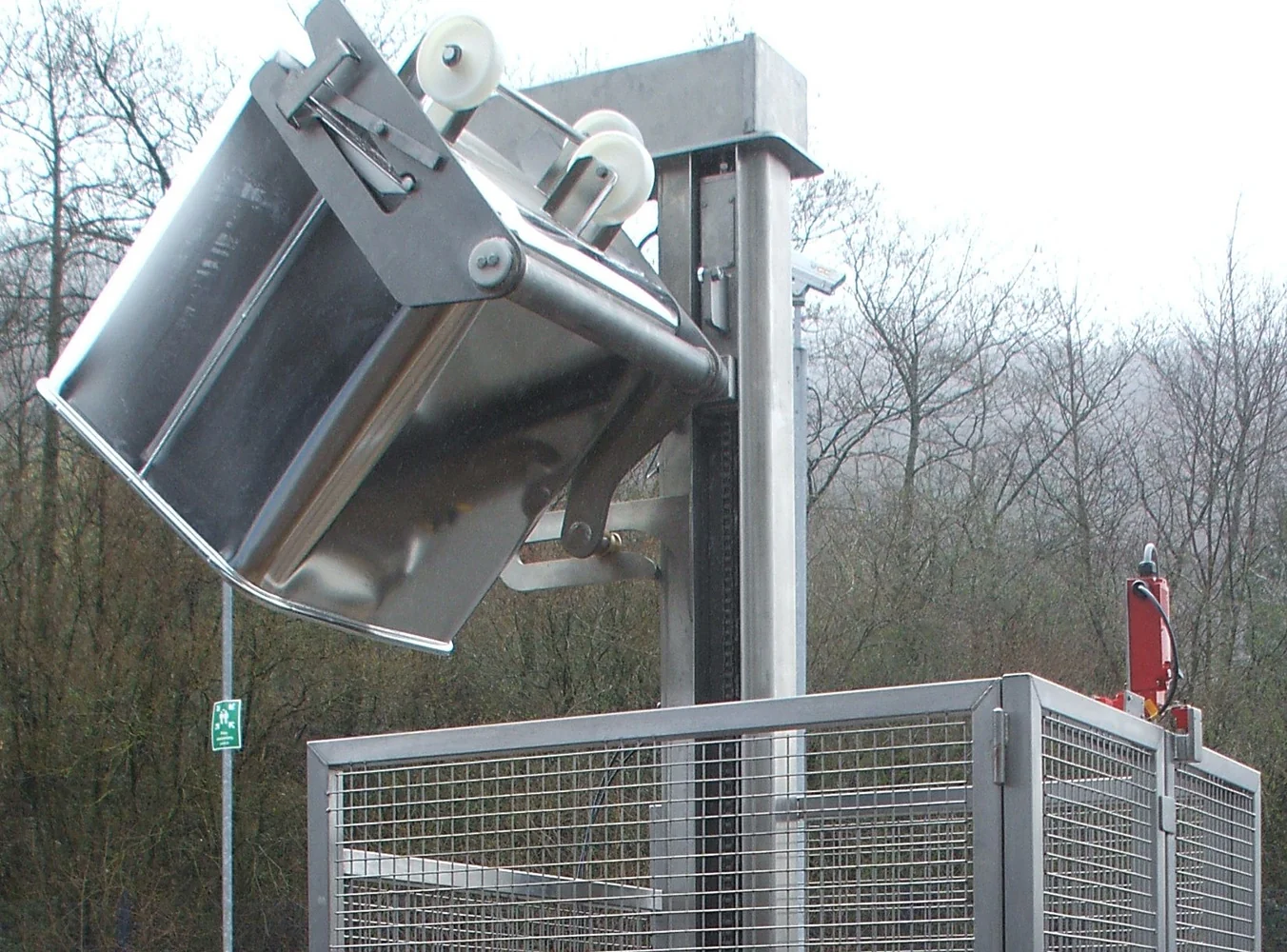

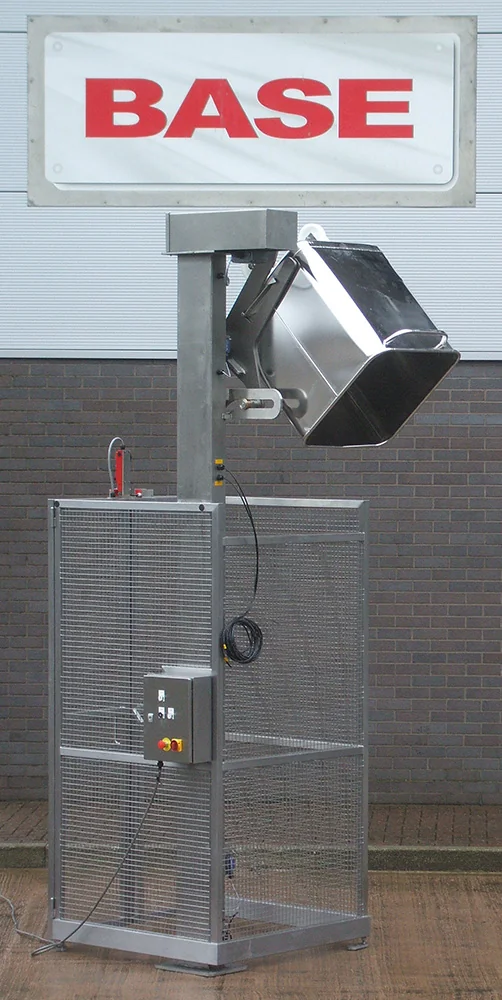

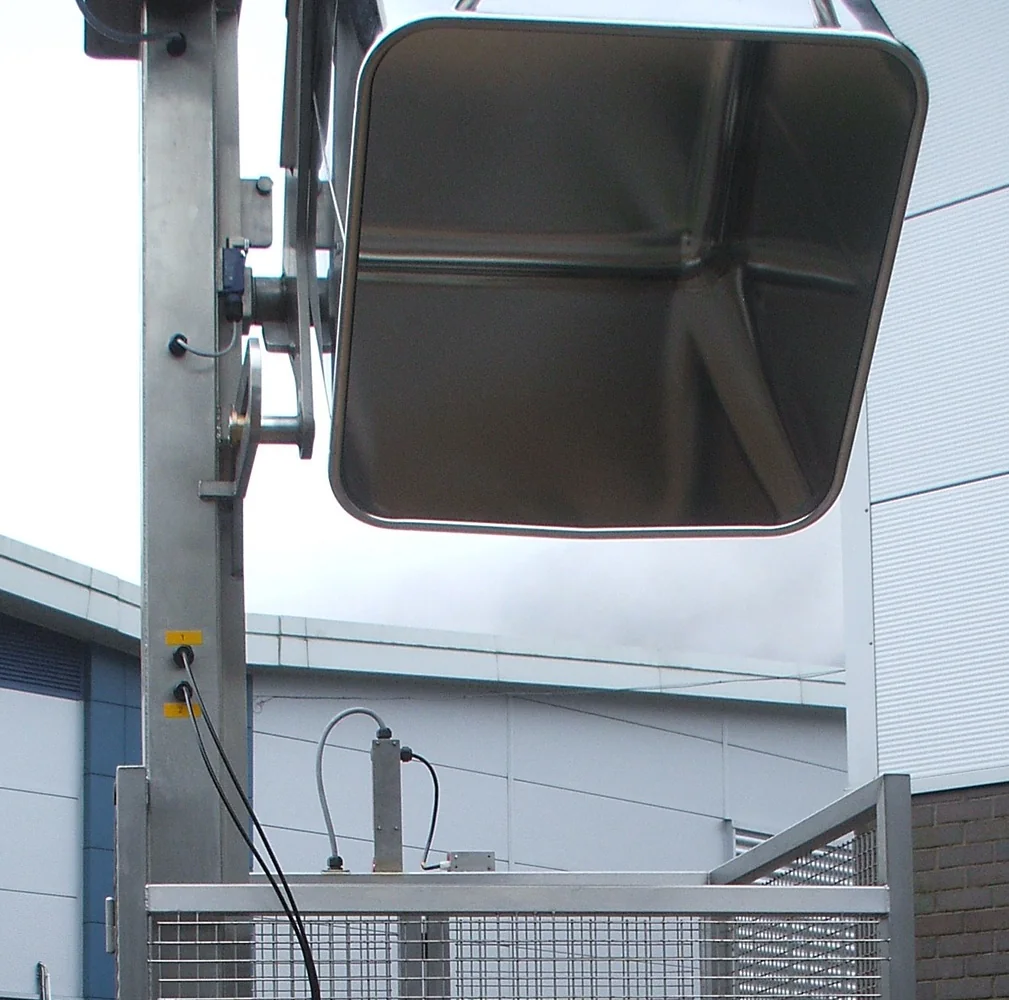

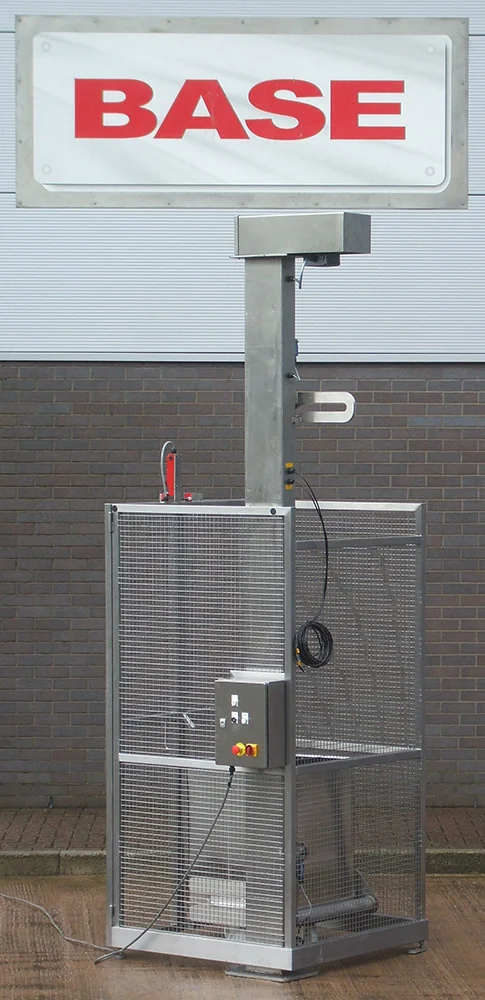

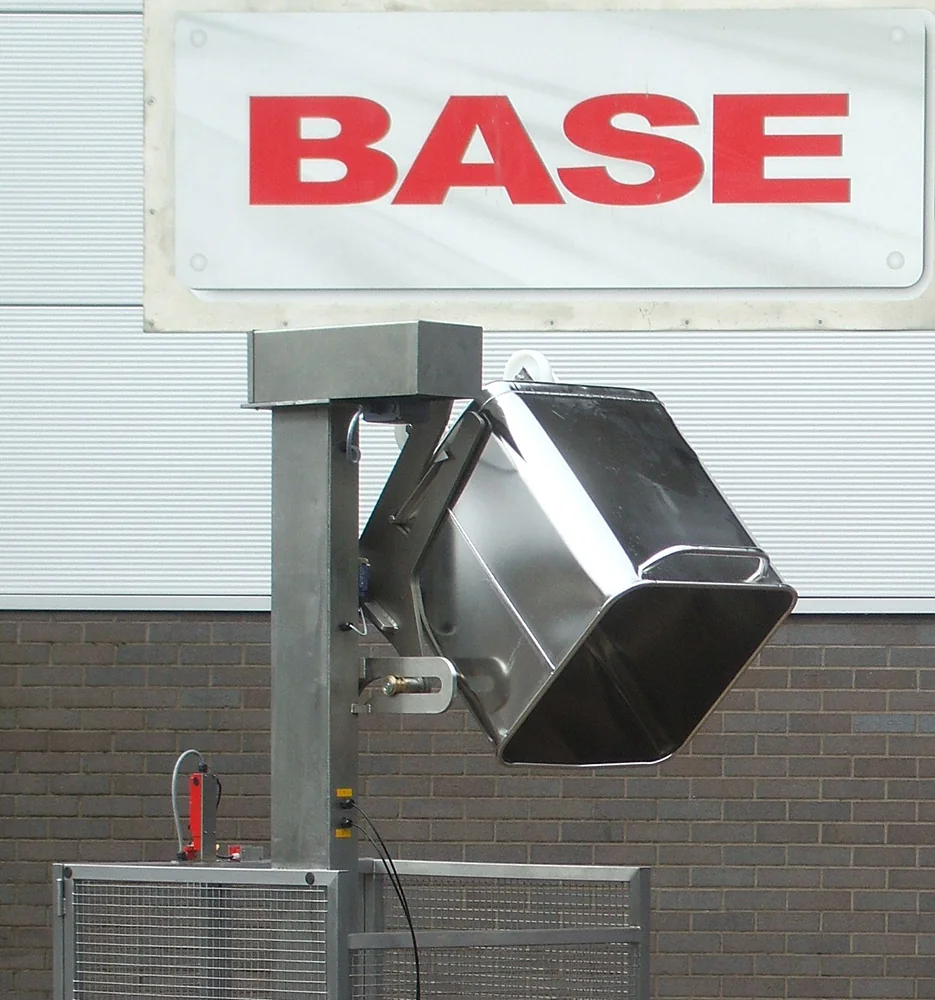

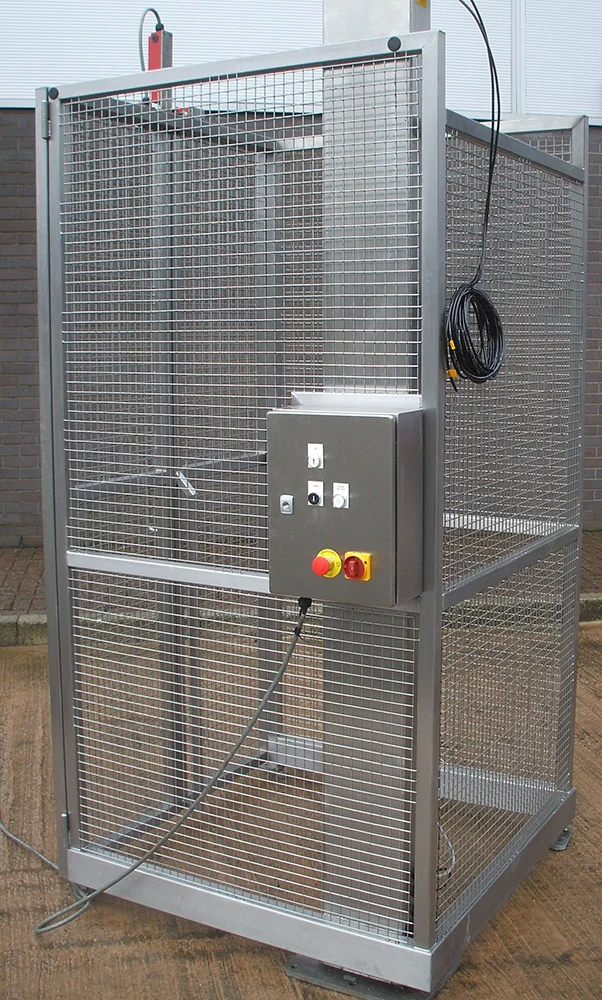

BTM/300/2400/B/G Single Pillar Tote Bin HoistThis Single Pillar 300 Litre Tote Bin Hoist is designed to lift and tip at a discharge height of 2400mm. The Tote Bin Hoist is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Duplex chain driven by a motor gearbox mounted at the top of the main column. Safety Guard to BS EN 14120:2015 Safety of Machinery GuardsThe safety guard is a welded construction from 40 x 40 x 3mm stainless steel box section and 40mm aperture, 3.0mm wire stainless steel weld mesh and encloses the Tote Bin Hoist to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Tote Bin Hoist from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised. Tote Bin Hoist Electrical ControlThe Tote Bin Hoist is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Tote Bin Hoist operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Tote Bin Hoist to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required. |
Description
Single Pillar Tote Bin Hoist
Model No.
BTM/300/2400/B
Capacity
300 Kgs
Tipping Height
2400mm
Tipping Angle
130 Degrees
Overall Height
3550mm
Machine Handing
Right Hand
Maximum Headroom
4000mm
Tipping Chute
No
Container Description
300 Litre Tote Bin
Base Arrangement
Base Frame Bolted To The Floor
Control Circuit
24Vac
Electrical Rating
IP65
Limit Switches
Telemecanique
Motor Detail
0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE
Gearbox Detail
SEW Eurodrive
Output R.P.M
28 R.P.M.
Ratio
50:1
Load/Lift/Tension Chain
¾" Duplex
Tensile Strength
6000 Kgs
Lift Speed
6.4 Meters/Minute
