What type of tote bins can this tippler handle?

This type of tippler is typically designed for standard 200-litre tote bins, though specific units may be configured for other bin sizes. Buyers should confirm compatibility with their existing bins.

Is this equipment suitable for washdown environments?

Units constructed from Grade 304 stainless steel with IP65-rated control panels are generally suitable for washdown environments, common in food processing facilities.

What are the typical safety considerations for operating a tote bin tippler?

Safety considerations typically include guarding (if not specified as unguarded), emergency stops, 'hold to run' controls, and adherence to PUWER regulations. Operators should always follow manufacturer guidelines.

Can the discharge height be adjusted?

While the primary discharge height is fixed for a given unit, some models may offer minor fine adjustment via limit switches. Significant height changes usually require a different model.

What maintenance is typically required for a tote bin tippler?

Typical maintenance involves regular inspection of the lifting chain, motor gearbox, electrical components, and safety features. Lubrication and cleaning are also routine.

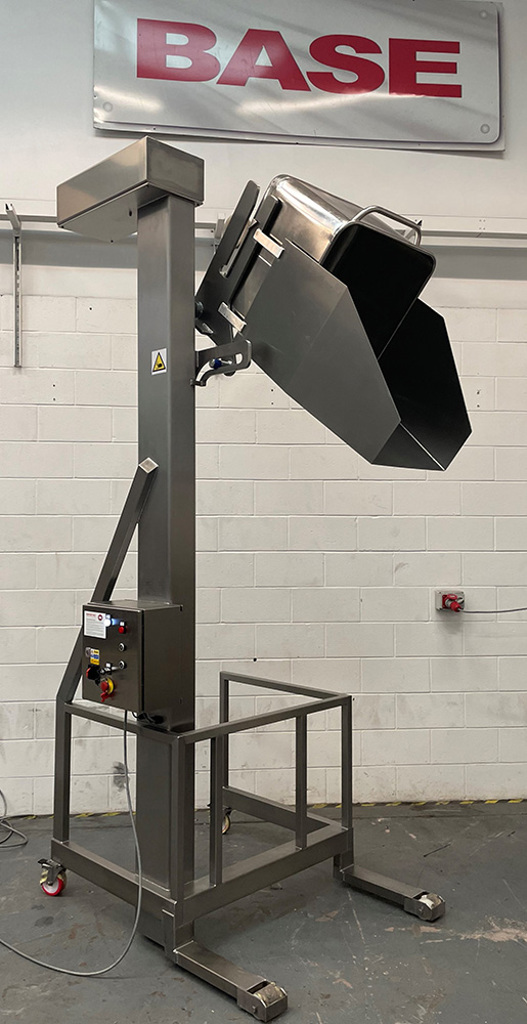

Tote Bin Tippler - Lifting & Tipping, photo 1

Tote Bin Tippler - Lifting & Tipping, photo 2

Tote Bin Tippler - Lifting & Tipping, photo 3

Tote Bin Tippler - Lifting & Tipping, photo 4

Tote Bin Tippler - Lifting & Tipping, photo 5

Tote Bin Tippler - Lifting & Tipping, photo 6

Available

Verified seller

Base Handling Ltd - Tote Bin Tippler

Name: Tote Bin Tippler
Brand: Base Handling Ltd
SKU: BTM/300/1975/M
Availability: InStock

Price: Contact seller for price

BTM/300/1850/M Single Pillar Tote Bin Tippler.

This Single Pillar Tote Bin Tippler is designed to lift and tip a 200 Litre tote bin at a discharge height of 1975mm.

The Tote Bin Tippler was manufactured from Grade 304 stainless steel, was a welded construction throughout and was designed to be mobile on castors with a low profile at the front.

The Tote Bin Tippler was fitted with an extended tipping chute which also narrowed down at the end.

The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

The unguarded Tote Bin Tippler is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Tote Bin Tippler Electrical Control.

This Tote Bin Tippler is fitted with an IP65 Stainless Steel Control Panel mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The unguarded Tote Bin Tippler operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Tote Bin Tippler to operate.

As soon as either button is released, the Tote Bin Tippler will stop.

The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Single Pillar Tote Bin Tippler

Model No.

BTM/300/1975/M

Tipping Angle

135 Degrees

Overall Height

3335mm

Machine Handing

Right Hand

Maximum Headroom

4000mm

Tipping Chute

Yes, Extended Tipping Chute Fixed To Lift Carriage

Container Description

200 Litre Tote Bin

Base Arrangement

Mobile On Castors, Horizontal Base Frame

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Safe Working Load

300 Kgs

Tip Height

1975mm

Load/Tension Chain

¾” Simplex

Stock Number

BTM/300/1975/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring ingredients from tote bins into processing machinery.
Loading mixers, hoppers, or conveyors with bulk materials.
Discharging waste products or by-products into collection containers.
Handling raw materials in bakeries, dairies, and ready-meal facilities.
Ergonomically lifting and tipping heavy loads to reduce manual handling.

Typical capacity: Units of this type commonly handle 200-litre tote bins, with some variants accommodating larger or smaller capacities.
Discharge height: For this class of equipment, discharge heights typically range from 1500mm to over 2000mm, depending on the specific application.
Construction material: Food-grade units are typically constructed from Grade 304 stainless steel, ensuring hygiene and corrosion resistance.
Mobility: Many single-pillar tippers are designed to be mobile on castors, offering flexibility in plant layout.
Power supply: Typically operates on a standard industrial electrical supply, commonly 3-phase, with specific voltage requirements varying by unit.
Control system: Units commonly feature an IP-rated control panel, often with 'hold to run' functionality for operator safety.
Safety features: Common safety features include limit switches and mechanical safety latches to prevent uncontrolled descent.

This type of tippler is typically designed for standard 200-litre tote bins, though specific units may be configured for other bin sizes. Buyers should confirm compatibility with their existing bins.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
