Tote Dumper

BTM/2P/600/5200/B/G Double Pillar Tote Dumper

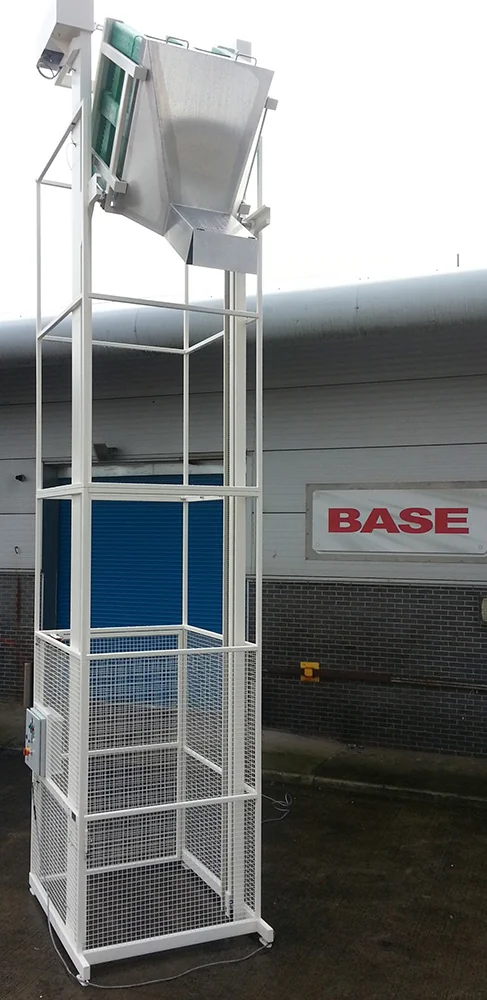

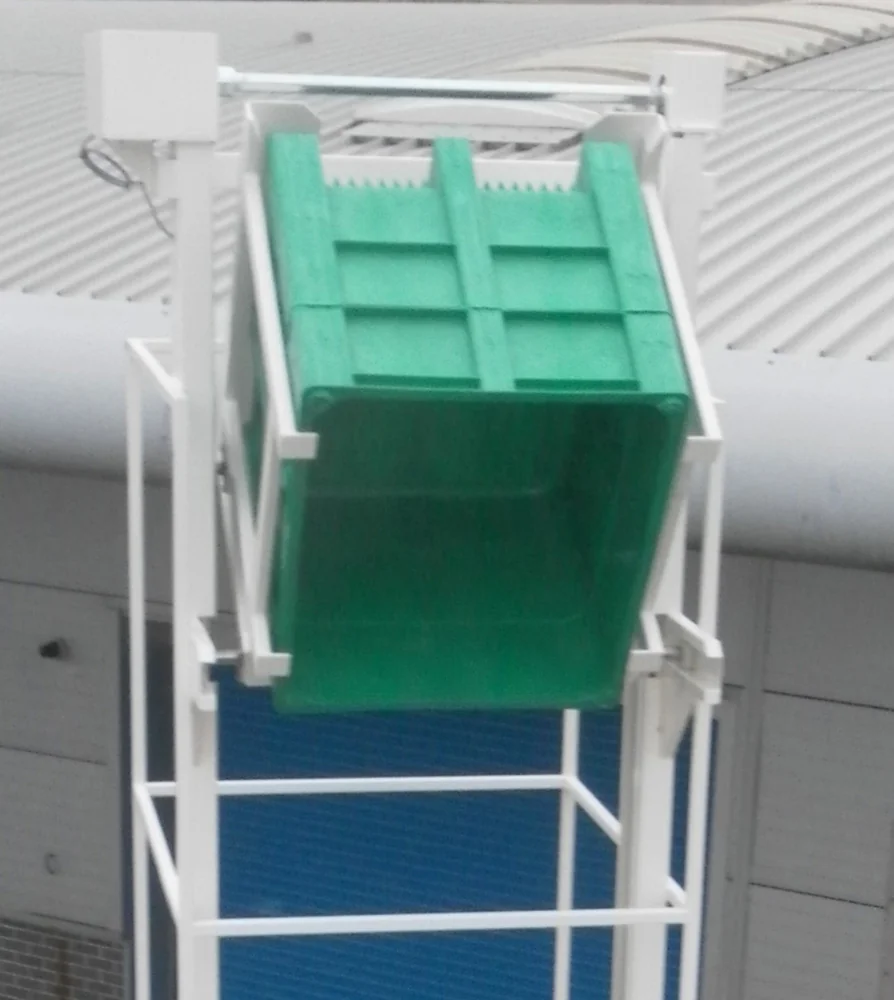

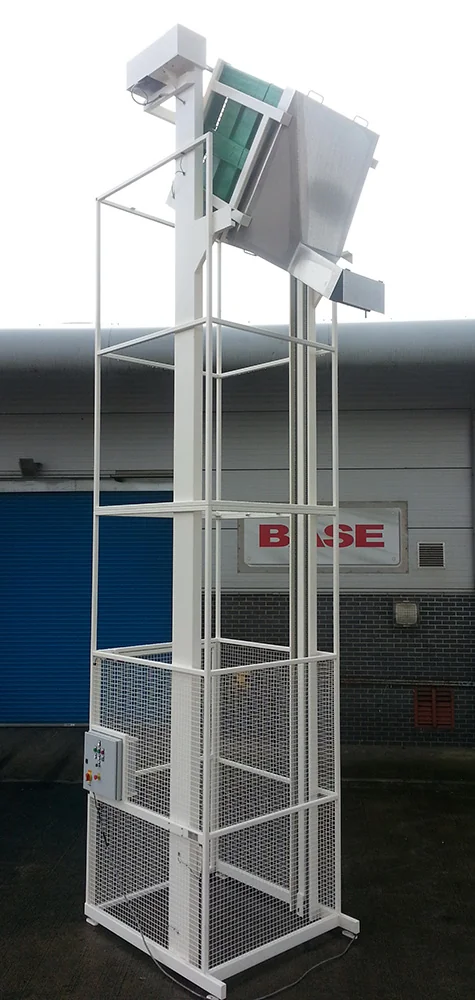

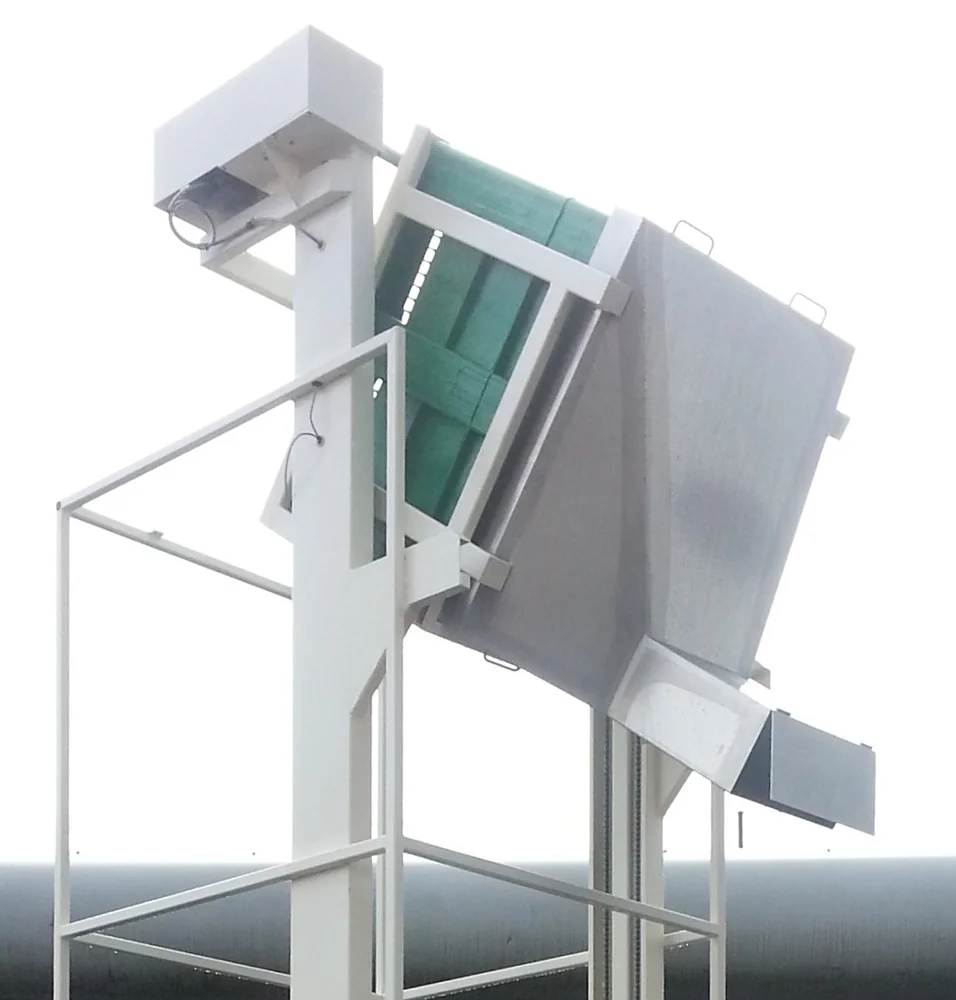

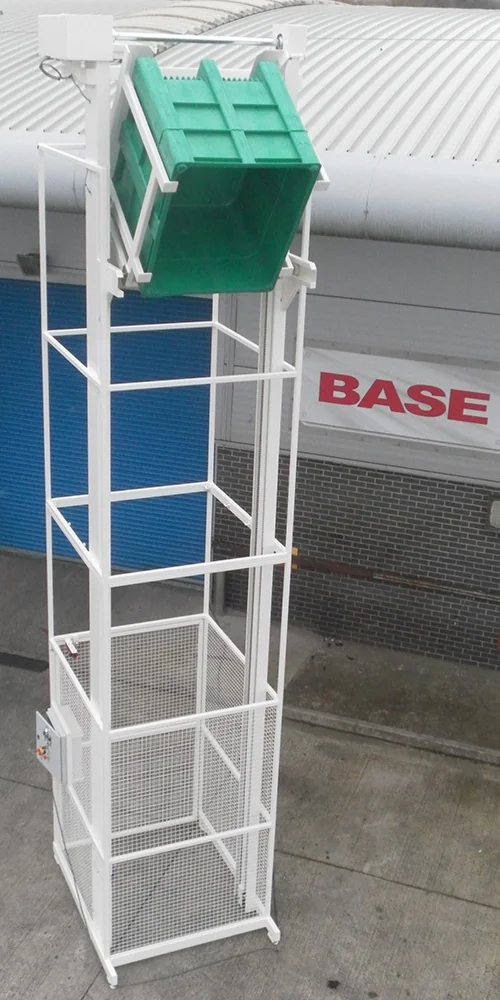

This Double Pillar Tote Dumper that is designed to lift and tip a 600 Kgs Dolav Box at a discharge height of 5200mm. The Tote Dumper is manufactured from mild steel with a powder coated finish, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

The safety guard is constructed from 40 x 40 x 3mm box section and 3mm wire, 40mm aperture weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. It encloses the Tote Dumper to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Tote Dumper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Tote Dumper Electrical Control

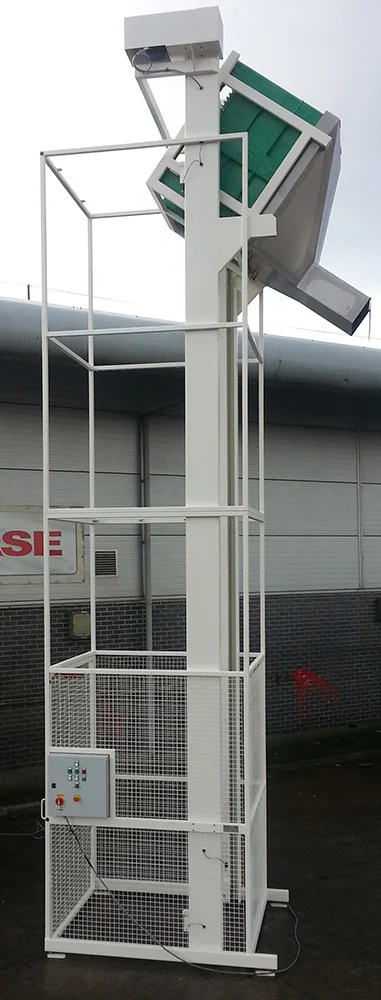

This machine is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Tote Dumper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Tote Dumper to the full down position. The control panel has the facility for a ‘call to run’ signal to be connected if required.
