What types of totes can this dumper handle?

This type of dumper is typically designed for specific tote dimensions and weights. Buyers should confirm compatibility with their existing totes.

Is this unit suitable for washdown environments?

Stainless steel construction and TIG welding suggest suitability for washdown. However, buyers should confirm the IP rating of electrical components for their specific cleaning protocols.

What maintenance is typically required for a tote dumper?

Routine maintenance commonly involves checking chain tension, lubricating moving parts, inspecting safety interlocks, and verifying motor gearbox performance.

Can the discharge height be adjusted?

For this class of equipment, the discharge height is typically fixed as per the original design. Customisation may be possible but would require significant modification.

What safety standards should I be aware of?

Units should comply with relevant machinery safety directives, such as the UK Supply of Machinery (Safety) Regulations 2008, which references standards like BS EN ISO 12100 and BS EN ISO 13849.

How is the dumper controlled?

Units commonly feature a local control panel with start/stop buttons and may have provision for integration into a wider production line control system via a 'call for product' signal.

Available

Verified seller

Tote Dumper High Level

Name: Tote Dumper High Level
SKU: BTM/100/5850/B/G
Availability: InStock

Price: Contact seller for price

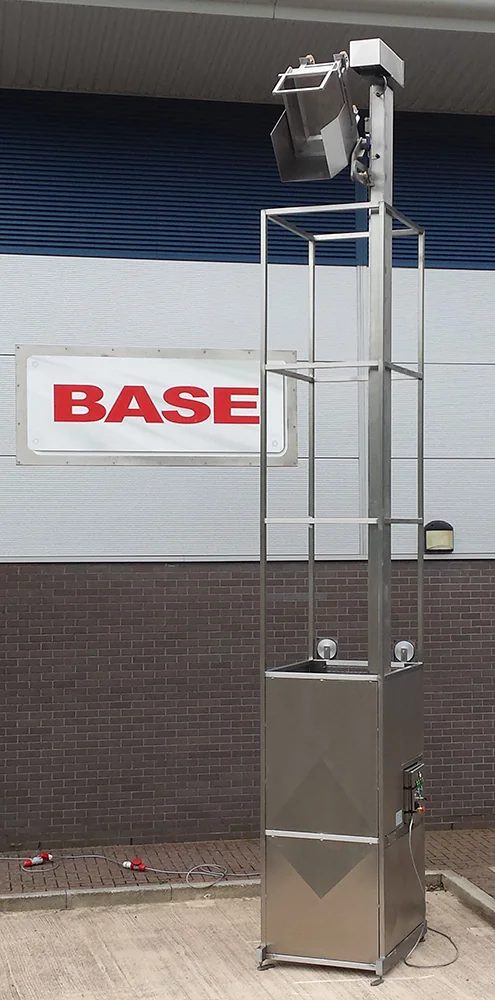

Single Pillar Tote Dumper High Level

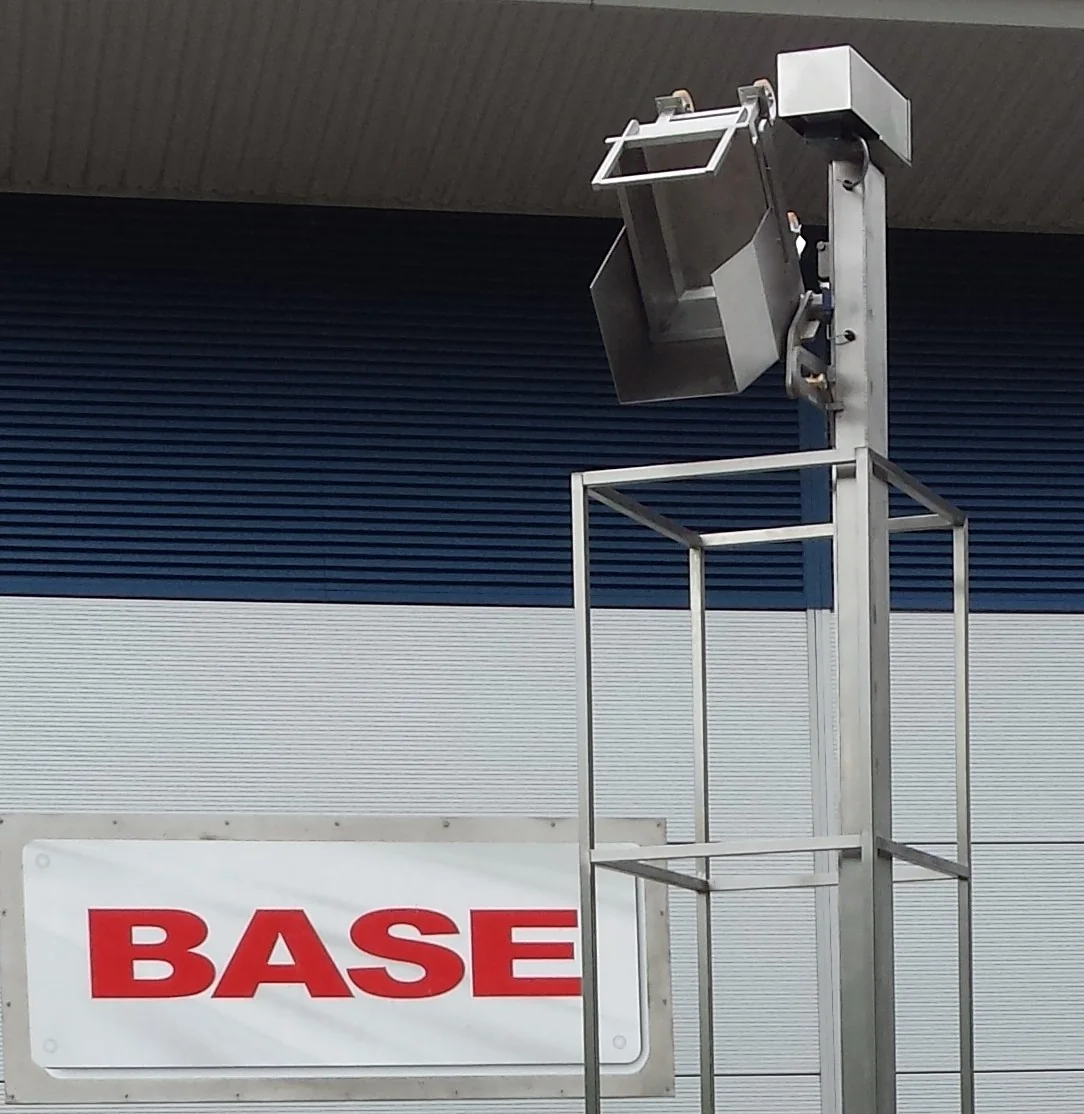

This single pillar Tote Dumper High Level is designed to lift and tip at a Special purpose Tote weighing up to 100 Kgs at a discharge height of 5200mm. The Tote Dumper High Level is constructed from grade 304 stainless steel and is fully Tig welded throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Tote Dumper High Level is designed to be bolted to the floor and is braced near the top.

Safety Guard to PD 5304:2005 Safety of Machinery

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2mm stainless steel sheet to meet the requirements of pD 5304:2005 Safety of machinery. it would enclose the Tote Dumper High Level to a height of 2200mm on all sides with a vertically opening gate through which the tote is loaded. The guard door is electrically and mechanically interlocked preventing the Tote Dumper High Level from operating with the door open. in addition, the guard door can only be opened when the lifting carriage is at the full down position. The Tote Dumper High Level control system has provision for a ‘call for product’ signal to be connected.

Tote Dumper High Level Application Story

The Tote Dumper High Level was designed to tip pet food into a mixing and packing Line at high level.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Tote Dumper High Level

Model No.

BTM/100/5850/B/G

Capacity

100 Kgs

Tipping Height

5850mm

Tipping Angle

130 Degrees

Overall Height

6800mm

Machine Handing

Left or Right Hand Available

Tipping Chute

Optional

Container Description

Special Purpose Tote

Base Arrangement

Bolted To The Floor & Braced

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Adjustable Rod

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE

Motor Brake

415V Separately Excited

Gearbox Detail

SEW

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾” Simplex Delta Z

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/100/5850/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Used for controlled discharge of bulk materials from totes into processing lines or hoppers.
Commonly found in pet food manufacturing for feeding ingredients into mixers or packing lines.
Applicable in bakeries for tipping flour, sugar, or other dry ingredients.
Utilised in chemical processing for transferring powders or granules safely.
Suitable for pharmaceutical production where controlled material handling is required.

Typical Specifications

Typical capacity: Units of this type commonly handle totes weighing up to 100-500 kg.
Discharge height: High-level dumpers typically offer discharge heights ranging from 2,000 mm to over 5,000 mm.
Construction material: Food-grade units are typically constructed from 304 or 316-grade stainless steel.
Power supply: Most industrial units require a 3-phase electrical supply, commonly 400V, 50Hz.
Footprint: Single pillar designs typically offer a compact footprint, suitable for space-constrained environments.
Safety features: Units commonly include interlocked guarding, emergency stops, and overload protection.
Mounting: For stability, units of this class are typically designed for floor bolting and may require bracing.

Frequently Asked Questions

This type of dumper is typically designed for specific tote dimensions and weights. Buyers should confirm compatibility with their existing totes.
