What types of containers can this trolley tipper handle?

This specific unit is designed for a blue plastic trough on a trolley. Trolley tippers are often custom-built or adaptable to various standard or proprietary containers, such as Eurobins or specific tubs.

Is this unit suitable for outdoor use?

While constructed from stainless steel and featuring an IP65 control panel, prolonged outdoor exposure is generally not recommended without additional weather protection. These units are primarily designed for indoor food processing environments.

What are the typical maintenance requirements for a trolley tipper?

Maintenance typically involves regular inspection of the lift chain, motor, gearbox, and electrical components. Lubrication of moving parts and checking for wear are also common requirements to ensure safe and efficient operation.

Does this unit comply with current safety regulations?

The description mentions compliance with PUWER for control panel access. Buyers should verify the unit's overall compliance with current UK health and safety regulations, especially regarding guarding, for their specific application.

Available

Verified seller

Trolley Tipper

Name: Trolley Tipper
SKU: BTM/300/2200/B
Availability: InStock

Price: Contact seller for price

BTM/300/2200/B Single Pillar Trolley Tipper

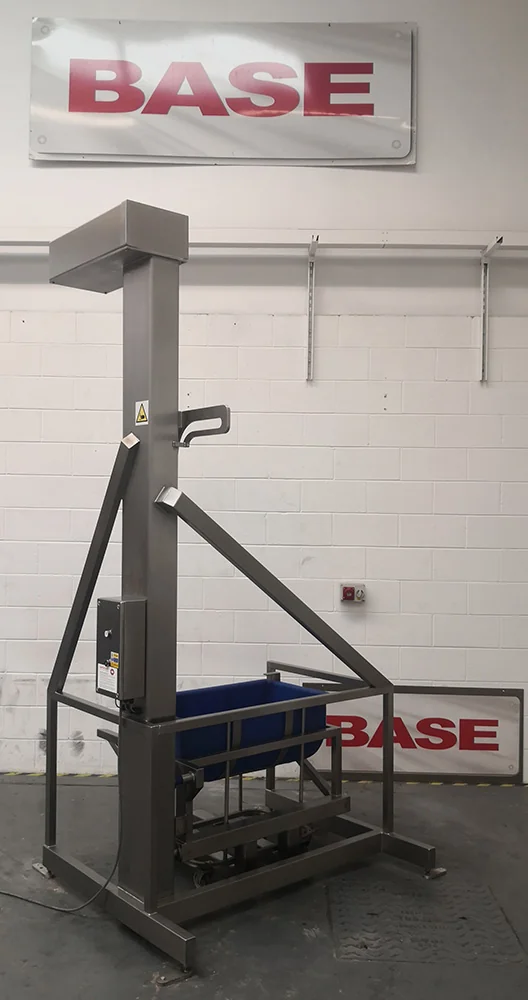

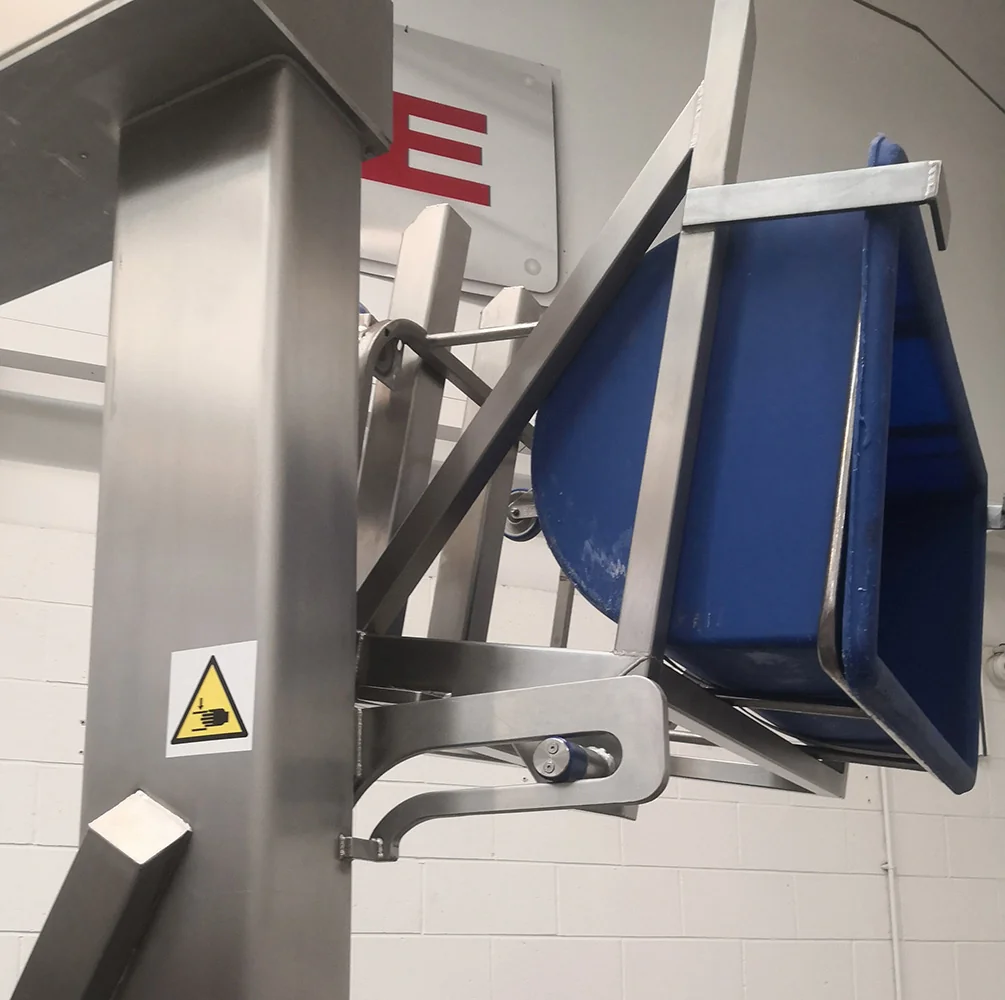

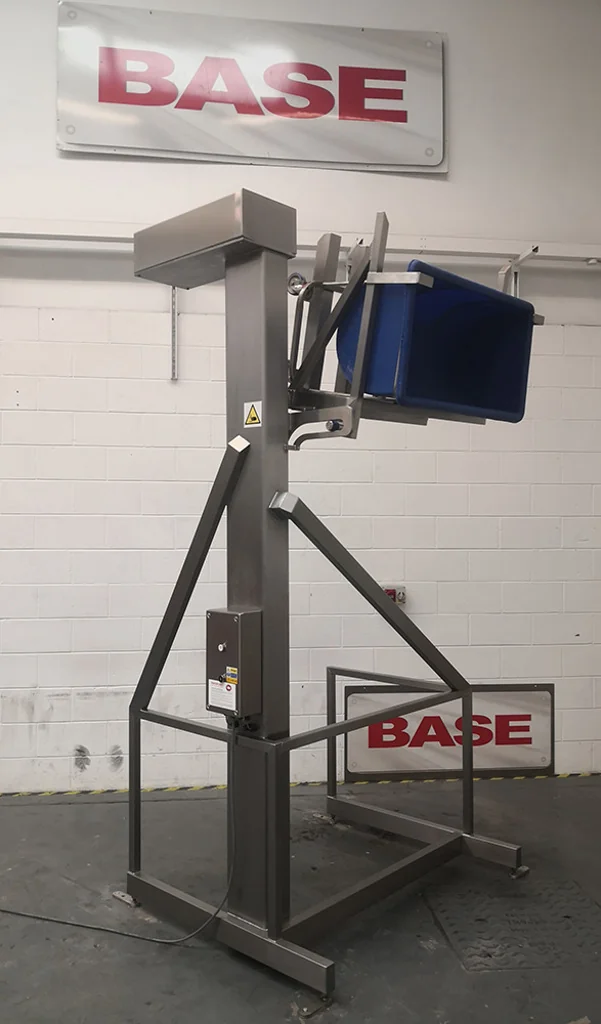

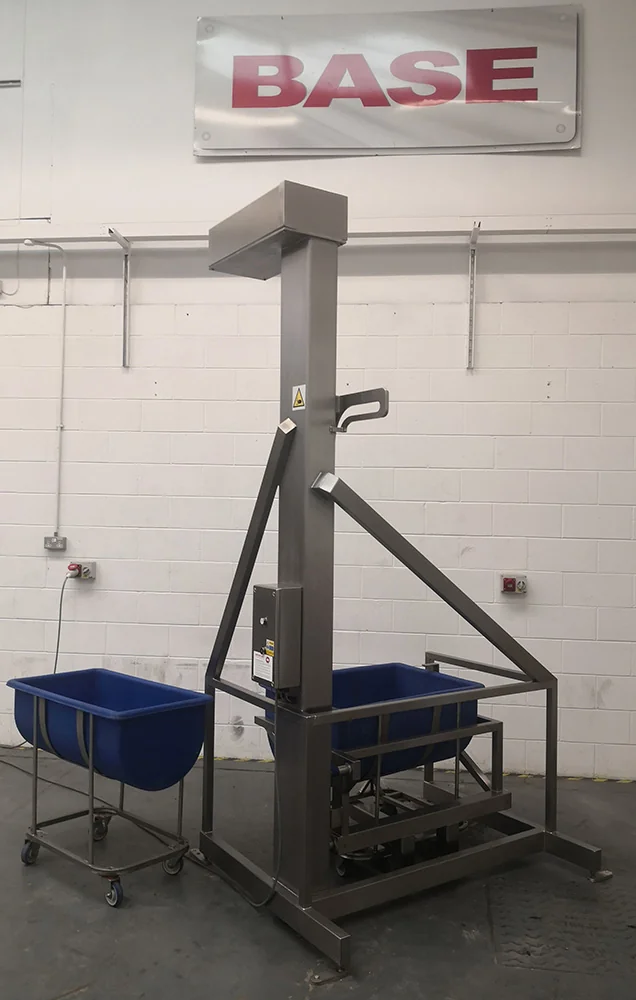

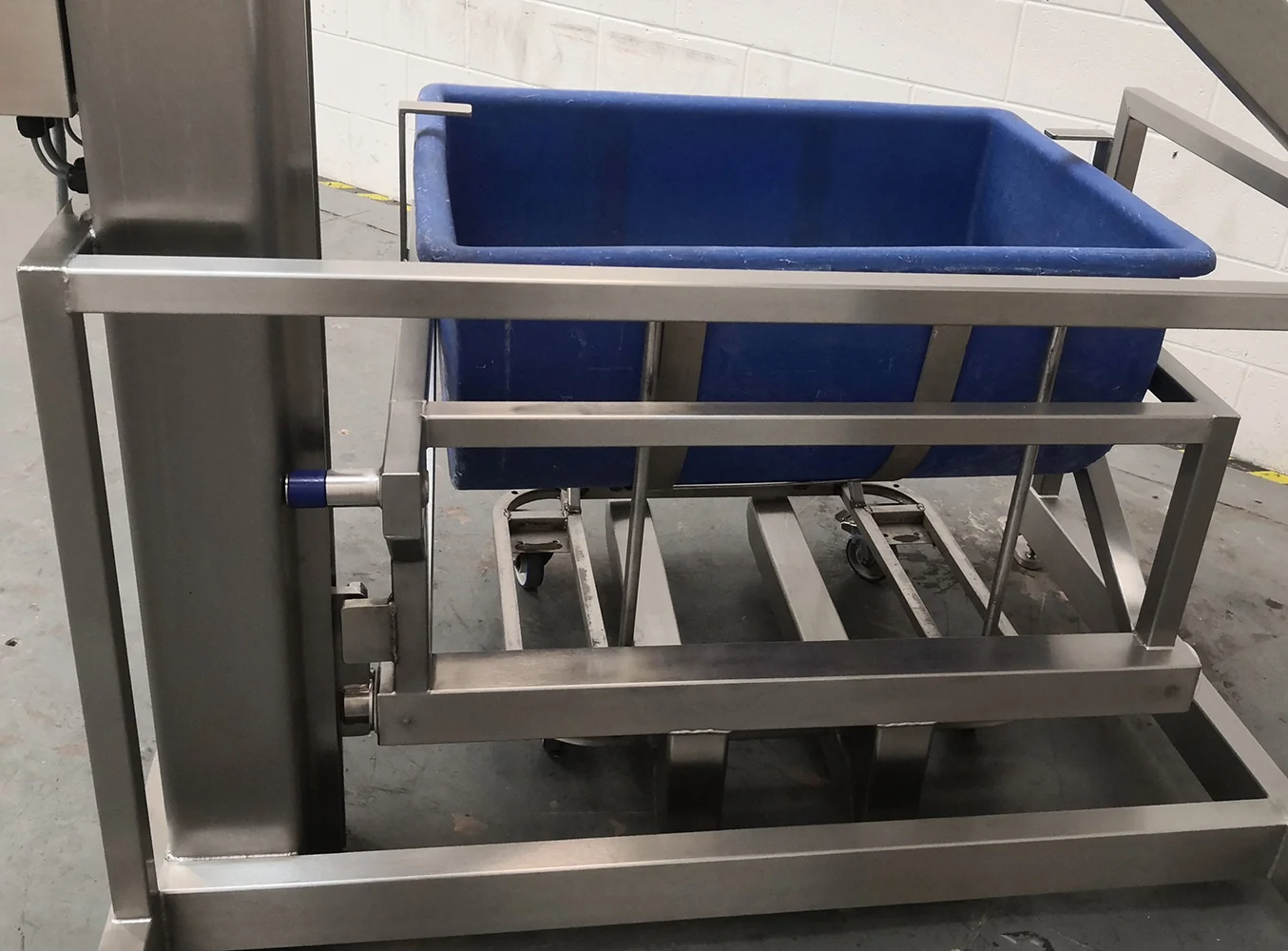

This Single Pillar Trolley Tipper is designed to lift and tip a Blue Plastic Trough on a Trolley at a discharge height of 2200mm. The Trolley Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Trolley Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Trolley Tipper Electrical Control

This Trolley Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Trolley Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Trolley Tipper to operate. As soon as either button is released, the Trolley Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Trolley Tipper

Model No.

BTM/300/2200/B

Safe Working Load

300 Kgs

Tipping Height

2200mm

Tipping Angle

135 Degrees

Overall Height

3035mm

Machine Handing

Right Hand

Maximum Headroom

3200mm

Tipping Chute

Container Description

Blue Plastic Trough on a Trolley

Base Arrangement

Base Frame Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/2200/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Used for transferring ingredients or products from trolleys into processing machinery.
Commonly found in bakeries for tipping dough or ingredients into mixers.
Utilised in meat processing for loading bulk products into mincers or grinders.
Applied in dairy operations for transferring curd or other products.
Essential for ergonomic material handling, reducing manual lifting in food production.

Typical Specifications

Typical lift capacity: Units of this type commonly handle loads from 100kg to 500kg, depending on design.
Discharge height: For this class of equipment, discharge heights typically range from 1800mm to 3000mm.
Construction material: Commonly manufactured from Grade 304 stainless steel for hygiene and durability.
Power supply: Typically requires a 3-phase electrical supply, commonly 400V, 50Hz.
Control system: Often features an IP65 rated control panel, suitable for washdown environments.
Safety features: Units commonly include safety latches and 'hold to run' controls for operator safety.
Mounting: Designed for floor bolting to ensure stability during operation.
