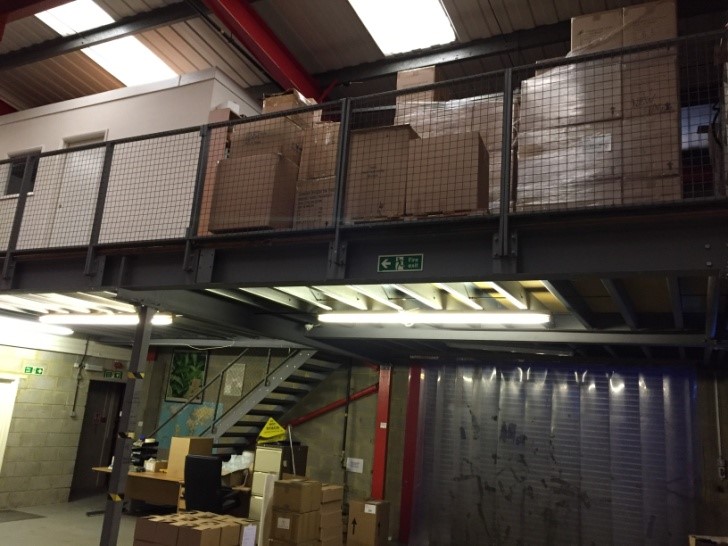

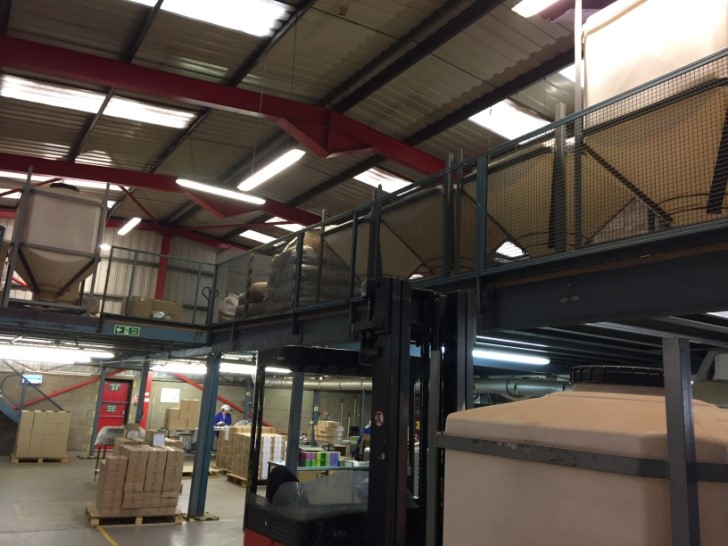

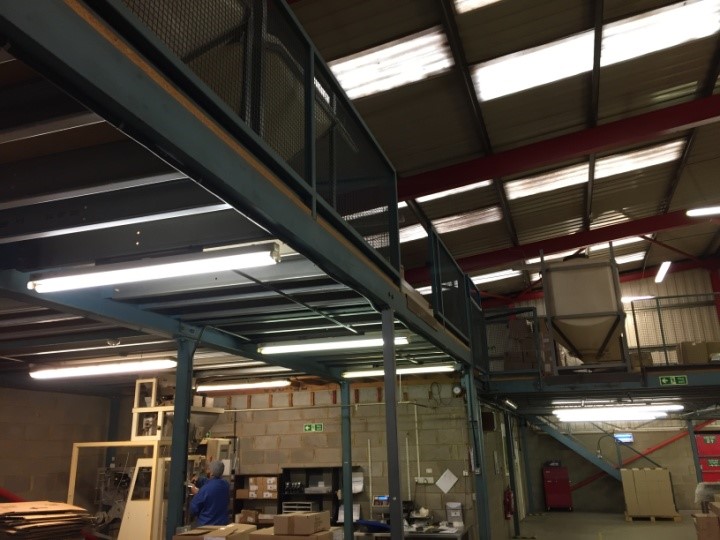

unknown Mezzanine Flooring

Applications & Use Cases

• Increasing storage or production space within existing industrial units without expanding the building footprint.
• Creating segregated office areas or cleanrooms above production floors in food processing or pharmaceutical facilities.
• Utilised in warehouses and distribution centres to maximise vertical space for inventory.
• Providing elevated platforms for machinery, conveyors, or observation decks in manufacturing plants.

Typical Specifications

Typical capacity

Mezzanine flooring for industrial use typically offers load capacities ranging from 3.5 kN/m² to 10 kN/m² (approximately 350 kg/m² to 1000 kg/m²), depending on the design and intended use.

Construction material

For this class of equipment, the primary structure is commonly constructed from structural steel, with flooring options typically including chipboard, plywood, or steel grating.

Clear span

Typical clear spans between columns can vary significantly, often ranging from 3 to 8 metres, influencing the layout flexibility beneath the mezzanine.

Headroom

Regulations typically require a minimum clear headroom of 2.1 to 2.4 metres both above and below the mezzanine level for safe passage and operation.

Access points

Common access solutions include straight staircases, utility staircases, and pallet gates for goods movement, designed to meet relevant safety standards.

Fire rating

Depending on the application and building regulations, mezzanines may require specific fire ratings for their structure and flooring, often achieved through fire protective coatings or materials.

Modularity

Units of this type are often modular, allowing for customisation of size and configuration, though specific components are designed for a particular installation.

Frequently Asked Questions

• What are the typical considerations for dismantling and reinstallation?

  Dismantling requires careful planning, often involving structural engineers to ensure safety. Reinstallation will necessitate new foundation calculations and potentially new components to adapt to a different site layout and load requirements.

• Are there specific regulations for mezzanine flooring in the UK?

• Can this mezzanine be adapted to a different size or shape?

• What kind of foundation is typically required for mezzanine flooring?

• What is the expected lifespan of used mezzanine flooring?

• What are the common safety features included with mezzanine flooring?
