What is thermoforming packaging?

Thermoforming is a packaging process where a plastic film is heated and formed into a tray or cavity, filled with product, and then sealed with a top film. This creates a secure, often hermetic, package.

What is MAP (Modified Atmosphere Packaging)?

MAP involves flushing the package with a specific gas mixture (e.g., nitrogen, carbon dioxide, oxygen) after vacuuming to extend product shelf life and maintain quality, particularly for perishable goods.

Can this machine handle different package sizes?

Yes, thermoforming machines like the R240 are designed with interchangeable tooling. Changing package sizes typically requires a tool change, which can be done by trained personnel.

What maintenance is typically required for a used thermoformer?

Routine maintenance typically includes checking and replacing wear parts such as seals, knives, and heating elements, as well as regular lubrication and calibration of sensors. Vacuum pump oil changes are also essential.

Is operator training necessary for this equipment?

Yes, due to the complexity of thermoforming and MAP processes, operator training is highly recommended to ensure safe operation, optimal performance, and efficient tool changes.

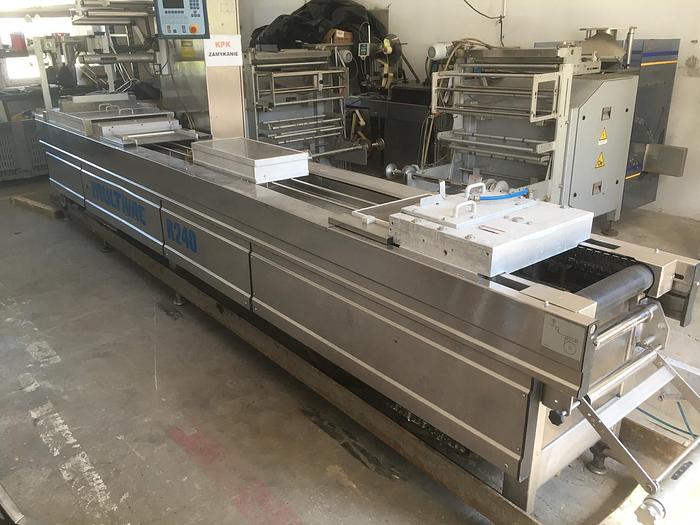

Used Multivac R240 - Thermoforming Equipment, photo 1

Used Multivac R240 - Thermoforming Equipment

used Equipment

Available

Verified seller

Multivac - Used Multivac R240

Name: Used Multivac R240
Brand: Multivac
SKU: 1077684
Availability: InStock

Price: Contact seller for price

Nominal machine width: 420 mm. Gas flushing system VBS 91 vacuum pumps Busch evacuation CB 220/80 and forms 220/80. Forming the lower part with max. chamber depth: 75 mm, tool height: 115 mm, cutoff length 215 mm, Vario 3x1. Film specification: Bottom film (hard), type: PS / EVOH / PE, width: 422 mm, tolerance: +2 mm, thickness: max. 500 µ, heat-sealable, deep-drawable. Upper film (flexible), type: OPA / PE, width: 420 mm, tolerance: ± 1 mm, thickness: approx. 80 µ, heat sealable, target printed. Package specification: ZT 13-35 mm, Package size: 127.00mm x 215.00mm, Form dimension: 112.00 mm x 197.00 mm, Package depth: 35 mm.

Warsaw, Poland

6,133 km away

Model Number

R240

Stock Number

1077684

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Packaging of fresh meat, poultry, and fish products in modified atmosphere.
Sealing of ready meals and convenience foods for extended shelf life.
Packaging of medical devices and sterile products requiring barrier protection.
Creating portion packs for cheese, charcuterie, and other deli items.
Forming and sealing various consumer goods, including hardware and electronics components.

Typical Specifications

Typical throughput: For this class of equipment, throughput can typically range from 6 to 12 cycles per minute, depending on film type, product, and package depth.
Power supply: Units of this type commonly require a 3-phase electrical supply, typically 400V, 50Hz, with varying amperage requirements based on configuration.
Typical footprint: A Multivac R240, depending on its configuration (e.g., with infeed/outfeed extensions), typically requires a significant operational footprint, often exceeding 5-8 metres in length.
Film compatibility: This model is designed to handle a range of thermoformable films, including flexible and rigid materials like PA/PE, APET, PS/EVOH/PE, and PP, with specific gauges.
Vacuum system: Units commonly feature integrated or external vacuum pumps, often from Busch, to achieve desired vacuum levels and facilitate gas flushing (MAP).
Maximum forming depth: For this model, the maximum forming depth is typically up to 75mm, allowing for a variety of product sizes and shapes.

Frequently Asked Questions

Thermoforming is a packaging process where a plastic film is heated and formed into a tray or cavity, filled with product, and then sealed with a top film. This creates a secure, often hermetic, package.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
