Waste Tipper

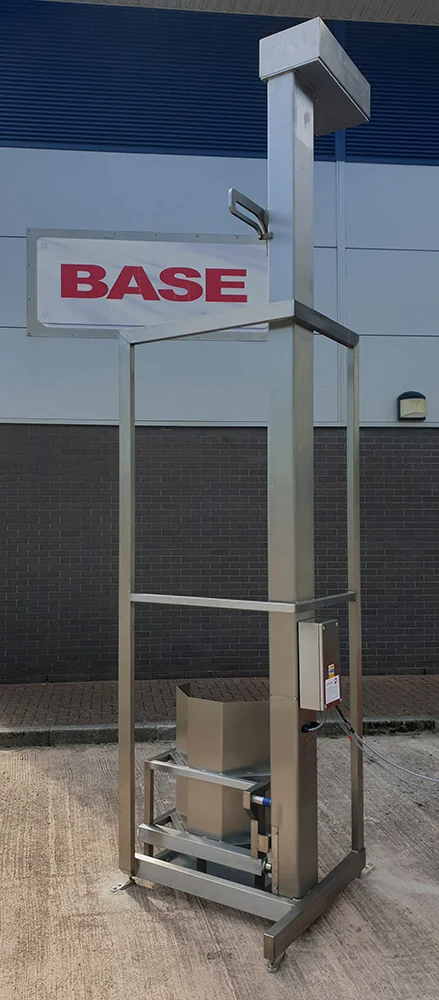

BTM/200/3200/B Single Pillar Waste Tipper

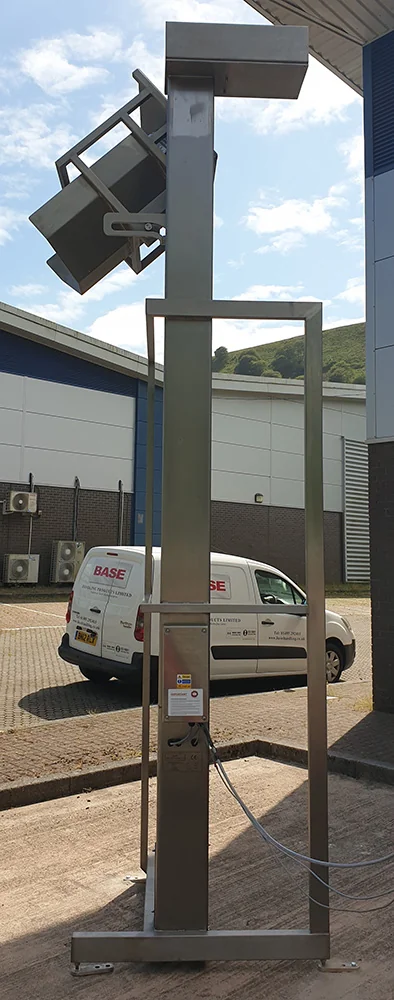

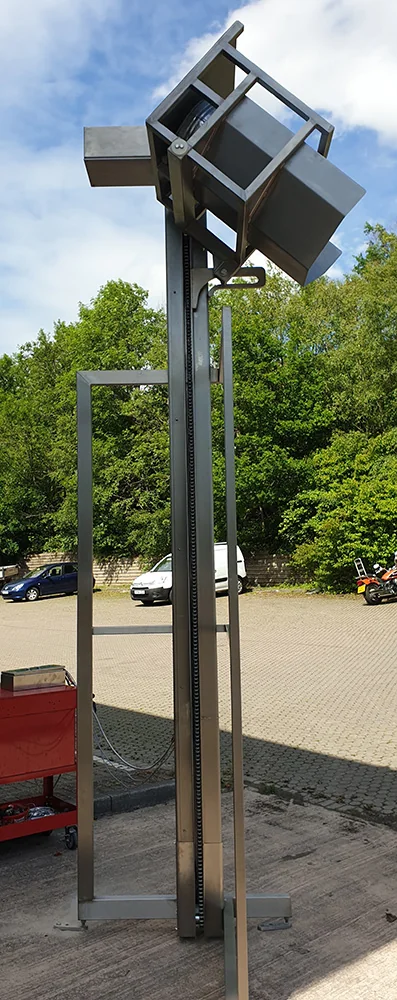

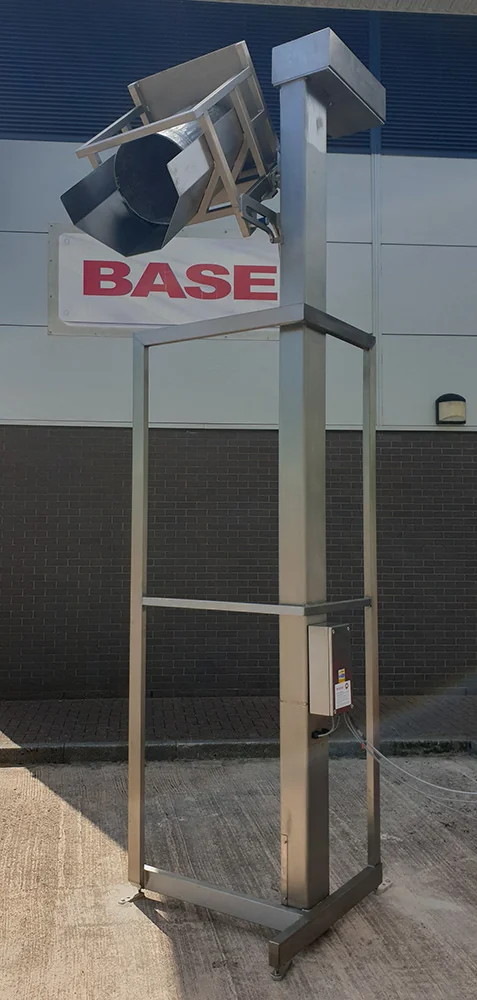

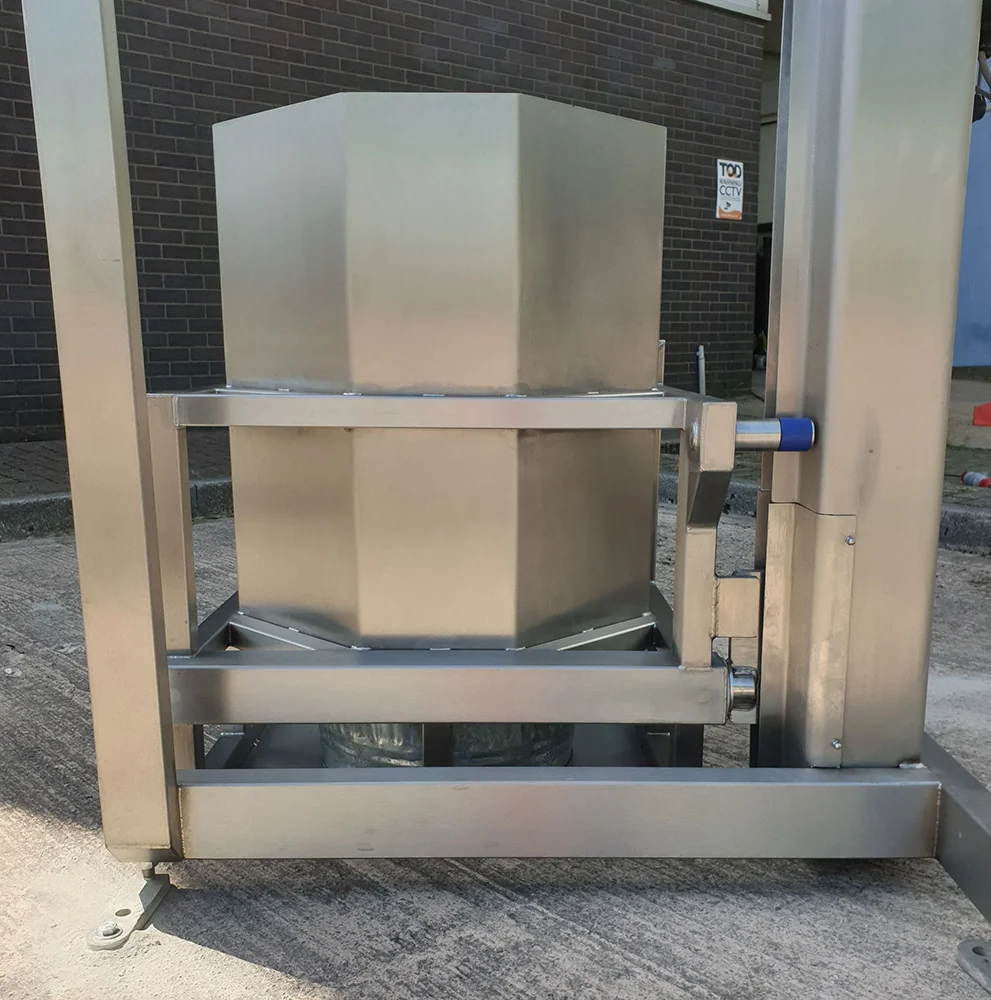

This Waste Tipper is designed to lift and tip a recycling waste trash can at a discharge height of 3200mm. The Waste Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Waste Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Waste Tipper Electrical Control

This Waste Tipper is fitted with an IP65 Stainless Steel Terminal Box which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control was incorporated into the Main Control System by others.

United Kingdom

Blaenau Gwent County Borough, United Kingdom

Distance: 5,762 km away

Description

Single Pillar Waste Tipper

Model No.

BTM/200/3200/B

Safe Working Load

200 Kgs

Tipping Height

3200mm

Tipping Angle

135 Degrees

Overall Height

4285mm

Machine Handing

Left Hand

Maximum Headroom

5000mm

Tipping Chute

No

Container Description

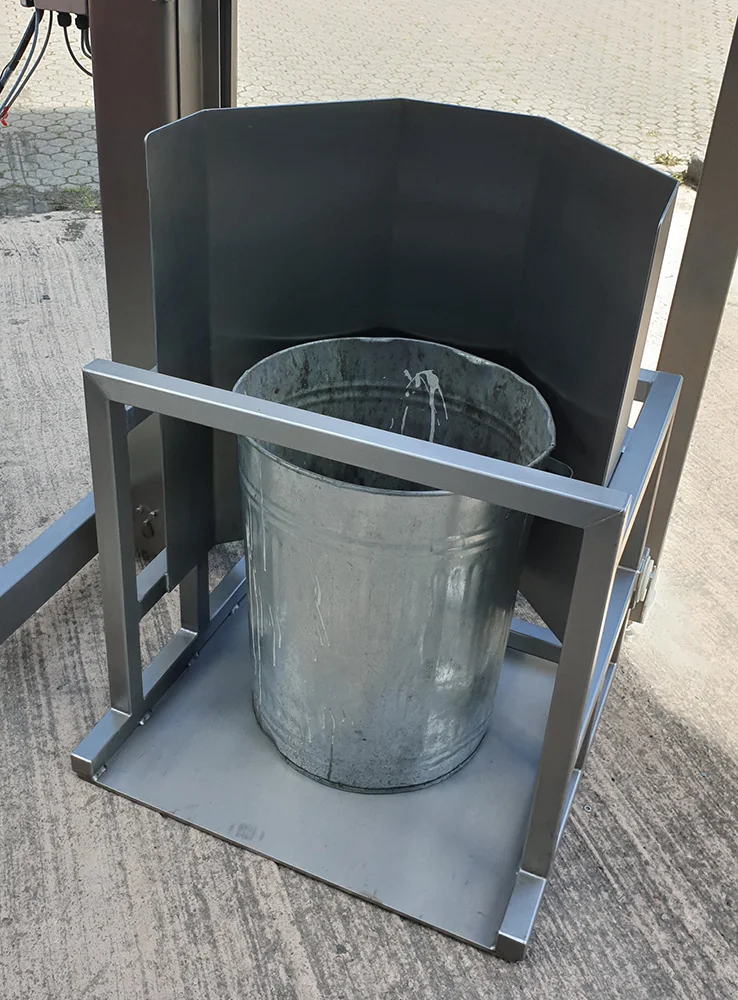

Drum 572mm High x 633mm Diameter

Base Arrangement

Base Frame Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute
