What type of bins can this tipper handle?

This specific unit is designed for 80-litre wheelie bins. Other models in this class are available for various standard bin sizes, such as 120L, 240L, and 360L.

Is this equipment suitable for a washdown environment?

Yes, units constructed from Grade 304 stainless steel with IP65-rated control panels, like this one, are typically designed for washdown in food processing environments.

What are the typical power requirements for a wheelie bin tipper?

Wheelie bin tippers commonly require a 3-phase electrical supply, such as 400V, 50Hz, for their motor and control systems.

What safety features should I look for?

Key safety features include 'dead man's handle' controls, emergency stop buttons, and mechanisms like the unique safety latch described, which prevents uncontrolled descent in case of chain failure. Guarding requirements should be assessed based on specific site risk assessments.

Does this unit require floor fixing?

Yes, single-pillar wheelie bin tippers of this design are typically manufactured for floor-bolting to ensure operational stability and safety.

Wheelie Bin Tipper - Lifting & Tipping, photo 1

Wheelie Bin Tipper - Lifting & Tipping, photo 2

Wheelie Bin Tipper - Lifting & Tipping, photo 3

Wheelie Bin Tipper - Lifting & Tipping, photo 4

Wheelie Bin Tipper - Lifting & Tipping, photo 5

Wheelie Bin Tipper - Lifting & Tipping, photo 6

Available

Verified seller

Wheelie Bin Tipper

Name: Wheelie Bin Tipper
SKU: BTM/250/1000/B
Availability: InStock

Price: Contact seller for price

BTM/250/1000/B Single Pillar Wheelie Bin Tipper

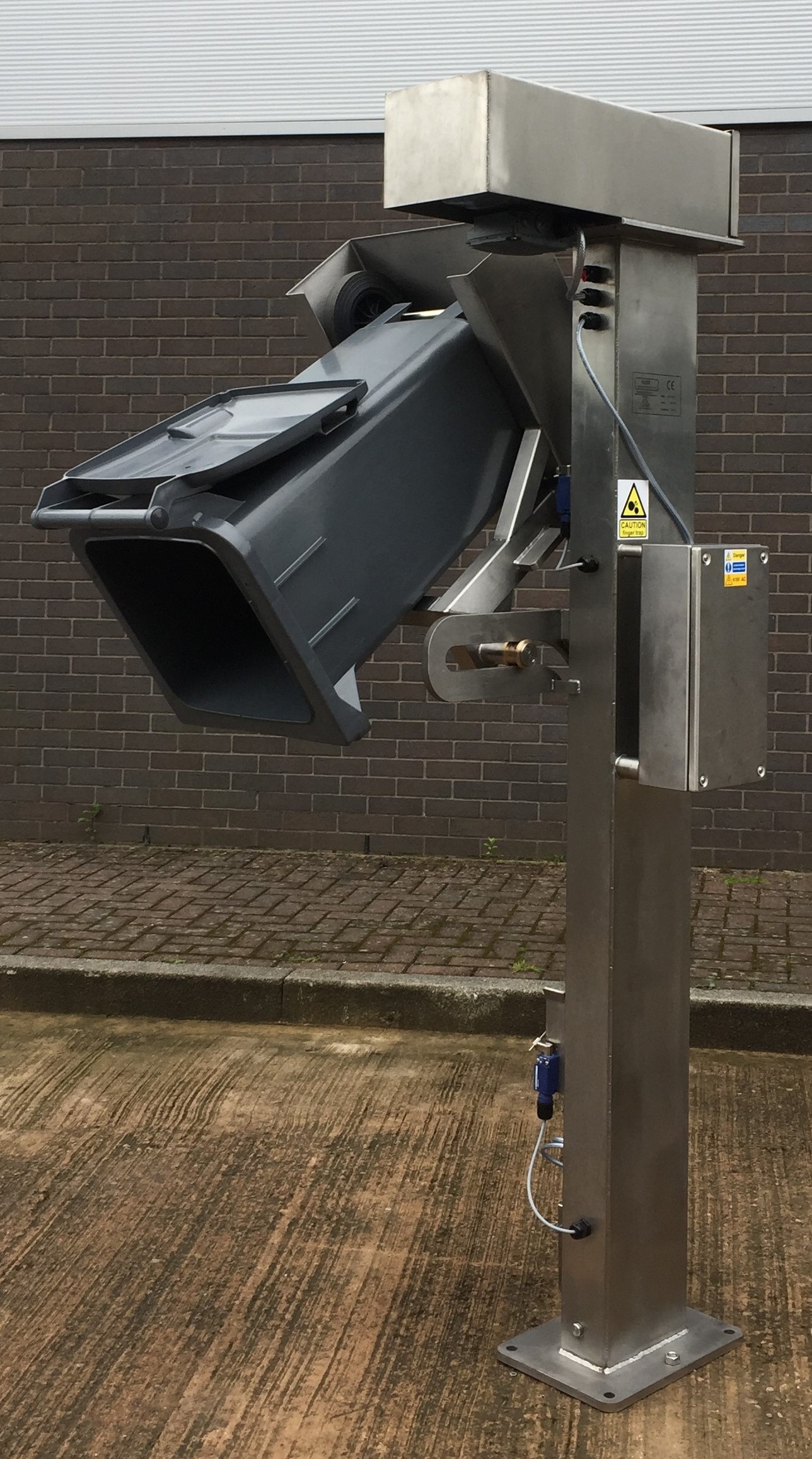

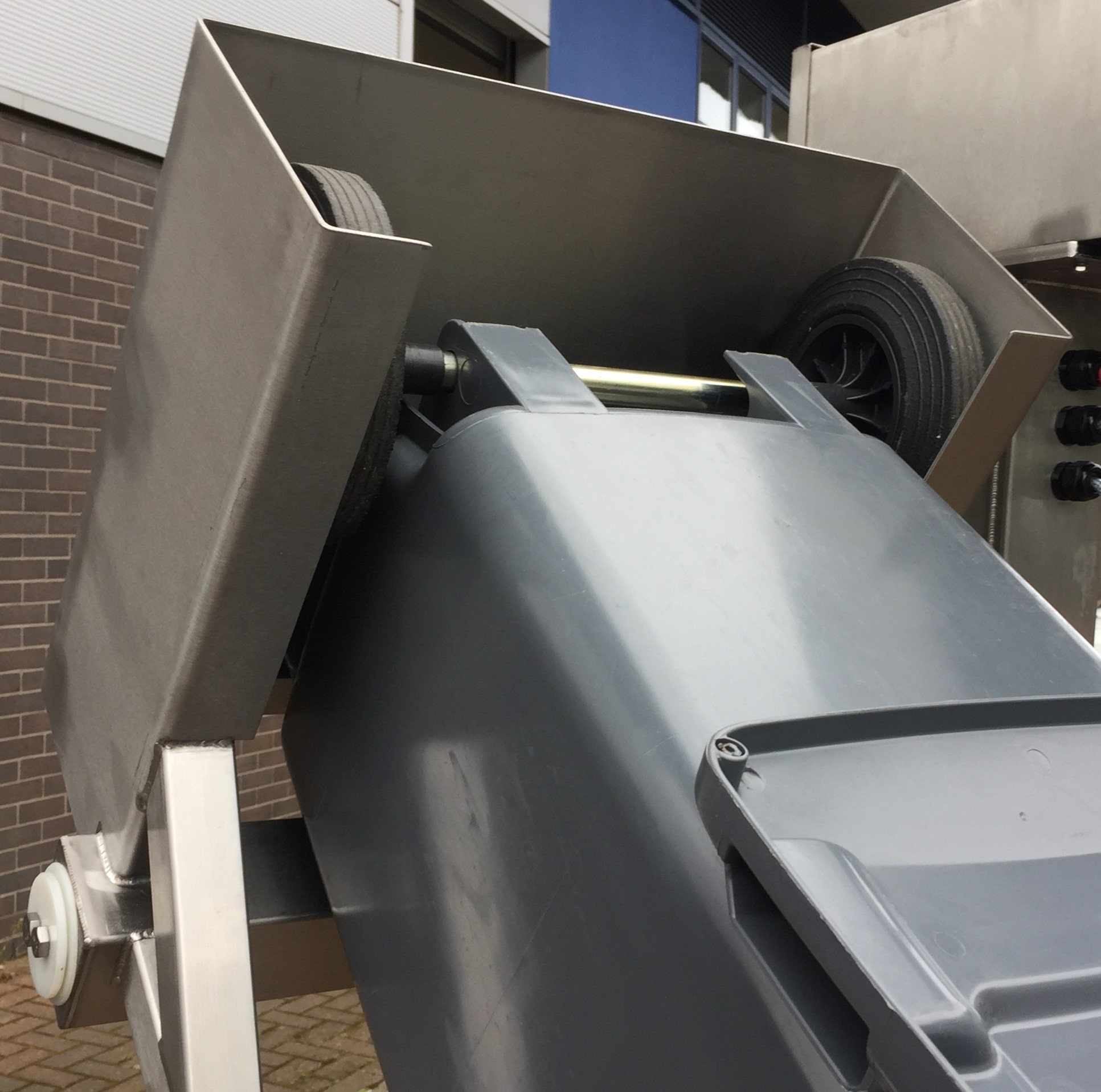

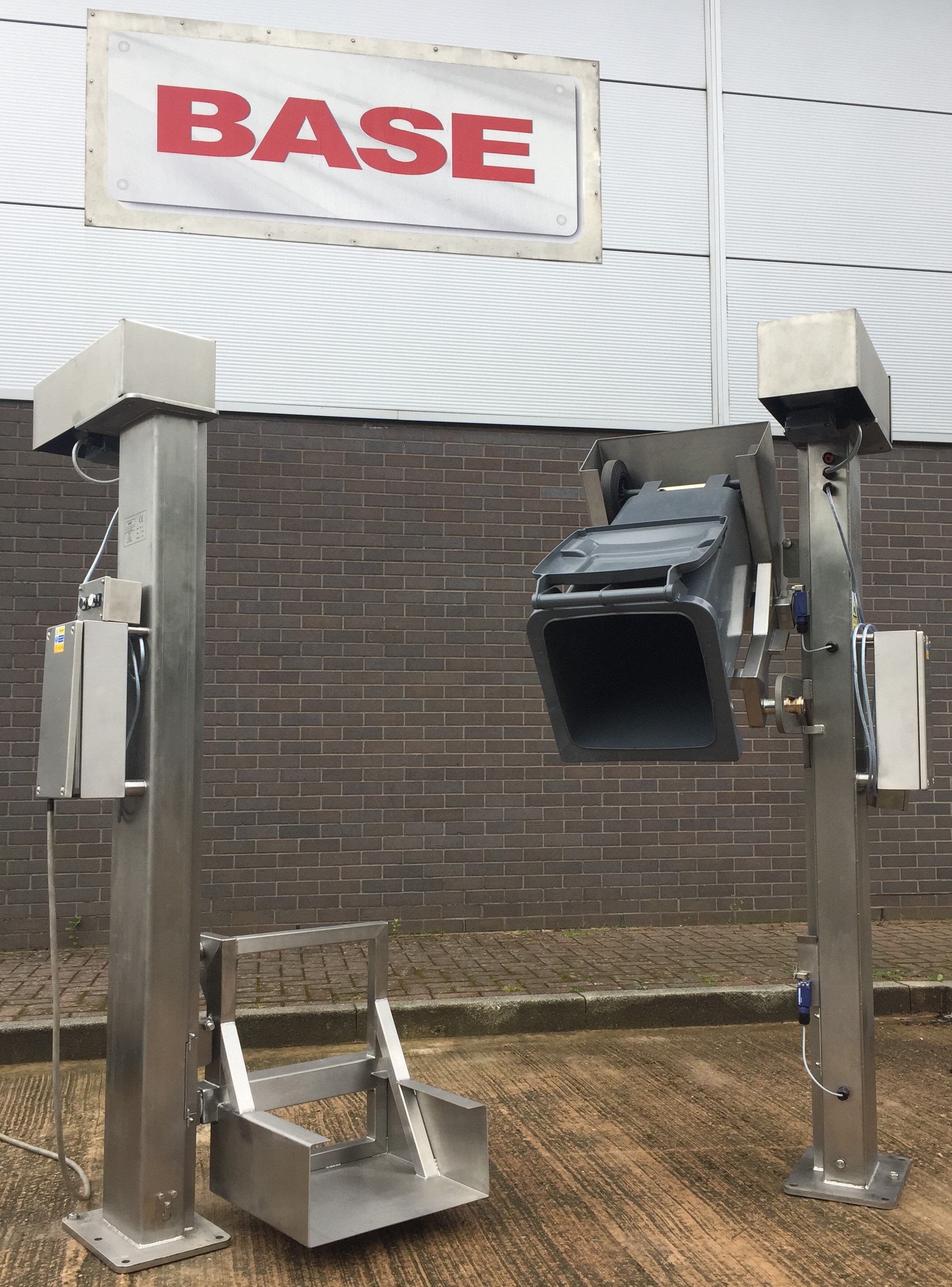

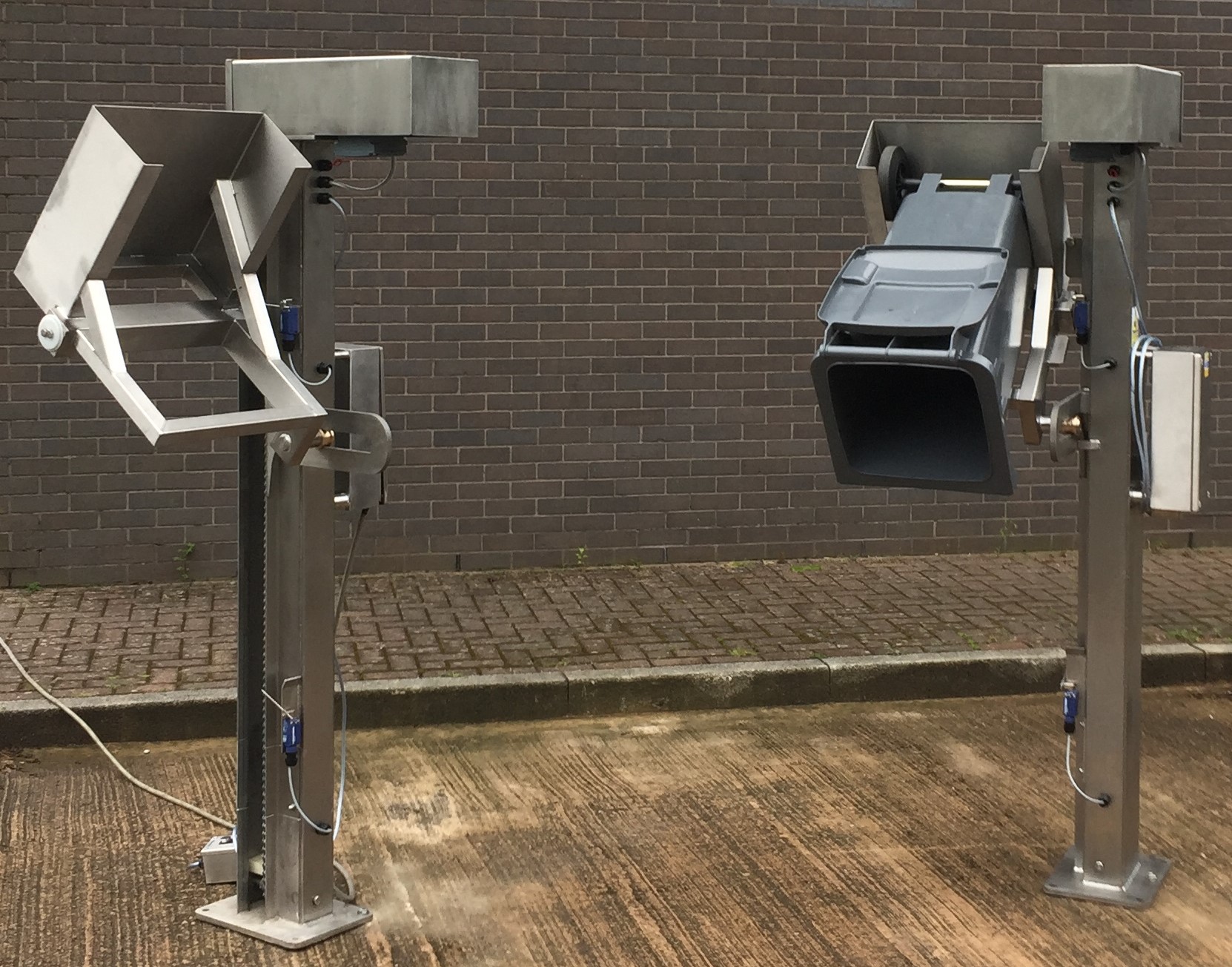

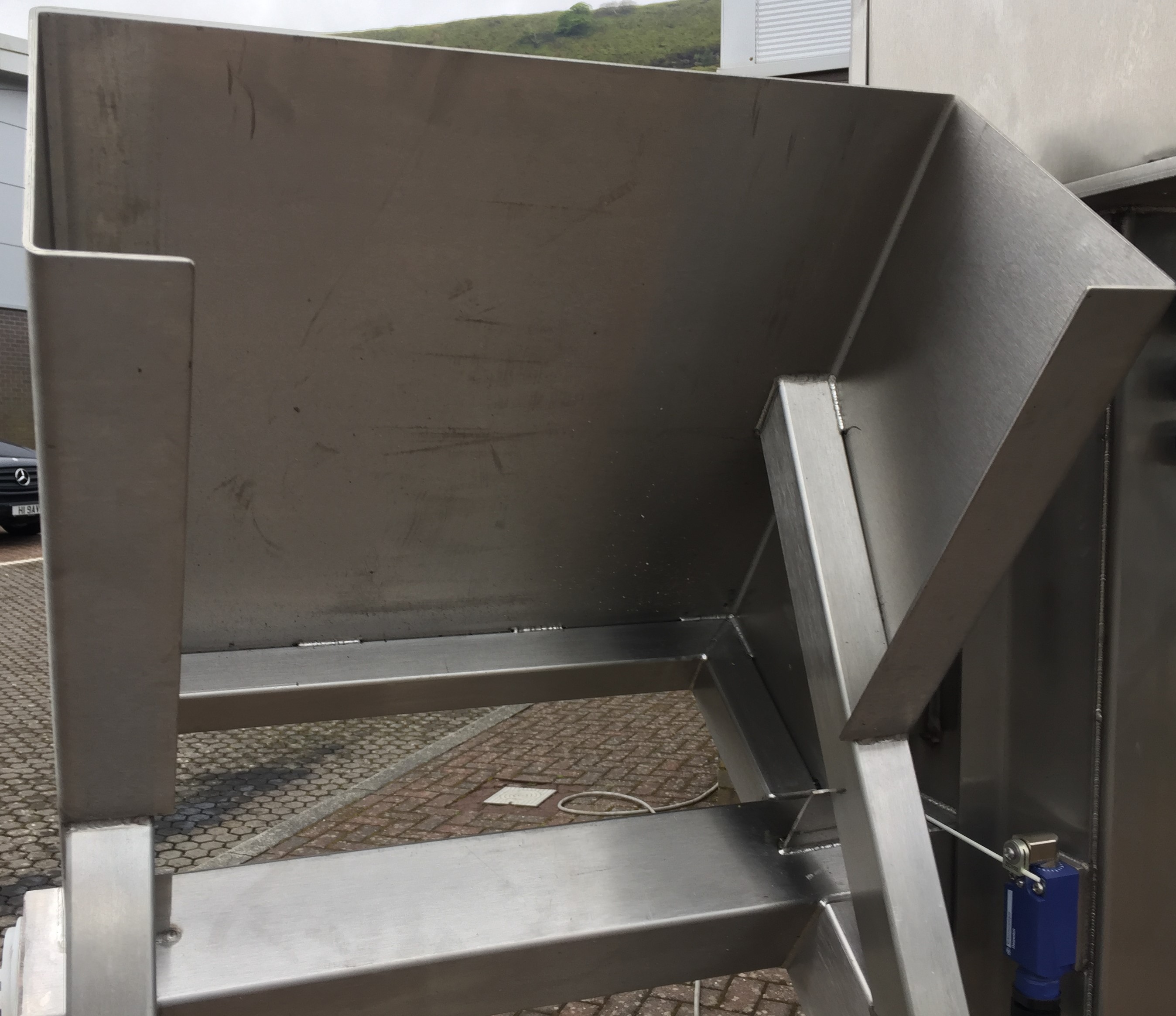

This Single Pillar 80 Litre Wheelie Bin Tipper is designed to lift and tip at a discharge height of 1000mm. The Wheelie Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Wheelie Bin Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Wheelie Bin Tipper Electrical Control

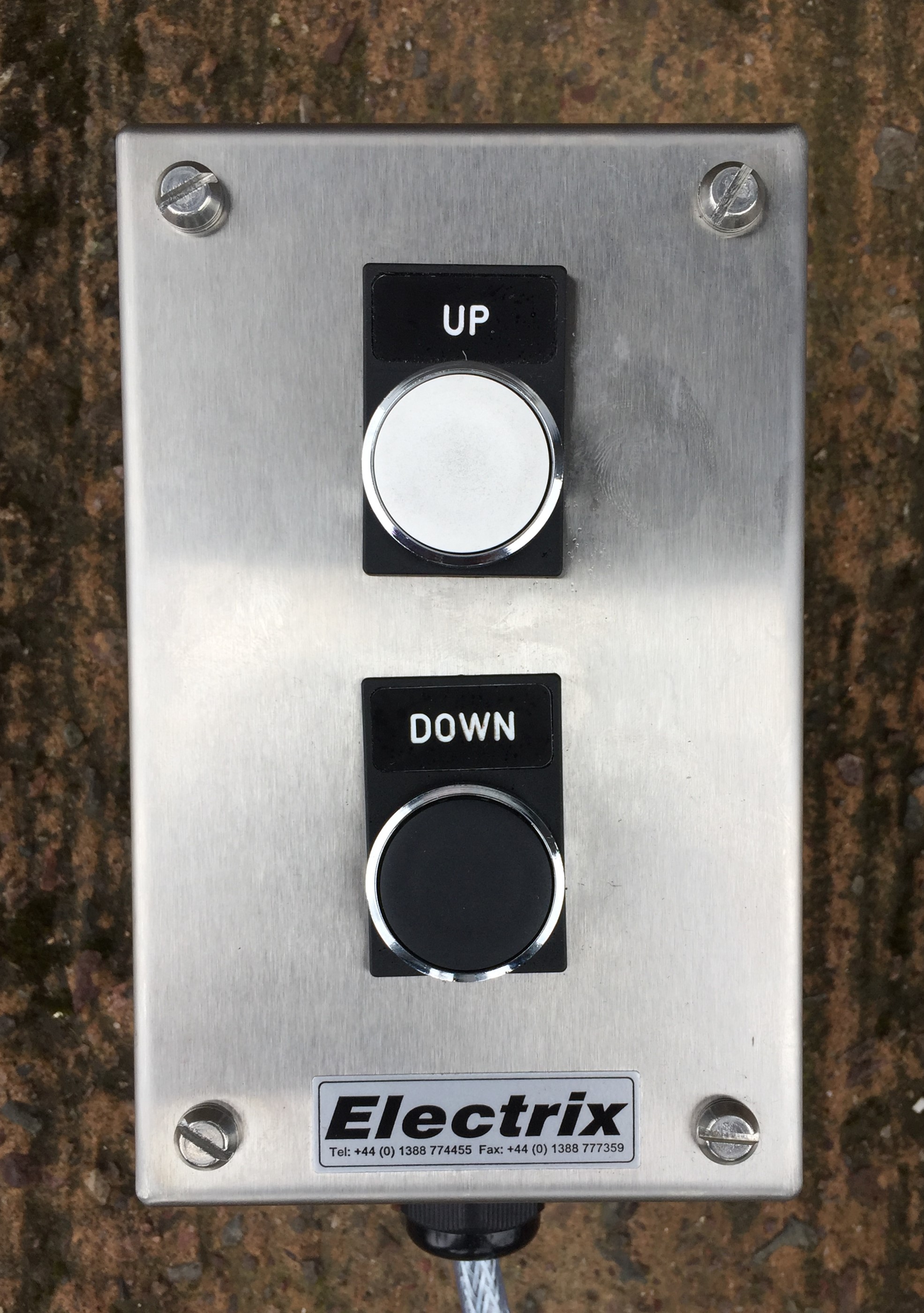

This Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Wheelie Bin Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbutton Wheelie Bin Tipper must be held for the Wheelie Bin Tipper to operate. As soon as the button is released, the Wheelie Bin Tipper will stop. The control buttons were mounted into a push button station with a flying lead to be positioned away from the tipping operation.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Wheelie Bin Tipper

Model No.

BTM/250/1000/B

Capacity

250 Kgs

Tipping Height

1000mm

Tipping Angle

130 Degrees

Overall Height

2100mm

Machine Handing

Left Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

80 Litre Wheelie Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/250/1000/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from bins into mixers or hoppers in bakeries and food production.
Loading raw materials into processing lines in confectionery or snack manufacturing.
Emptying waste or by-products from bins into larger receptacles or disposal systems.
Feeding bulk solids into packaging machinery or filling lines.
Handling ingredients in pharmaceutical or chemical processing where hygiene is critical.

Typical Specifications

Construction Material: Typically Grade 304 stainless steel for food contact and washdown environments, as specified for this unit.
Tipping Height: Commonly ranges from 800mm to 2000mm, with this unit specified at 1000mm.
Bin Compatibility: Designed for standard wheelie bins; this unit is specified for 80-litre bins, but models for 120L, 240L, and 360L are common.
Lifting Mechanism: Often chain-driven by a motor gearbox, as described for this unit, or hydraulic systems.
Power Supply: Typically 3-phase electrical supply (e.g., 400V, 50Hz) for industrial applications.
Controls: Commonly features 'dead man's handle' controls with an IP-rated panel, often with a flying lead for remote operation.
Mounting: Units of this type are typically designed for floor-bolting to ensure stability during operation.
Safety Features: Often includes safety latches for chain failure, though guarding levels can vary and should be confirmed for specific applications.
