Base Handling Ltd - 120 Litre Wheelie Bin Dumper
Copied to clipboard!
Price: Contact seller for price

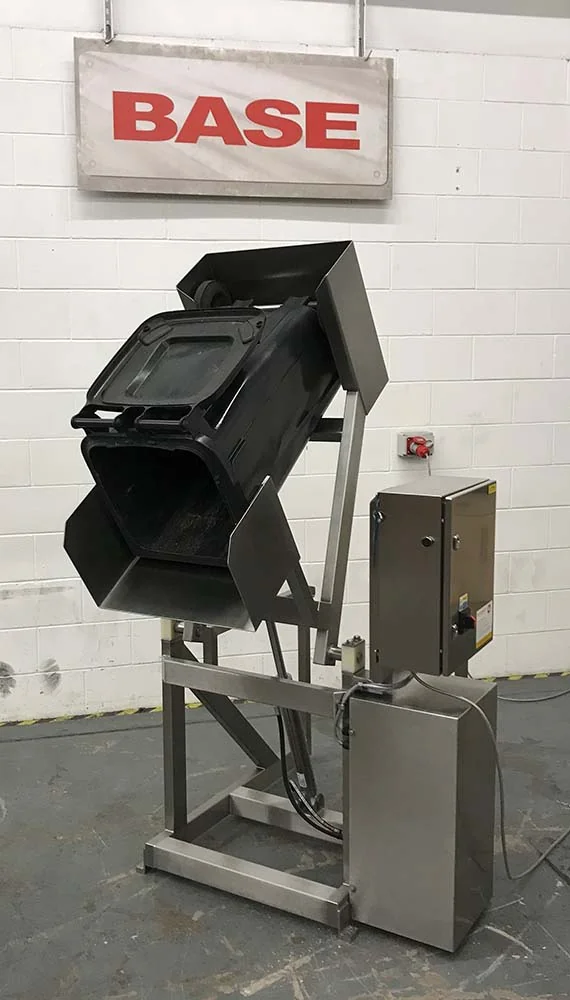

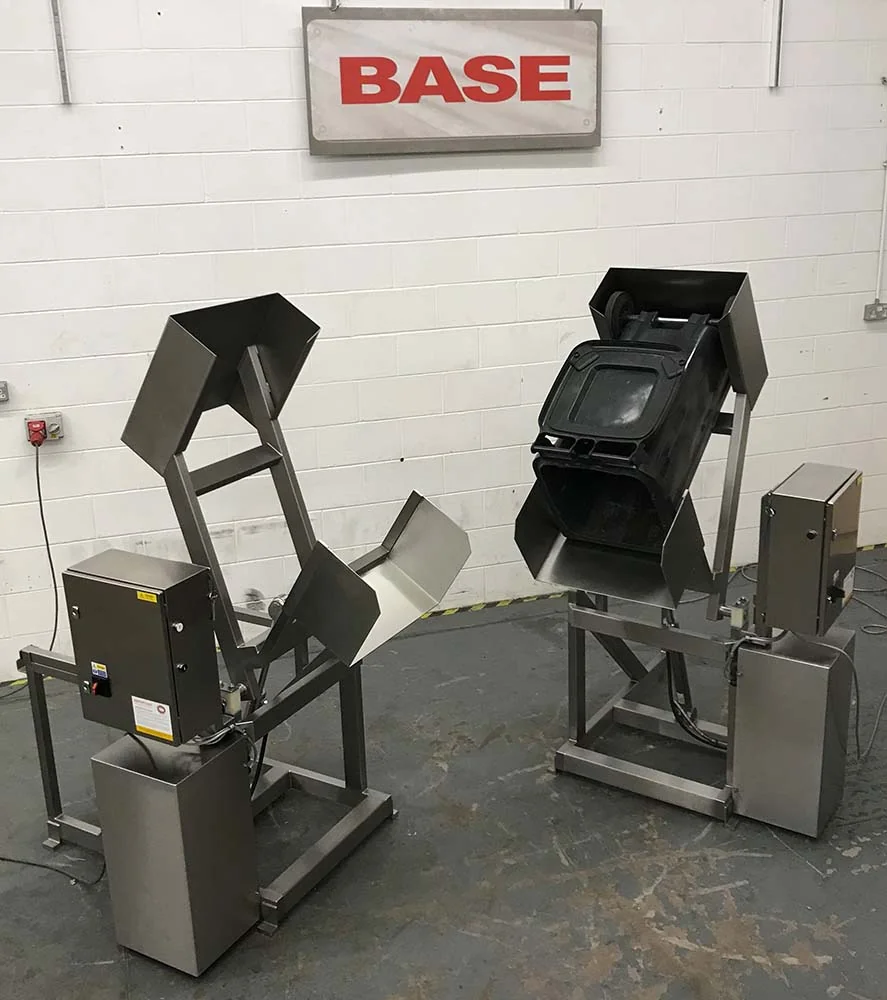

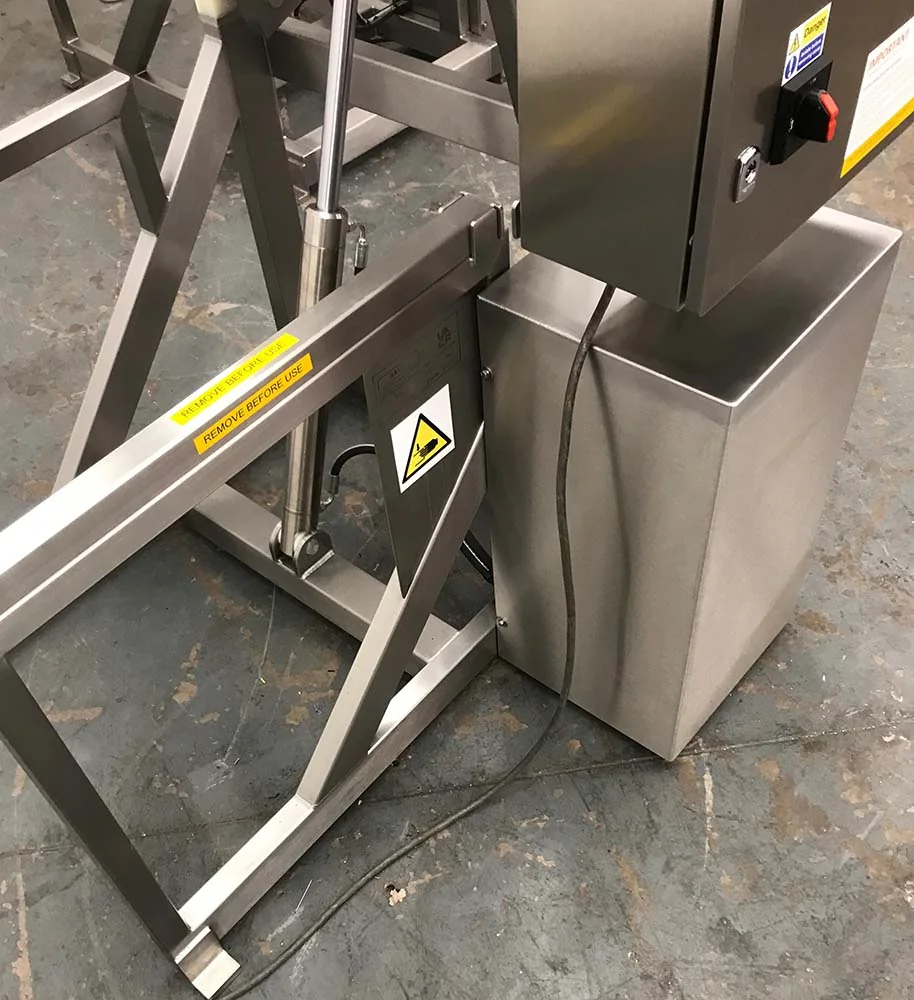

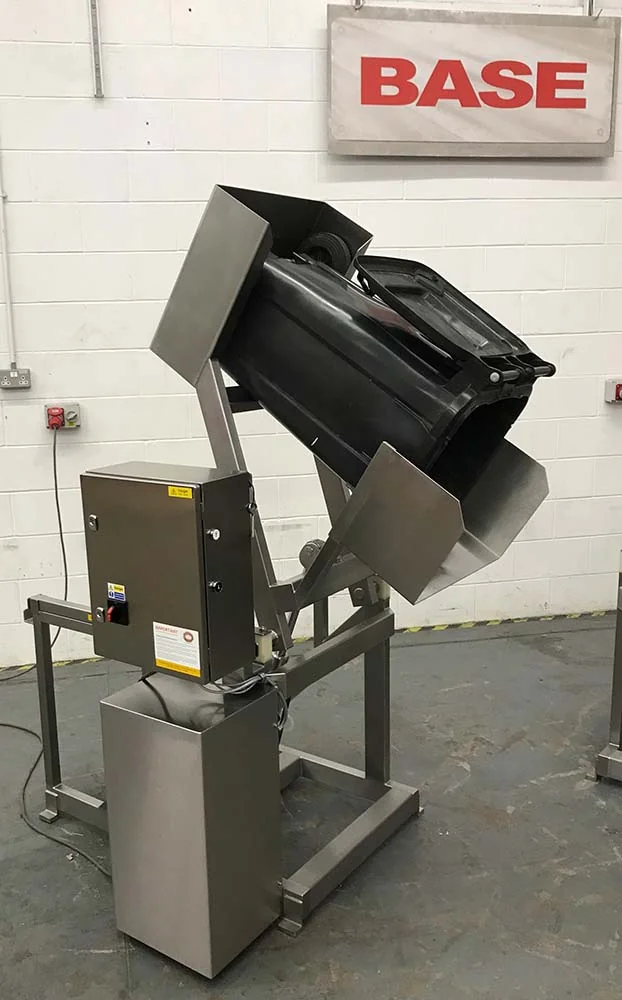

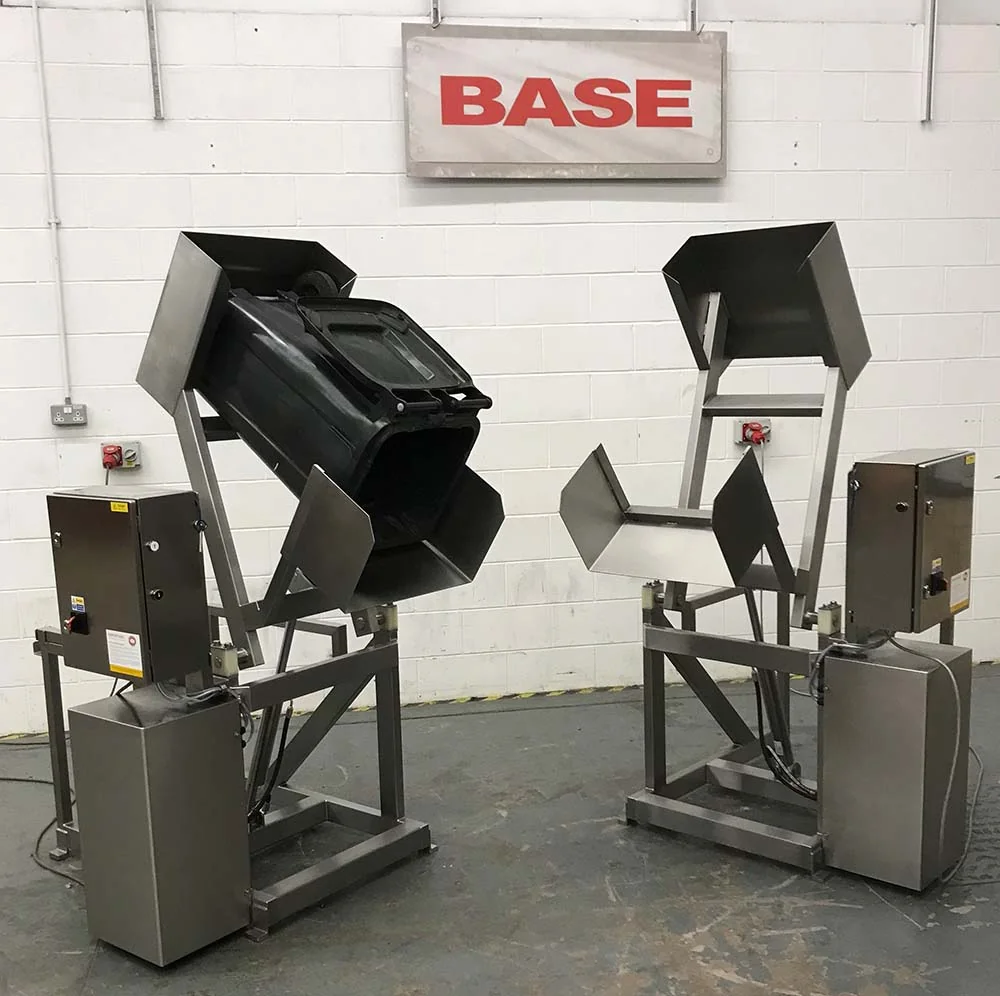

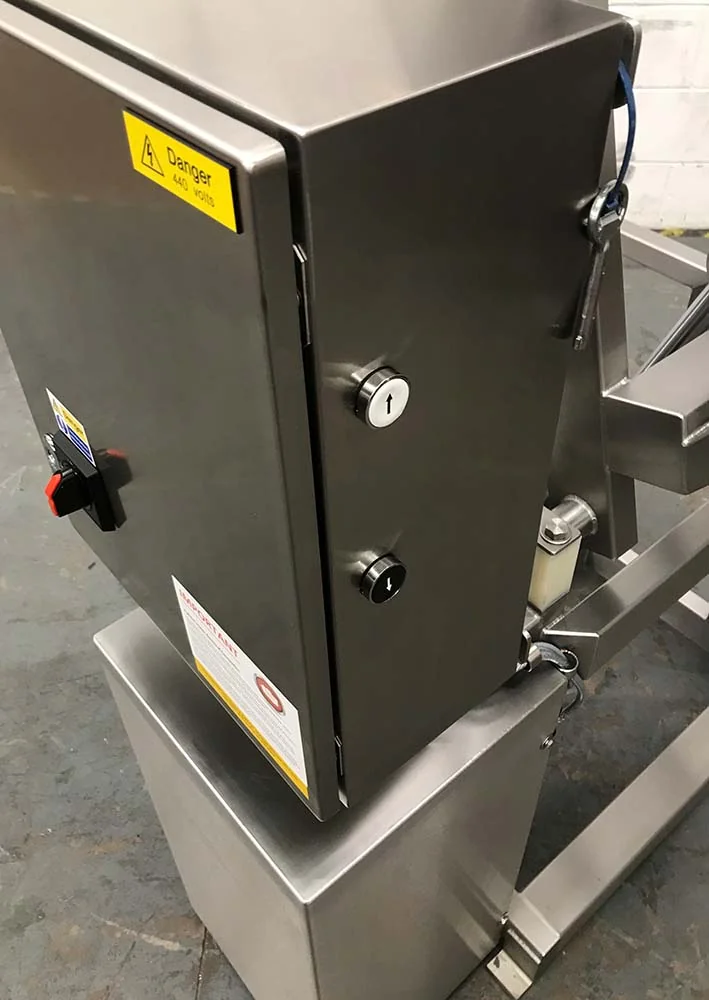

BTH/250/1000/B Hydraulic 120 Litre Wheelie Bin DumperThis 120 Litre Wheelie Bin Dumper is designed to lift and tip a standard 120 Litre Wheelie Bin at a discharge height of 1000mm and had a Safe Working Load of 250 Kgs. The Wheelie Bin Dumper is constructed from stainless steel and was designed to be bolted to the floor or welded to the deck if preferred. This Wheelie Bin Dumper is powered via a hydraulic powerpack and tips the containers by the extension of a hydraulic cylinder to an angle of 30 degrees past the horizontal. The hydraulic cylinder is fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor. 120 Litre Wheelie Bin Dumper Electrical ControlThis 120 Litre Wheelie Bin Dumper was fitted with an IP65 Control Panel mounted on the main frame at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The unguarded 120 Litre Wheelie Bin Dumper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Tipper to operate. As soon as either button is released, the Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required. |
Blaenau Gwent County Borough, United Kingdom5,762 km away
Description
120 Litre Wheelie Bin Dumper
Model No.
BTH/250/1000/B
Tipping Height
1000mm
Machine Handing
Right Hand Or Left Hand
Tipping Chute
Yes, Fitted To Lift Carriage
Container Description
120 Litre Wheelie Bin
Base Arrangement
Bolted To The Floor
Control Circuit
24Vac
Electrical Rating
IP65
UL/CSA Compatibility
All Components UL/CSA Stamped
Powerpack
0.55kW, 415V, 3 PHASE, 50 CYCLE
Tip Angle
120 Degrees
Lifting Capacity
250Kgs
Stock Number
BTH/250/1000/B
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Transferring ingredients from bins into processing machinery.
- Loading bulk materials into hoppers or conveyors.
- Emptying waste or by-products into larger collection systems.
- Moving raw produce or components to elevated workstations.
Typical Specifications
- Typical capacity
- Designed for standard 120-litre wheelie bins, with a Safe Working Load commonly up to 250 kg for this class of equipment.
- Discharge height
- Units of this type typically offer discharge heights around 1000mm, suitable for many standard processing lines.
- Construction material
- Commonly constructed from stainless steel, particularly for food processing applications, ensuring hygiene and durability.
- Power supply
- Typically powered by a hydraulic power pack, requiring an electrical connection for the motor (e.g., 3-phase, 400V).
- Control system
- Often features an IP65-rated control panel with 'hold to run' operation for safety, and potential for remote integration.
- Mounting
- Designed for secure floor mounting, either bolted or welded, to ensure stability during operation.
Frequently Asked Questions
- Units commonly feature 'hold to run' controls and safety check valves on hydraulic cylinders to prevent uncontrolled descent in case of hose failure. PUWER compliance is a standard consideration.
