770 Litre Wheelie Bin Dumper

BTM/2P/400/2000/B/G Double Pillar 770 Wheelie Bin Dumper

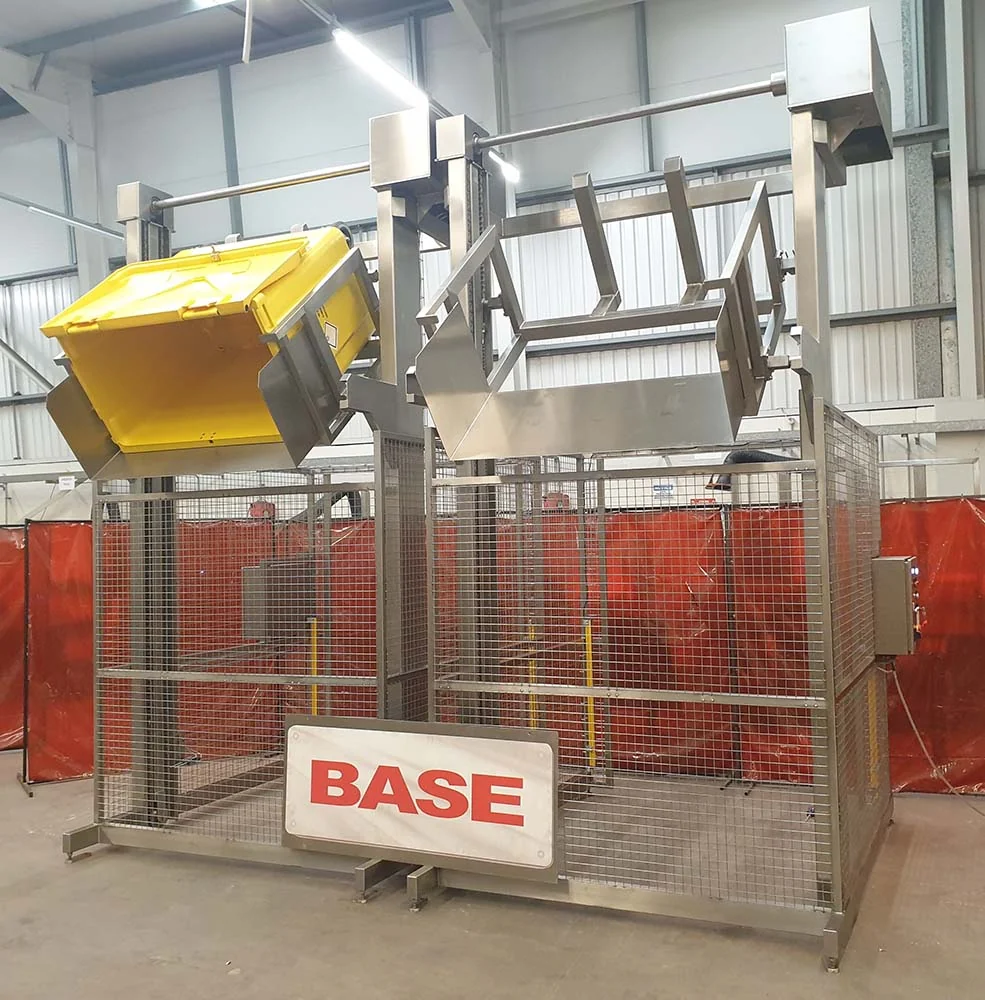

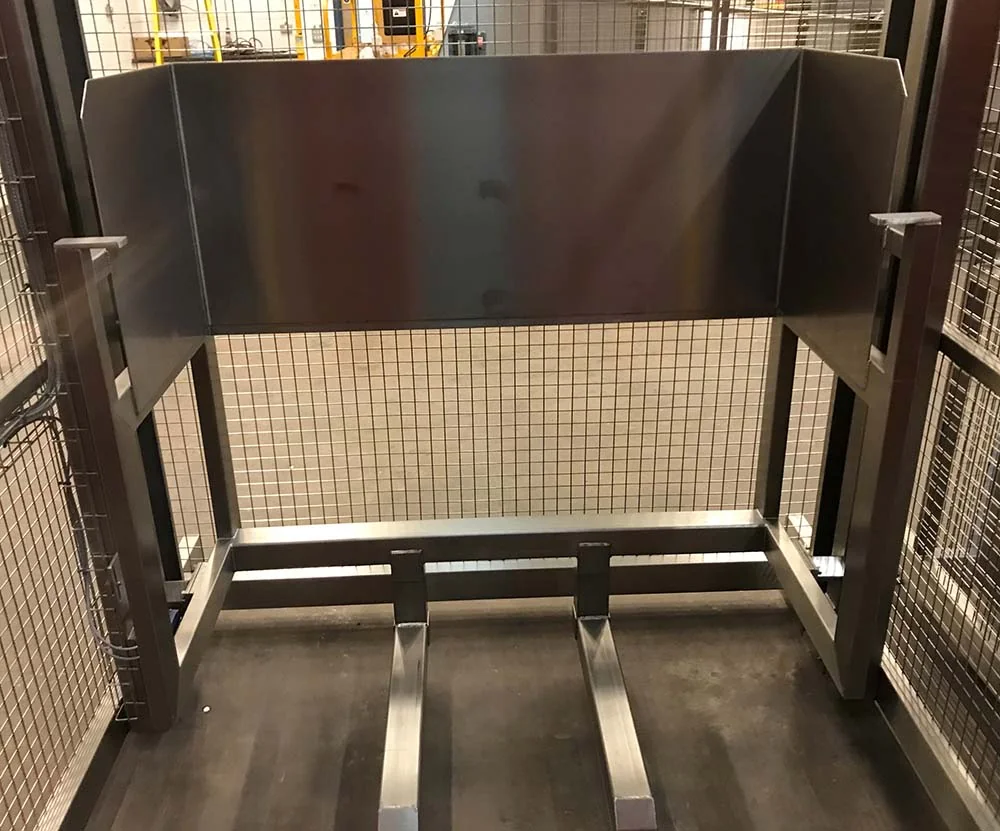

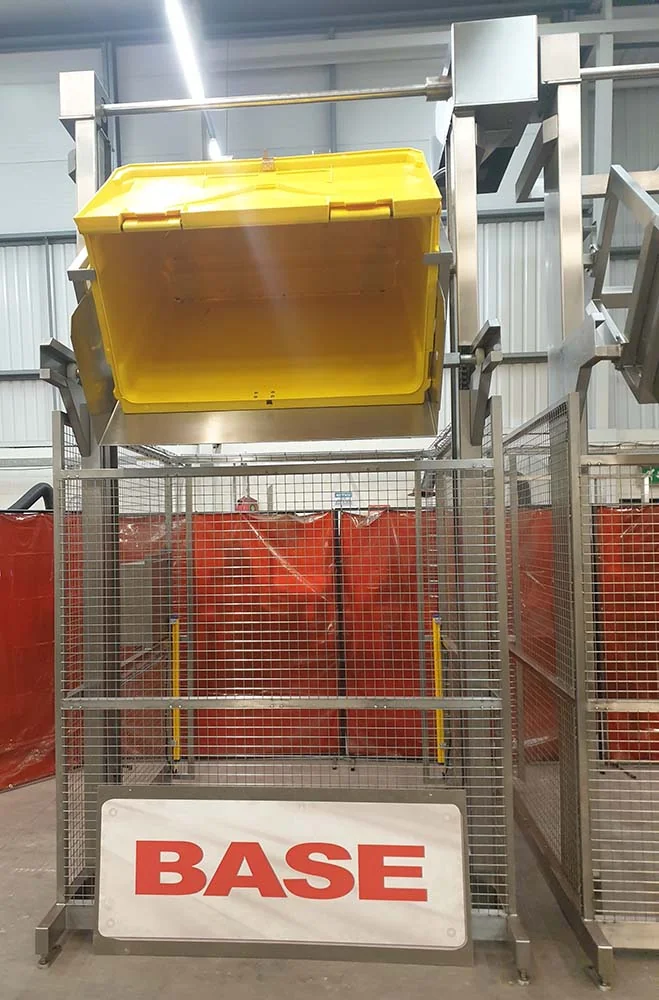

This Double Pillar 770 Litre Wheelie Bin Dumper is designed to lift and tip a 770 Litre Wheelie Bin at a discharge height of 2000mm. The 770 Litre Wheelie Bin Dumper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

The 770 Litre Wheelie Bin Dumper is supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 40 x 40mm, 3mm wire stainless steel weld mesh. It encloses the 770 Litre Wheelie Bin Dumper to a height of 2200mm on both sides with a safety light barrier at the loading position.

770 Litre Wheelie Bin Dumper Electrical Control

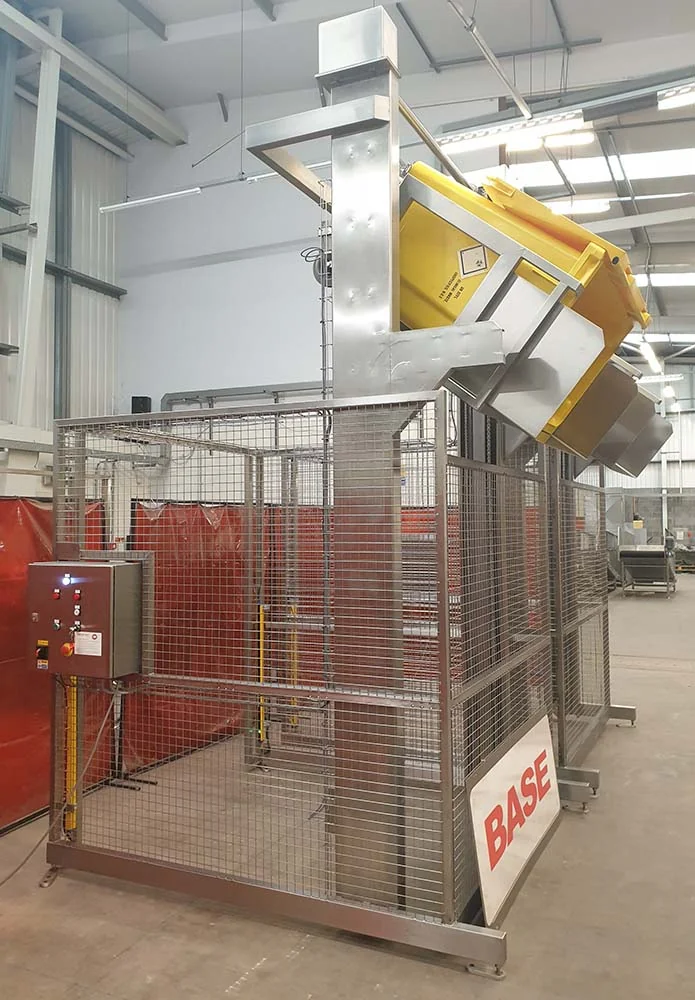

The 770 Litre Wheelie Bin Dumper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the Safety Guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility.

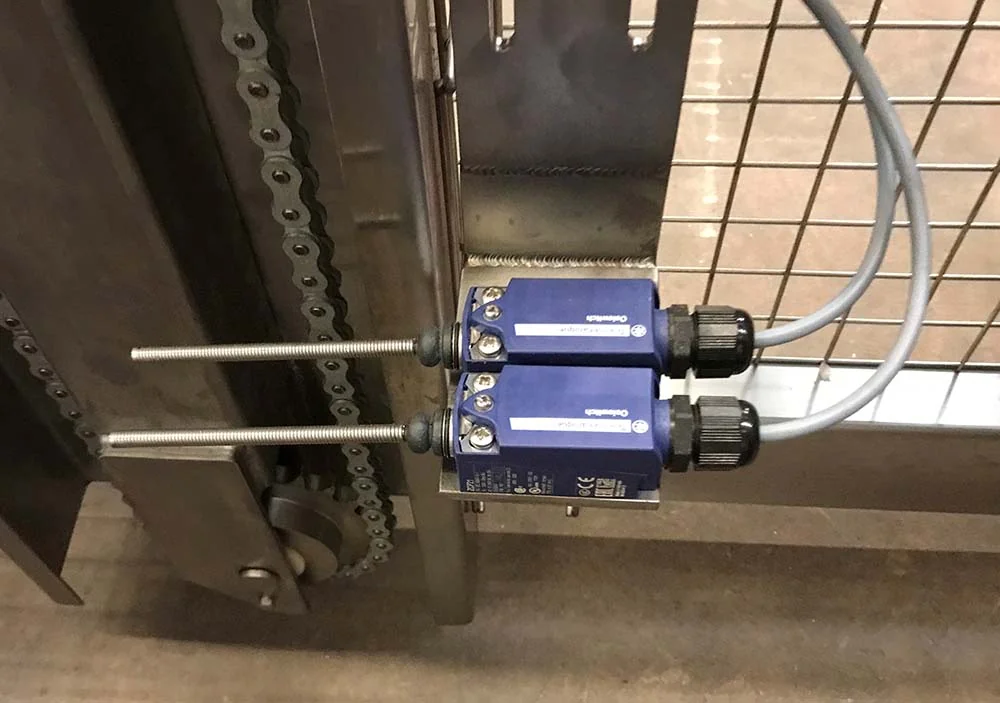

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The 770 Litre Wheelie Bin Dumper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the machine to the full down position.
