What is a Data Acquisition Switch Unit used for?

A Data Acquisition Switch Unit is used to connect multiple sensors or test points to a single measurement instrument, allowing for automated scanning and data collection from various sources.

Can this unit be integrated into an existing test system?

Units of this type are typically designed for integration into automated test environments, often supporting standard communication protocols like GPIB or RS-232 for control via PC software.

What kind of sensors can be connected to a unit like this?

This equipment commonly supports a wide range of sensors, including thermocouples, RTDs, thermistors, voltage probes, current shunts, and resistance sensors.

Is calibration required for a used unit?

While the seller states it is in full working condition, it is good practice to consider professional calibration for any used precision measurement equipment to ensure accuracy for your specific application.

What software is typically used with this type of equipment?

Commonly, proprietary software from the manufacturer or third-party applications like LabVIEW or MATLAB are used for programming, data logging, and analysis with these units.

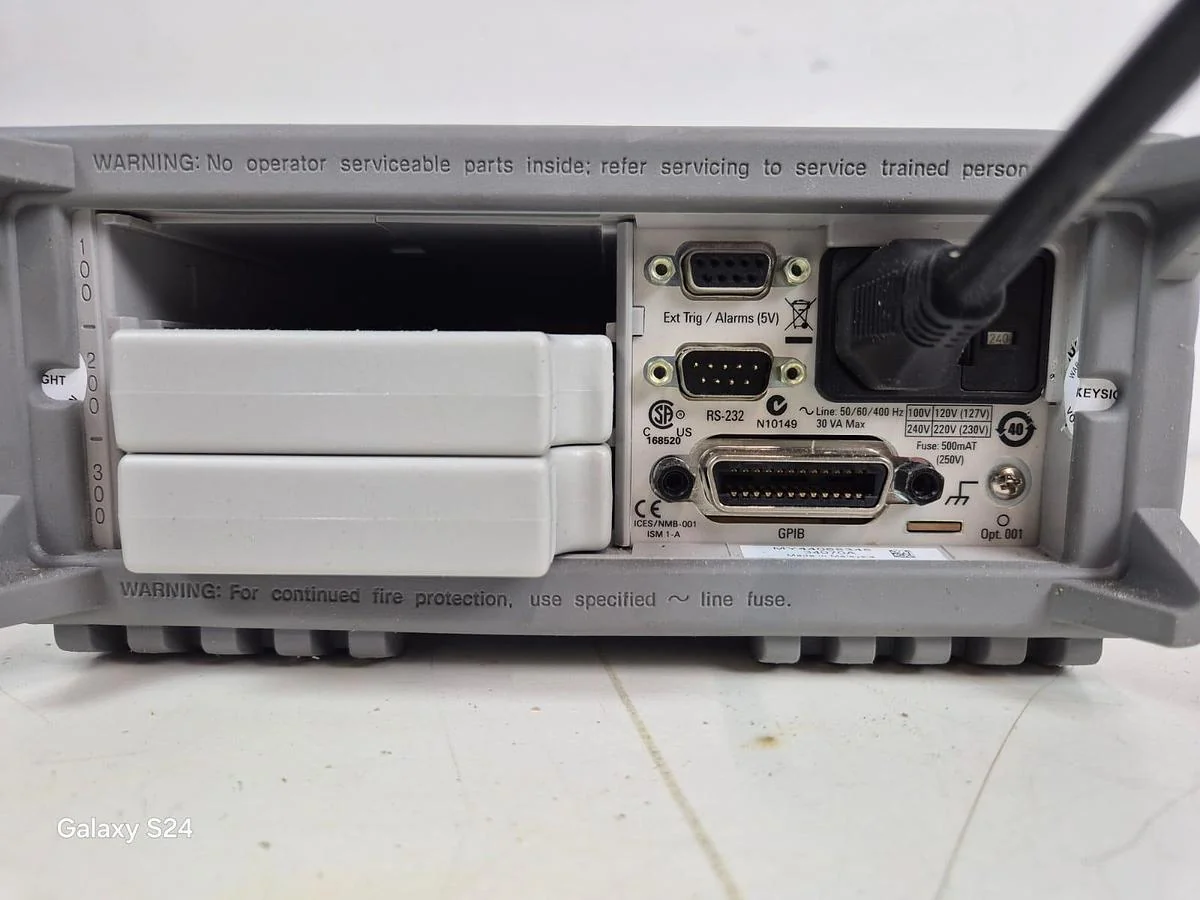

Used Data Aquisition 34970A Switch Unit - Power Supplies & Switch Units, photo 1

Used Data Aquisition 34970A Switch Unit - Power Supplies & Switch Units, photo 2

Used Data Aquisition 34970A Switch Unit - Power Supplies & Switch Units, photo 3

Used Data Aquisition 34970A Switch Unit - Power Supplies & Switch Units

used Equipment

Available

Verified seller

Agilent - Data Aquisition 34970A Switch Unit

Name: Data Aquisition 34970A Switch Unit
Brand: Agilent
SKU: 181254. SR11C
Price: 295 GBP
Availability: InStock

Price: £ 295

This listing is for the Agilent 34970A Data Aquisition Switch Unit

The unit is in full working condition and is ready for immediate release.

The Agilent 34970A Data Acquisition/Switch Unit is a modular test and measurement instrument designed for data logging, signal measurement, and flexible switching in lab, production, and automated test environments

Cambridgeshire, United Kingdom

5,791 km away

Model Number

34970A

Stock Number

181254. SR11C

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Monitoring environmental conditions in laboratories and cleanrooms.
Automated testing of electronic components and assemblies.
Long-term data logging for research and development projects.
Process monitoring in pilot plants and small-scale production.
Calibration and verification of sensors and transducers.

Typical Specifications

Typical capacity: For this class of equipment, channel counts commonly range from 20 to 120 channels, expandable via modules.
Power supply: Units of this type typically operate on standard mains power, commonly 230V AC, 50Hz in the UK.
Measurement functions: Commonly includes voltage, current, resistance, temperature (thermocouple, RTD, thermistor), and frequency measurements.
Connectivity: Typically features GPIB and RS-232 interfaces for remote control and data transfer; some may include LAN.
Scan rate: For this class, scan rates can typically range from tens to hundreds of channels per second, depending on the module and measurement type.
Accuracy: Measurement accuracy is typically high, often in the range of 0.01% to 0.001% of reading, depending on the specific measurement and range.

Frequently Asked Questions

A Data Acquisition Switch Unit is used to connect multiple sensors or test points to a single measurement instrument, allowing for automated scanning and data collection from various sources.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
