What type of dump buggies is this tipper compatible with?

This type of tipper is typically designed to accommodate standard 200 or 300-litre dump buggies, often referred to as Eurobins or DIN 9797 buggies.

What are the power requirements for a battery-operated tipper?

These units are self-contained with a rechargeable battery pack, typically 12V or 24V. They require access to a standard mains power outlet for charging, commonly 230V single-phase.

Is this equipment suitable for washdown environments?

Yes, constructed from Grade 304 stainless steel with an IP65 rated control panel, units of this specification are generally suitable for regular washdown in food processing environments.

What safety features are typically included?

Common safety features include 'hold to run' controls, safety check valves on hydraulic cylinders to prevent dropping, and emergency stop buttons. Compliance with PUWER regulations is also a key consideration.

What maintenance is required for a battery-operated tipper?

Typical maintenance involves regular cleaning, checking hydraulic fluid levels, inspecting hoses and seals, and ensuring the battery is charged and maintained according to manufacturer guidelines. Castor wheels and bearings should also be checked periodically.

Battery Operated Dump Buggy Tipper - Lifting & Tipping, photo 1

Battery Operated Dump Buggy Tipper - Lifting & Tipping, photo 2

Battery Operated Dump Buggy Tipper - Lifting & Tipping, photo 3

Battery Operated Dump Buggy Tipper - Lifting & Tipping, photo 4

Battery Operated Dump Buggy Tipper - Lifting & Tipping, photo 5

Battery Operated Dump Buggy Tipper - Lifting & Tipping, photo 6

Battery Operated Dump Buggy Tipper - Lifting & Tipping

Available

Verified seller

Base Handling Ltd - Battery Operated Dump Buggy Tipper

Name: Battery Operated Dump Buggy Tipper
Brand: Base Handling Ltd
SKU: BTH/300/1295/M/12V

Price: Contact seller for price

BTH/300/1295/M/12V Battery Operated Dump Buggy Tipper

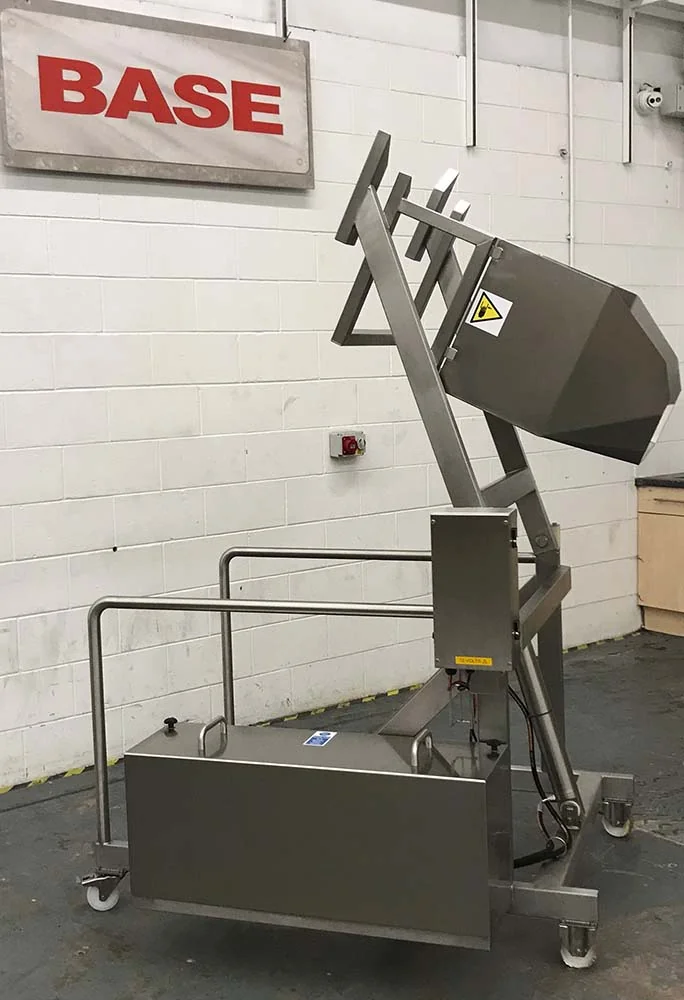

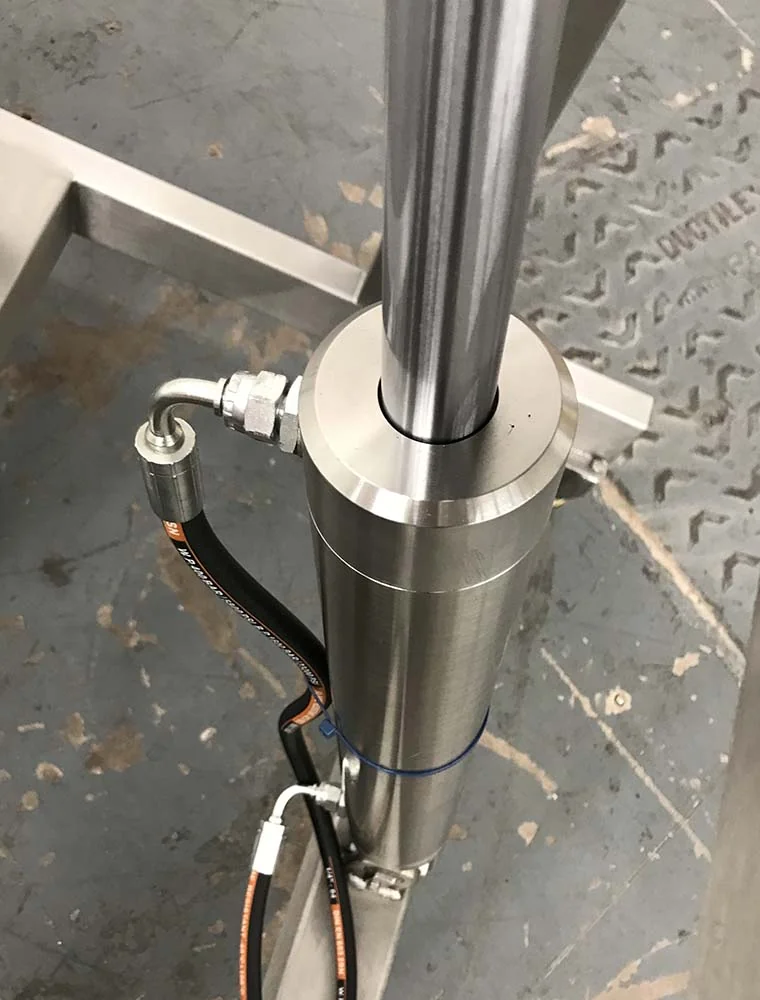

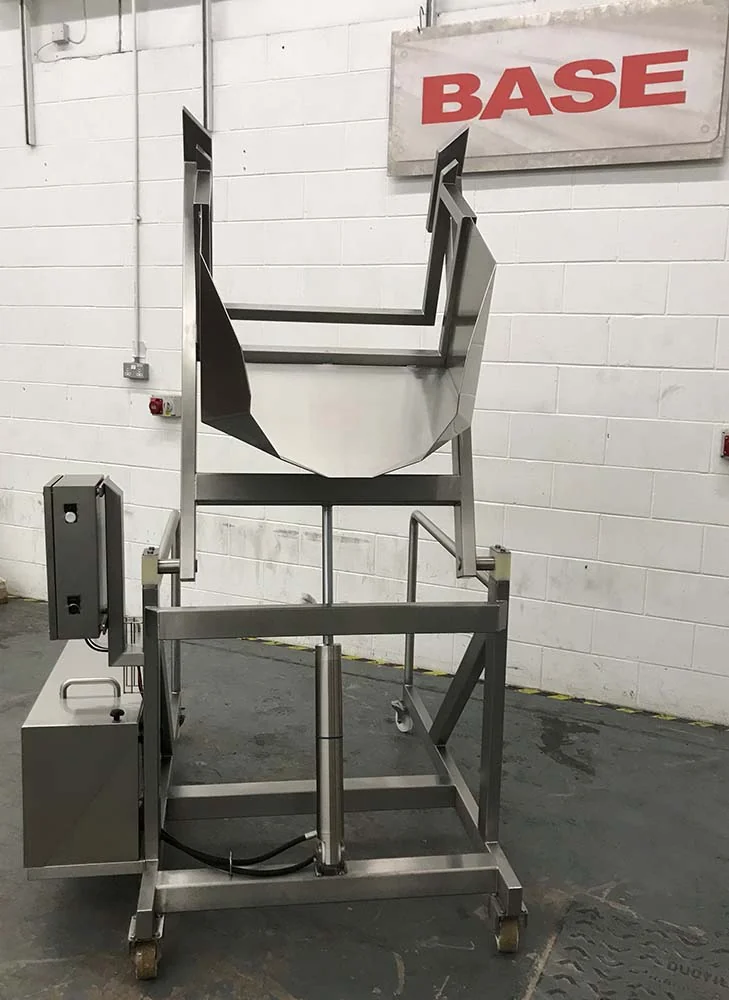

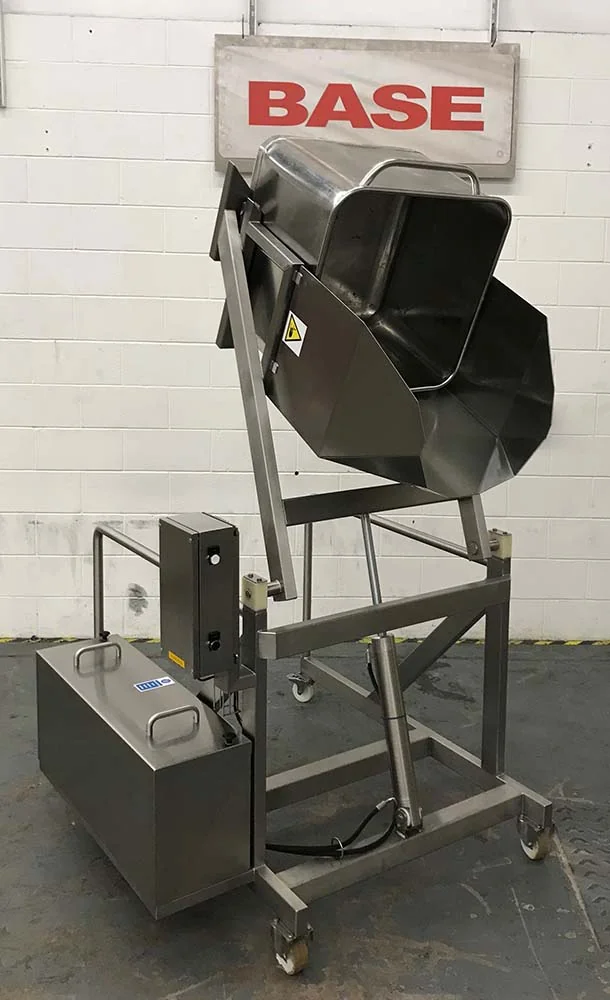

This Battery Operated Dump Buggy Tipper is designed to lift and tip a standard 200 or 300 Litre Dump Buggy at a height of 1295mm (51”) and has a Safe Working Load of 300 Kgs. The Battery Operated Dump Buggy Tipper is constructed from Grade 304 stainless steel, is a TIG welded construction throughout and is mobile on castors. This Battery Operated Dump Buggy Tipper is powered via a hydraulic powerpack and tips the Dump Buggy by the extension of a stainless steel hydraulic cylinder to an angle of 30 degrees past the horizontal. The hydraulic cylinder is fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor.

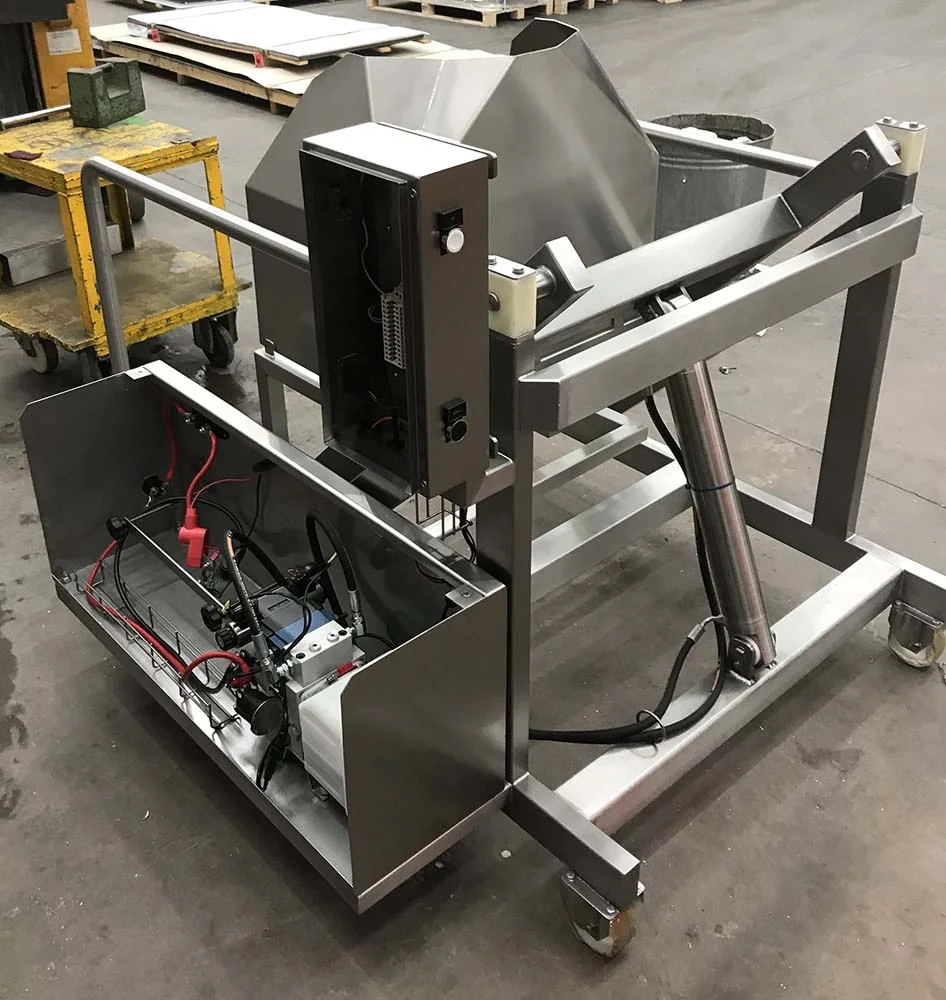

Battery Operated Dump Buggy Tipper Electrical Control

This Battery Operated Dump Buggy Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The unguarded Battery Operated Dump Buggy Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Battery Operated Dump Buggy Tipper to operate. As soon as either button is released, the Battery Operated Dump Buggy Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Battery Operated Dump Buggy Tipper

Model No.

BTH/300/1295/M/12V

Tipping Height

1295mm (51")

Machine Handing

Right Hand

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

200 Or 300 Litre Tote Bins

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Powerpack

1.6kW, 12VDC

Battery Charger Supply

110v SINGLE PHASE

Battery

12V GEL120AH ES1300

Tip Angle

120 Degrees

Lifting Capacity

300 Kgs

Stock Number

BTH/300/1295/M/12V

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from dump buggies into mixers or processing vessels.
Loading raw materials into hoppers for further processing.
Elevating food products for packaging lines or inspection stations.
Discharging waste or by-products into collection bins.
Batch feeding operations in bakeries, meat processing, and ready-meal production.

Typical Specifications

Typical capacity: Designed for standard 200 or 300-litre dump buggies, with a Safe Working Load commonly around 300 kg for this class of equipment.
Power supply: Battery-operated via a hydraulic powerpack, typically 12V or 24V DC, offering mobility.
Construction material: Grade 304 stainless steel is standard for food contact and hygiene, with TIG welded construction for durability.
Tipping height: Units of this type commonly offer tipping heights around 1295mm (51 inches) to suit various receiving vessels.
Tipping angle: Typically tips to an angle of 30 degrees past horizontal to ensure complete discharge.
Mobility: Commonly mobile on castors for flexible positioning within a facility.
Control system: Features an IP65 rated stainless steel control panel, often with 'hold to run' operation for safety.
Safety features: Hydraulic cylinders are typically fitted with a safety check valve to prevent uncontrolled descent.

Frequently Asked Questions

This type of tipper is typically designed to accommodate standard 200 or 300-litre dump buggies, often referred to as Eurobins or DIN 9797 buggies.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
