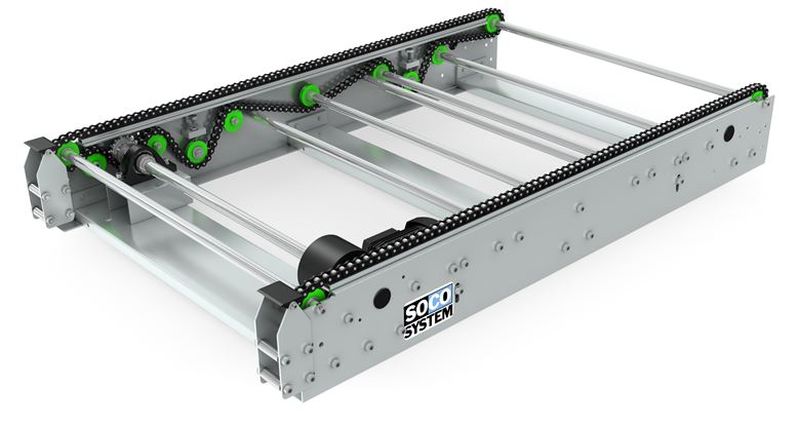

Soco Systems - Chain Conveyor

• Transporting palletised goods within a warehouse or production facility.
• Accumulating pallets at various stages of a production line.
• Moving heavy or irregularly shaped items that require stable support.
• Integrating into automated material handling systems for sequential operations.

Typical capacity

For this class of equipment, units commonly handle loads from 500 kg to 2000 kg per metre, depending on chain configuration and motorisation.

Power supply

Units typically operate on 3-phase industrial power, commonly 400V, 50Hz in the UK.

Conveyor width

Commonly available in widths designed for standard pallet sizes, such as 750 mm for 800 mm x 1200 mm pallets and 950 mm for 1000 mm x 1200 mm or 1200 mm x 1200 mm pallets.

Chain configuration

Typically available in simplex (two-chain) or triplex (three-chain) configurations, with three chains recommended for heavier loads or specific pallet types.

Operating speed

For this type of conveyor, speeds commonly range from 0.1 m/s to 0.3 m/s, often adjustable via a variable frequency drive.

Frame material

Frames are typically constructed from painted mild steel or, for specific applications, stainless steel.

• What types of goods can a chain conveyor transport?

  Chain conveyors are primarily designed for goods with a flat, solid base, such as pallets, crates, and certain types of containers. They are less suitable for loose items or those with irregular undersides.

• How do I determine the correct conveyor width?

• When is a three-chain conveyor recommended over a two-chain (simplex) unit?

• Can these conveyors be used for accumulation?

• Are these units suitable for outdoor use?

Buyers typically value conveyor systems for their reliability and longevity when well-maintained. Key considerations when purchasing used units include belt condition, motor functionality, frame integrity, and available spare parts. Industry sentiment emphasises the importance of verifying operational history and cleanliness standards, particularly for food handling applications. Common strengths include robust construction, relatively straightforward maintenance requirements, and cost savings versus new equipment. Reputable manufacturers' models tend to hold their value well and integrate readily into existing production lines.

General overview for this equipment type
