What are the main advantages of a peristaltic pump?

Peristaltic pumps offer contamination-free pumping as the fluid only contacts the tubing, not the pump mechanism. They are also suitable for shear-sensitive fluids and provide precise, repeatable flow rates.

How do I select the correct tubing for this pump?

Tubing selection depends on the desired flow rate, the chemical compatibility with the fluid being pumped, and the required pressure. Buyers should consult MasterFlex tubing guides for specific applications.

Is this pump suitable for continuous operation?

MasterFlex L/S pumps are generally designed for continuous duty in laboratory and industrial environments. However, tubing life can vary depending on speed, pressure, and fluid properties.

What maintenance is typically required for this type of pump?

Maintenance is generally low, primarily involving routine inspection and replacement of the peristaltic tubing. The pump head rollers may also require occasional cleaning.

Can this pump handle viscous fluids?

Yes, peristaltic pumps are well-suited for handling a wide range of fluid viscosities, including highly viscous liquids, due to their positive displacement mechanism.

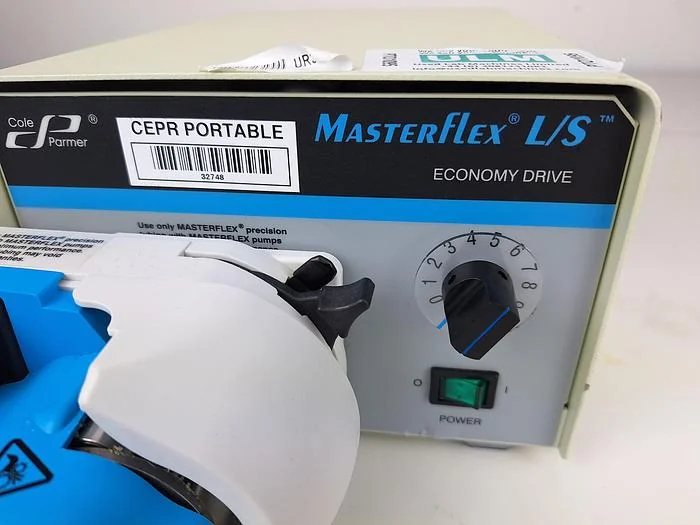

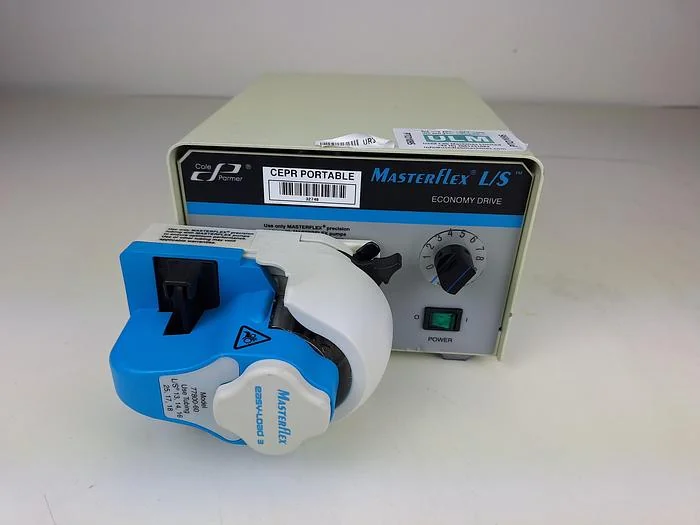

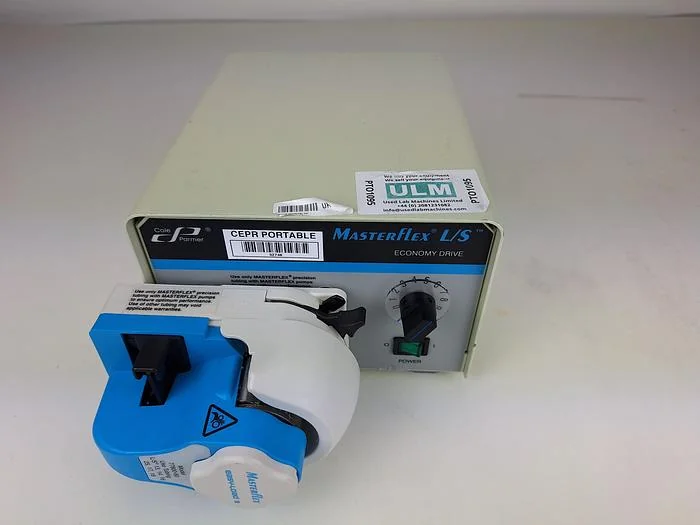

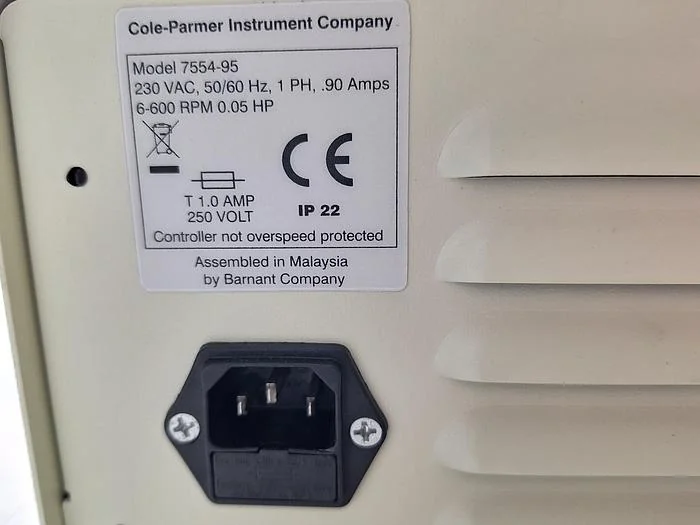

Used MasterFlex L/S 7554-95 Peristaltic Pump - Peristaltic Pumps, photo 1

Used MasterFlex L/S 7554-95 Peristaltic Pump - Peristaltic Pumps, photo 2

Used MasterFlex L/S 7554-95 Peristaltic Pump - Peristaltic Pumps, photo 3

Used MasterFlex L/S 7554-95 Peristaltic Pump - Peristaltic Pumps, photo 4

Used MasterFlex L/S 7554-95 Peristaltic Pump - Peristaltic Pumps

used Equipment

Available

Verified seller

Cole Palmer - MasterFlex L/S 7554-95 Peristaltic Pump

Name: MasterFlex L/S 7554-95 Peristaltic Pump
Brand: Cole Palmer
SKU: 32188 31698.SR8C
Price: 300 GBP
Availability: InStock

Price: £ 300

This listing is for 1 of 2 Cole Palmer MasterFlex L/S 7554-95 Peristaltic Pump with a Masterflex Easy-Load 3 pump head .

The unit is in full working condition and is ready for immediate release.

The Cole-Parmer MasterFlex L/S 7554-95 Peristaltic Pump is a versatile and reliable solution for accurate fluid transfer in laboratory, pharmaceutical, and industrial environments. Designed to handle a wide range of flow rates and fluid viscosities, this peristaltic pump offers precision, ease of use, and durability.

Key Features:

Flow Rate: Delivers flow rates from 0.6 to 3400 mL/min, adjustable based on the tubing size used.

Variable Speed Control: The pump operates at speeds between 6 and 600 RPM, allowing precise control of flow.

Reversible Pumping: Enables bi-directional flow for easy priming, purging, and efficient fluid transfer.

Digital Display: Provides a clear, easy-to-read display showing speed, direction, and operational status for precise monitoring.

Easy Maintenance: Tool-free tubing changes and a low-maintenance design for efficient operation.

Compatibility: Works with a variety of MasterFlex L/S tubing, ensuring adaptability for different fluid handling needs.

Durable Construction: Engineered for reliable, long-term use, with corrosion-resistant materials to withstand demanding applications.

Specifications:

Flow Rate Range: 0.6 to 3400 mL/min

Speed Range: 6 to 600 RPM

Power Requirements: 90-260 VAC, 50/60 Hz

Operating Temperature: 0 to 40°C (32 to 104°F)

Dimensions: 8.6" H x 9.4" W x 11.1" D (21.8 cm x 23.9 cm x 28.2 cm)

Weight: 15 lbs (6.8 kg)

The Masterflex Easy-Load 3 pump head is designed for user-friendly operation and fast tubing changes. Key features include:

Automatic Retention Mechanism: The spring-loaded occlusion lever opens the occlusion bed and retracts the tubing retainers, allowing tubing to be easily loaded and unloaded.

Tubing Range: Suitable for use with Masterflex L/S Precision tubing, with a flow range of 0.001 to 2900 mL/min depending on tubing size.

Stackability: Up to 4 Easy-Load 3 pump heads can be stacked on one compatible pump drive, making it an efficient solution for multi-channel applications.

Easy Integration: Same-side tubing entry/exit permits easy integration into space-limited applications, with the option to mount and operate the pump head in any of four positions (depending on the drive).

Cambridgeshire, United Kingdom

5,791 km away

Model Number

MasterFlex L/S 7554-95

Stock Number

32188 31698.SR8C

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Precise dosing and dispensing of reagents in laboratory settings.
Transfer of sensitive biological fluids in biotech and pharmaceutical R&D.
Metering of chemicals in pilot plant operations.
Sampling and analytical applications requiring contamination-free fluid transfer.

Typical Specifications

Typical Flow Rate Range: For this class of MasterFlex L/S pump, flow rates commonly range from approximately 0.001 mL/min up to 3400 mL/min, depending on the specific pump head and tubing size used.
Typical Speed Range: Units of this type commonly offer a speed range from a few RPM up to 600 RPM, allowing for fine control over fluid transfer.
Power Supply: Peristaltic pumps in this category typically operate on standard laboratory power, commonly 100-240 VAC, 50/60 Hz.
Pump Head Compatibility: This model is designed for use with MasterFlex L/S pump heads, such as the Easy-Load 3, which facilitate quick tubing changes.
Tubing Compatibility: It is compatible with various MasterFlex L/S tubing sizes and materials, allowing for adaptability to different fluid viscosities and chemical compatibilities.
Control Features: Units of this type commonly feature variable speed control, reversible pumping, and a digital display for operational status.

Frequently Asked Questions

Peristaltic pumps offer contamination-free pumping as the fluid only contacts the tubing, not the pump mechanism. They are also suitable for shear-sensitive fluids and provide precise, repeatable flow rates.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
