What types of bowls can this lift accommodate?

This Diosna lift is specifically designed for Diosna mixing bowls. Buyers should verify compatibility with their existing bowls, particularly regarding the lifting cradle or attachment mechanism.

What are the typical installation requirements for a bowl lift?

Bowl lifts of this type are commonly bolted to the floor for stability. Installation will require a suitable concrete base and access to the necessary electrical supply for the hydraulic power pack.

Is routine maintenance intensive for hydraulic bowl lifts?

Routine maintenance typically involves checking hydraulic fluid levels, inspecting hoses and cylinders for wear, and ensuring limit switches and safety mechanisms are functioning correctly. Regular cleaning is also essential.

What are the key safety considerations when operating this equipment?

Operators must be trained on the 'hold to run' controls and understand the function of safety features like the hydraulic check valve and limit switches. Adherence to PUWER regulations is crucial.

Can the discharge height be adjusted?

While the listed unit has a specified discharge height, the upper and lower end of travel limit switches are typically adjustable by trained personnel for fine-tuning on site within the unit's design parameters.

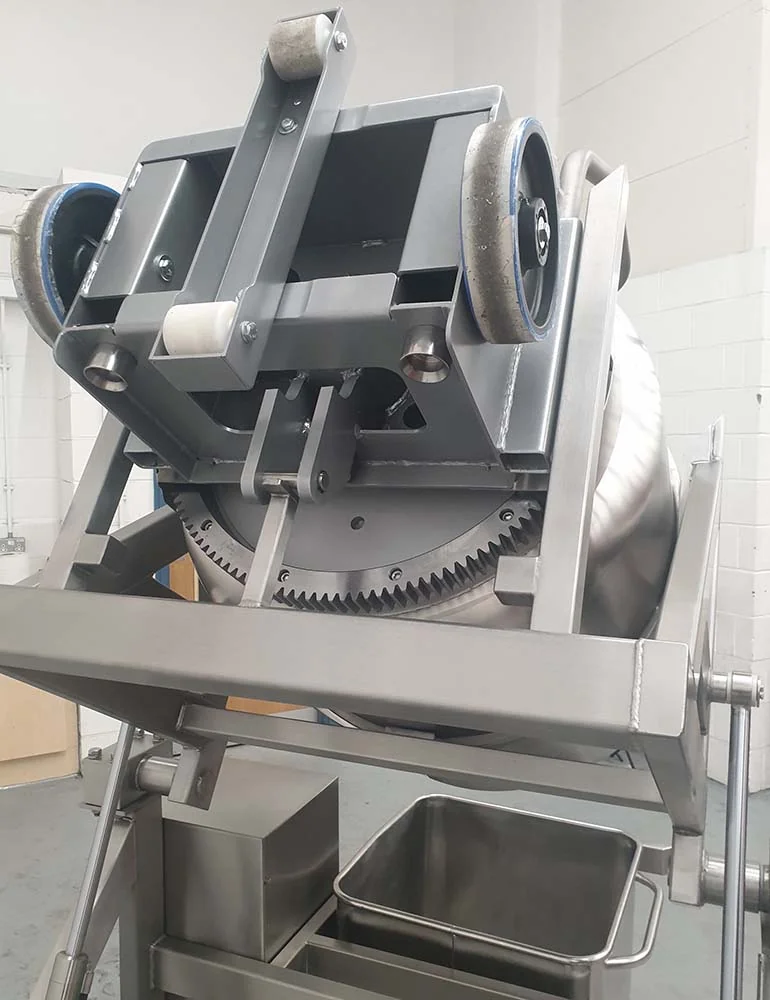

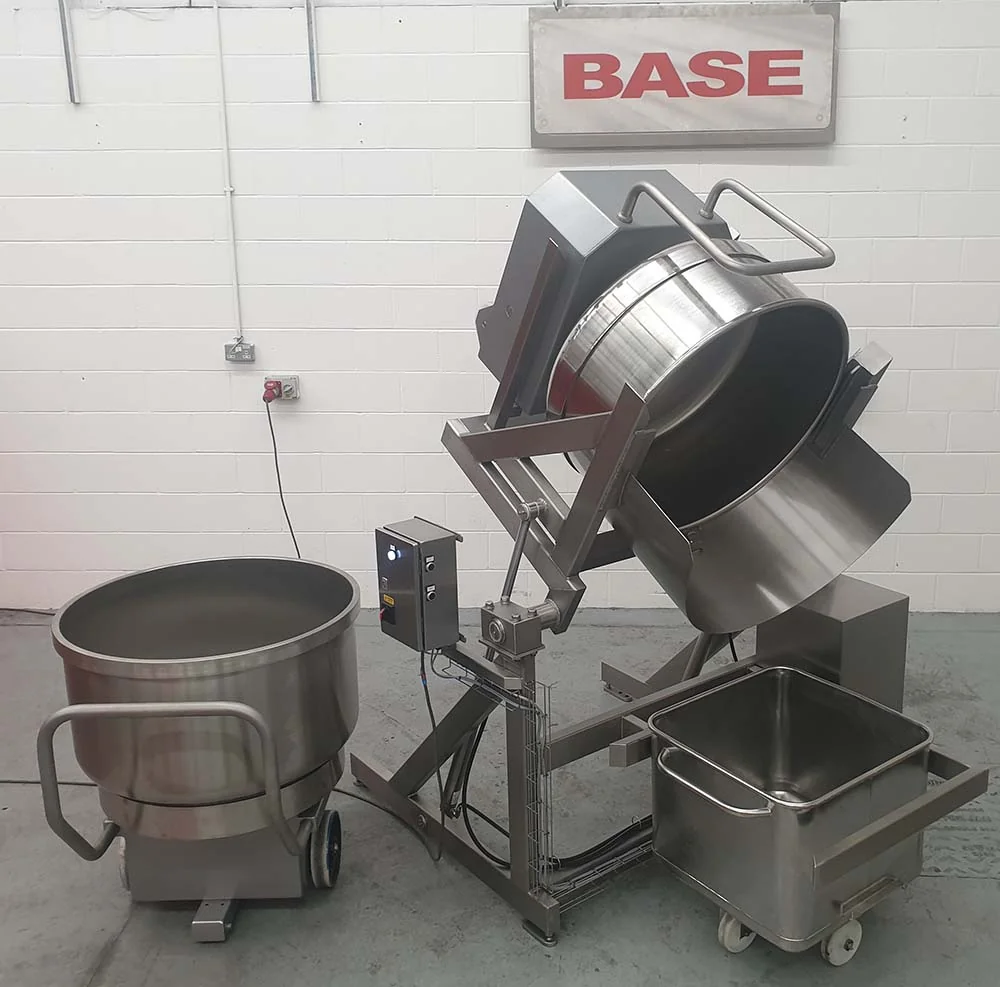

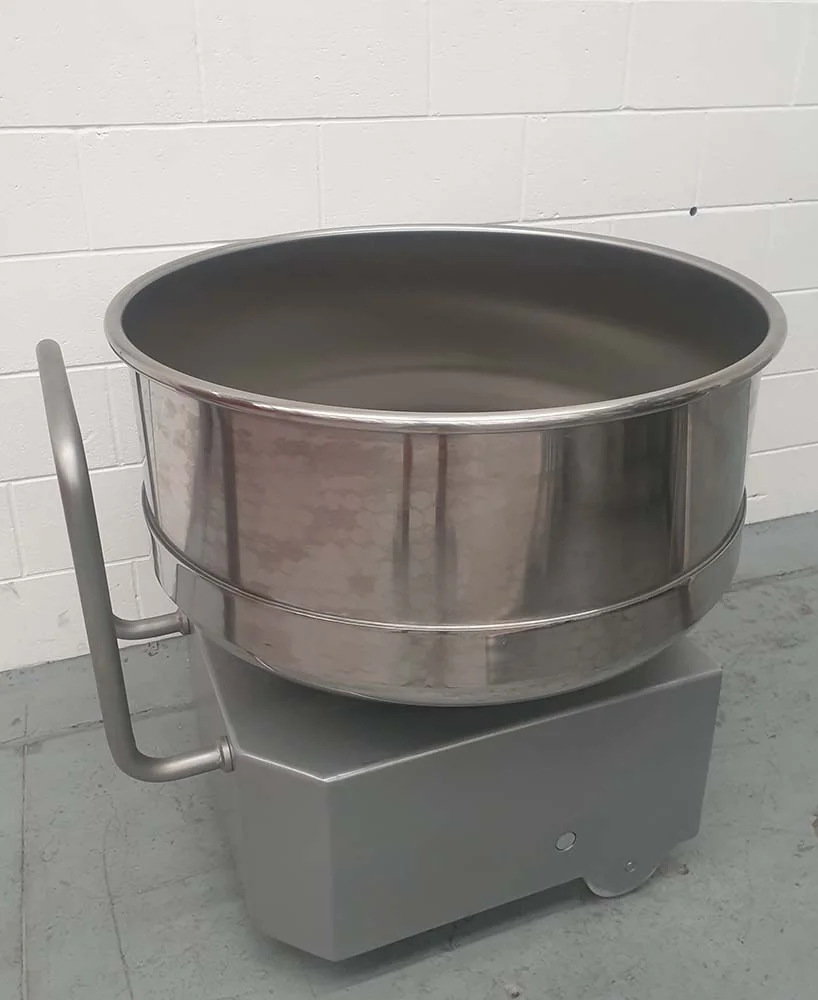

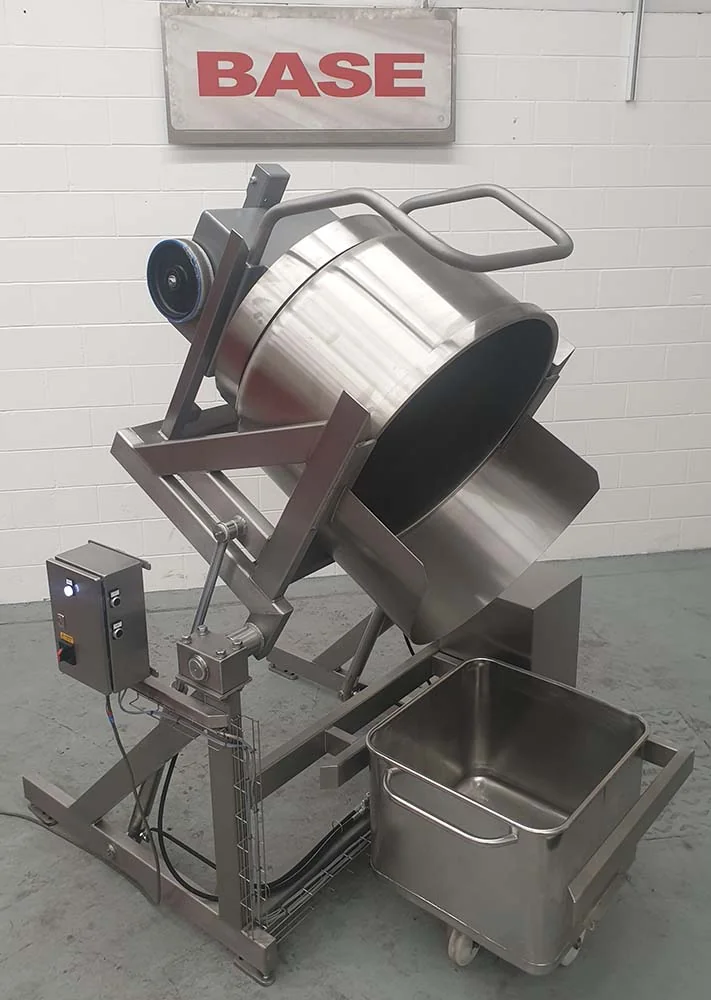

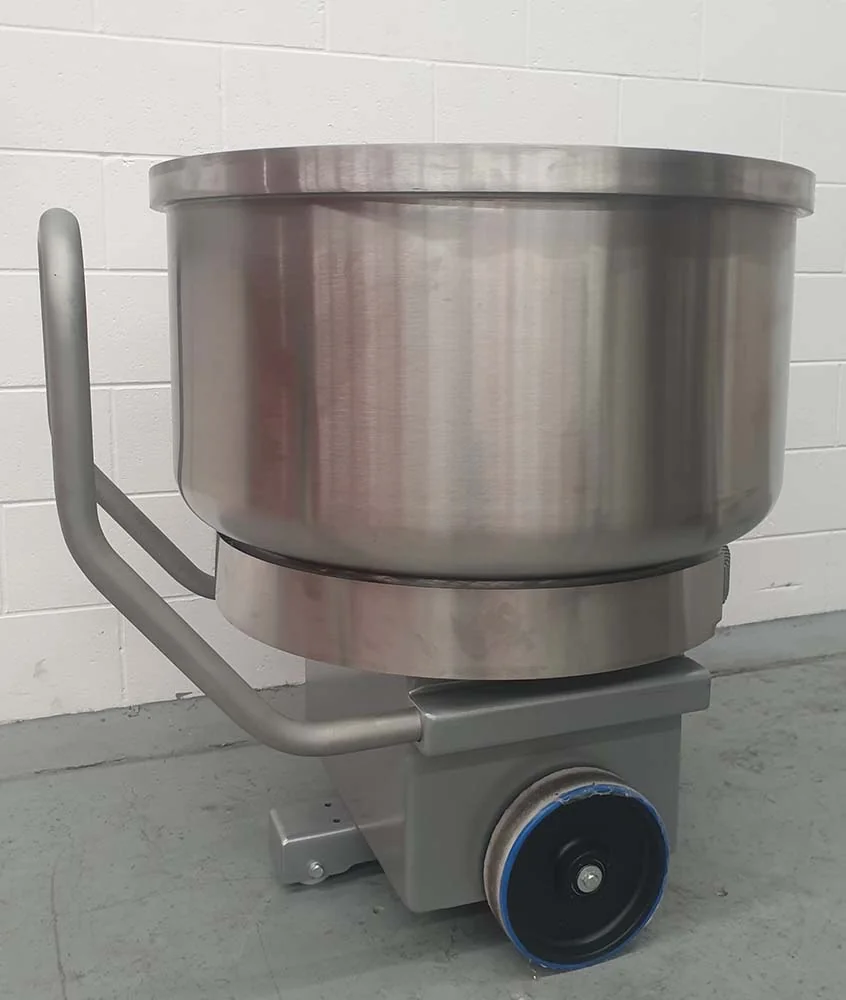

Diosna Mixing Bowl Lift - Lifting & Tipping, photo 1

Diosna Mixing Bowl Lift - Lifting & Tipping, photo 2

Diosna Mixing Bowl Lift - Lifting & Tipping, photo 3

Diosna Mixing Bowl Lift - Lifting & Tipping, photo 4

Diosna Mixing Bowl Lift - Lifting & Tipping, photo 5

Diosna Mixing Bowl Lift - Lifting & Tipping, photo 6

Diosna Mixing Bowl Lift - Lifting & Tipping

Available

Verified seller

Base Handling Ltd - Diosna Mixing Bowl Lift

Name: Diosna Mixing Bowl Lift
Brand: Base Handling Ltd
SKU: BTH/500/1000/B--

Price: Contact seller for price

BTH/500/1000/B Diosna Mixing Bowl Lift

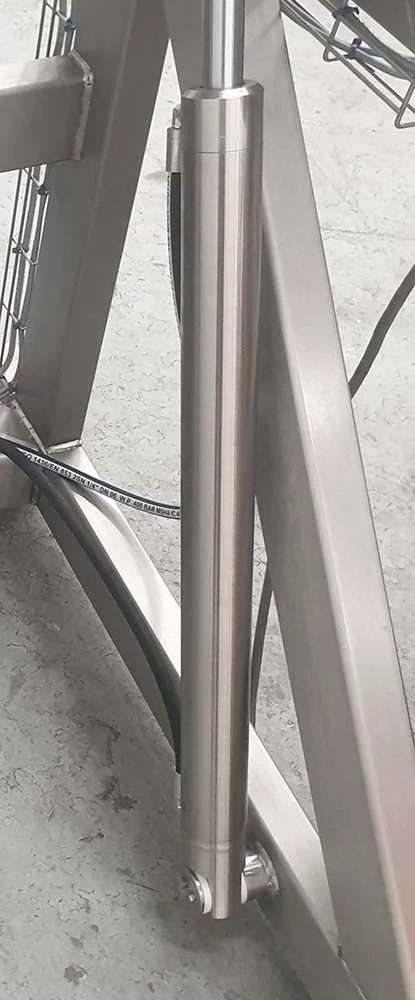

This Diosna Mixing Bowl Lift is designed to lift and tip a large 500 Kgs Bakery Bowl at a discharge height of 1000mm. The Diosna Mixing Bowl Lift is constructed from Grade 304 stainless steel, is a TIG welded construction throughout and would be bolted to the floor. This Diosna Mixing Bowl Lift was powered via a hydraulic powerpack and tipped the containers by the extension of a pair of stainless steel hydraulic cylinders to an angle of 30 degrees past the horizontal. The hydraulic cylinders are fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor.

Diosna Mixing Bowl Lift Electrical Control

This Diosna Mixing Bowl Lift is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates dual UP and DOWN pushbuttons with a simultaneous control relay for each operation. The Diosna Mixing Bowl Lift operation is based on a ‘hold to run’ principle such that either both ‘Up’ or ‘Down’ pushbuttons must be held for the Diosna Mixing Bowl Lift to operate, as soon as a button is released, the Diosna Mixing Bowl Lift will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Diosna Mixing Bowl Lift

Model No.

BTH/500/1000/B

Tipping Height

1000mm

Machine Handing

Right Hand

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

Diosna Mixing Bowl

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Powerpack

0.75kW, 415V, 3 PHASE, 50 CYCLE

Tip Angle

120 Degrees

Lifting Capacity

500 Kgs

Stock Number

BTH/500/1000/B--

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring dough or other viscous food products from mixing bowls to hoppers or other processing equipment.
Loading ingredients into processing lines where gravity feeding is not feasible.
Handling and emptying large batches of food materials in bakeries, confectioneries, and ready-meal production.
Integrating with automated production lines to maintain a continuous flow of materials.

Typical Specifications

Typical capacity: Units of this class are commonly designed to lift bowls with capacities ranging from 200 kg to 1000 kg, with this specific unit stated for 500 kg.
Discharge height: For this type of equipment, discharge heights typically range from 1000 mm to 3000 mm, with this unit specified at 1000 mm.
Construction material: Food processing bowl lifts are typically constructed from Grade 304 stainless steel for hygiene and durability, as specified for this unit.
Power supply: Hydraulic power packs commonly require a 3-phase electrical supply, typically 400V, 50Hz, with varying amperage depending on motor size.
Tipping angle: Units of this design commonly achieve tipping angles of up to 30 degrees past horizontal to ensure complete discharge.
Control system: Control panels are typically IP65 rated for washdown environments and feature 'hold to run' controls for operator safety, as described for this unit.
Safety features: Common safety features include hydraulic safety check valves, upper and lower limit switches, and dual pushbutton operation.
