What types of dump buggies are compatible with this scale?

These scales are typically designed to accommodate standard 400lb and 600lb dump buggies, allowing for versatile use across various food processing operations.

Does this unit require a ramp or a pit for loading?

No, this is a freestanding unit designed for floor-level loading. Dump buggies can be pushed directly into the weighing cradle, eliminating the need for additional infrastructure.

What maintenance is typically required for a pneumatic weigh scale?

Routine maintenance commonly involves checking air lines for leaks, ensuring the pneumatic cylinders operate smoothly, and periodic calibration of the weigh head to maintain accuracy. Cleaning is also essential, especially in food environments.

Can the weigh head display units in both pounds and kilograms?

Yes, weigh heads on units of this type, such as Mettler Toledo, commonly offer selectable display units, allowing operators to switch between pounds (lb) and kilograms (kg) as needed.

What happens if the air supply is disconnected during operation?

Pneumatic systems typically incorporate safety features, such as a shut-off valve, which activates upon air supply disconnection. This prevents the buggy from falling suddenly, enhancing operational safety.

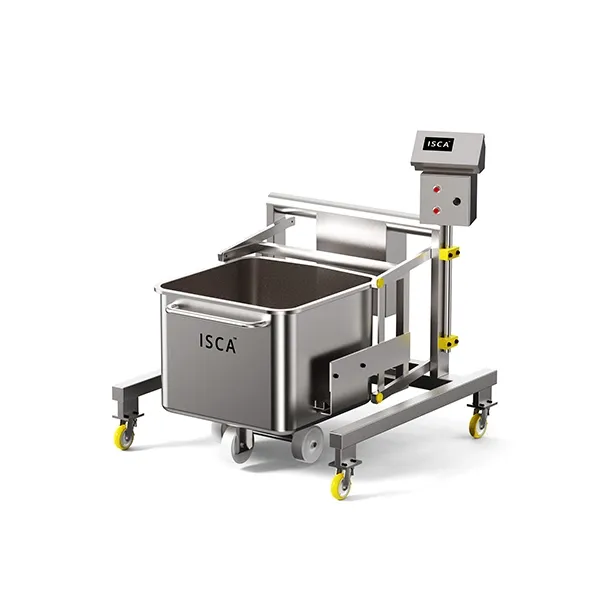

New Dump Buggy Weigh Scales – Pneumatic - Weighing Terminals & Load Cells, photo 1

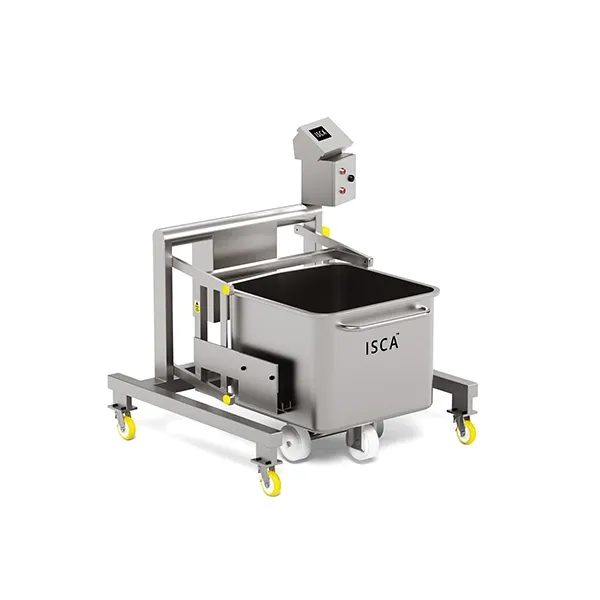

New Dump Buggy Weigh Scales – Pneumatic - Weighing Terminals & Load Cells, photo 2

New Dump Buggy Weigh Scales – Pneumatic - Weighing Terminals & Load Cells

new Equipment

Available

Verified seller

Dump Buggy Weigh Scales – Pneumatic

Name: Dump Buggy Weigh Scales – Pneumatic
SKU: 1161
Availability: InStock

Price: Contact seller for price

ISCA’s Dump Buggy Pneumatic Weigh Scales are designed to accurately and quickly weigh all standard dump buggies and their contents.

Features:
-Suitable for 400lb + 600lb std dump buggies.
-Max loading = 880lb / 400kg
-A freestanding unit that allows the dump buggy to be pushed into the weighing cradle at floor level and eliminates the need for a ramp, or floor pit solution
-All stainless steel 304-grade construction.
-Mettler Toledo weigh head – Weigh functions include gross, net, and tare. Unit weight can be in lb or kg.
-Lifting up and down using monostable buttons and a pneumatic valve.

Principle of operation:
-We push the loaded or empty buggy into the switched-on scale.
-We then use the monostable button to lift the buggy up.
-We can add or reduce the load to obtain the loading weight indicated by us.
-In this pneumatic system a shut-off valve is used, which turns off in the event of disconnection of the air supply (e.g. disconnection of supply hoses) – this will prevent the tank from falling down suddenly.

Pennsylvania, United States

8,794 km away

Stock Number

1161

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Accurate weighing of ingredients or finished products in food processing.
Batching and portion control in meat, poultry, and fish processing.
Quality control checks for product consistency and yield.
Inventory management and tracking of raw materials or work-in-progress.
Compliance with weight-based regulatory requirements in food production.

Typical Specifications

Typical capacity: Units of this type commonly handle loads up to 400kg (880lb), suitable for standard 400lb and 600lb dump buggies.
Power supply: Pneumatic systems require a compressed air supply, typically 6-8 bar, and an electrical connection for the weigh head, commonly 230V single-phase.
Construction material: For food processing applications, units are typically constructed from 304-grade stainless steel for hygiene and durability.
Weighing accuracy: Precision is typically high, with Mettler Toledo weigh heads providing accurate gross, net, and tare functions.
Footprint: These are freestanding units designed for floor-level operation, eliminating the need for ramps or pits.
Safety features: Commonly include pneumatic shut-off valves to prevent sudden drops in case of air supply disconnection.

Frequently Asked Questions

These scales are typically designed to accommodate standard 400lb and 600lb dump buggies, allowing for versatile use across various food processing operations.
