What is a static load cell used for?

A static load cell measures force under stationary or slowly changing conditions. It is primarily used for tension, compression, and cyclic testing in materials science and quality control.

How do I ensure compatibility with my existing testing machine?

Compatibility is crucial. Buyers should verify the load cell's interface, electrical connections, and communication protocol against their existing testing frame and software. This unit is described as an 'Instron' load cell, suggesting compatibility with Instron systems.

What maintenance is typically required for a load cell?

Load cells generally require minimal maintenance, primarily consisting of regular calibration checks and ensuring the unit is kept clean and free from physical damage. Avoid exceeding its stated capacity.

Can this load cell be used for both tension and compression testing?

Yes, load cells designated as 'tension/compression' are engineered to accurately measure force in both pulling (tension) and pushing (compression) directions, making them versatile for various tests.

What do the compliance standards (e.g., ASTM E4, ISO 7500-1) signify?

These standards indicate that the load cell meets specific international requirements for force measurement accuracy and reliability. Compliance assures users of the unit's performance and data integrity.

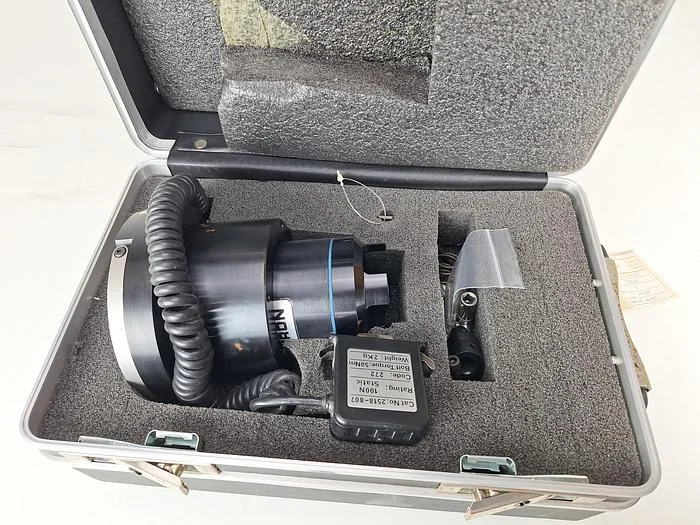

Used 2518-807 Tension/Compression Static Load Cell - Weighing Terminals & Load Cells, photo 1

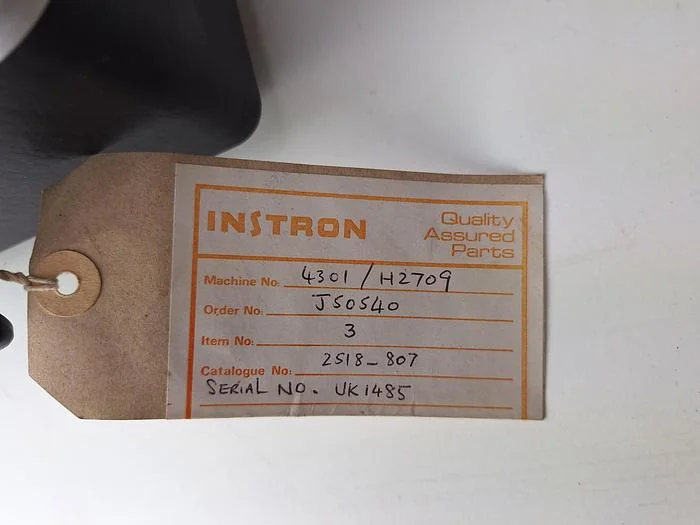

Used 2518-807 Tension/Compression Static Load Cell - Weighing Terminals & Load Cells, photo 2

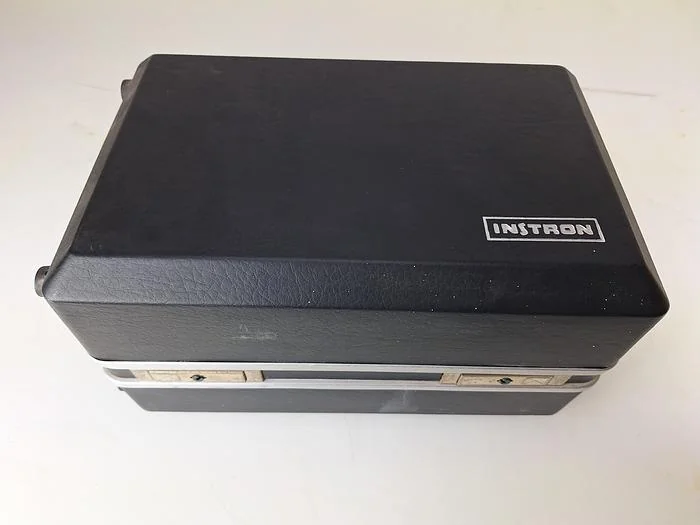

Used 2518-807 Tension/Compression Static Load Cell - Weighing Terminals & Load Cells, photo 3

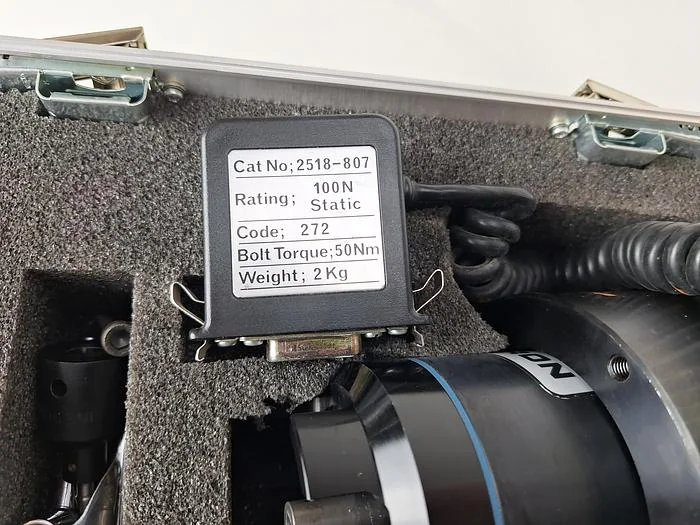

Used 2518-807 Tension/Compression Static Load Cell - Weighing Terminals & Load Cells, photo 4

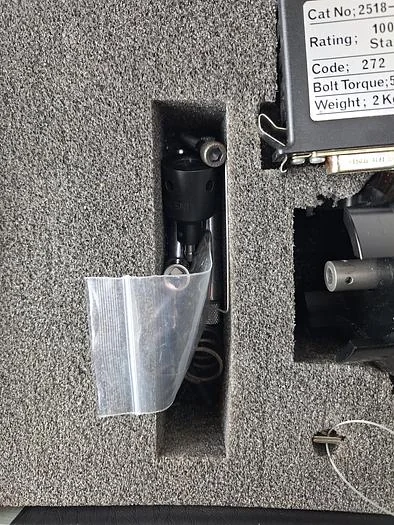

Used 2518-807 Tension/Compression Static Load Cell - Weighing Terminals & Load Cells, photo 5

Used 2518-807 Tension/Compression Static Load Cell - Weighing Terminals & Load Cells

used Equipment

Available

Verified seller

Instron - 2518-807 Tension/Compression Static Load Cell

Name: 2518-807 Tension/Compression Static Load Cell
Brand: Instron
SKU: 412957
Price: 100 GBP
Availability: InStock

Price: £ 100

This listing is for a Instron Tension/Compression Static Load Cell.

The unit is in full working condition and is ready for immediate release.

The Instron Tension/Compression Static Load Cell is engineered for high-precision force measurements in a variety of testing applications. Its robust design allows for accurate tension, compression, cyclic, and reverse stress testing, making it an essential tool in materials testing and quality control environments.

Key Features:

Capacity:

Measures up to 100N (22 lbf), making it suitable for a wide range of testing scenarios.

Exceptional Measurement Range:

Capable of capturing accurate force measurements down to 1/500th of its capacity, ensuring precision in all applications.

Automatic Recognition:

Features an electronic serial number and electrical calibration, allowing for simple and error-free operation without the need for manual setup.

Integral Overload Protection:

Designed with overload protection to minimize the risk of damage during both handling and testing, enhancing durability and reliability.

Tare Weight:

Offers a tare weight capability of 40% of the force capacity, which accommodates the use of various grips and fixtures for added versatility.

Compliance with Standards:

Fully compliant with international force measurement standards, including ASTM E4, ISO 7500-1 class 0.5, and JIS B7721, B7733, ensuring reliability and accuracy in testing protocols.

Compatibility:

The Instron load cell is compatible with various Instron testing systems, including the UT and 3300 series. Its versatility makes it ideal for applications in:

Materials Testing:

Perfect for assessing the mechanical properties of materials under tension and compression.

Quality Control:

Utilized in industrial settings to ensure product consistency and adherence to specifications.

Research and Development:

An essential tool for scientists and engineers conducting experiments on material behaviour under different loads.

Cambridgeshire, United Kingdom

5,791 km away

Model Number

UK1485

Stock Number

412957

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Material science laboratories for tensile and compression strength analysis.
Quality control departments for product integrity testing.
Research and development facilities for new material characterisation.
Biomedical engineering for testing prosthetics and medical devices.
Automotive and aerospace industries for component stress analysis.

Typical Specifications

Typical capacity range: Load cells of this type commonly range from a few Newtons up to several kilonewtons, with this unit specifically noted for up to 100N.
Measurement accuracy: Units in this class typically offer high precision, often compliant with standards such as ISO 7500-1 Class 0.5.
Operating temperature: Generally designed for operation within standard laboratory conditions, typically 10°C to 40°C.
Connectivity: Commonly features proprietary connectors for compatibility with specific testing frames and data acquisition systems.
Overload protection: Many units include integral overload protection to prevent damage during use and handling.
Tare capability: Often includes a tare weight capability, typically up to 40% of the force capacity, for accommodating fixtures.

Frequently Asked Questions

A static load cell measures force under stationary or slowly changing conditions. It is primarily used for tension, compression, and cyclic testing in materials science and quality control.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
