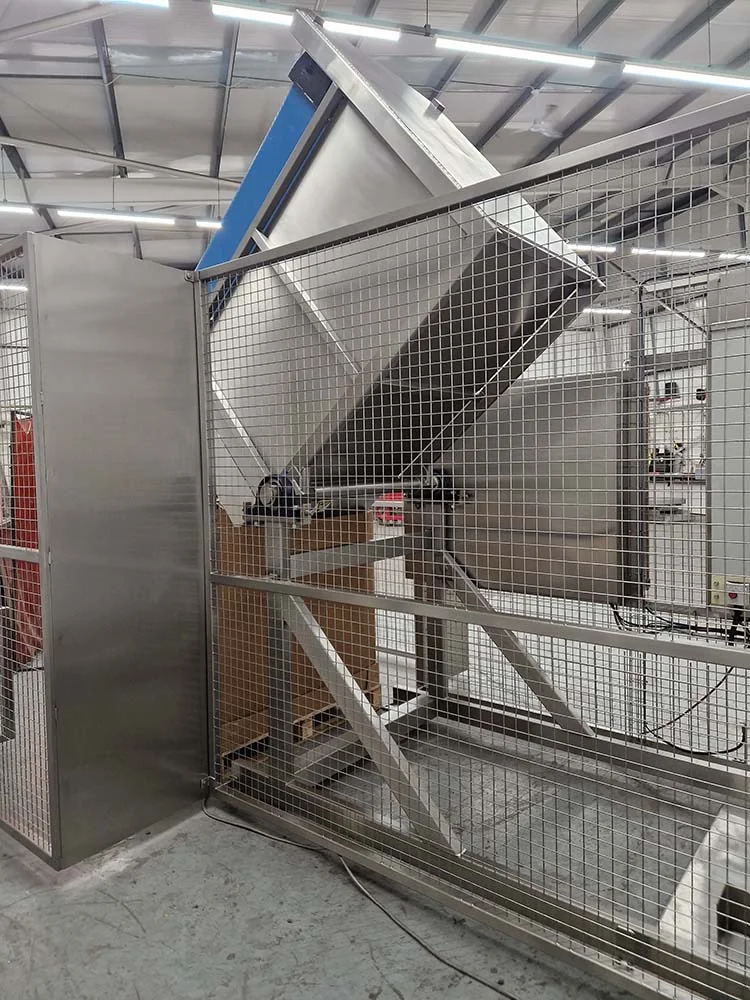

Euro Pallet Box Tipper - Lifting & Tipping, photo 1

Euro Pallet Box Tipper - Lifting & Tipping, photo 2

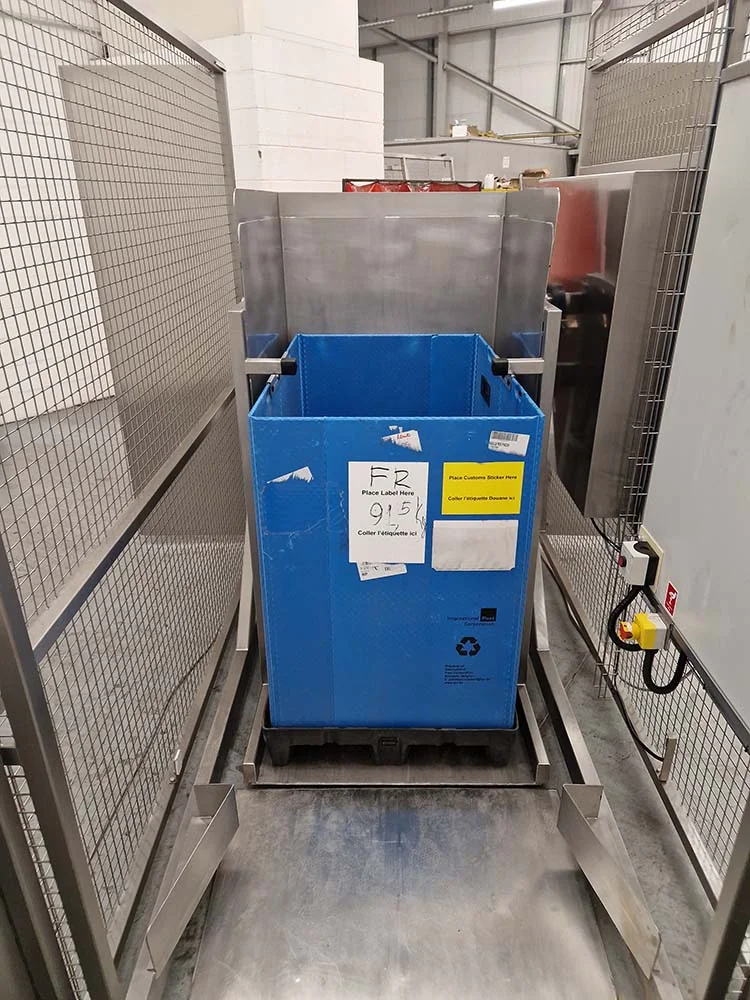

Euro Pallet Box Tipper - Lifting & Tipping, photo 3

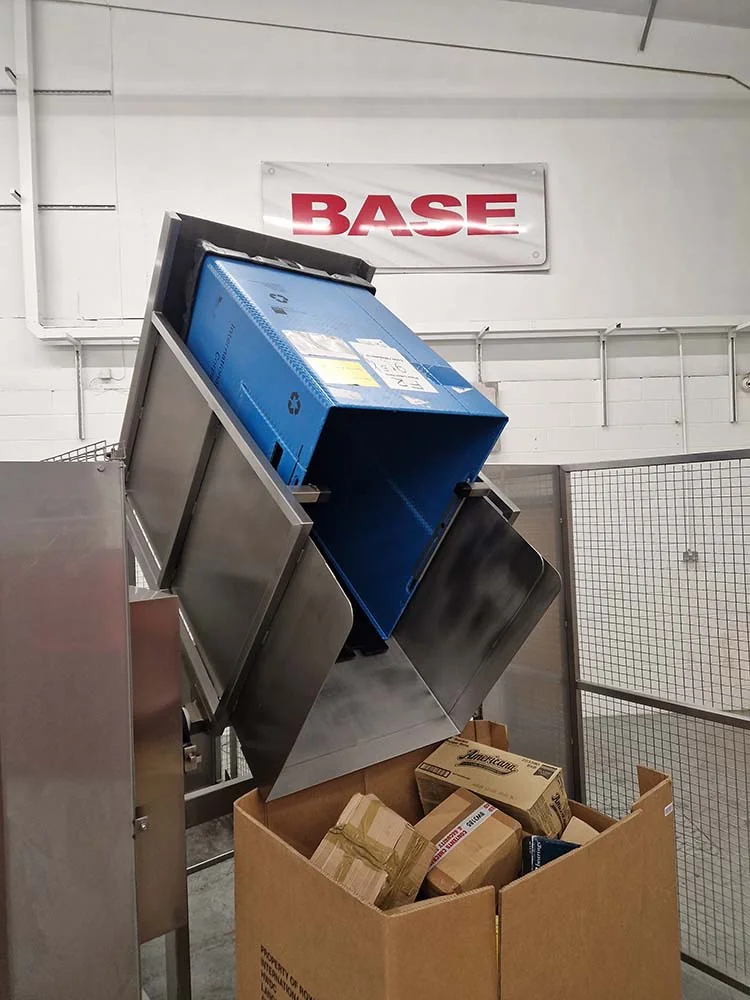

Euro Pallet Box Tipper - Lifting & Tipping, photo 4

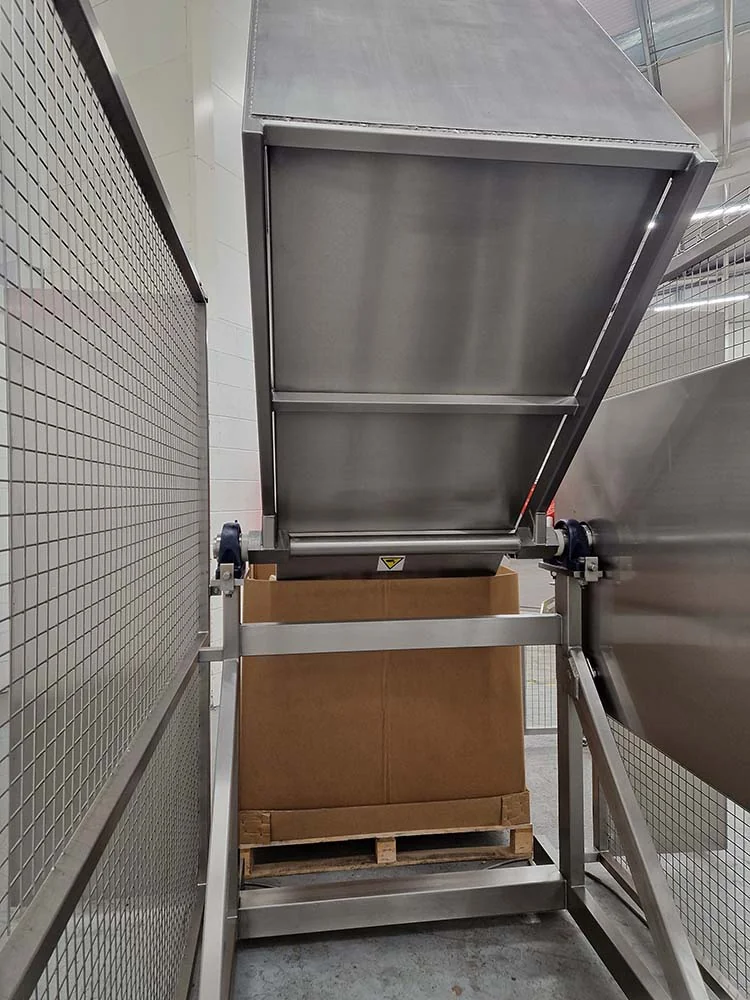

Euro Pallet Box Tipper - Lifting & Tipping, photo 5

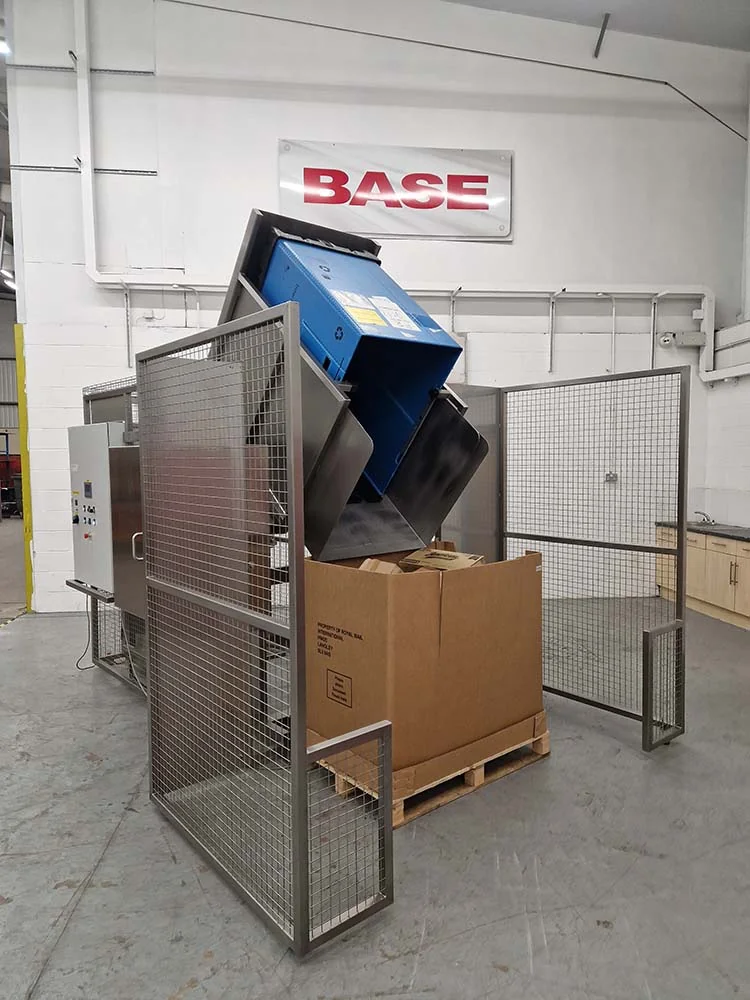

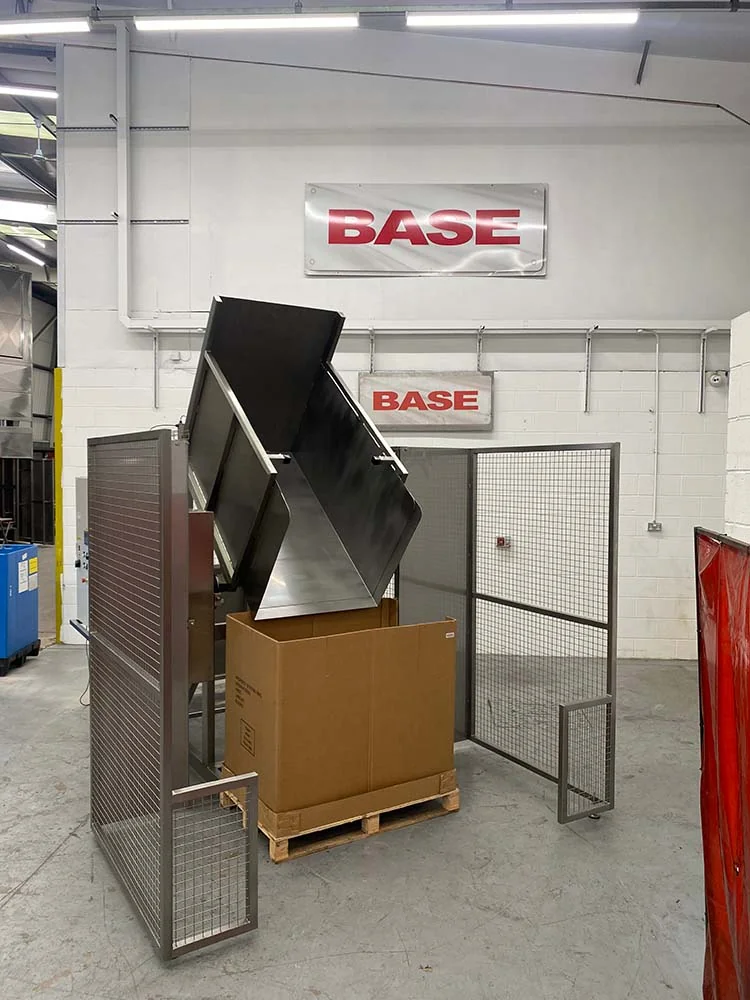

Euro Pallet Box Tipper - Lifting & Tipping, photo 6

Euro Pallet Box Tipper - Lifting & Tipping

Available

Verified seller

Base Handling Ltd - Euro Pallet Box Tipper

Name: Euro Pallet Box Tipper
Brand: Base Handling Ltd
SKU: BTM/400/1000/B/G-

Price: Contact seller for price

BTM/400/1000/B/G Euro Pallet Box Tipper

This Euro Pallet Box Tipper was designed to lift and tip a Euro Pallet Box at a discharge height of 1000mm. The Euro Pallet Box Tipper is a fully welded steel construction and is designed to be bolted to the floor. The Euro Pallet Box Tipper is powered via a Helical Bevel gearbox and tips the Euro Pallet Box to a maximum angle of 180 degrees. The Euro Pallet Box is loaded into lift frame and raised by rotation of the lifting carriage by the motor gearbox. As the Euro Pallet Box is tipped over to the full tip angle the parcels and packages are discharged into a conveyor hopper. The Euro Pallet Box is securely retained in the lift carriage in the fully tipped position.

Safety Guard to BS EN 14120:2015 Safety of Machinery

The Euro Pallet Box Tipper is supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture weld mesh. It encloses the Euro Pallet Box Tipper to a height of 2200mm on two sides, 1000mm at the tipping side with a pair of interlocked hinged guard doors on the fourth side. The guard doors are electrically and mechanically interlocked to prevent the Euro Pallet Box Tipper from operating if either door is open. Additionally, the guard doors can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised. The safety guard extended around the tipping position to prevent access to the moving parts during the tipping cycle.

Euro Pallet Box Tipper Electrical Control

The Euro Pallet Box is fitted with an IP65 Stainless Steel Control Panel which is mounted on the Safety Guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Euro Pallet Box Tipper control system included an Inverter to allow for speed control and a Rotary Position Sensor to stop at the full up and full down positions. It also incorporated Over Travel Proximity Sensors which were independent of the Rotary Sensor.

The Euro Pallet Box Tipper Control Panel is fitted with a PLC and HMI that allows features including:-

Adjustment of the Full Up position
Adjustment of the Full Down position
A Tip Counter
Selection of the Mail Sweep Mode
Interfacing with other equipment

The Euro Pallet Box Tipper control sequence is as follows:-

The Euro Pallet Box is loaded into the Euro Pallet Box Tipper and the Guard Door closed
There is a photo sensor inside the safety enclosure that senses that the Euro Pallet Box is loaded correctly before the box can be tipped
The Control On button is pressed followed by the System Start button which would cause the Euro Pallet Box Tipper to lift and tip
The tipping cycle is automated so that once the full up position is reached and all of the mail is tipped out, the Euro Pallet Box Tipper will return to the full down position to allow the empty Euro Pallet Box to be replaced
The guard gate interlock switch is released via a ‘Guard Release’ push button which allows the safety guard door to be opened
The empty Euro Pallet Box can then be removed and replaced with a full one and the whole cycle repeated

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Euro Pallet Box Tipper

Model No.

BTM/400/1000/B/G

Tipping Height

1000mm

Machine Handing

Right Hand

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

Euro Pallet Box

Base Arrangement

Bolted To The Floor

Control Circuit

24Vdc

Electrical Rating

IP65

Gearbox Detail

SEW Eurodrive

Motor Gearbox

0.75kW, 415V, 3 PHASE, 50 CYCLE

Motor Brake

415V Separately Excited

Tip Angle

Maximum 180°

Lifting Capacity

400 Kgs

End of Travel Control

Rotary Position Sensor

Over Travel Limit Switches

Proximity Sensors

Stock Number

BTM/400/1000/B/G-

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring bulk ingredients from pallet boxes into hoppers or conveyors in food processing lines.
Loading raw materials into mixers, grinders, or other processing machinery.
Discharging finished products from storage containers onto packaging lines.
Handling waste products or by-products for disposal or further processing.
Integrating with automated material handling systems for continuous operation.

Typical Specifications

Typical load capacity: For this class of equipment, capacities commonly range from 500kg to 1500kg, designed for standard Euro pallet boxes.
Discharge height: Units are typically designed for specific discharge heights, often around 1000mm, to integrate with existing conveyors or hoppers.
Tipping angle: Commonly provides a maximum tipping angle up to 180 degrees to ensure complete discharge of contents.
Construction material: Typically features a fully welded steel construction, often stainless steel for food processing environments, to ensure hygiene and durability.
Power supply: Units of this type commonly operate on a 3-phase electrical supply, such as 400V, 50Hz.
Footprint: Requires a floor-mounted installation, with dimensions varying based on load capacity and tipping height, plus space for safety guarding.
Safety features: Modern units typically include interlocked safety guarding to BS EN 14120:2015 standards, preventing operation with open doors and access during lifting.
Drive mechanism: Often powered by a helical bevel gearbox and electric motor, providing controlled and robust tipping action.

Frequently Asked Questions

This specific unit is designed for Euro Pallet Boxes. Other tippers are available for different container types, such as bins or drums.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
