Hengel Equipments - Hengel RS70E-US Chock Freezer-Storage Cabinet
Copied to clipboard!
Price: $ 49,000
The Hengel RS70E-US is a double depth chock freezer-storage cabinet with 8 doors, operating at temperatures of -35°C to -16°C. Stainless steel exterior with white interior, insulated with 100mm polyurethane foam (43 kg/m3). Features 7 chock freezer levels (14 trays) and 80 storage door levels (160 trays), using 460x660mm trays with 2 per level. Controlled via Bi-Tronic Slide interface with electronic expansion valve and programmable electric heater defrosting. Cooling power of 3.18kW using R448A or R449A refrigerant. High density foam and heat door cable gaskets. Legs standard, wheels optional. Delivered disassembled, pre-assembled.
Washington, United StatesDistance: 12,311 km away

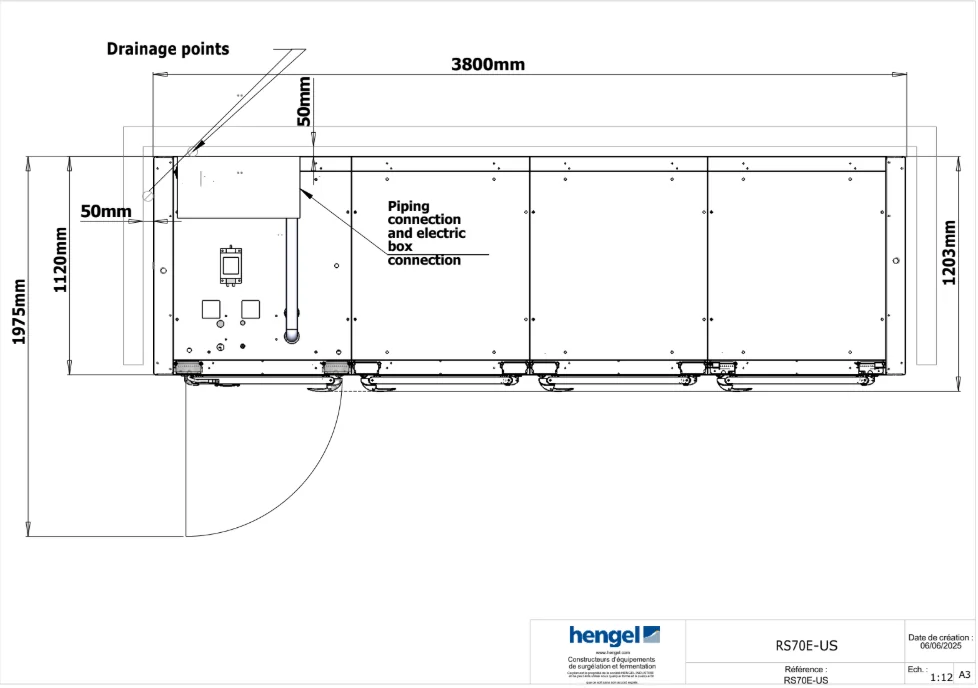

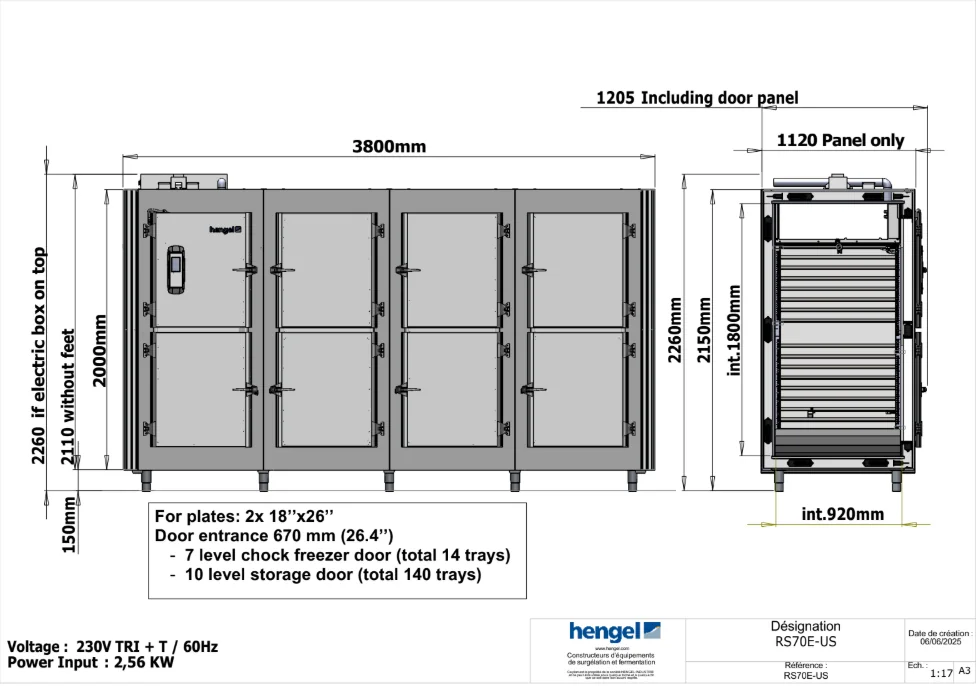

Length
380 cm
Width
120.5 cm
Height
225 cm
Construction
Interior white, exterior stainless steel
Insulation
Polyurethane foam, 43 kg/m3, thickness 100mm
Doors
8 total — 2 on left hinges, remaining on right hinges
Door Gasket
High density foam and heat door cable
Legs/Wheels
Legs standard, wheels optional
Temperature Range
-35°C / -16°C
Chock Freezer Capacity
7 levels (14 trays)
Storage Capacity
80 doors (160 trays)
Tray Size
460 x 660mm (2 per level)
Control Interface
Bi-Tronic Slide
Pressure Regulator
Electronic expansion valve
Defrosting
Programmable by electric heater
Cooling Power
3.18kW (at -30°C evap. / 32°C ext.)
Refrigeration Voltage
230V + G, 60Hz / P = 4400W (separate power supply)
Optimum Operating Temperature
35°C
Maximum Operating Temperature
48°C
Cabinet Electrical Power
2650W
Cabinet Voltage
230V Tri
Gross Weight
795 kg
Year of Manufacture
2026
