Base Handling Ltd - Hydraulic Dolav Bin Tipper
Copied to clipboard!
Price: Contact seller for price

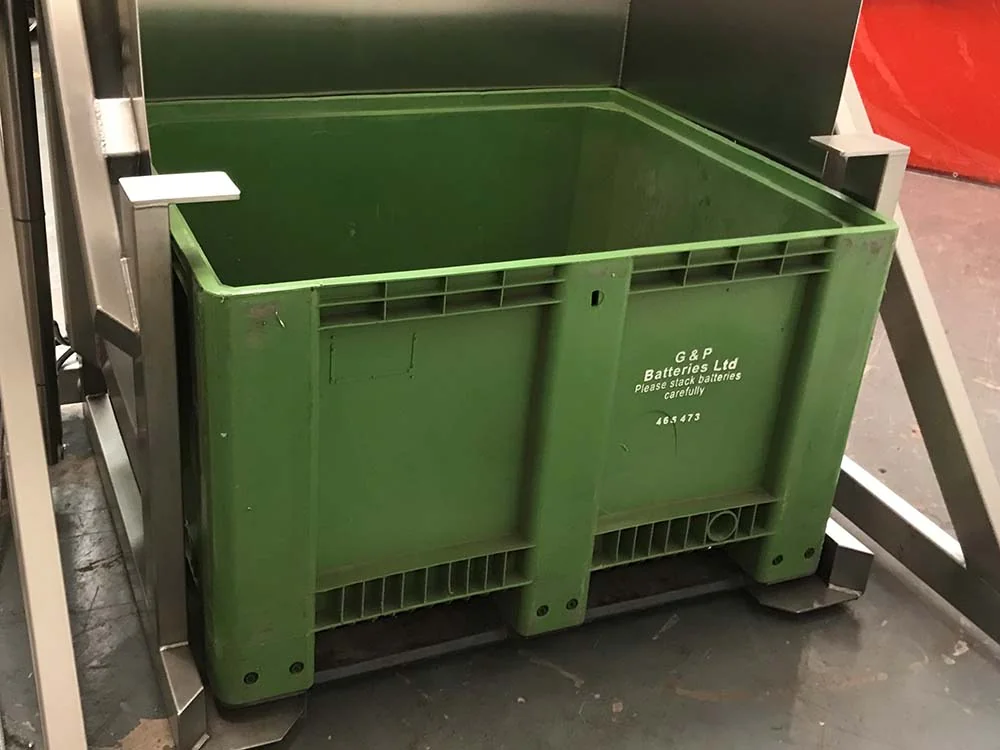

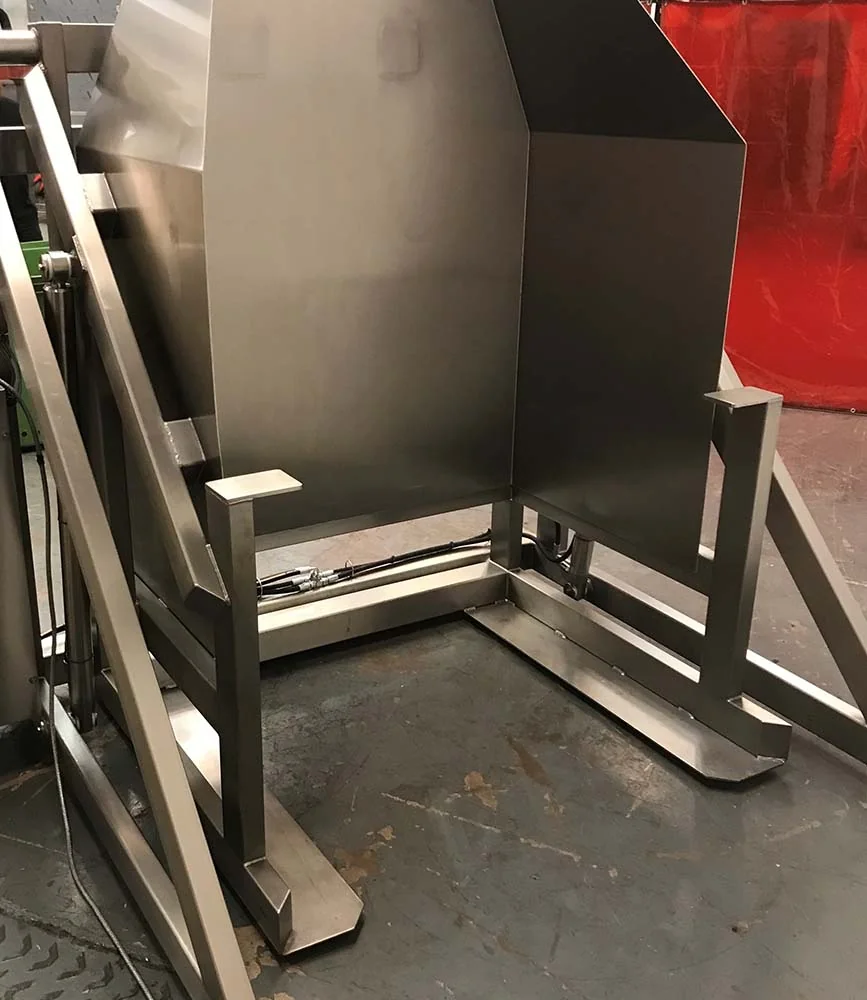

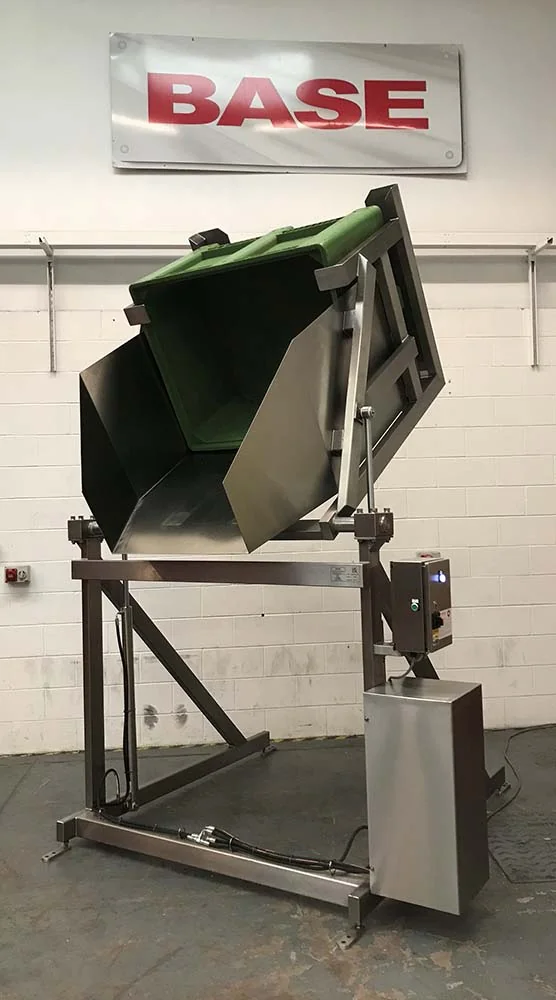

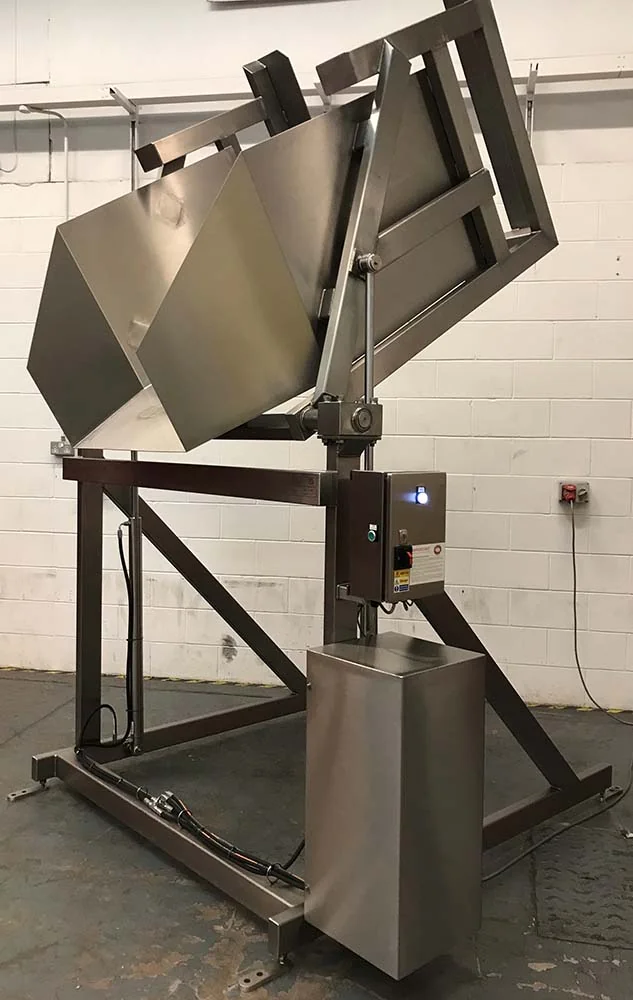

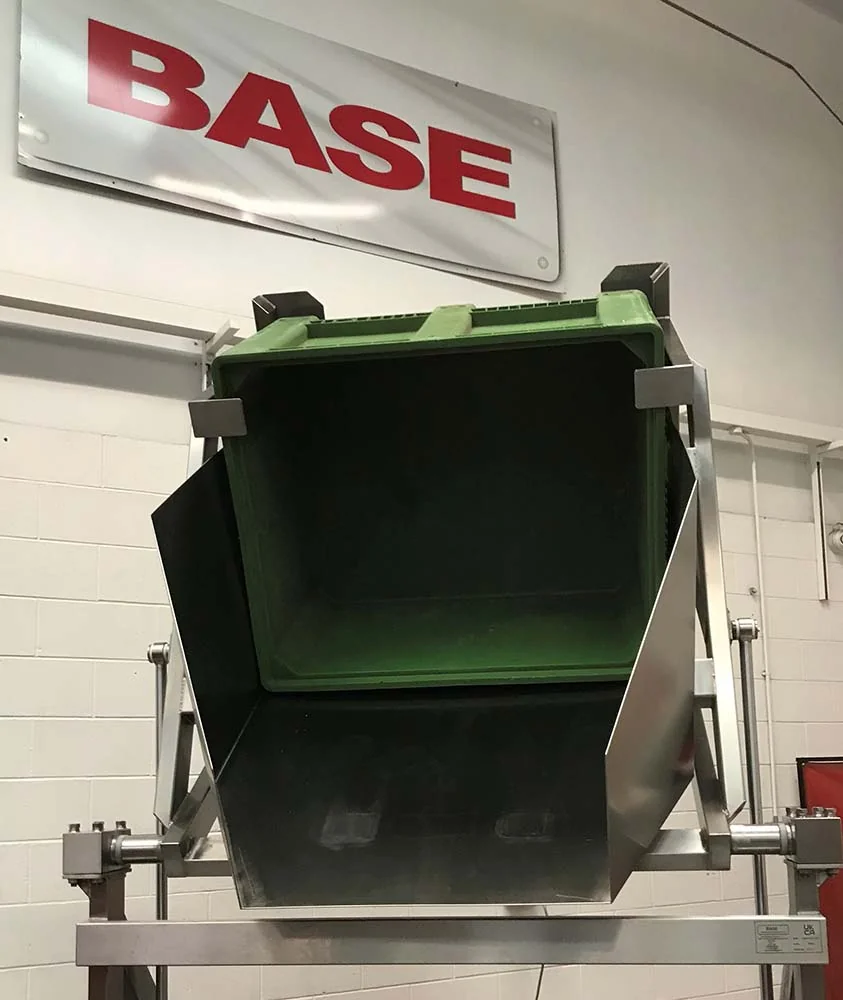

BTH/600/1500/B Hydraulic Dolav Bin TipperThis Hydraulic Dolav Bin Tipper was designed to lift and tip a standard Dolav Bin (1200 x 1000 x 800mm High) at a height of 1500mm and has a Safe Working Load of 600 Kgs. The Hydraulic Dolav Tipper is constructed from Grade 304 stainless steel, is a fully welded construction throughout and is designed to be bolted to the floor. This Hydraulic Dolav Bin Tipper was powered via a hydraulic powerpack and tipped the containers by the extension of a pair of stainless steel hydraulic cylinder to an angle of 30 degrees past the horizontal. The hydraulic cylinders are fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor. Hydraulic Dolav Bin Tipper Electrical ControlThis Hydraulic Dolav Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The unguarded Hydraulic Dolav Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Hydraulic Dolav Tipper to operate. As soon as either button is released, the Hydraulic Dolav Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required. |
Blaenau Gwent County Borough, United Kingdom5,762 km away
Description
Hydraulic Dolav Bin Tipper
Model No.
BTH/600/1500/B
Tipping Height
1500mm
Machine Handing
Left Hand
Tipping Chute
Yes, Fitted To Lift Carriage
Container Description
600 Litre Dolav Bin
Base Arrangement
Bolted To The Floor
Control Circuit
24Vac
Electrical Rating
IP65
Powerpack
1.5kW, 415V, 3 PHASE, 50 CYCLE
Tip Angle
120 Degrees
Lifting Capacity
600 Kgs
Stock Number
BTH/600/1500/B
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Efficiently empties bulk containers of ingredients into processing lines.
- Transfers food products from storage to further processing stages.
- Used in bakeries, meat processing, fruit and vegetable preparation, and dairy operations.
- Facilitates ergonomic handling of heavy Dolav bins, reducing manual labour.
- Integrates into automated production lines for seamless material flow.
Typical Specifications
- Typical capacity
- Units of this class commonly handle Dolav bins with a Safe Working Load (SWL) of up to 600 kg.
- Power supply
- This type of equipment is typically powered by a hydraulic power pack, requiring a suitable electrical supply, commonly 3-phase.
- Construction material
- For food processing applications, construction is typically from Grade 304 stainless steel, with fully welded construction.
- Tipping height
- Tipping heights commonly range from 1500mm upwards, depending on the receiving hopper or conveyor.
- Control system
- Units typically feature an IP65 rated stainless steel control panel, operating on a 'hold to run' principle for safety.
- Safety features
- Common safety features include hydraulic cylinders with safety check valves to prevent uncontrolled descent.
- Mounting
- Most industrial bin tippers are designed for floor mounting to ensure stability during operation.
Frequently Asked Questions
- This specific unit is designed for standard Dolav bins (1200 x 1000 x 800mm). Buyers should confirm compatibility for other bin types with the seller.
