Ilpra Formpack F0 TMF Thermoformer (2019)

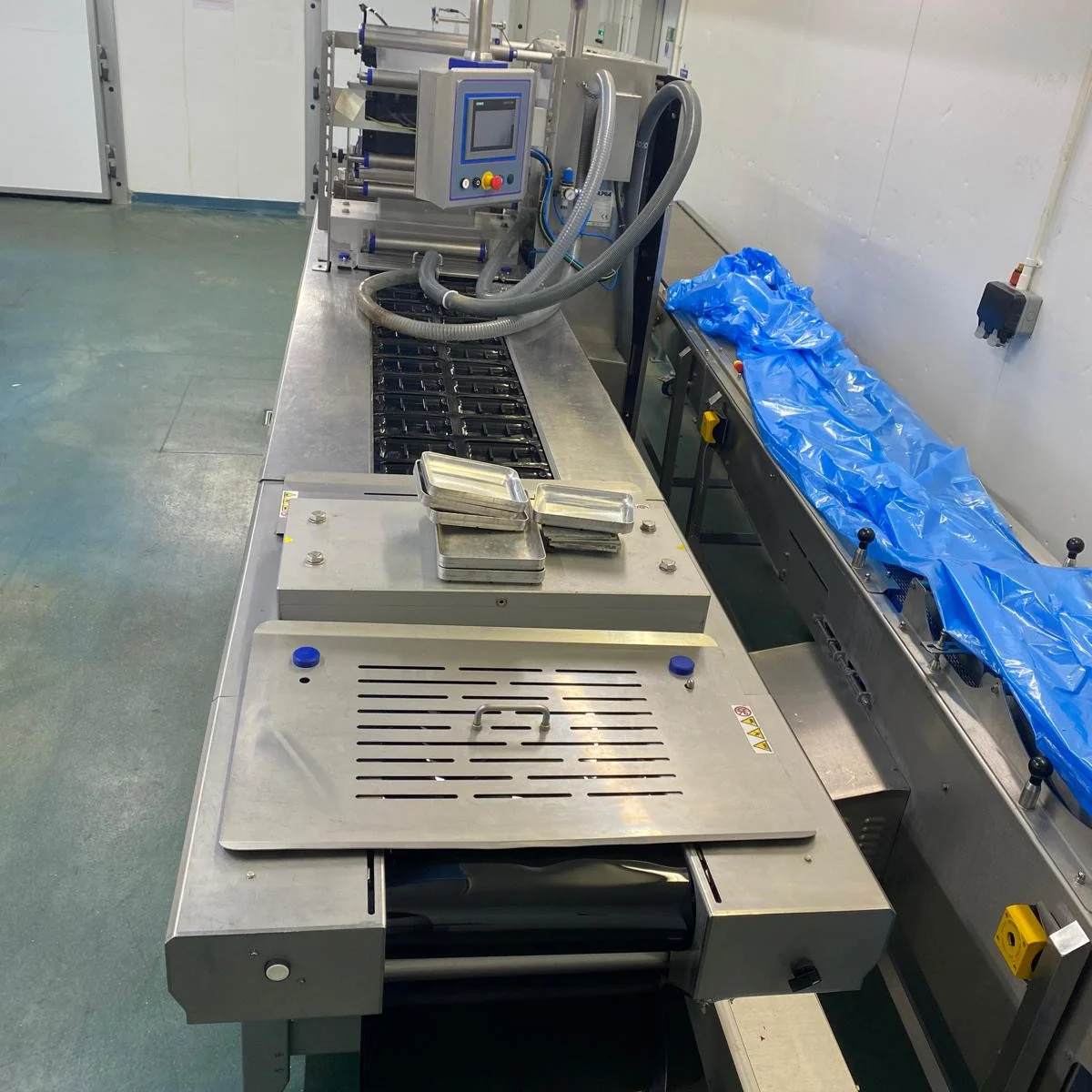

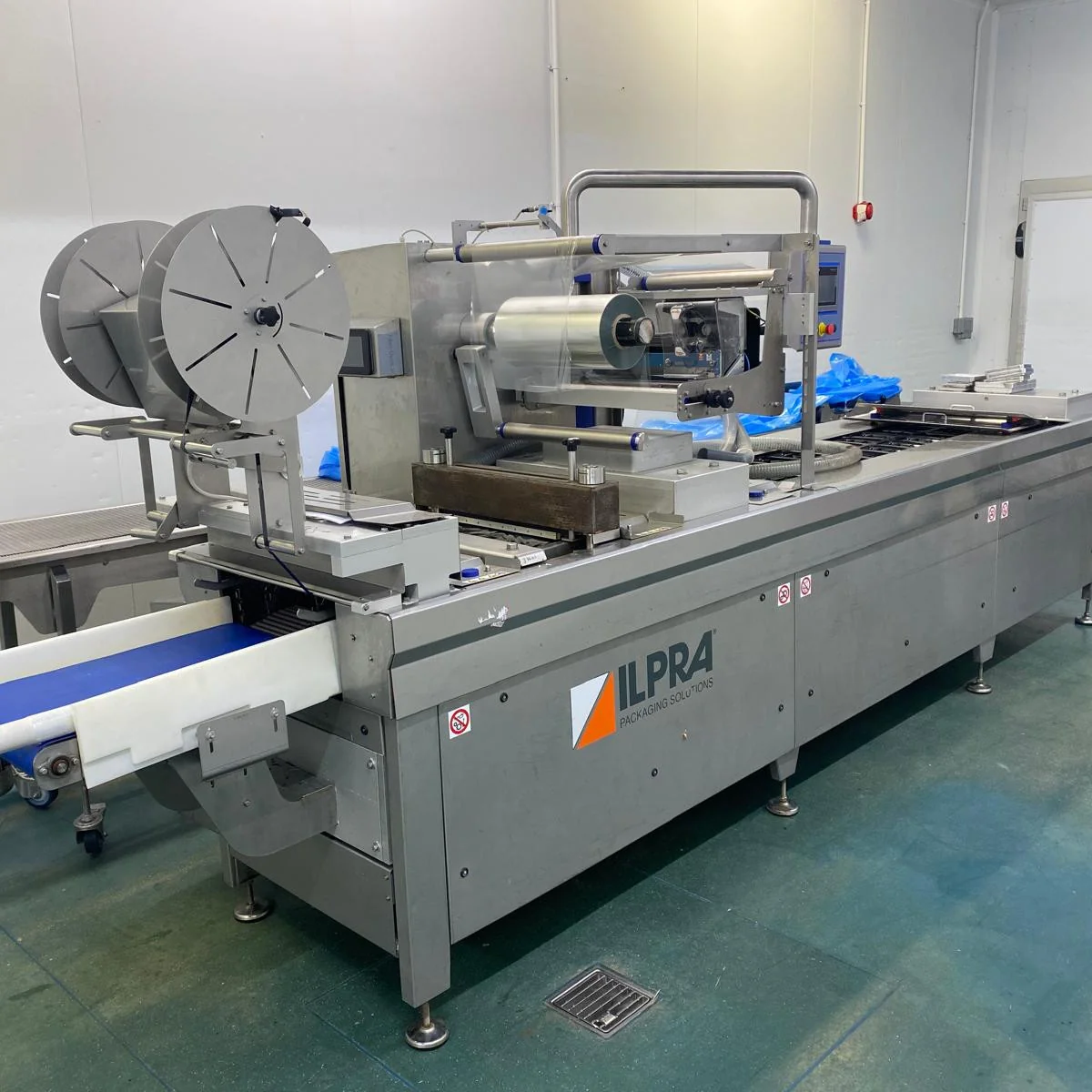

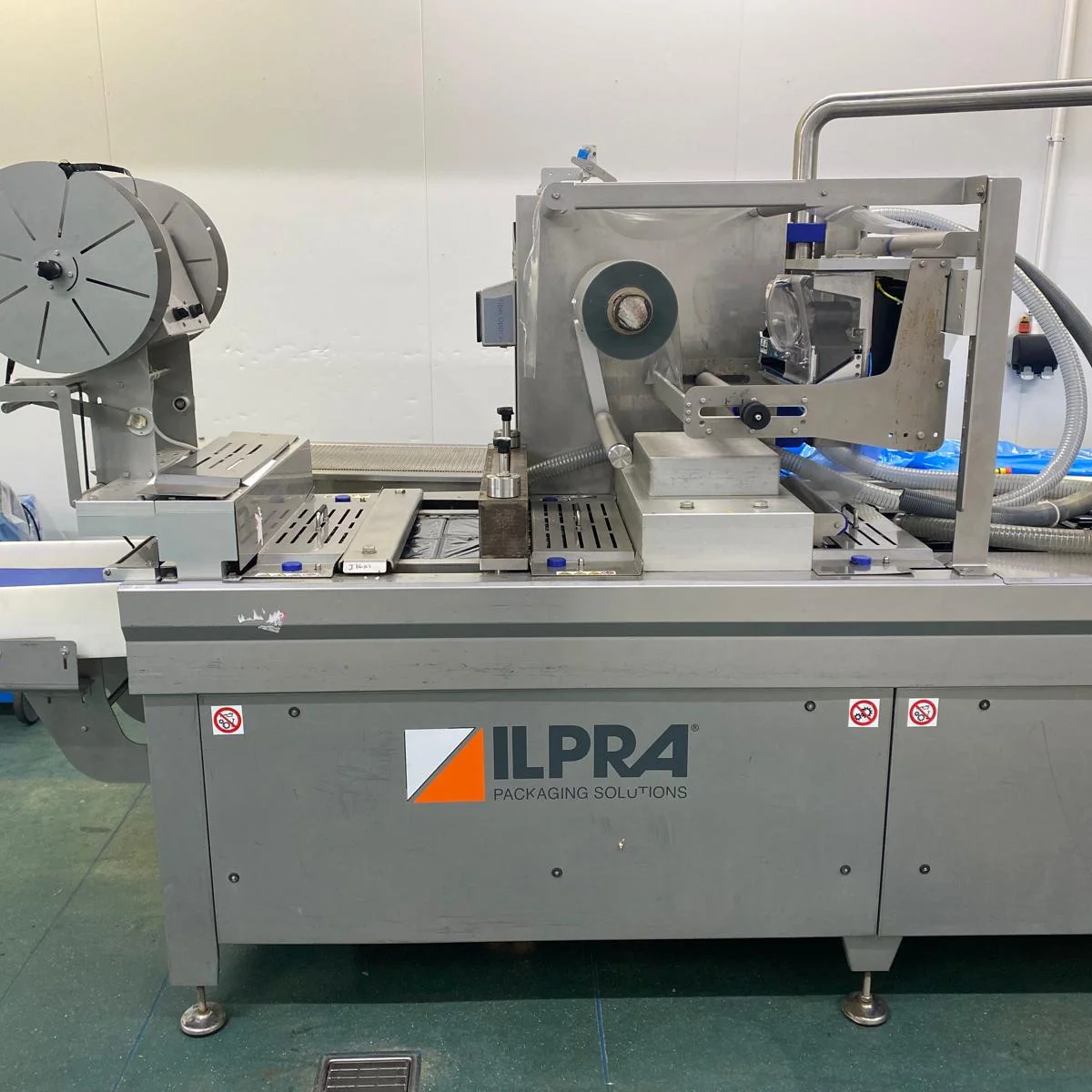

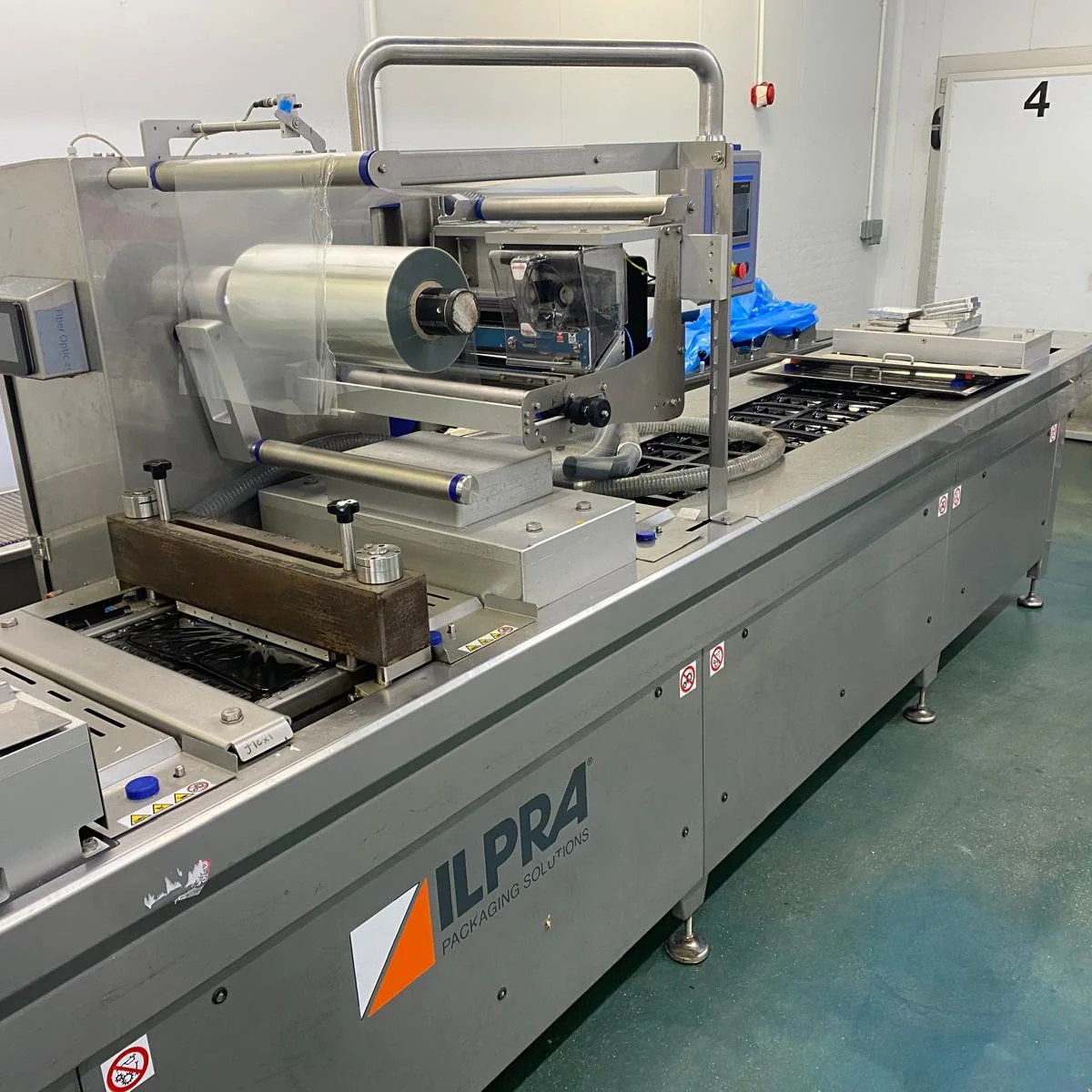

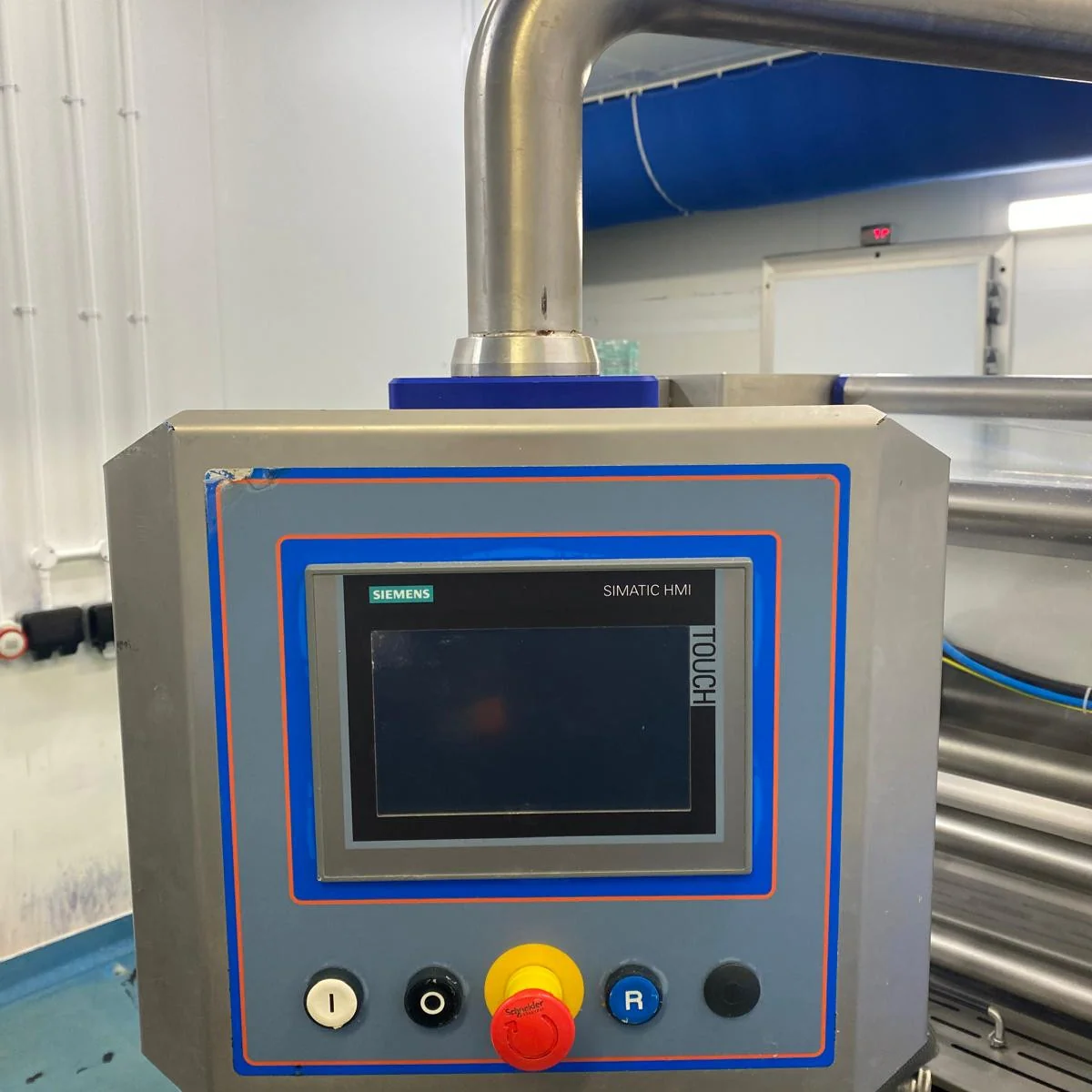

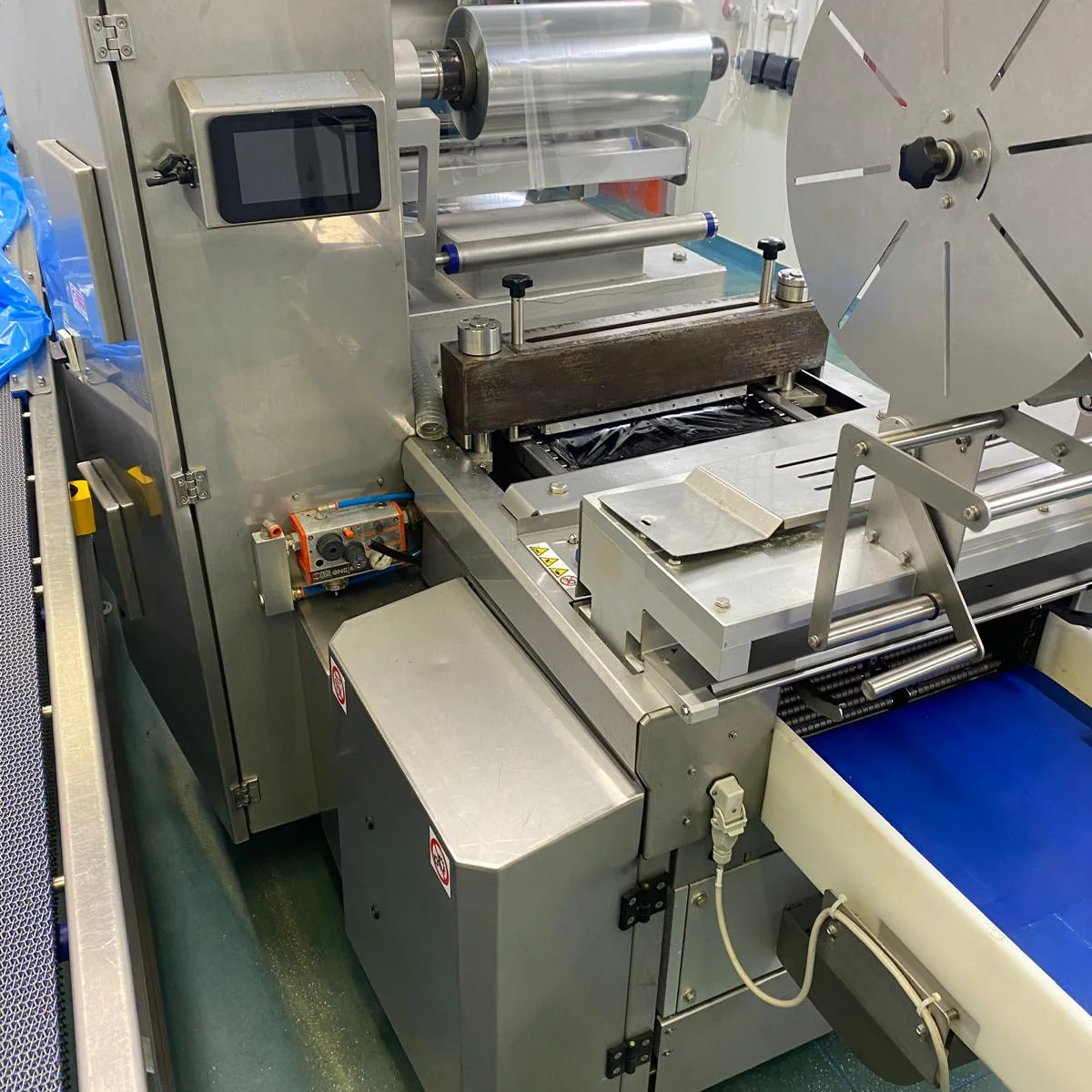

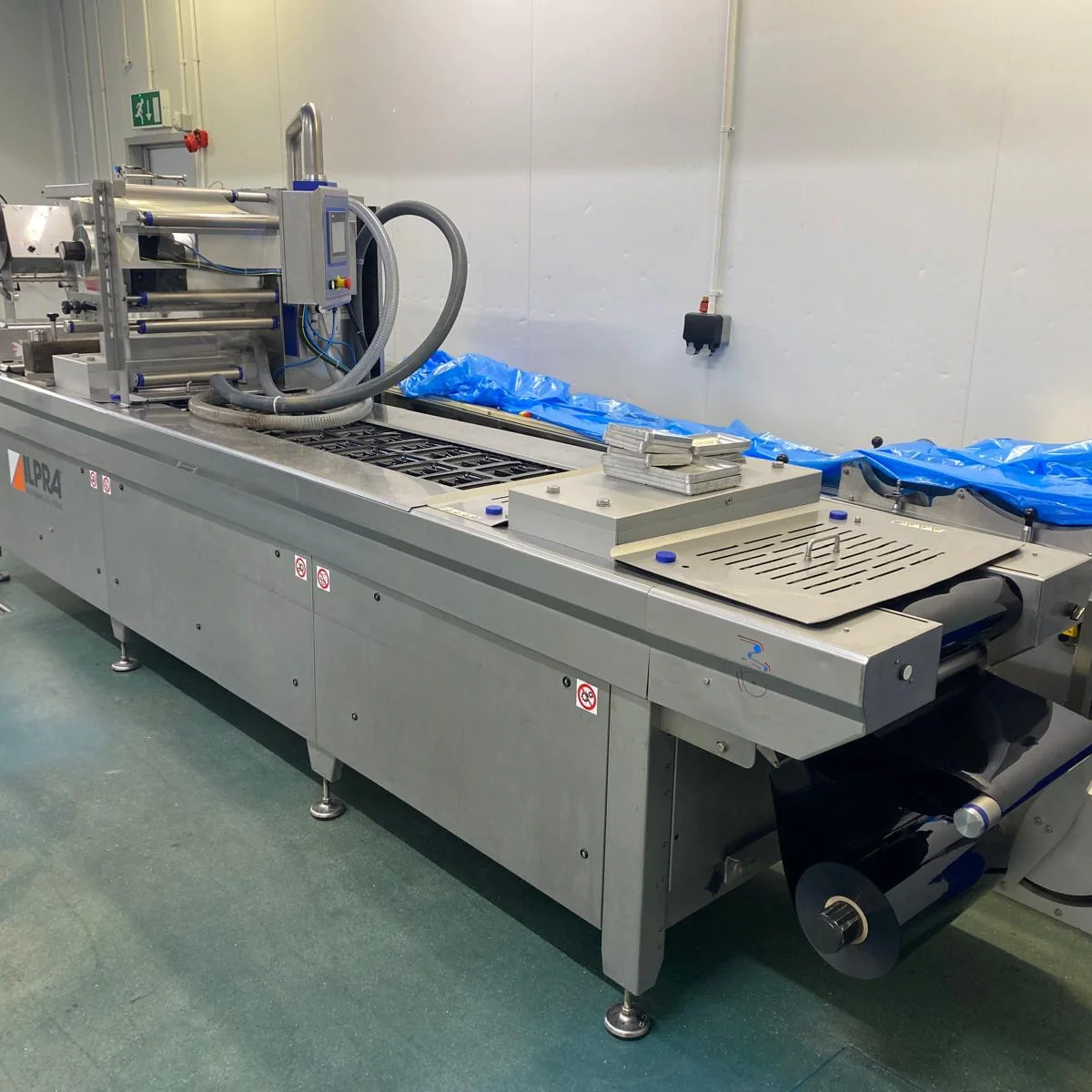

1 x Ilpra Packaging Solutions thermoformer fitted with Siemens S7 1200 PLC control panel and ILPRA thermo-transfer printer mod. I-PRINT (printing area 53 x 400mm). Supplied with 5 x sets of tooling.

Technical Specification:

✅ Model - Formpack F0 TMF Long Version.

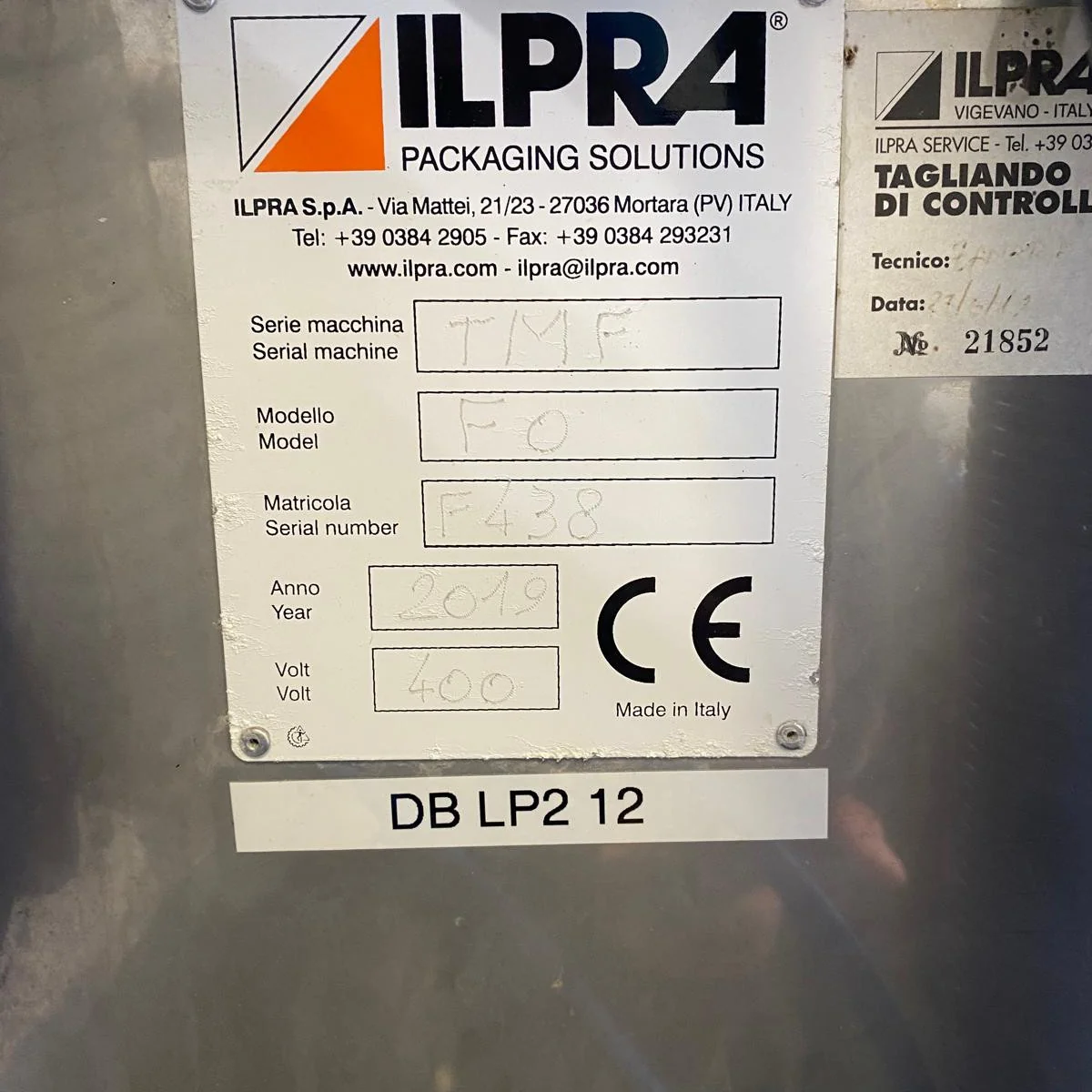

✅ Serial number - F438.

✅ Date of manufacture - 2019.

✅ Can be used for flexible, semi-rigid and rigid film packs.

✅ Speed - Output with sizes 2.2 and 4.2: approx 4/5 cycles per minute, Output with size 2.1: approx 5/6 cyclese per minute.

✅ Film width - up to 420mm wide.

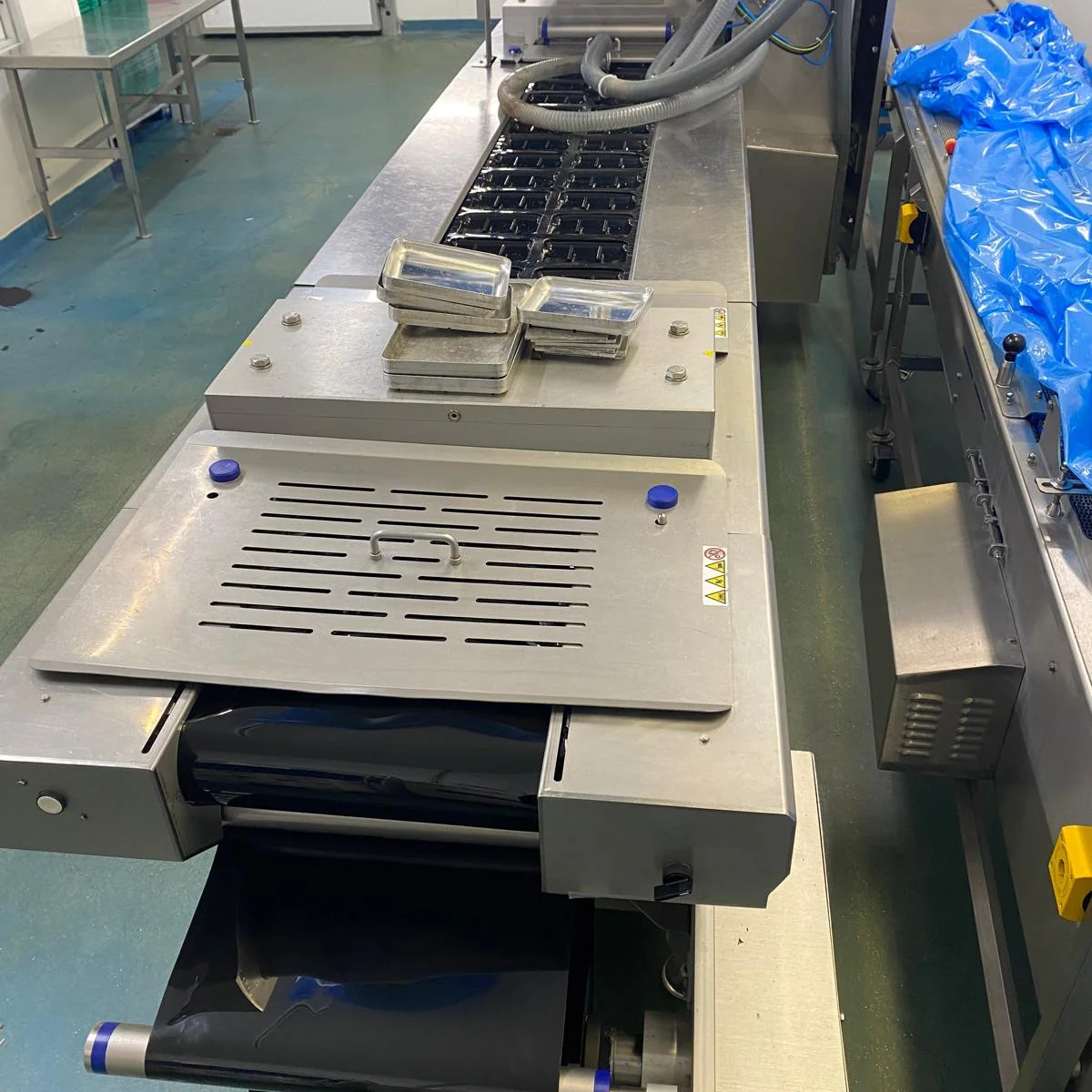

✅ Maximum diameter of forming film reel - 400mm.

✅ Reel core diameter - 76mm.

✅ Thickness - 500 microns.

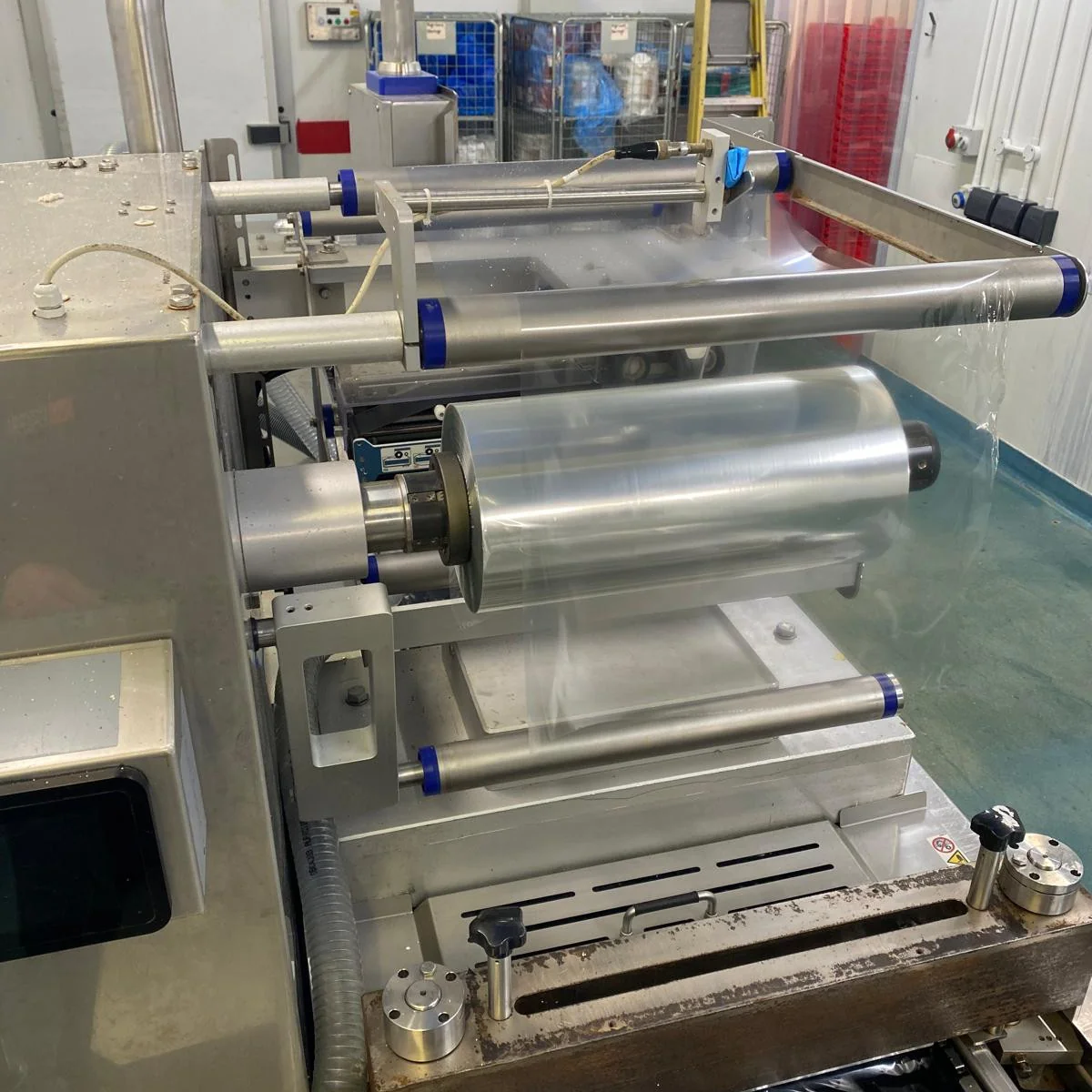

✅ Maximum diameter of top web film reel - 250mm.

✅ Reel core diameter - 76mm.

✅ Type of useable sealing film - plastic, aluminium, medical paper, Tyvec.

✅ Electric supply - 400 V / 50 hz / 3 phase.

✅ Compressed air supply -7 bar.

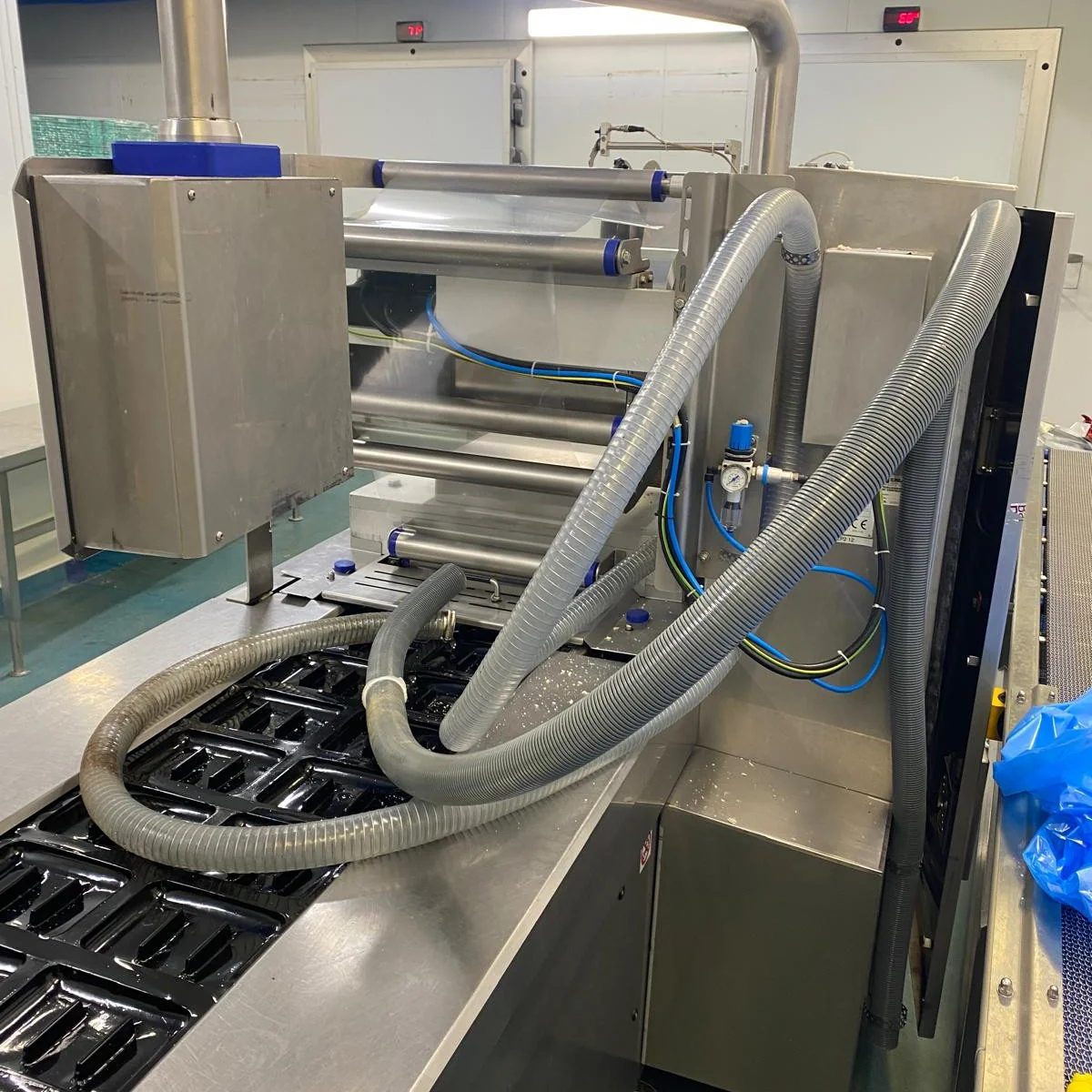

✅ Vacuum pump - Busch.

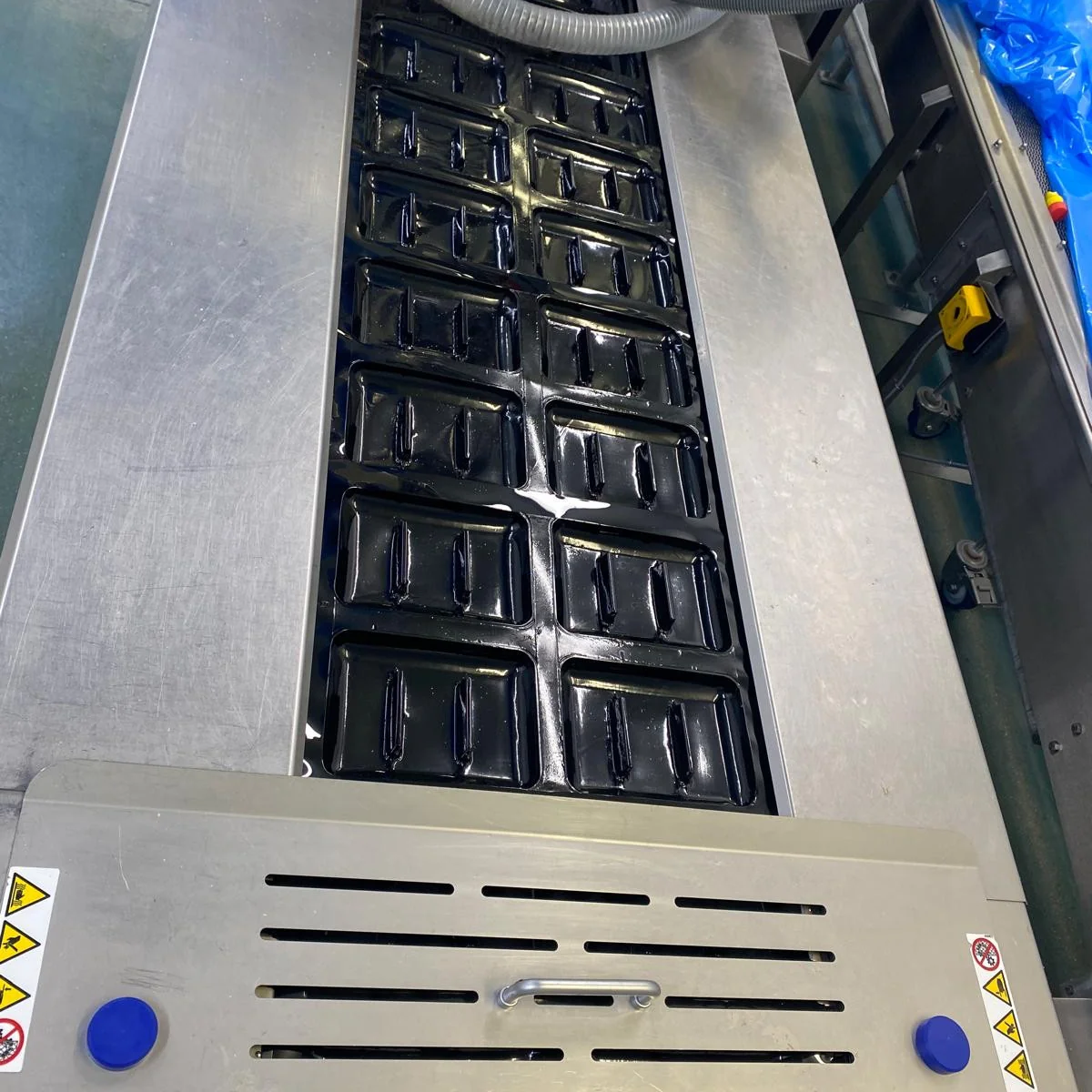

✅ Tooling external dimensions (internal)

• Set 1 - 2x1 format: 197.5mm (177.5mm) x 300mm (280mm).
• Set 2 - 4x2 format: 98.75mm (78.75mm) x 150mm (130mm).
• Set 3 - 2x2 format: 190mm x 150mm x (122mm diameter). Set 4&5 - 2x2 format: 197.5mm (177.5mm) x 150mm (130mm).

Notes:
Previously used for packing various meat products. Last run in May 2025.
