What standards can this kit help me comply with?

This type of kit is designed to assist in testing pure steam systems for compliance with standards such as EN 285 (sterilizers) and HTM (Health Technical Memoranda) guidelines, which are relevant for healthcare and pharmaceutical sectors.

Does this unit require a water supply for cooling?

No, the KSA SQ1E model features an integrated electric fan condenser, which eliminates the need for an external cooling water supply, making it more flexible for on-site use.

What types of tests can be performed with this equipment?

Typically, this kit allows for the performance of Non-Condensable Gas (NCG), Dryness, and Superheat tests, which are critical parameters for assessing steam quality.

What is included with a typical SQ1E kit?

A complete kit commonly includes the main test unit with condenser, burette, and measuring cylinder, dryness and superheat test assemblies, a power supply, steam connection fittings, and a portable case.

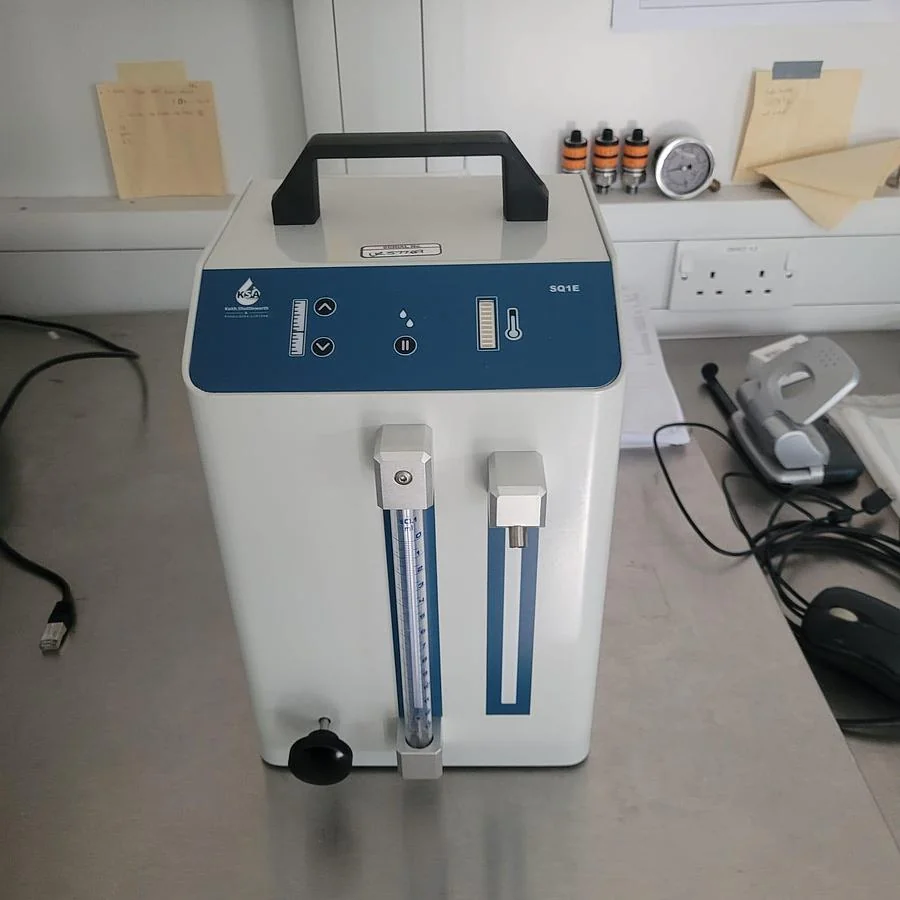

Used SQ1E Steam Quality Test Kit - Pure Steam & Pure Water Systems, photo 1

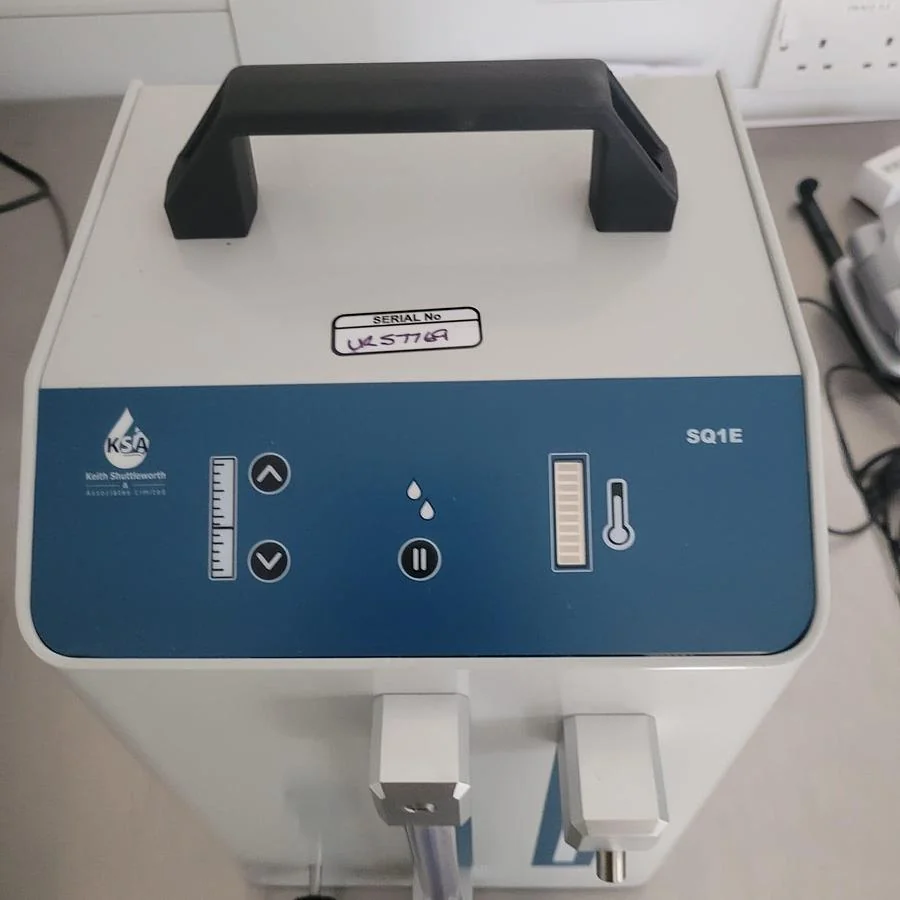

Used SQ1E Steam Quality Test Kit - Pure Steam & Pure Water Systems, photo 2

Used SQ1E Steam Quality Test Kit - Pure Steam & Pure Water Systems

used Equipment

Available

Verified seller

KSA - SQ1E Steam Quality Test Kit

Name: SQ1E Steam Quality Test Kit
Brand: KSA
SKU: 49353664.1538
Availability: InStock

Price: Contact seller for price

This listing is for the KSA SQ1E Steam Quality Test Kit.

The system is in excellent working condition and ready for immediate use.

System Overview

The KSA SQ1E is a portable, air-cooled steam quality testing unit designed for performing Non-Condensable Gas (NCG), Dryness, and Superheat tests in compliance with EN 285 and HTM standards. It provides a complete, self-contained solution for validating clean and pure steam systems used in pharmaceutical, biotechnology, and healthcare facilities.

Unlike traditional systems, the SQ1E uses a built-in electric fan condenser, removing the need for cooling water and allowing tests to be carried out anywhere with minimal setup. The compact and durable design makes it ideal for on-site steam testing, validation, and qualification work.

Main Components

KSA SQ1E Steam Quality Test Unit – fully air-cooled condenser assembly with built-in burette and measuring cylinder for NCG and dryness testing.

Dryness and Superheat Test Assembly – includes test expansion tube, pitot tubes, flask, and temperature probe connections.

Integrated Burette and Measuring Cylinder – illuminated and fitted with push-button zeroing and pause functions for precise readings.

Power Supply – 12 V DC operation for the condenser fan and internal electronics.

Steam Connection Set – includes tri-clamp and hose fittings for connection to clean steam systems.

Portable Case – compact and rugged housing with handle and workspace shelf for field testing.

Operating Manual and Documentation – includes standard test procedures, setup guidance, and result templates.

Key Features

Air-cooled condenser design eliminates the need for external cooling water.

Performs all required steam quality tests: Non-Condensable Gases, Dryness, and Superheat.

Built-in burette and measuring cylinder for accurate, repeatable measurement.

Push-button zeroing, pause function, and backlit illumination for ease of use.

Portable, plug-and-play design ideal for site validation and testing.

Complies fully with EN 285, HTM, and pharmaceutical clean steam standards.

Specifications

Manufacturer: KSA (Keystone Scientific / KSA Pharma)

Model: SQ1E

Type: Steam Quality Test Kit

Power Supply: 12 V DC

Cooling Method: Air-cooled, fan-assisted condenser

Functions: NCG, Dryness, Superheat testing

Operation: Manual/portable

Compliance: EN 285, HTM, AAMI, PDA guidelines

Construction: Stainless steel and aluminium components in rugged portable case

Cambridgeshire, United Kingdom

5,791 km away

Model Number

SQ1E

Stock Number

49353664.1538

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Validation of pure steam systems in pharmaceutical manufacturing.
Qualification of steam sterilizers in healthcare facilities.
Routine quality control for clean steam generators in biotechnology.
On-site testing for compliance with EN 285 and HTM standards.

Typical Specifications

Test capabilities: Typically includes Non-Condensable Gas (NCG), Dryness, and Superheat tests.
Cooling method: For this model, an integrated electric fan condenser is used, removing the need for external cooling water.
Power supply: Commonly 12 V DC for internal electronics and fan operation, often supplied via a mains adapter.
Portability: Designed for field use, typically housed in a compact, rugged case.
Steam connection: Units of this type commonly include tri-clamp and hose fittings for connection to clean steam systems.
Compliance: Designed to facilitate testing in accordance with standards such as EN 285 and HTM.
