What types of materials can this machine process?

This type of machine is primarily designed for processing dry, granular products such as tea leaves, herbal infusions, and similar free-flowing materials.

Can it produce different tea bag sizes?

Yes, units of this type are typically adjustable to produce various tea bag sizes, with common dimensions like 60mm x 60mm for standard pyramid bags.

Is an outer envelope machine always included?

While often offered as part of a line, the inclusion of an outer envelope machine (e.g., KH-400) can vary by specific listing. Buyers should confirm with the seller.

What maintenance is typically required for a machine of this nature?

Routine maintenance typically involves cleaning, lubrication of moving parts, and periodic inspection of seals and wear parts to ensure optimal performance and longevity.

What are the common safety features on such equipment?

Modern tea bagging machines commonly include safety interlocks on access panels, emergency stop buttons, and guarding to protect operators during use.

Can this machine handle both heat-sealable and non-heat-sealable filter materials?

This specific model is designed for heat-sealable materials for both the inner tea bag and the outer envelope. Buyers should verify material compatibility with the seller.

used Equipment

Available

Verified seller

Miflex-Masz APO-11P-90

Name: Miflex-Masz APO-11P-90
SKU: 1864
Availability: InStock

Price: Contact seller for price

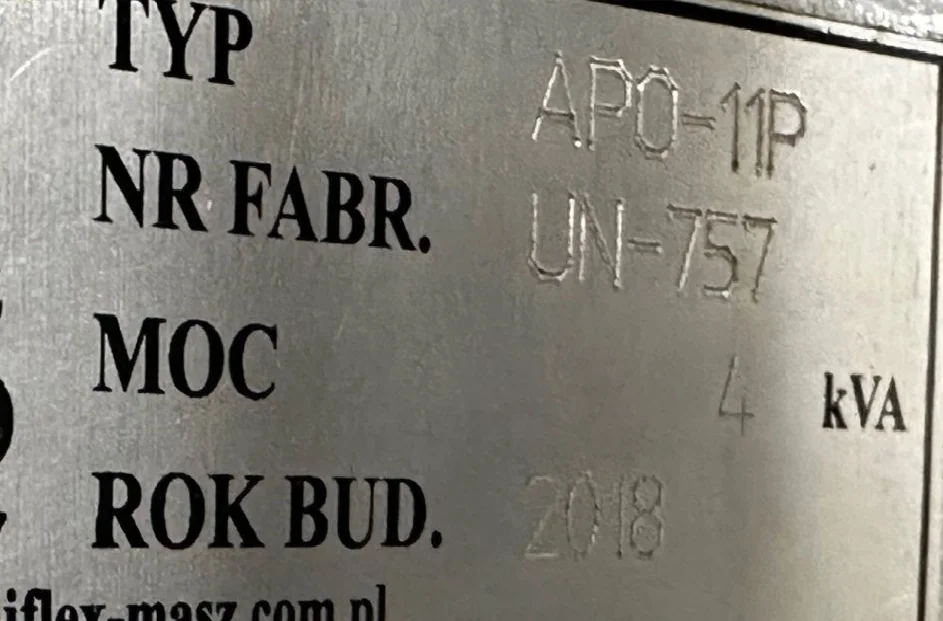

Manufacturer: Miflex-Masz
Model: APO-11P-90
Category: Tea Equipment
Year: 2018
Status: For Sale
Machine Notes:

Miflex-Masz APO-11P-90 Pyramid Tea bagging Machine

Year 2018

PYRAMID TEA PACKING MACHINE (up to 100bpm)
+ OUTER ENVELOPE MACHINE - KH-400 (up to 80bpm)

The line includes the following:
1. Model # APO 11 P - Miflex automatic Pyramid Tea bag machine(8 load cell-weighing system). (60 mm x 60 mm – standard size)

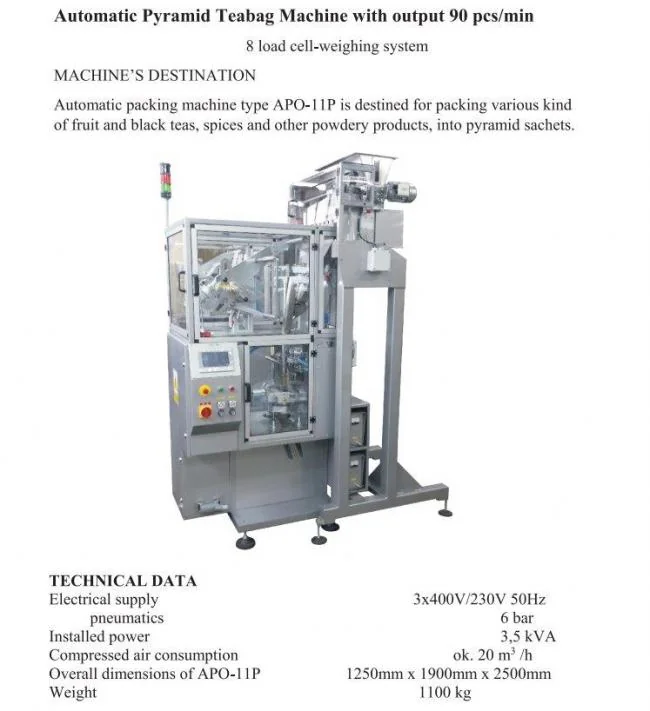

PYRAMID MACHINE – MIFLEX MODEL # APO-11P
The Pyramid Tea bag machine MIFLEX model # APO 11P is a high performance tea bag packing machine capable of producing a triangular and a rectangular Teabag with or without heat sealed outer envelope.

Technical data:
Electrical supply -    3x400V/230V 50Hz
Pneumatics     6 bar
Installed power    3,5 kVA
Compressed air consumption -                         2,5 m3 /h
Overall dimensions of APO-11P -    2000mm x 2500mm x 3500mm
Weight:      1100 kg
No. of Staff required to operate:             1 person
Packing material: Nylon, PLA, other ultrasonic sealed
Width of packing material 140mm max.
Diameter of material reel 500mm
Reel core diameter:      75mm
No. of reels installed on machine :         1 reel
Dimensions of bag with tag and thread: 60mm x 60mm

Product:
Tea or fruit tea with fraction dimensions:           12 – 15 mm
Bag's weight    from 2 to max. 4gram
Max. Volume of product 25cm³

Efficiency: Output - max. 100 Pcs/min

(Depending on the type of teas and materials used)

Construction:
All components of Pyramid machine APO-11P are placed on self-supporting steel frame covered by protections. All machine elements having direct contact with packed product are made of materials approved by the State Institute of Hygiene (PZH).
All components are easy for cleaning.
This machine is equipped with an ultrasonic sealing and cutting system, and with a variable adjustment of speed.

The basic sub-assemblies APO-11-P Pyramid machine:
• Packing material unwinder
• Guide rolls
• Seam molding system
• Vertical ultrasonic sealing system
• Horizontal ultrasonic sealing syste
• Main drive with regulation of working speed : 10-100 cycle/ min.
• 8 load cell-weight dosing system
• control cabinet

Accessories:
1. Control
• PCD - SAIA Swiss company
• sensors
• visualization of error conditions
2. Pneumatics by 'METAL WORK' company
3. Mechanic and pneumatic drives
4. Variable adjustment of speed
5. Moved elements protected by guards
6. CD - machine program

Protective system – residual current operated protection device.

Mechanical protection – guards.

Working conditions – general-purpose production room

Location: North America

Please contact us for further details.
Video:

Essex, United Kingdom

5,774 km away

Product Specifications

Manufacturer: Miflex-Masz Model: APO-11P-90 Category: Tea Equipment Year: 2018 Status: For Sale Machine Notes: Machine Notes Miflex-Masz APO-11P-90 Pyramid Tea bagging Machine: Miflex-Masz APO-11P-90 Pyramid Tea bagging Machine Year 2018: PYRAMID TEA PACKING MACHINE (up to 100bpm)+ OUTER ENVELOPE MACHINE - KH-400 (up to 80bpm) The line includes the following: 1. Model # APO 11 P - Miflex automatic Pyramid Tea bag machine(8 load cell-weighing system). (60 mm x 60 mm – standard size) PYRAMID MACHINE – MIFLEX MODEL # APO-11P: The Pyramid Tea bag machine MIFLEX model # APO 11P is a high performance tea bag packing machine capable of producing a triangular and a rectangular Teabag with or without heat sealed outer envelope. Technical data: Electrical supply - 3x400V/230V 50HzPneumatics 6 barInstalled power 3,5 kVA Product: Tea or fruit tea with fraction dimensions: 12 – 15 mmBag's weight from 2 to max. 4gramMax. Volume of product 25cm³ Efficiency: Output - max. 100 Pcs/min (Depending on the type of teas and materials used) Construction: All components of Pyramid machine APO-11P are placed on self-supporting steel frame covered by protections. All machine elements having direct contact with packed product are made of materials approved by the State Institute of Hygiene (PZH). Accessories: 1. Control • PCD - SAIA Swiss company • sensors• visualization of error conditions 2. Pneumatics by 'METAL WORK' company 3. Mechanic and pneumatic drives 4. Variable adjustment of speed Please contact us for further details.: Video: Please enter your email address in the box below and we will send you the details of this machine. By ticking the following consent opt-in box, you are confirming that you consent to us storing your email address in our database to be used as described in our Privacy Policy. I confirm consent

Stock Number

1864

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Packaging of loose leaf tea and herbal infusions into pyramid or rectangular tea bags.
Production of individually sealed tea bags for retail or catering.
Automated bagging of granular food products requiring precise dosing.
Processing of specialty teas where product visibility and infusion quality are paramount.

Typical Specifications

Typical capacity: For this class of equipment, output can range from 60 to 100 bags per minute, depending on product and bag size.
Power supply: Commonly requires a 3-phase electrical supply, typically 400V/230V, 50Hz, with an installed power of around 3.5 kVA.
Pneumatic requirements: Units of this type typically require a compressed air supply of 6 bar, with consumption around 2.5 m³/h.
Bag types: Capable of producing both pyramid and rectangular tea bags, often with or without an outer heat-sealed envelope.
Weighing system: Often features a multi-head load cell weighing system for accurate product dosing.
Footprint: A machine of this specification commonly has overall dimensions around 2000mm x 1500mm x 2500mm (L x W x H), though this can vary.
