What type of mixing bowls can this dumper accommodate?

This class of dumper is typically designed for specific industrial mixing bowl types, such as Hobart 140-quart bowls. Buyers should verify compatibility with their existing bowls.

Is this dumper suitable for washdown environments?

Units constructed from Grade 304 stainless steel with IP65 rated control panels are generally designed to withstand regular washdown procedures in food processing facilities.

What are the typical safety features of a mixing bowl dumper?

Common safety features include 'hold to run' controls, upper and lower limit switches, and mechanical safety latches to prevent uncontrolled descent in case of chain failure. Compliance with PUWER is standard in the UK.

Can the discharge height be adjusted?

While some units offer fine adjustment, the primary discharge height is usually fixed during manufacturing. Buyers should confirm if the listed unit has adjustable height capabilities.

What maintenance is typically required for this equipment?

Routine maintenance commonly involves checking the lift chain tension, lubricating moving parts, inspecting electrical connections, and ensuring limit switches function correctly. Regular cleaning is also essential.

Does this equipment require special installation?

Single pillar dumpers often require secure floor mounting to ensure stability during operation. Electrical connection to a suitable 3-phase supply will also be necessary.

Mixing Bowl Dumper - Lifting & Tipping, photo 1

Mixing Bowl Dumper - Lifting & Tipping, photo 2

Mixing Bowl Dumper - Lifting & Tipping, photo 3

Mixing Bowl Dumper - Lifting & Tipping, photo 4

Mixing Bowl Dumper - Lifting & Tipping, photo 5

Mixing Bowl Dumper - Lifting & Tipping, photo 6

Available

Verified seller

Base Handling Ltd - Mixing Bowl Dumper

Name: Mixing Bowl Dumper
Brand: Base Handling Ltd
SKU: BTM/200/1200/M

Price: Contact seller for price

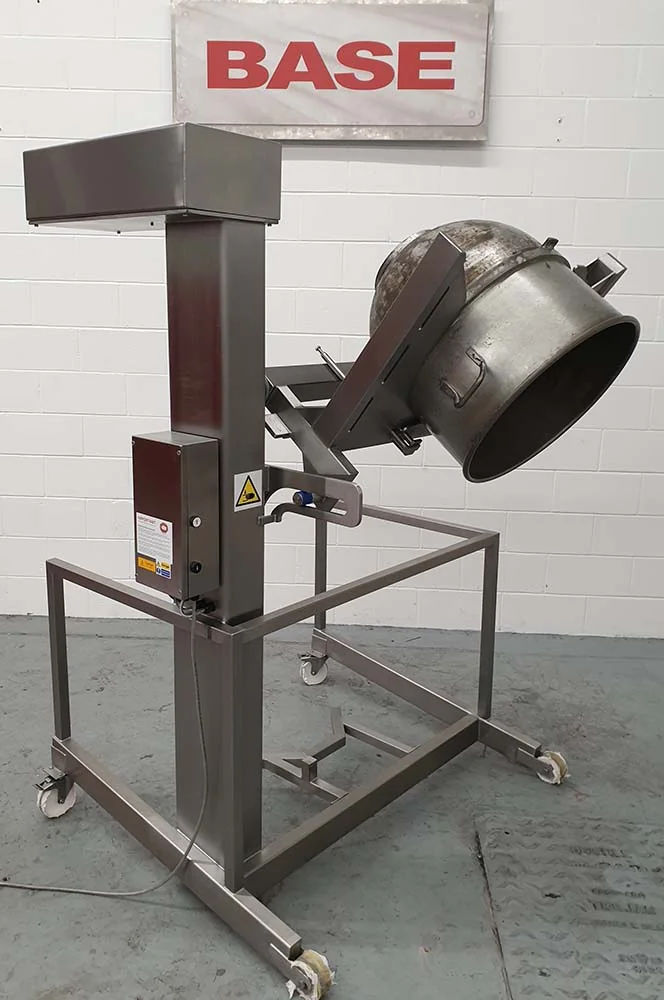

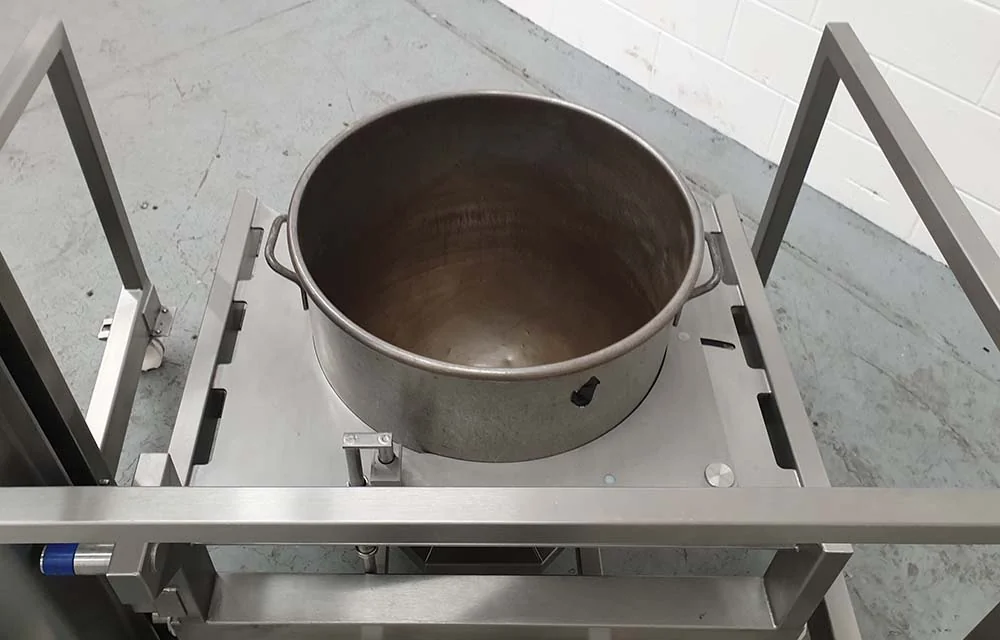

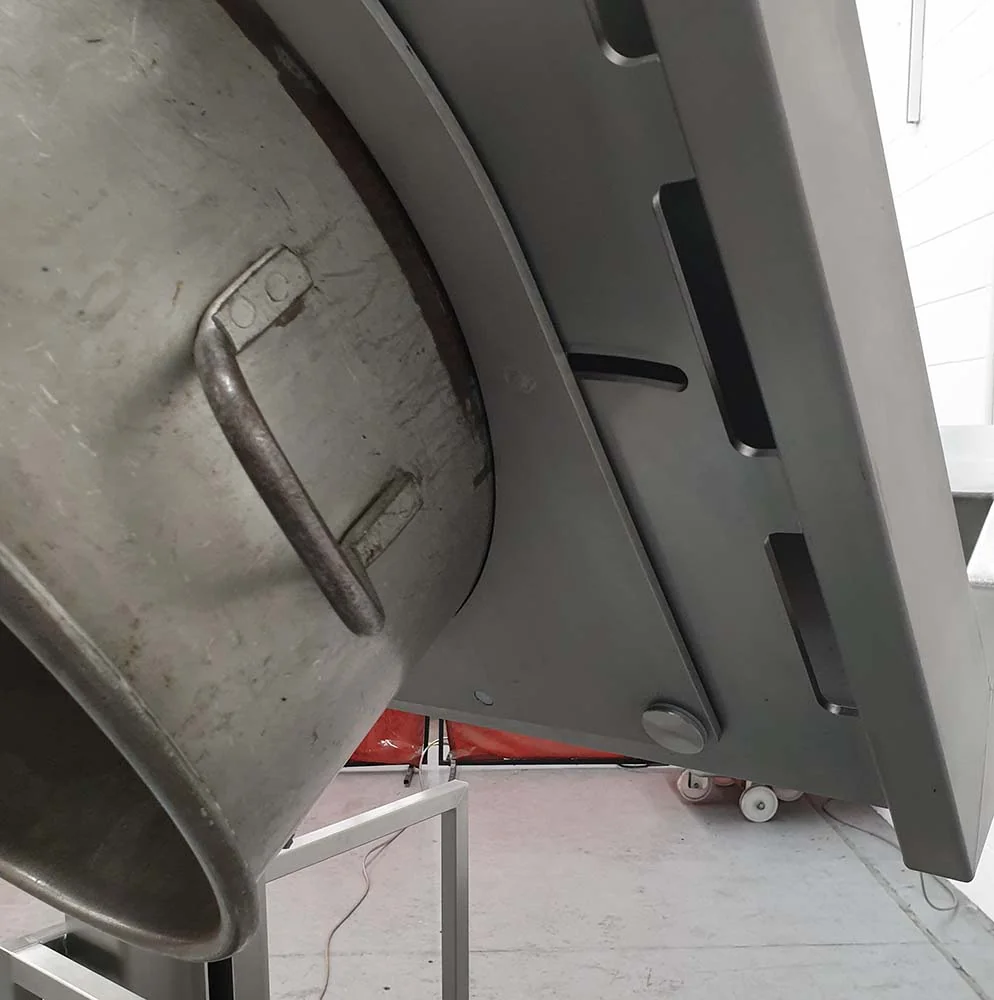

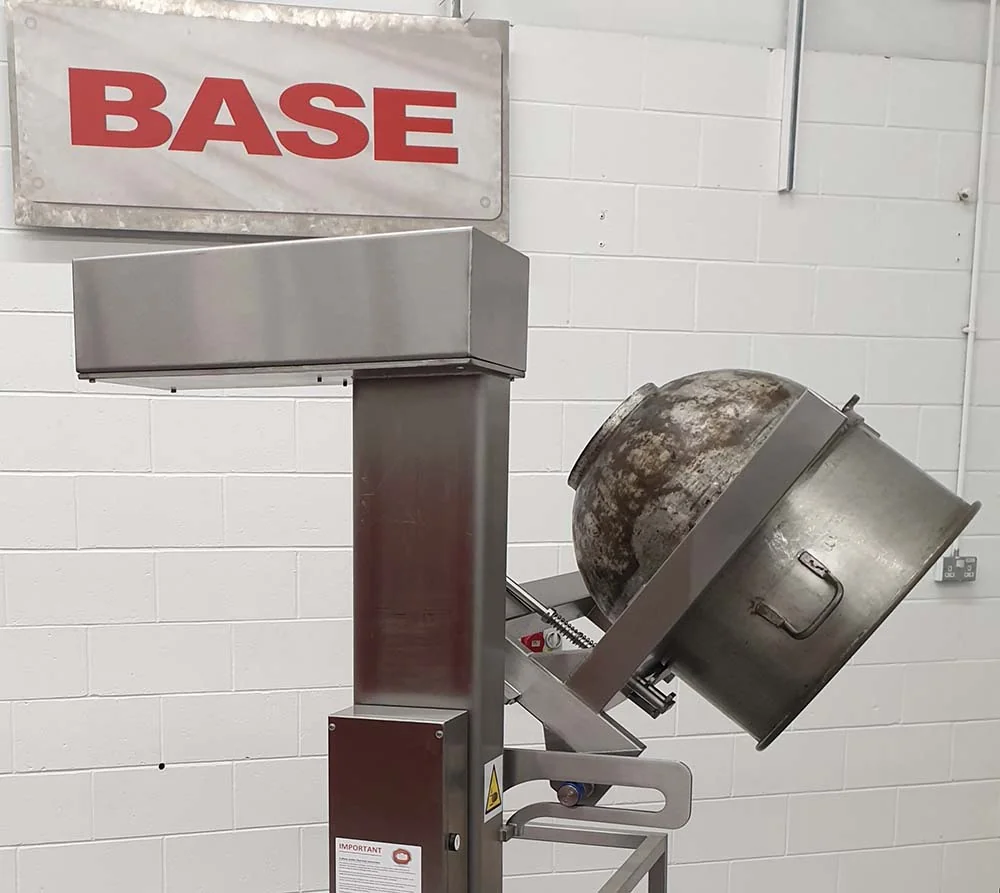

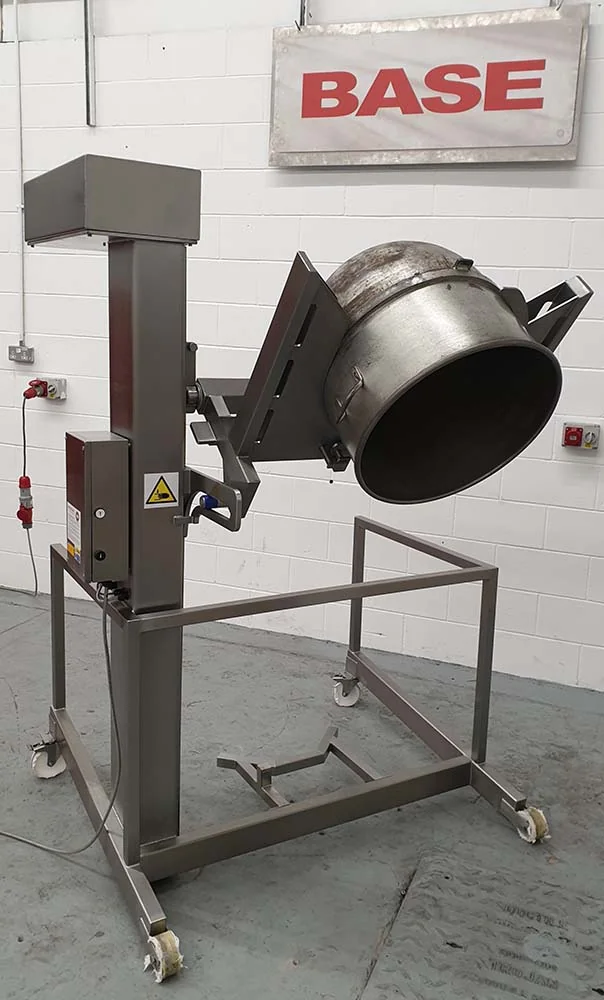

BTM/200/1200/M Single Pillar Mixing Bowl Dumper

This Single Pillar Mixing Bowl Dumper is designed to lift and tip a 140 Quart Hobart Mixing Bowl at a discharge height of 1200mm. The Mixing Bowl Dumper is manufactured from Grade 304 stainless steel and is a welded construction throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Mixing Bowl Dumper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Mixing Bowl Dumper Electrical Control

This Mixing Bowl Dumper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The unguarded Mixing Bowl Dumper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Mixing Bowl Dumper to operate. As soon as either button is released, the Mixing Bowl Dumper will stop. This will allow the operators to stop the tipping action at any angle for tipping into the Plastic Trays. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Mixing Bowl Dumper

Model No.

BTM/200/1200/M

Capacity

200 Kgs

Overall Height

2135mm

Machine Handing

Right Hand

Maximum Headroom

2500mm

Tipping Chute

Container Description

140 Quart Hobart Mixing Bowl

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Tip Height

1200mm

Tip Angle

130 Degrees

Load/Tension Chain

¾” Simplex

Stock Number

BTM/200/1200/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from large mixing bowls into smaller containers or processing lines.
Loading dough or batter into hoppers for further processing such as dividing or depositing.
Ergonomically emptying heavy mixing bowls to reduce manual handling risks in bakeries and food production.
Feeding product into packaging machinery or conveyor systems after mixing.
Integrating into automated production lines for consistent material flow.

Typical Specifications

Typical capacity: Designed for standard industrial mixing bowls, commonly 140-quart (approx. 132-litre) capacity, but units for other sizes are available.
Discharge height: Typically around 1200mm, adjustable on some models to suit various receiving equipment.
Construction material: Commonly Grade 304 stainless steel, suitable for food contact and washdown environments.
Lifting mechanism: Often a chain-driven system via a motor gearbox, providing robust and controlled lifting.
Safety features: Units typically include safety latches for chain failure and 'hold to run' controls to prevent accidental operation.
Power supply: Commonly 3-phase industrial power, with voltage specific to regional standards (e.g., 400V in the UK).
Control system: Typically features an IP65 rated stainless steel control panel, offering protection against dust and water jets.
Footprint: Single pillar designs offer a relatively compact footprint for their lifting capacity.
