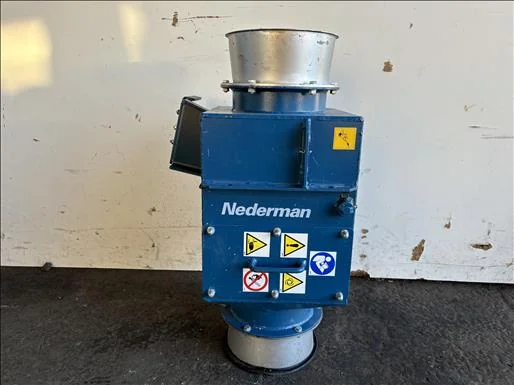

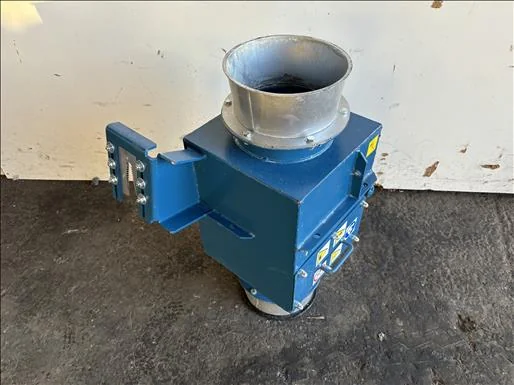

Nederman CARZ FL200 Explosion Isolation Flap Valve

Applications & Use Cases

• Used in pneumatic conveying systems to prevent explosion propagation.
• Installed in dust extraction lines handling combustible materials.
• Integrated into filtration systems for fine particulate matter.
• Deployed in material handling processes where dust explosions are a risk.

Typical Specifications

Typical connection diameter

For this model (FL200), it typically refers to a 200mm nominal bore for ducting.

Explosion pressure resistance

Units of this type are commonly designed to withstand explosion pressures up to 15 bar.

Activation mechanism

These are passive devices, activating automatically upon an explosion pressure wave.

Material construction

Typically constructed from robust steel, suitable for industrial environments.

Installation orientation

Commonly installed horizontally in ducting, requiring specific upstream/downstream clearances.

Certifications

Units of this class are typically ATEX certified for use in potentially explosive atmospheres.

Frequently Asked Questions

• What is an explosion isolation flap valve?

  It is a passive safety device designed to prevent the propagation of an explosion from one part of a process system to another, typically in dust extraction or pneumatic conveying lines.

• How does this type of valve work?

• Is this valve suitable for all types of dust?

• What maintenance is required for an explosion isolation flap valve?

• Can this valve be reset after an explosion?
