What type of bins can this washer accommodate?

This unit is designed for standard stainless steel bins. Buyers should confirm the exact dimensions and capacity of their bins with the seller to ensure compatibility.

What are the power requirements for a pneumatic bin washer?

Pneumatic bin washers require a compressed air supply for operation. Buyers should verify the specific air pressure and flow requirements with the seller.

Is this unit suitable for outdoor installation?

While constructed from stainless steel, the suitability for outdoor installation depends on environmental factors and specific IP ratings of electrical components. It is generally recommended for indoor use unless specified otherwise.

What safety features are typically included?

Units commonly feature 'dead man's handle' controls, requiring continuous operator input. Buyers should inquire about any additional safety guards or interlocks.

What maintenance is required for a pneumatic bin washer?

Routine maintenance typically involves checking pneumatic lines and cylinders, lubricating moving parts, and ensuring the structural integrity of the frame. Specific schedules should be obtained from the manufacturer or seller.

Can this bin washer be integrated into an automated cleaning line?

While this unit features manual 'dead man's handle' controls, some pneumatic bin washers can be integrated into automated systems. Buyers should discuss their specific automation requirements with the seller.

Pneumatic Bin Washer - Washing & Sanitizing Equipment, photo 1

Pneumatic Bin Washer - Washing & Sanitizing Equipment, photo 2

Pneumatic Bin Washer - Washing & Sanitizing Equipment, photo 3

Pneumatic Bin Washer - Washing & Sanitizing Equipment, photo 4

Pneumatic Bin Washer - Washing & Sanitizing Equipment, photo 5

Pneumatic Bin Washer - Washing & Sanitizing Equipment, photo 6

Pneumatic Bin Washer - Washing & Sanitizing Equipment

Available

Verified seller

Pneumatic Bin Washer

Name: Pneumatic Bin Washer
SKU: BTP/200/1000/B
Availability: InStock

Price: Contact seller for price

BTP/200/1000/B Pneumatic Bin Washer

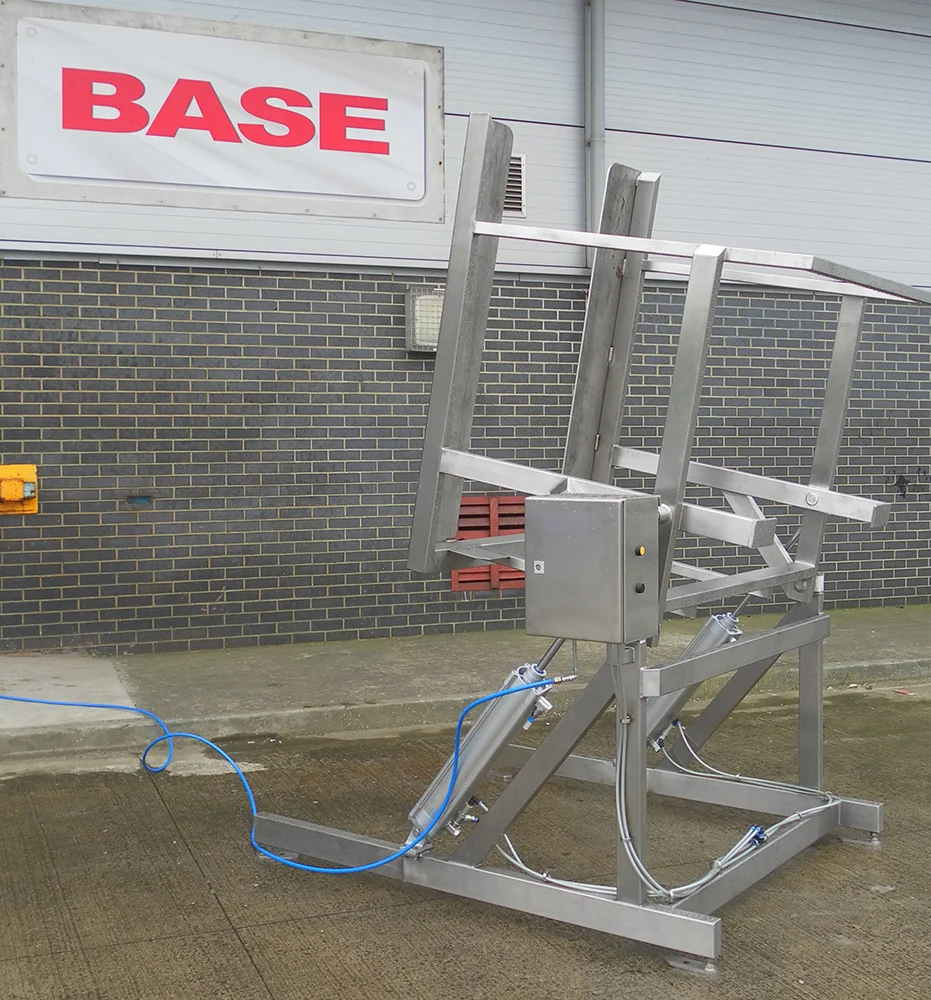

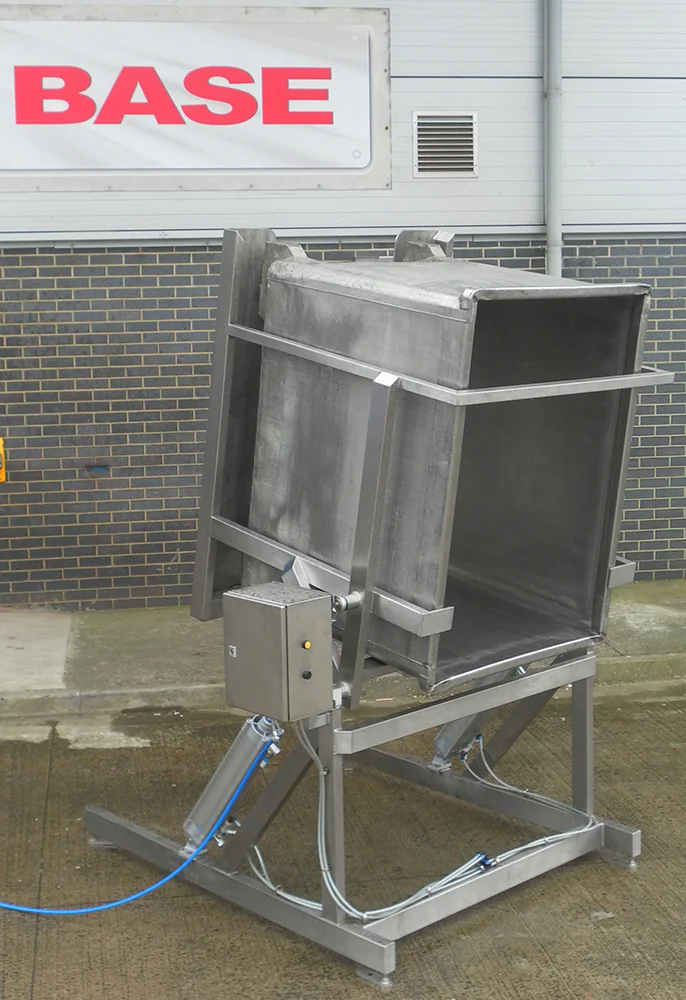

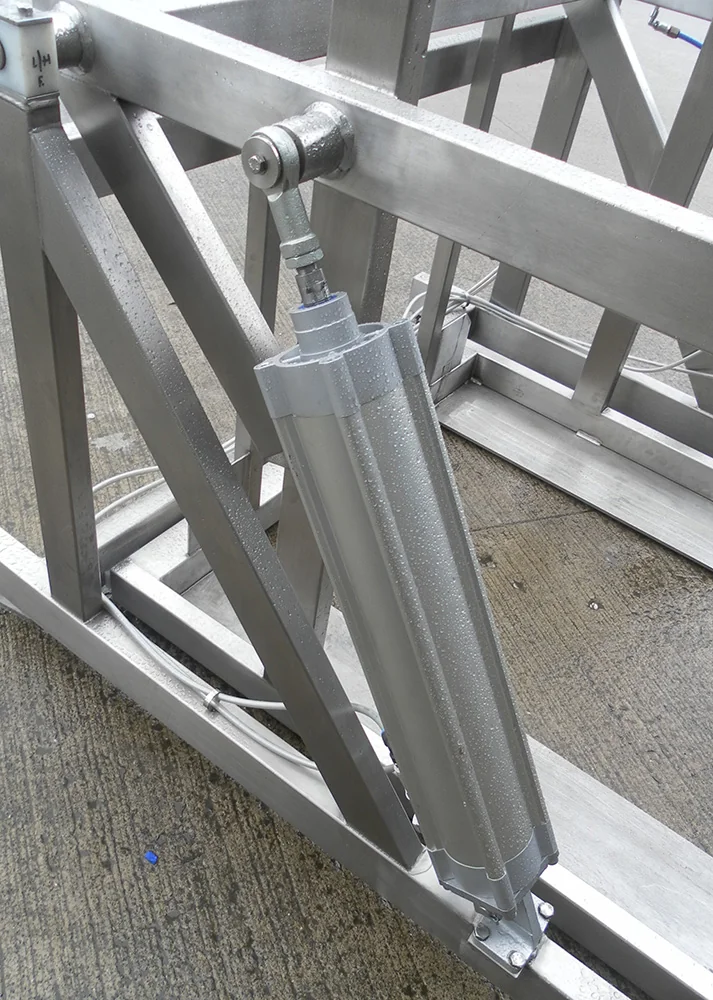

This Pneumatic Bin Washer is designed to lift and tip your Stainless Steel Bins so that the edge of the bin in the tipped position is 1000mm off the floor and the bin is tipped 10 degrees past the horizontal. This will allow both the inside and the outside of the bin to be pressure washed. The Pneumatic Bin Washer is constructed from Grade 304 stainless steel, is a fully TIG welded construction throughout and would be bolted to the floor. This pneumatic bin washer would be powered pneumatically and the bin would be tipped over by a pair of pneumatic cylinders to an angle of 10 degrees past the horizontal.

Pneumatic Bin Washer Control

This Pneumatic Bin Washer is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame. The unguarded Pneumatic Bin Washer has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the pneumatic bin washer to operate. As soon as the button is released, the Pneumatic Bin Washer will stop.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Pneumatic Bin Washer

Model No.

BTP/200/1000/B

Lifting Capacity

200Kgs

Tipping Height

1000mm

Tipping Angle

100 Degrees

Machine Handing

Right Hand

Container Description

Stainless Steel Dolaf Bin

Base Arrangement

Bolted To The Floor

Stock Number

BTP/200/1000/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Cleaning and sanitising standard stainless steel bins in meat processing facilities.
Washing ingredient bins in bakeries and confectionery production.
Maintaining hygiene for waste bins in food preparation areas.
Sanitising bins used for transporting produce in fruit and vegetable processing.
Cleaning bins in pharmaceutical or chemical industries where cross-contamination is a concern.

Typical Specifications

Construction material: Typically Grade 304 stainless steel, fully TIG welded for hygiene and durability.
Power supply: Pneumatically powered, requiring a compressed air supply; control panel typically IP65 rated.
Bin type compatibility: Designed for standard stainless steel bins, often 200L or 300L Eurobins, but buyers should confirm specific bin dimensions with the seller.
Tipping angle: Commonly tips bins beyond horizontal, for this unit specified at 10 degrees past horizontal, to facilitate thorough cleaning.
Tipping height: The tipped bin edge is typically positioned at a height suitable for pressure washing, for this unit specified at 1000mm off the floor.
Control mechanism: Often features 'dead man's handle' controls for operator safety, requiring continuous button press for operation.
Installation: Units of this type are typically bolted to the floor for stability during operation.

Frequently Asked Questions

This unit is designed for standard stainless steel bins. Buyers should confirm the exact dimensions and capacity of their bins with the seller to ensure compatibility.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
