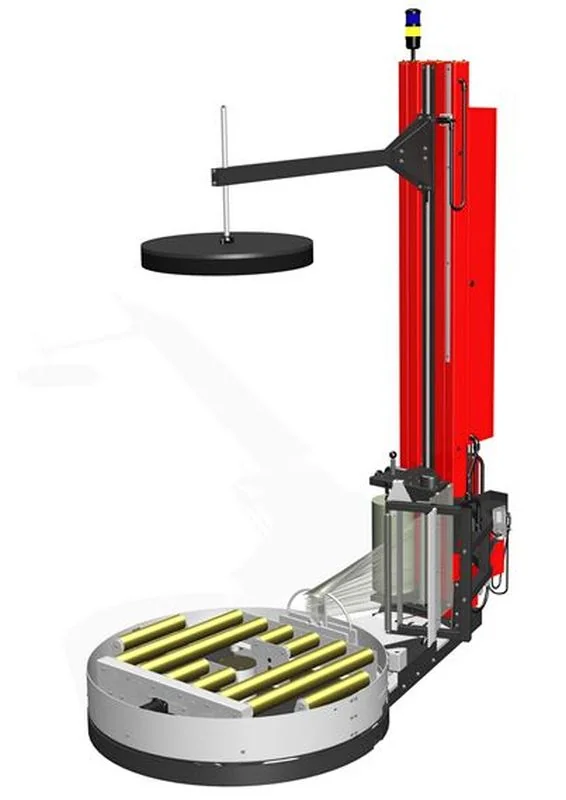

PW1200

Specifications PW-) PW-) Pallet load dimensions Max. length (mm) Max. width (mm) Max height (mm) Min. height (mm) 345 345 Max. pallet load (kg) Machine dimensions Length (mm) Width (mm) Height (mm) Min. height above floor (mm) 350 350 Film roll dimension (mm) Length max. 440-520, outer diameter max. 400, inner diameter 76. Capacity Max. 35 pallets per hour. Electric specifications 3 x 400 V 50 Hz, power consumption 1.0 kW, control voltage 24 V. Air 11,5 l at 6 bar per cycle. Surface treatment All parts are powder coated or electro-galvanised. Colours Red RAL 2002, black RAL 9005 (available in other colours against an additional price). Subject to alteration.
