What types of items can this side pusher handle?

This equipment is designed to handle various types of rigid cases, cartons, and trays. It is suitable for items with a flat base that can be conveyed on rollers.

Is this unit suitable for food contact applications?

While used in industrial settings, specific suitability for direct food contact would depend on the materials of construction and any relevant certifications. Buyers should verify with the seller if this is a requirement.

Can the direction of push be changed?

Yes, units of this type are typically designed for easy reversal of the transport direction by adjusting the pusher bar and motor rotation.

What kind of conveyor system does it integrate with?

This side pusher is designed to integrate with driven roller conveyors, commonly using standard coupling fittings for seamless connection.

What maintenance is typically required for a side pusher?

Routine maintenance usually involves checking motor function, roller condition, and ensuring the pusher 'fingers' move freely. Regular cleaning and lubrication of moving parts are also common.

used Equipment

Available

Verified seller

/images/stories/virtuemart/product/DG00083.jpg - SP-502

Name: SP-502
Brand: /images/stories/virtuemart/product/DG00083.jpg
SKU: DG00059
Availability: InStock

Price: Contact seller for price

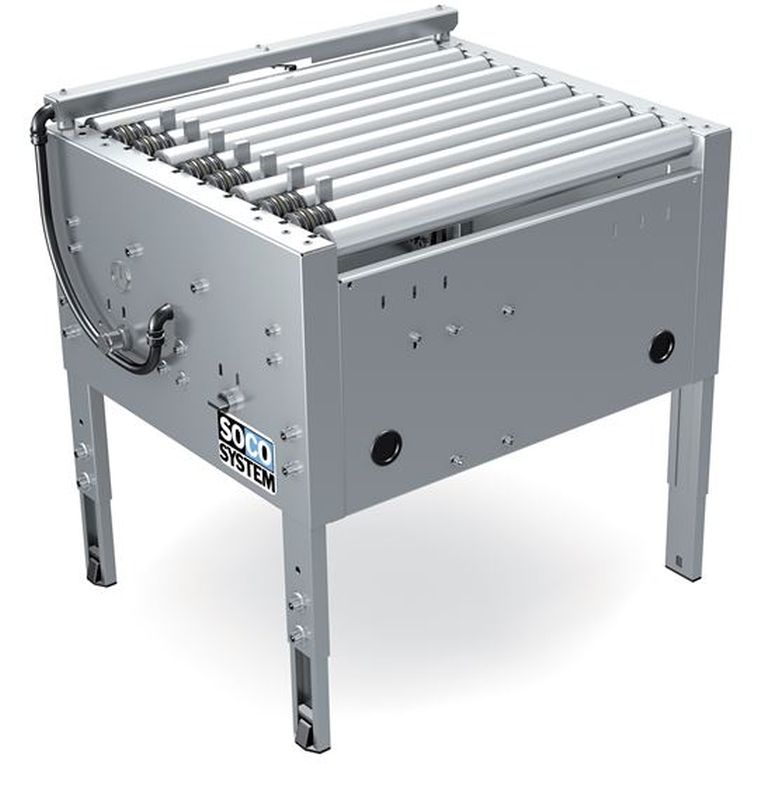

SP-502 side pushers Used to change the transport direction of cases. The items are pushed by means of 'fingers' that are led up between the rollers. The 'fingers' then return to their position under the top edge of the rollers. SP-502 is available in right-hand and left-hand versions. If reversal of the transport direction is required, it is easy to move the bar and to change the rotation of the motor. Roller conveyor: Driven roller conveyor with ? 48 mm rollers. Axle pitch: 62 mm. Transport Speed: 20 m/min. Capacity: 20-25 cases/min. Minimum case height 20 mm. Case weight: Max. 30 kg. Installation dimensions: (LxWxH) 635 mm x 738 mm x min. 580 mm. For connection to conveyors, FM coupling fitting is used

Galway, Ireland

5,966 km away

Stock Number

DG00059

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Diverting cases, cartons, or trays on packaging lines.
Re-routing products in warehousing and distribution centres.
Integrating with existing roller conveyor systems for automated sorting.
Changing product flow direction in manufacturing processes.
Creating merge or diverge points in material handling systems.

Typical Specifications

Typical throughput: For this class of equipment, throughput is commonly around 20-25 cases per minute.
Power supply: Units of this type typically operate on standard industrial voltages, commonly 400V 3-phase, but buyers should confirm with the seller.
Suitable item weight: These systems are generally designed for items up to 30 kg.
Minimum item height: A minimum item height of approximately 20 mm is typically required for effective operation.
Typical transport speed: Conveyor speeds for side pushers are commonly around 20 metres per minute.
Footprint: Installation dimensions for side pushers are typically compact, often around 600-700 mm in length and width, with adjustable height.

Frequently Asked Questions

This equipment is designed to handle various types of rigid cases, cartons, and trays. It is suitable for items with a flat base that can be conveyed on rollers.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
